BluStream HDMI video down-scaler with Audio Embedder / De-Embedder | SC11HD-V2
Our Blustream SC11HD-V2 is a HDMI 4K scaler, designed for installations with multiple displays that support different maximum video resolutions.
The SC11HD-V2 is ideal for multi-room installations with multiple output resolution requirements.
The SC11HD-V2 supports down-scaling of 4K (inc HDR) video to 1080p and supports HDCP2.2 with advanced EDID management. It also features either de-embedding or embedding audio within the HDMI signal path.
Key Features
• HDMI 4K video scaler
• Supports 4K UHD video input (3840 x 2160 @24/30Hz 4:4:4 with HDR), 3840 x 2160 @ 50/60Hz 4:2:0)
• HDMI output will downscale 4K@24/25/30Hz to 1080p@24/25/30Hz, and 4K@50/60Hz 4:2:0 to 1080p@50/60Hz
• Can be configured to work as either a HDMI audio de-embedder or audio embedder
• HDMI audio de-embedded to both analogue L/R audio and coaxial digital outputs concurrently (2ch PCM only)
• Embed analogue L/R 2ch audio input onto HDMI output
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Advanced EDID management
• HDCP 2.2 support
• CEC and ARC pass through
Box Contents
1 x SC11HD-V2
1 x 5V/1A DC Power Supply
1 x Mounting Kit
1 x User Manual
-
Feature |
Specification |

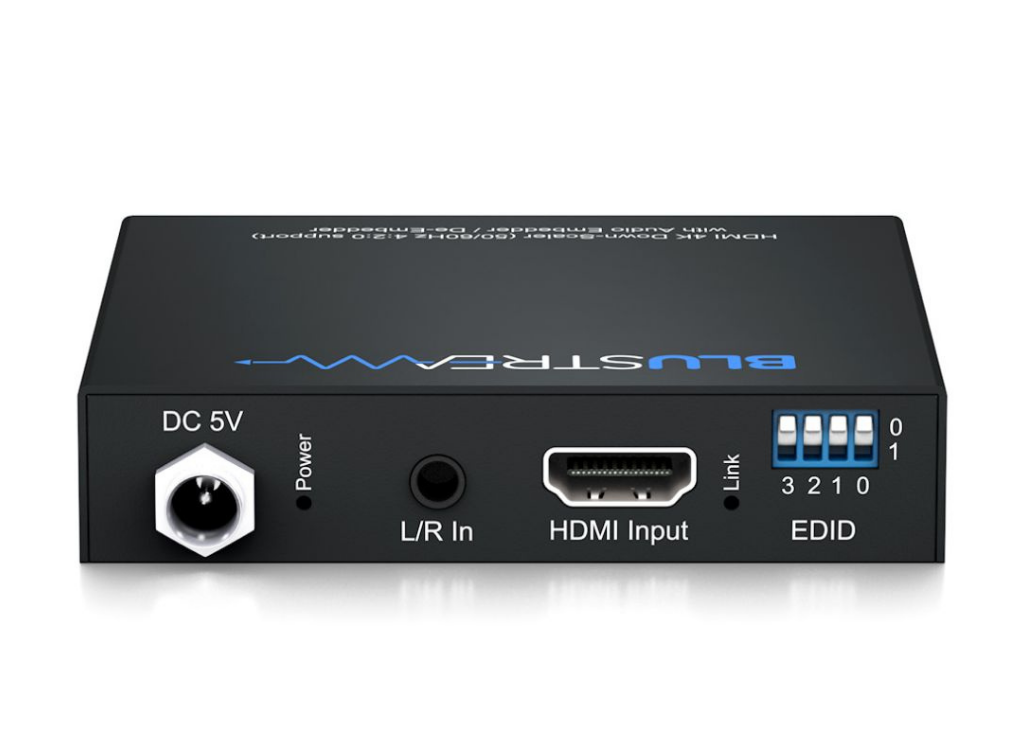

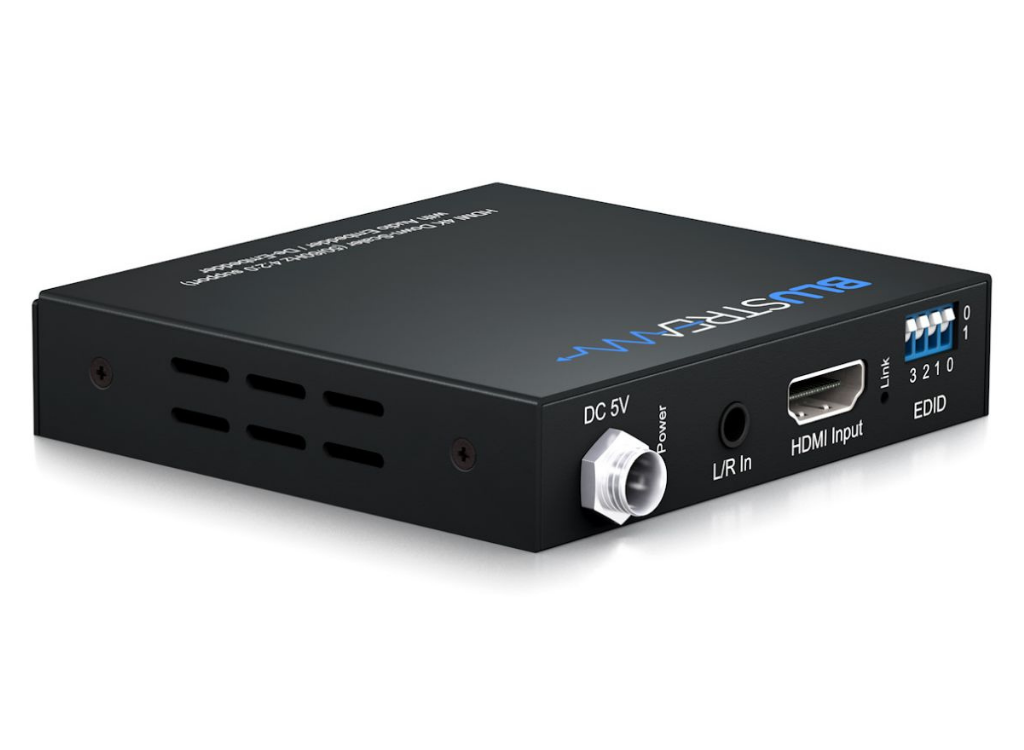

Audio Input Connectors |
1 x Analogue L/R (3.5mm stereo jack) |

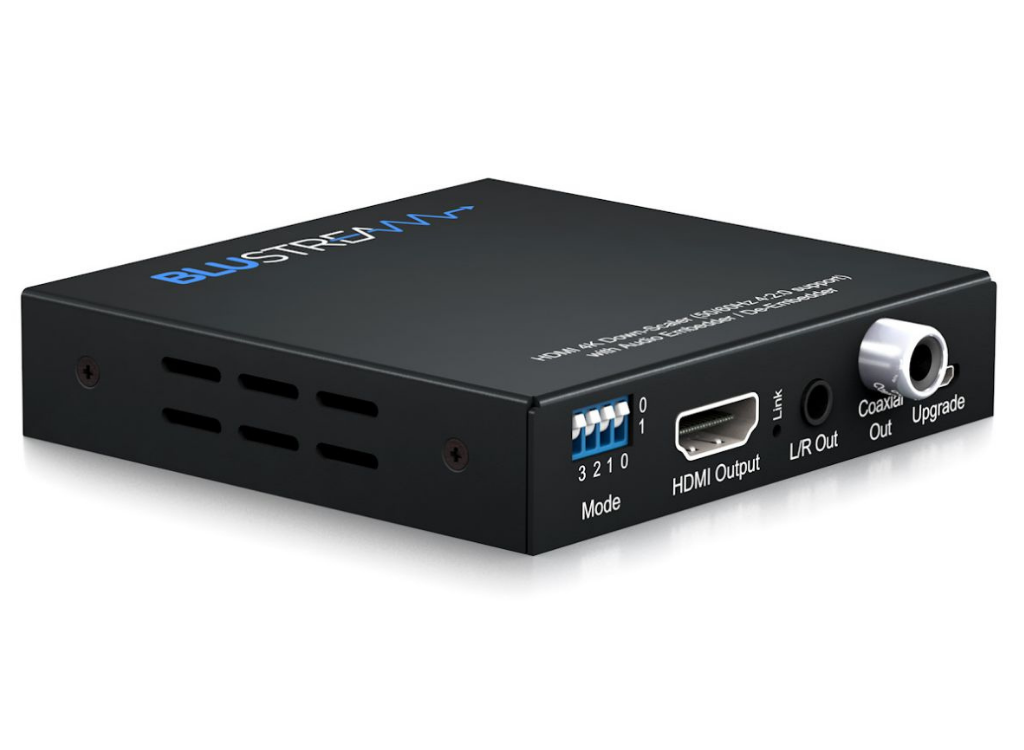

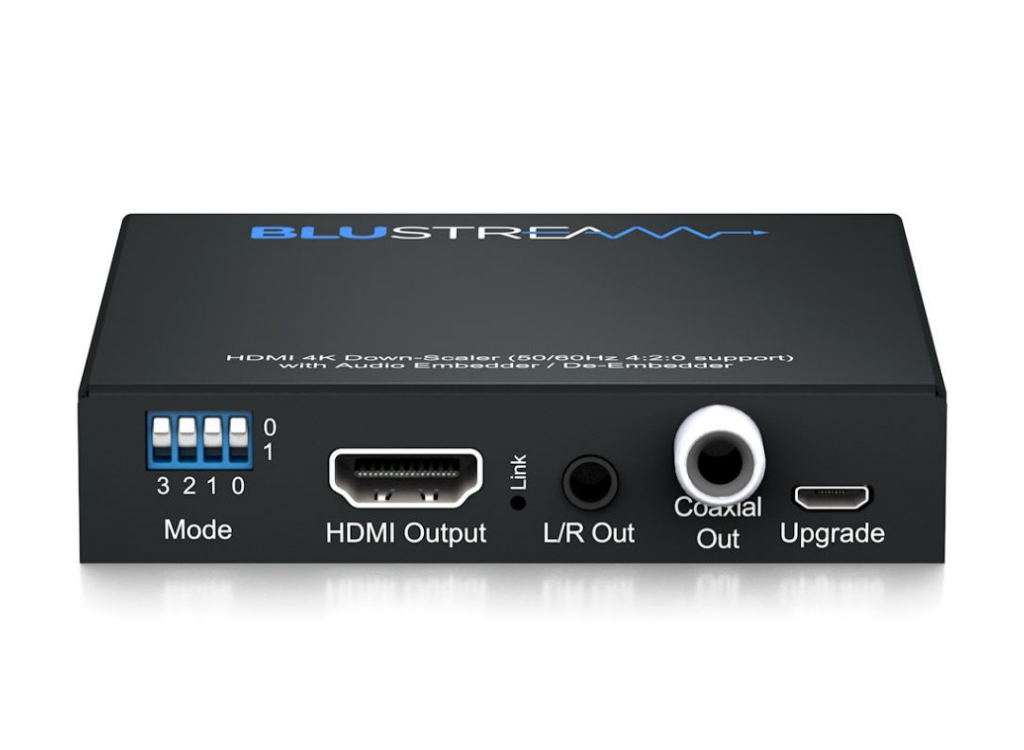

Audio Output Connectors |
1 x RCA (SPDIF) & 1x Analogue L/R (3.5mm jack) |
Video Input Connectors |
1 x HDMI Type A |
Video Output Connectors |
1 x HDMI Type A |
EDID Control |
4-pin DIP switch |
Mode Control |
4-pin DIP switch |
Product Upgrade |
1 x Female Micro USB |
Dimensions (W x H x D) |
83mm x 15mm x 83mm |
Shipping Weight |
0.5kg |
Operating Temperature |
32°F to 104°F (0°C to 40°C) |
Storage Temperature |
-4°F to 140°F (-20°C to 60°C) |
Power Supply |
5V/1A DC |
-
