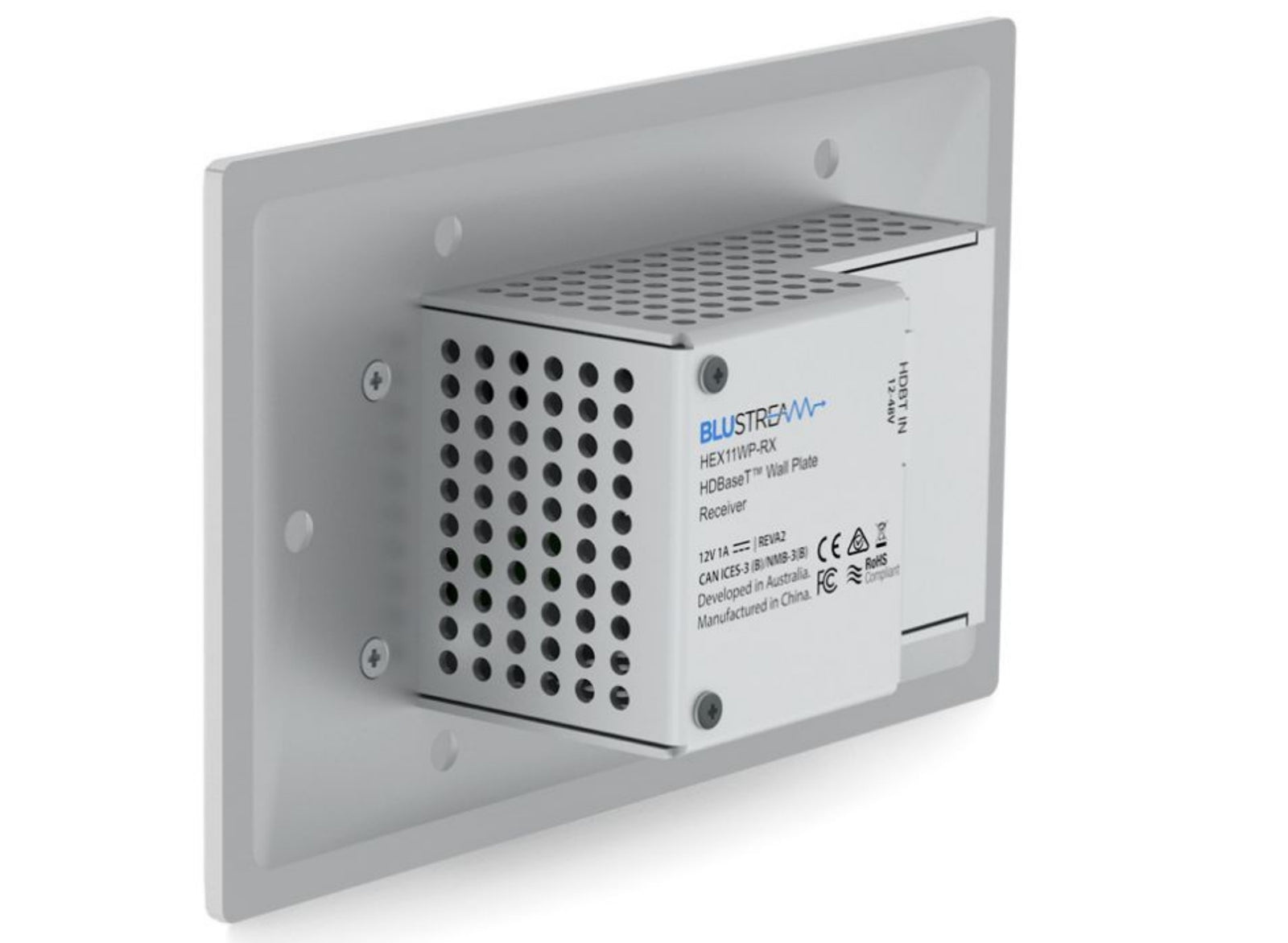

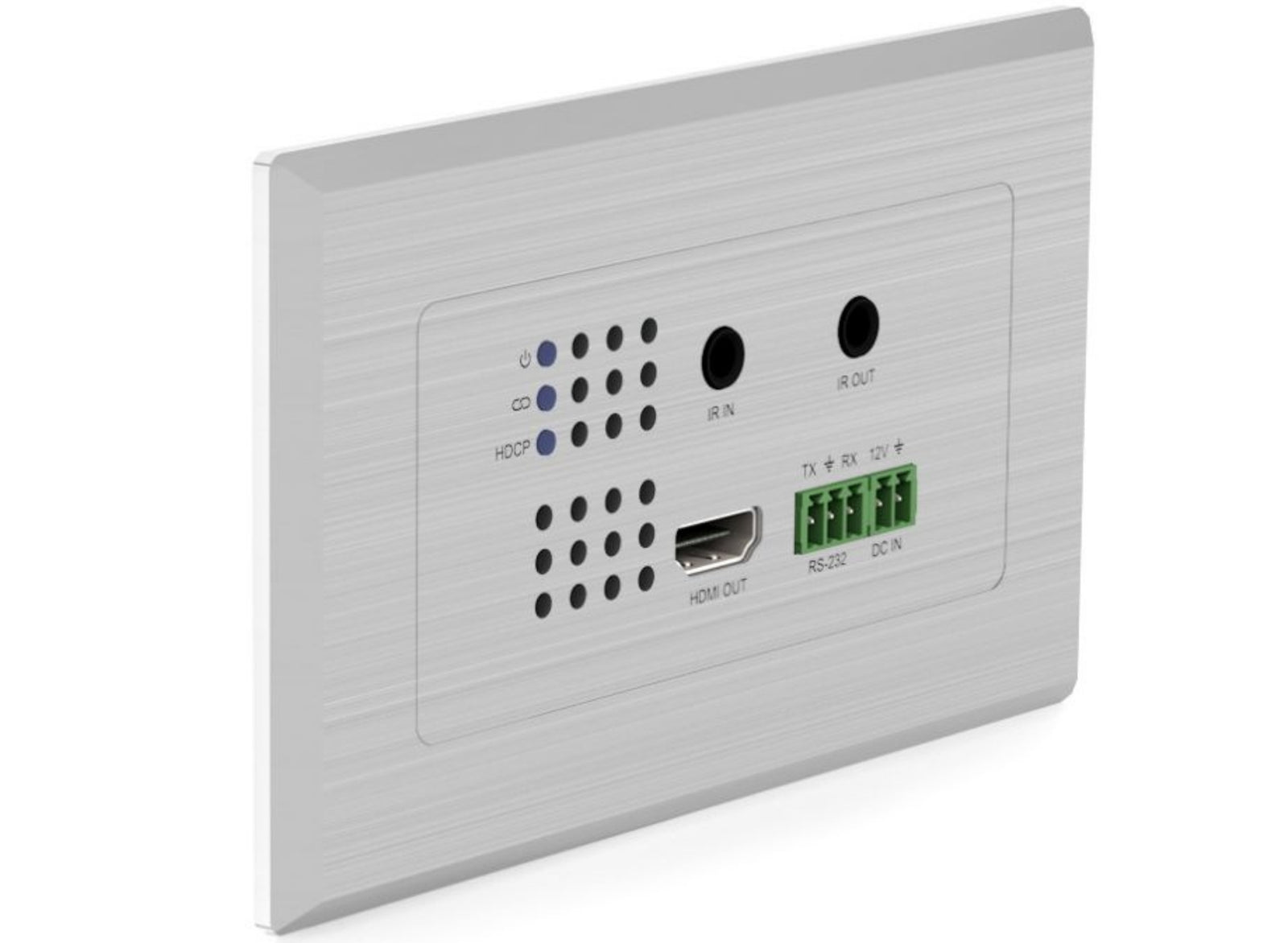

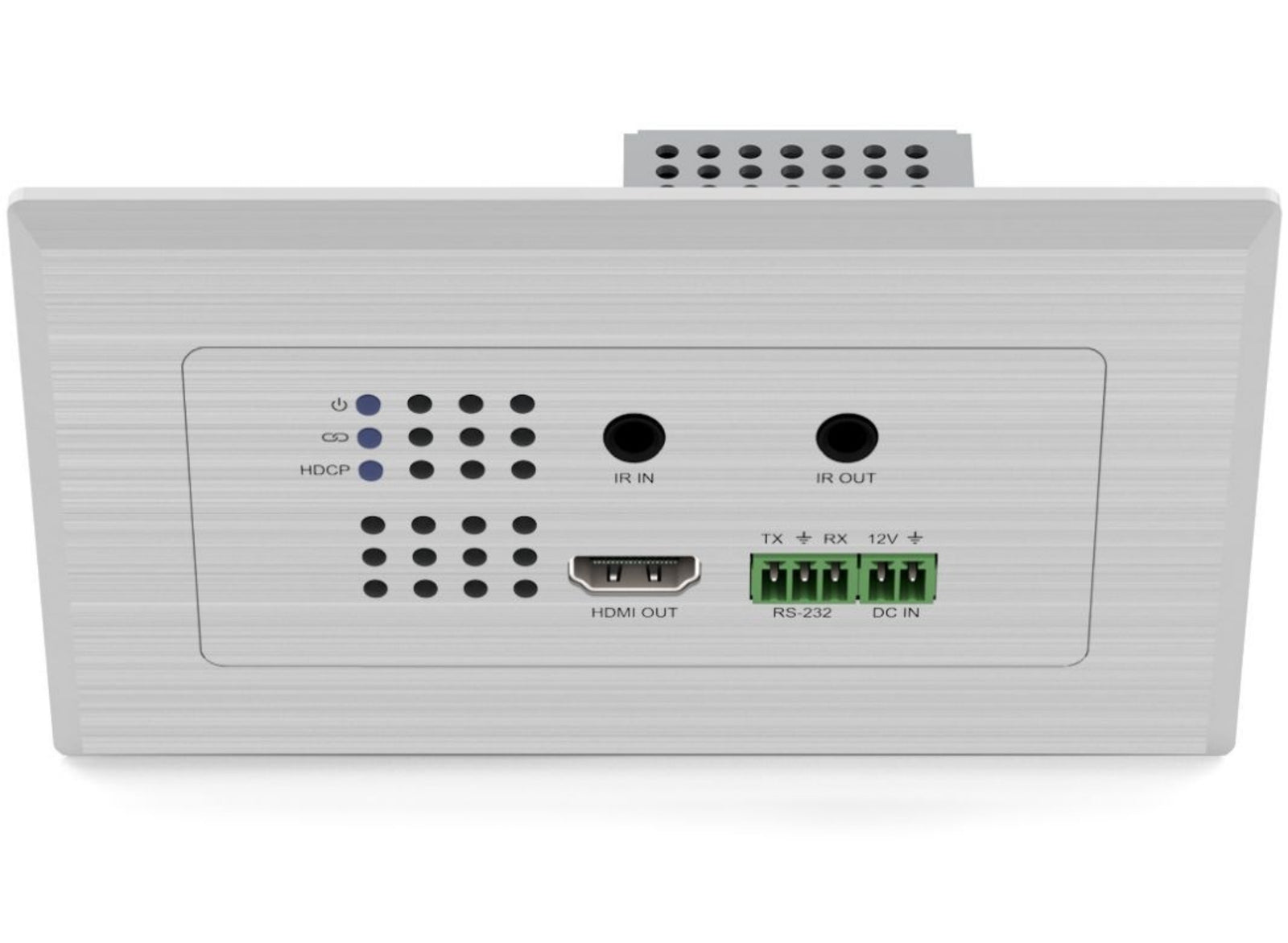

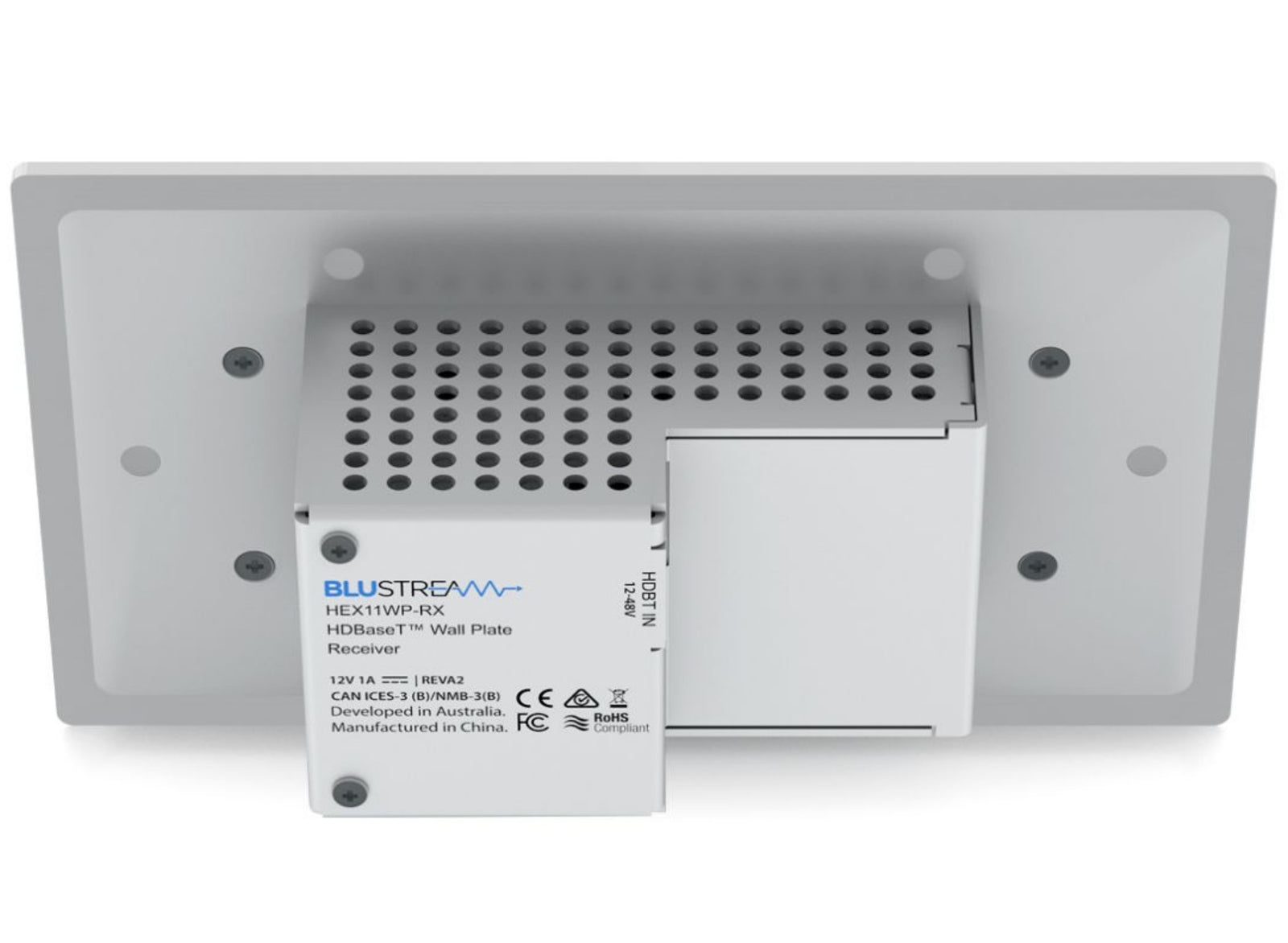

Our HEX11WP-RX HDMI Wall Plate HDBaseT™ receiver is a 4K solution designed to receive HDMI signals up to 70m at 1080p (40m at 4K 60Hz 4:2:0).
The HEX11WP-RX has been designed to work with all Blustream HDBaseT™ transmitter and matrix solutions, be installed in both UK and European backboxes, and can be powered locally or from compatible Blustream HDBaseT™ products.
Key Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Extends HDMI at 1080p up to a distance of 70m
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Supports CEC and RS-232 pass through
Supports bi-directional IR pass-through to compatible HDBaseT™ device
Supports 12V-48V PoC from compatible Blustream HDBaseT™ transmitter / matrix products
Compatible with all Blustream HDBaseT™ transmitter / matrix products*
Magnetic faceplate surround allowing both UK & EU backbox compatibility
HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device.
Box Contents
1 x HEX11WP-RX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate
1 x Quick Reference Guide
| Attribute | Details |
|---|---|
| Video Input | 1 x HDBaseT™ RJ45 connector |
| Video Output | 1 x HDMI Type A, 19-pin, female |
| RS-232 Serial Port | 1 x 3-pin phoenix connector |
| IR Input | 1 x 3.5mm stereo jack |
| IR Output | 1 x 3.5mm mono jack |
| Local Power Input | 1 x 2-pin phoenix connector |
| Casing Dimensions | 136mm x 76mm x 44mm (without faceplate) |
| Faceplate Dimensions | 146mm x 86mm x 6mm |
| Backbox Depth | 40mm (minimum) |
| Shipping Weight | 0.7kg |
| Operating Temp | 32°F to 104°F (-5°C to +55°C) |
| Storage Temp | -4°F to 140°F (-25°C to +70°C) |
| Power Supply | 12V/1A DC |
| Description | Downloads |
|---|---|
| BluStream HDMI Wall Plate HDBaseT™ Receiver | HEX11WP-RX DataSheet | Downloads |
| BluStream HDMI Wall Plate HDBaseT™ Receiver | HEX11WP-RX Schematic | Downloads |
| BluStream HDMI Wall Plate HDBaseT™ Receiver | HEX11WP-RX Compatibility Guide | Downloads |
| BluStream HDMI Wall Plate HDBaseT™ Receiver | HEX11WP-RX Quick Reference Guide | Downloads |
