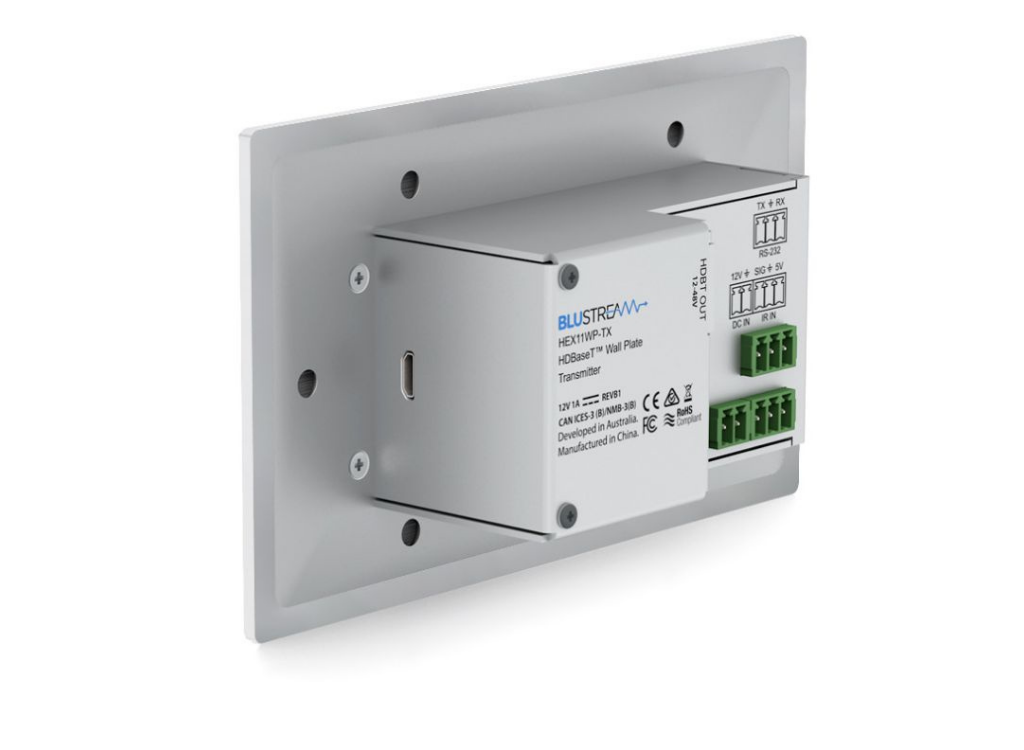

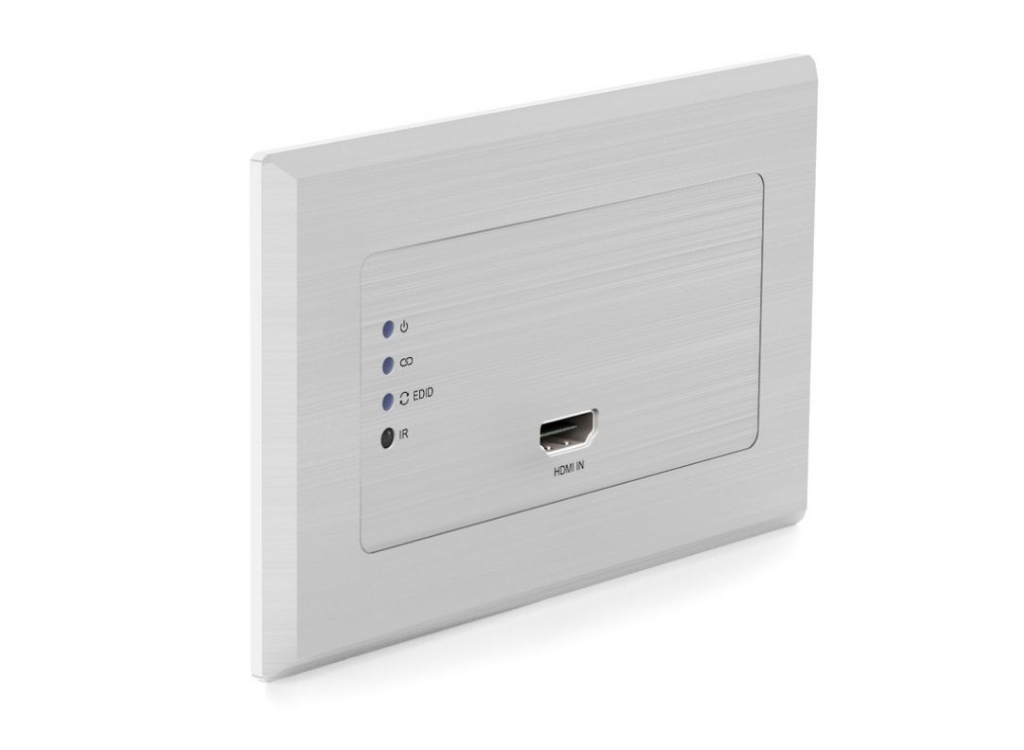

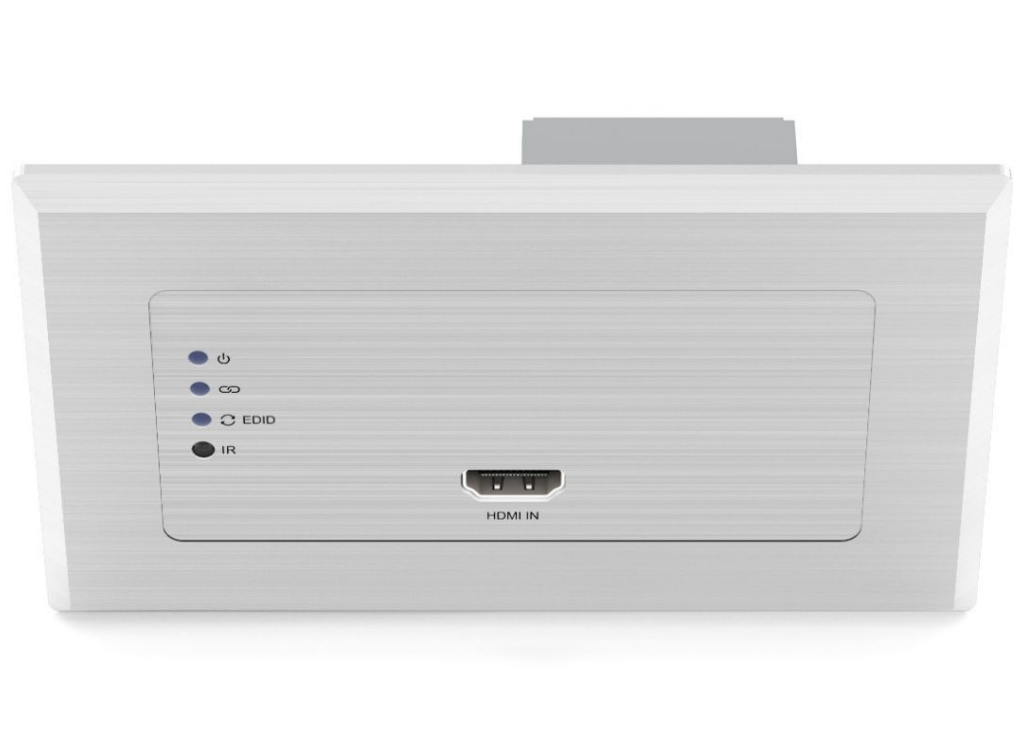

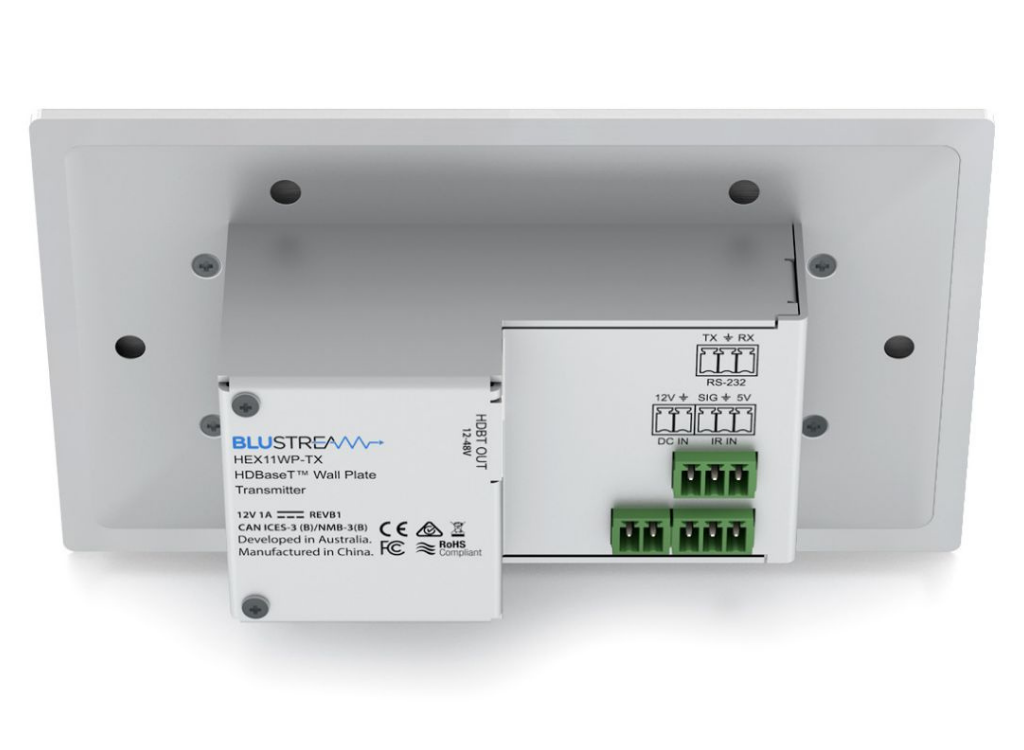

BluStream HDMI Wall Plate HDBaseT™ Transmitter | HEX11WP-TX
SKU: HEX11WP-TX
£274.01 (Excl. VAT)
- Description
- Specifications
- Downloads
-
BluStream HDMI Wall Plate HDBaseT™ Transmitter | HEX11WP-TX
Our HEX11WP-TX HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0).
The HEX11WP-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, can be installed in both UK and European back boxes, and can be powered locally or from compatible Blustream HDBaseT™ products.
Key Features
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
Extends HDMI at 1080p up to a distance of 70m
Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products *
Bi-directional RS-232 pass-through
Supports IR pass-through to HDBaseT™ receiver / matrix device
Compatible with all Blustream HDBaseT™ receiver / matrix products **
Magnetic faceplate surround allowing both UK & EU backbox compatibility
HDCP 2.2 support* When powering the HEX11WP-TX locally, PoC is not passed to a connected HDBaseT™ receiver device until there is an active source HDMI connection
** Technical performance is subject to the features supported on the connected HDBaseT™ deviceBox Contents
1 x HEX11WP-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate surround
1 x Quick Reference Guide -
Feature Specification Video Input Connectors 1 x HDMI Type A, 19-pin, female Video Output Connectors 1 x HDBaseT™ RJ45 connector RS-232 Serial Port 1 x 3-Pin Phoenix connector IR Input Port 1 x 3-Pin Phoenix connector Local Power Input 1 x 2-Pin Phoenix connector Casing Dimensions (without faceplate) 136mm x 76mm x 44mm Casing Dimensions (with faceplate) 146mm x 86mm x 44mm Faceplate Dimensions 146mm x 86mm x 6mm Backbox House Unit Dimensions 78mm x 49mm x 39mm (inside backbox) UK / EU Backbox Mounting Depth 40mm (minimum) - backbox not supplied Shipping Weight 2.1kg Operating Temperature 32°F to 104°F (-5°C to +55°C) Storage Temperature -4°F to 140°F (-25°C to +70°C) Power Supply 12V/1A DC -
Description Downloads Datasheet Downloads
