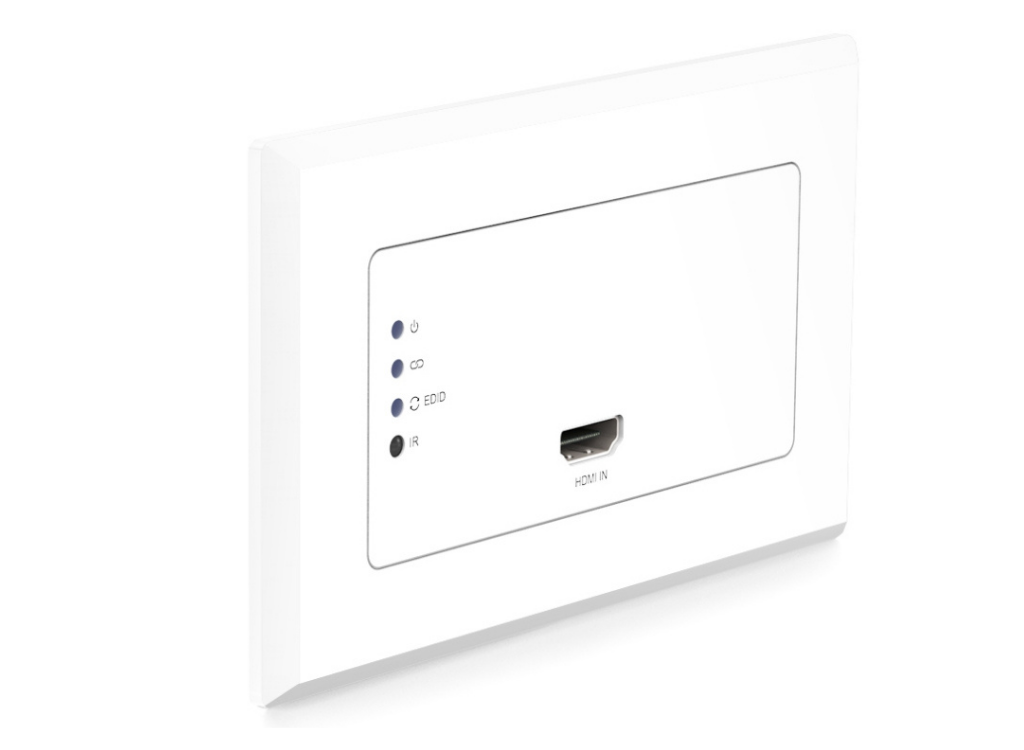

Our HEX11WPW-TX HDMI Wall Plate HDBaseT™ Transmitter is a 4K solution that extends HDMI up to 70m at 1080p (40m 4K 60Hz 4:2:0).
The HEX11WPW-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, can be installed in both UK and European back boxes, and can be powered locally or from compatible Blustream HDBaseT™ products.
Key Features
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Smart EDID function automatically limits EDID to within HDBaseT™ specification to improve compatibility#
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
• Bi-directional RS-232 pass-through
• Supports IR pass-through to HDBaseT™ device
• Compatible with all Blustream HDBaseT™ receiver / matrix products*
• White magnetic faceplate surround allowing for both UK & EU backbox compatibility
• HDCP 2.2 support
*Technical performance is subject to the features supported on the connected HDBaseT™ device.
Box Contents
1 x HEX11WPW-TX
1 x 12V/1A DC Power Supply
1 x Magnetic Faceplate
1 x Quick Reference Guide
| Feature | Specification |
|---|---|
| Video Input Connectors | 1 x HDMI Type A, 19-pin, female |
| Video Output Connectors | 1 x HDBaseT™ RJ45 connector |
| RS-232 Serial Port | 1 x 3-pin Phoenix connector |
| IR Input Port | 1 x 3-pin Phoenix connector |
| Local Power Input | 1 x 2-pin Phoenix connector |
| Module Dimensions (W x H x D) | 136mm x 76mm x 44mm (w/o faceplate) |
| Faceplate Dimensions (W x H x D) | 146mm x 86mm x 6mm |
| Cut Out Dimensions (W x H x D) | 87mm x 49mm x 39mm |
| Mounting Hole Spacing | UK 121mm CTC, EU 60mm CTC |
| Backbox Mounting Depth | 40mm (min), 47mm (rec), UK/EU double gang |
| Shipping Weight | 1.0Kg |
| Operating Temperature | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature | -4°F to 140°F (-25°C to +70°C) |
| Power Supply | 12V/1A DC |
