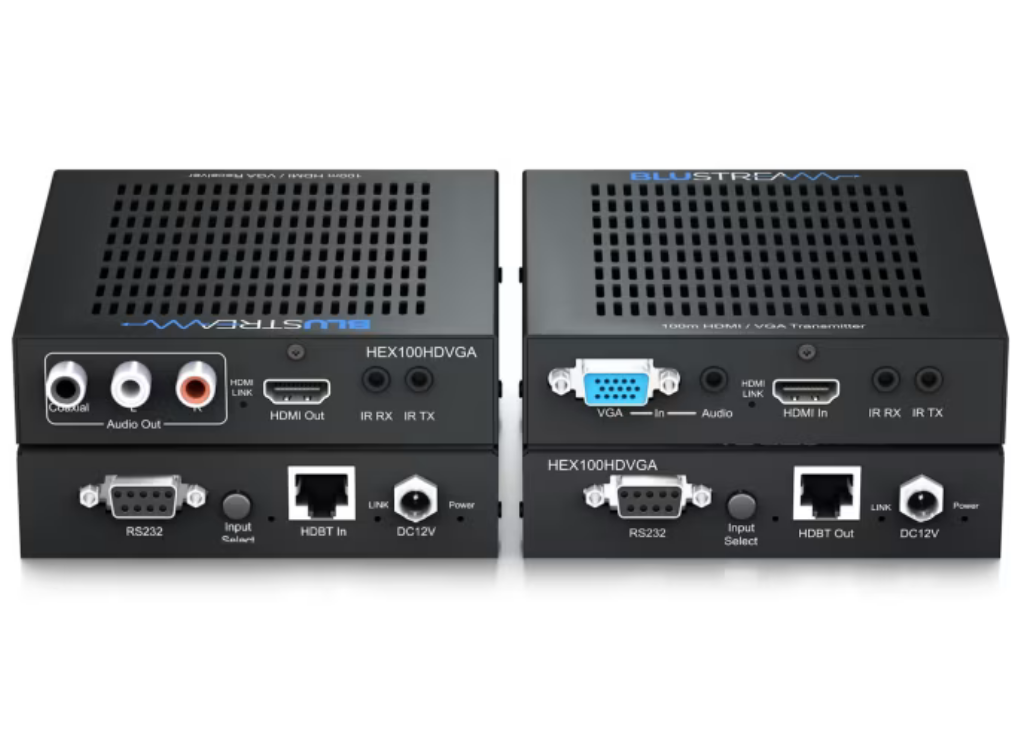

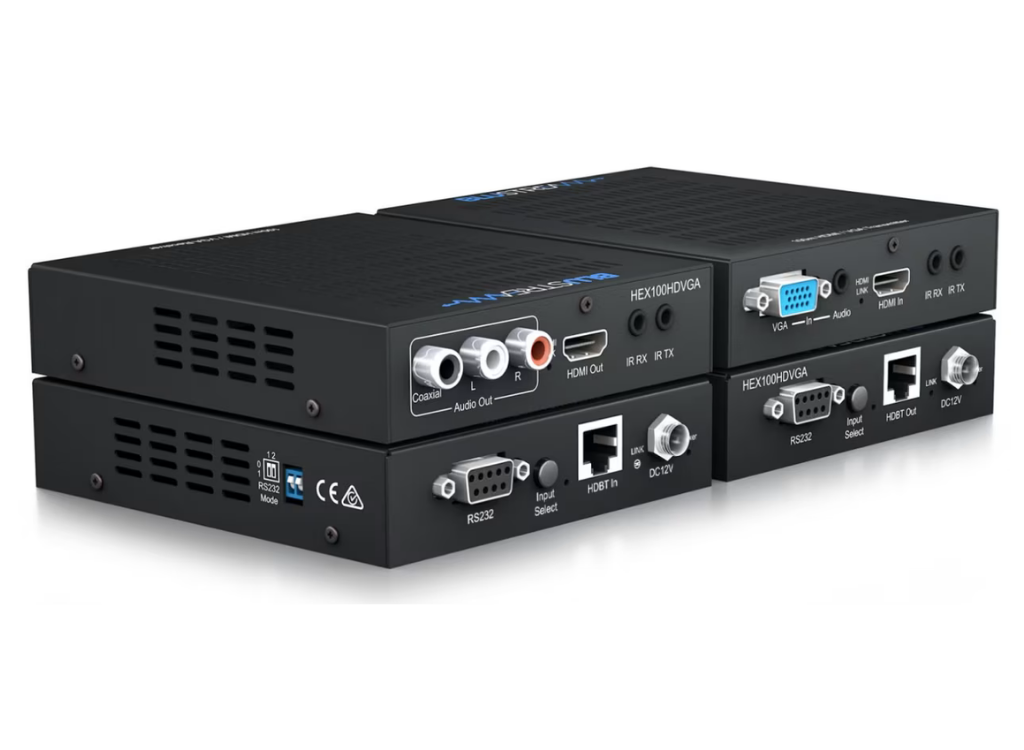

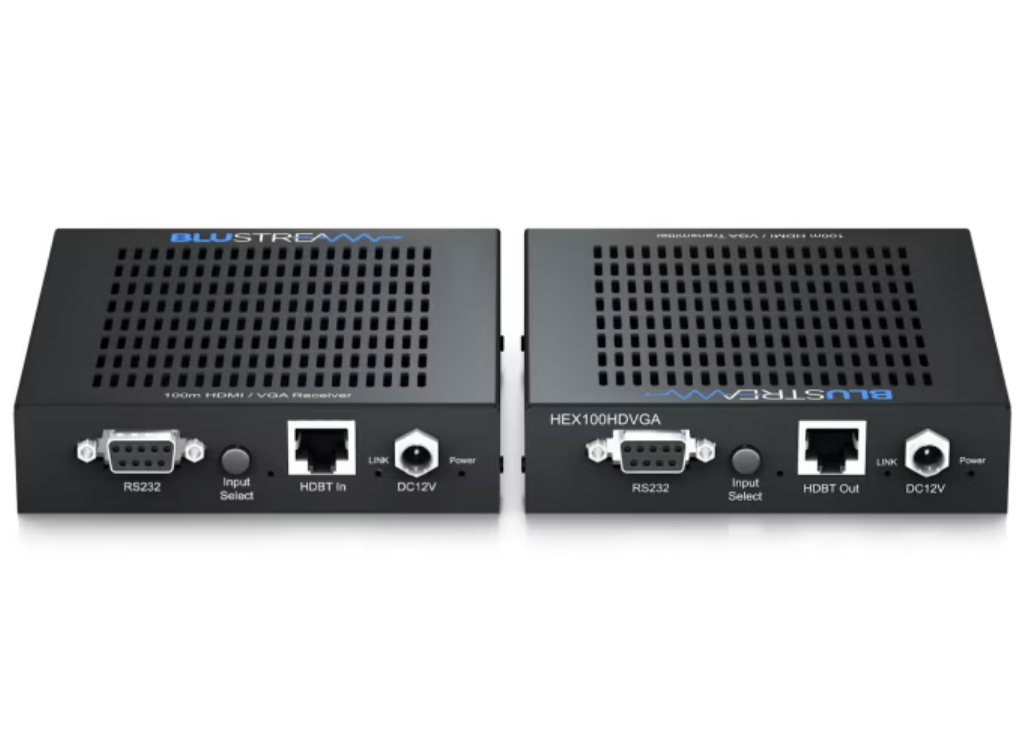

Our HEX100HDVGA-KIT extender set is an industry leading 4K UHD HDBaseT™ solution that delivers switchable HDMI and VGA inputs.
The extender set also transmits Bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT cable.
Key Features
• Extends HDMI and VGA / Audio up to a distance of 100m over single CAT cable
• Auto signal sensing switches between HDMI and VGA/Audio inputs. Will display last input signal connected
• Manual switching between inputs using toggle button or RS-232 control on either transmitter or receiver
• Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports industry standard video resolutions from 480i-4K and most industry standard VGA resolutions (check manual for full list of supported VGA resolutions)
• Supports full 3D signal display
• Supports CEC bypass (Consumer Electronics Control) - HDMI only
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports bi-directional RS-232 pass-through
• Supports bi-directional IR from all input and output locations
• Supplied with Blustream IR receiver and emitters
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• HDCP 1.4 compliant
Box Contents
1 x HEX100HDVGA-TX
1 x HEX100HDVGA-RX
1 x 12V/2A DC Power Supply
1 x IR Receiver
1 x IR Emitter
2 x Mounting Brackets
1 x User Manual
| Feature | HEX100HDVGA-TX | HEX100HDVGA-RX |
|---|---|---|
| Audio Input Connectors | 1 x Analogue L/R 3.5mm stereo jack | - |
| Audio Output Connectors | - | 2 x Analogue RCA L/R & Coaxial digital |
| Video Input Connectors | 1 x HDMI Type A & 1x VGA (DB-15) | 1 x HDBaseT™ RJ45 connector |
| Video Output Connectors | 1 x HDBaseT™ RJ45 connector | 1 x HDMI Type A |
| IR Input Ports | 1 x 3.5mm stereo jack | 1 x 3.5mm stereo jack |
| IR Output Ports | 1 x 3.5mm mono jack | 1 x 3.5mm mono jack |
| RS-232 Serial Port | 1 x DB9, female | 1 x DB9, female |
| Mounting Brackets Included | Yes | Yes |
| Balun Dimensions (with connections) (W x D x H) | 115mm x 135mm x 30mm | 115mm x 135mm x 30mm |
| Balun Dimensions (without connections) (W x D x H) | 115mm x 125mm x 30mm | 115mm x 125mm x 30mm |
| Individual Balun Weight | 0.35kg (excluding accessories) | 0.35kg (excluding accessories) |
| Carton/Box Dimensions (W x D x H) | 300mm x 155mm x 90mm | 300mm x 155mm x 90mm |
| Shipping Weight | 1.2kg | 1.2kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 12V/2A DC, screw type connector | 12V/2A DC, screw type connector |
