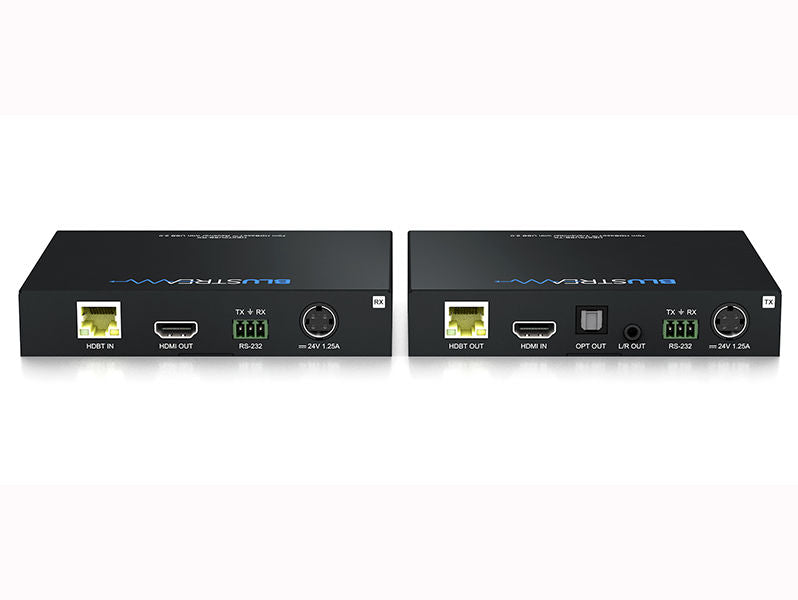

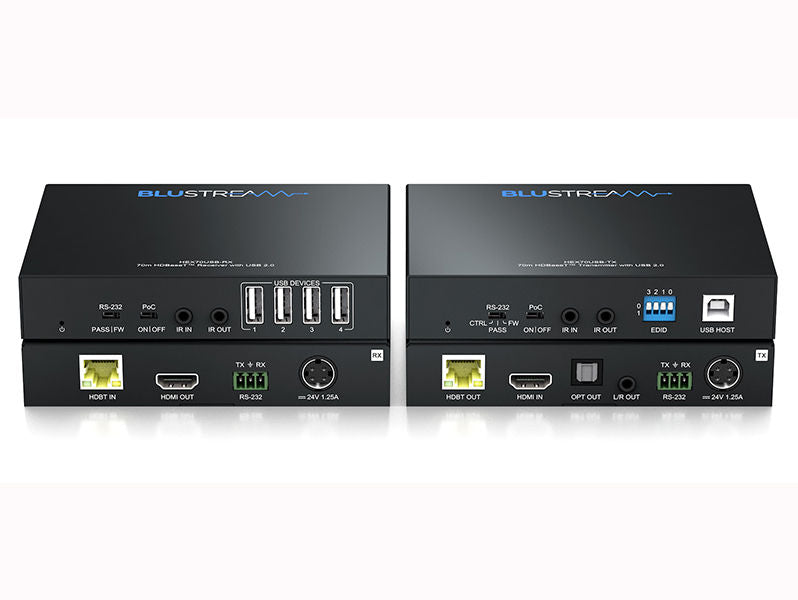

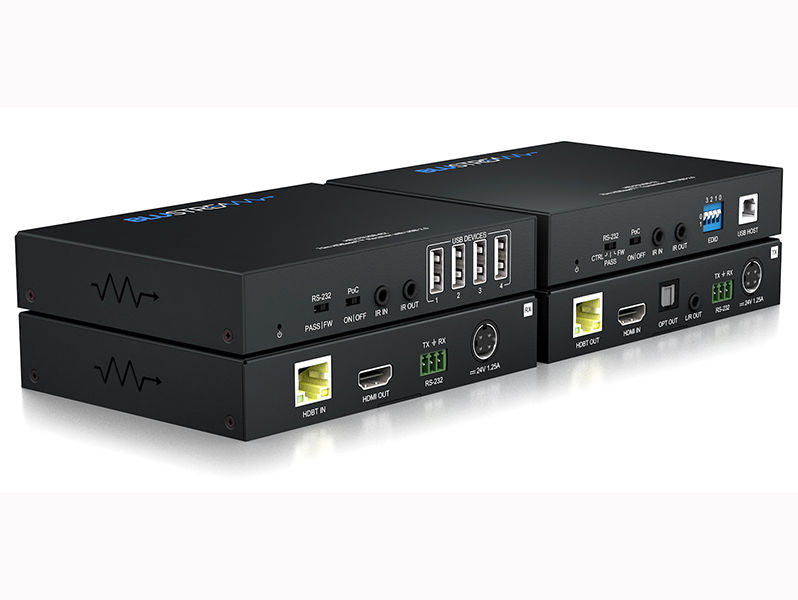

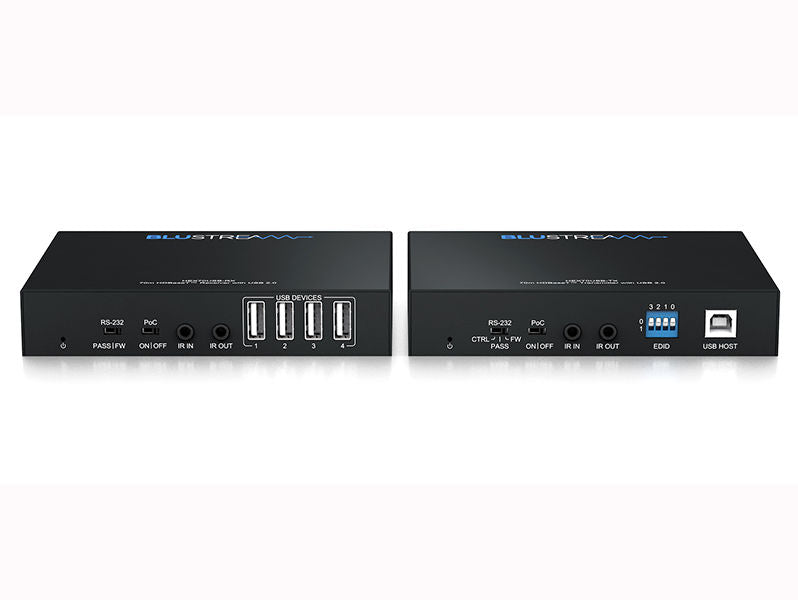

The HEX70USB-KIT 4K HDBaseT™ USB 2.0 extender set offers the very best in performance and flexibility, delivering HDMI to lengths of 70m (4K 60Hz 4:2:0 to 40m), USB 2.0 extension, bi-directional IR and RS-232, HDMI audio breakout, bi-directional PoC, and advanced EDID management. HDCP2.2 compliant.
Key Features
• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• HEX70USB-KIT features 4x USB Type-A devices (RX - peripherals) and 1x USB Type-B (TX - host) that support a combined data transmission bandwidth of up to 280Mbps
• USB Type-A connections support 5V 500mA output per port
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissions
• Bi-directional IR pass-through
• Bi-directional RS-232 pass-through
• Supplied with Blustream IR receiver and emitter
• Supports bi-directional PoC (Power over Cable) to power extenders from either Transmitter or Receiver end
• HDCP 2.2 compliant with advanced EDID management
• HDMI audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently
Box Contents
1 x HEX70USB-TX
1 x HEX70USB-RX
1 x 24V/1.25A DC power supply
1 x USB-A to USB-B cable
1 x IRE1 emitter
1 x IRR receiver
1 x Serial Cable - DB9 to 3-pin Phoenix connector
1 x 3-pin Phoenix connector
2 x Mounting kit
| Specification | HEX70USB-TX | HEX70USB-RX |
|---|---|---|
| Video Input Connectors | 1 x HDMI Type A, 19-pin, female | 1 x HDBaseT™ RJ45 connector |
| Video Output Connectors | 1 x HDBaseT™ RJ45 connector | 1 x HDMI Type A, 19-pin, female |
| Audio Output Connectors | -- | 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue |
| RS-232 Serial Port | 1 x 3-pin Phoenix connector | 1 x 3-pin Phoenix connector |
| USB/KVM Port | 1 x USB Type-B (Host) | 4 x USB Type-A (Peripherals) |
| IR Input Ports | 1 x 3.5mm stereo jack | 1 x 3.5mm stereo jack |
| IR Output Ports | 1 x 3.5mm mono jack | 1 x 3.5mm mono jack |
| Casing Dimensions | 135mm x 105mm x 25mm | 135mm x 105mm x 25mm |
| Shipping Weight (Kit) | 0.8kg | 0.8kg |
| Operating Temperature | 32°F to 104°F (-5°C to +55°C) | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature | -4°F to 140°F (-25°C to +70°C) | -4°F to 140°F (-25°C to +70°C) |
| Power Supply | 24V/1.25A DC, 4-pin DIN connector | 24V/1.25A DC, 4-pin DIN connector |
