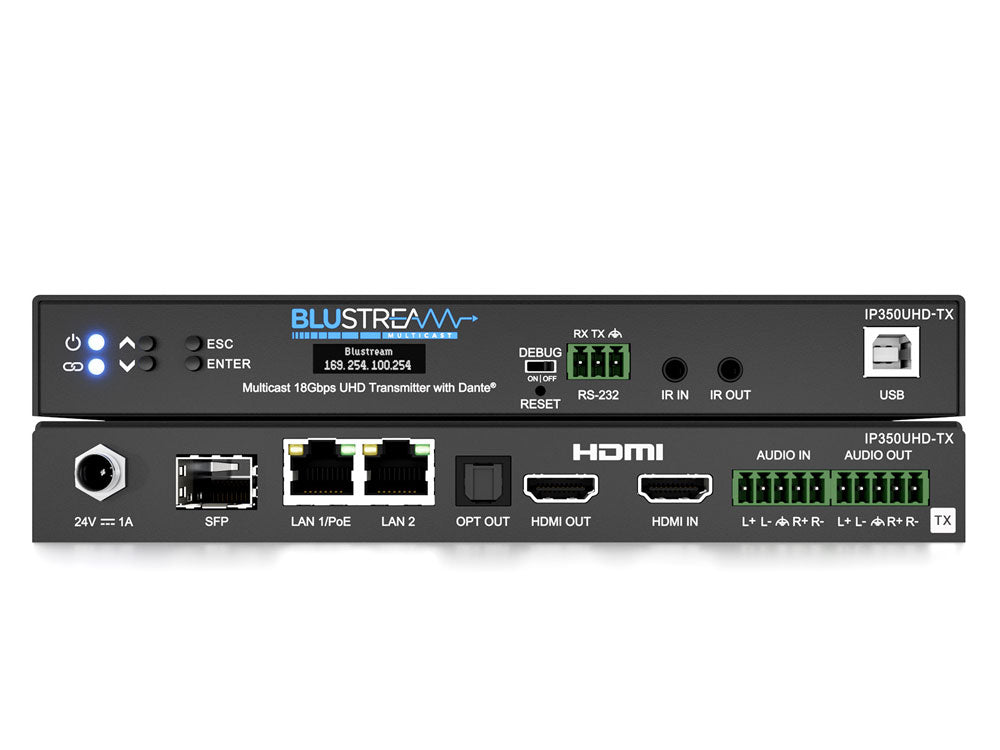

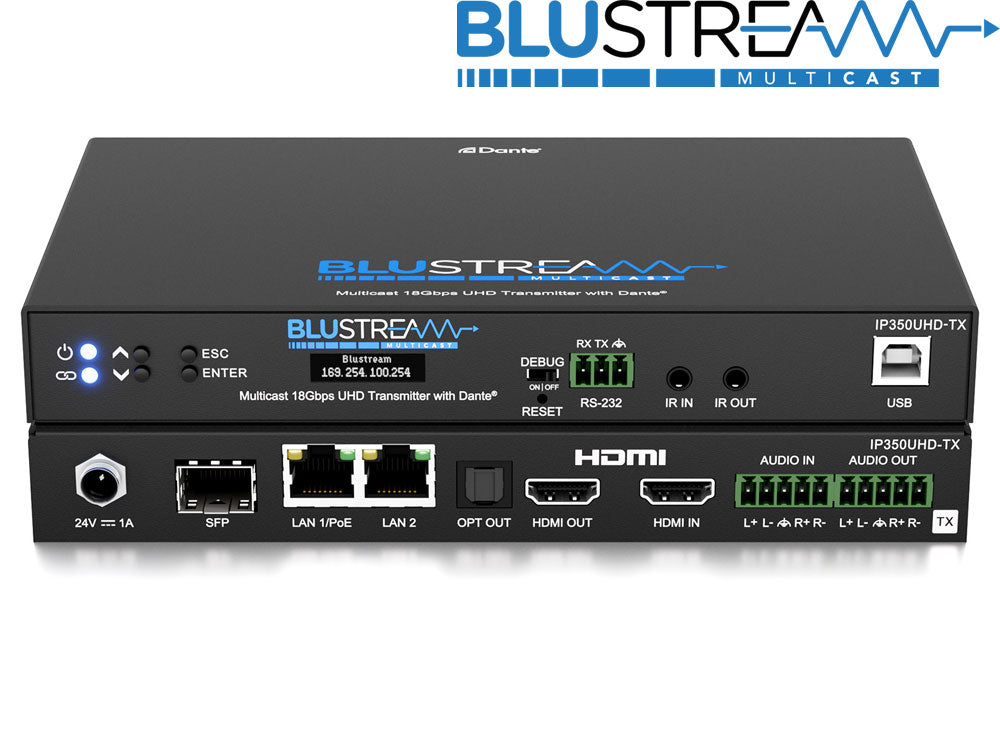

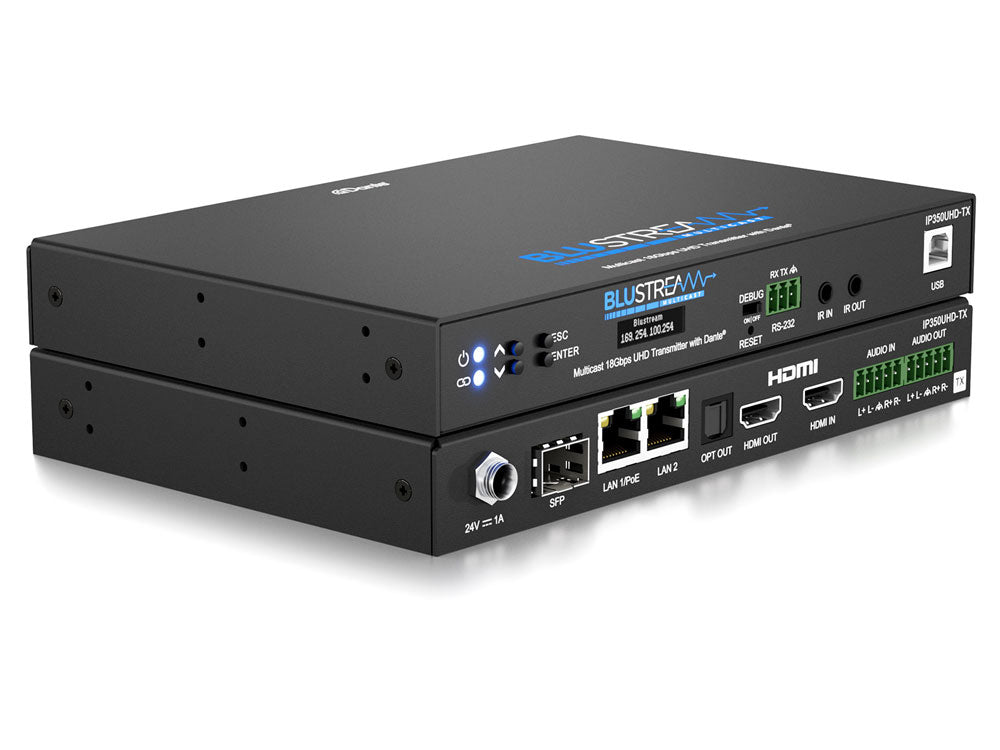

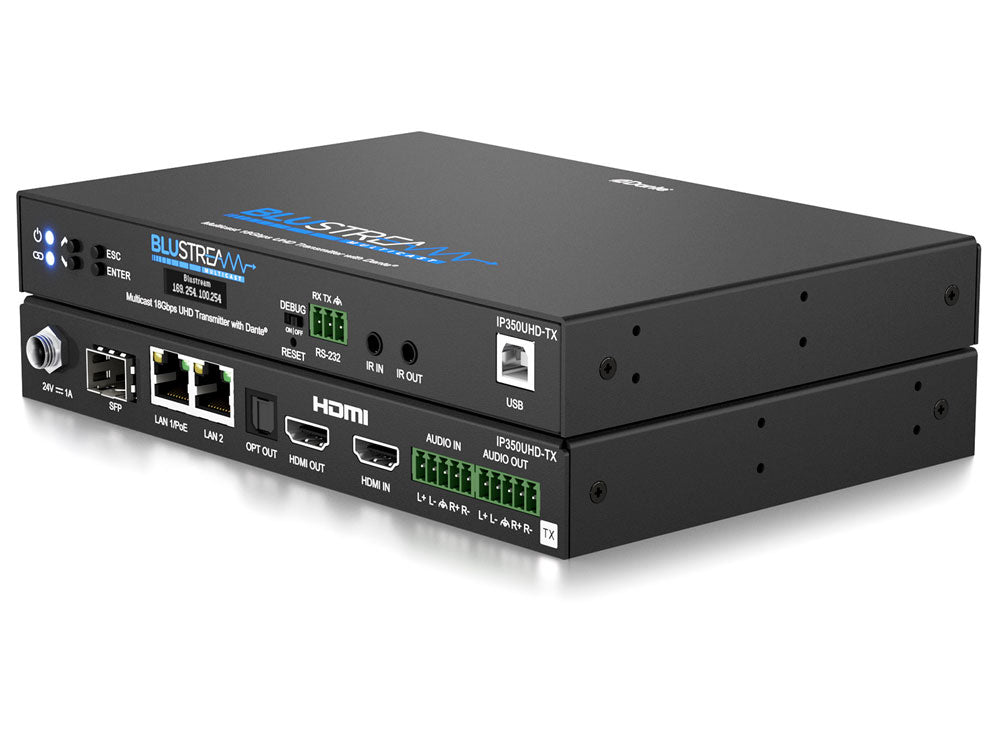

BluStream IP Dante Enabled Multicast UHD Video Transmitter Over 1GB Network

The Blustream IP300 series Multicast distribution platform allows virtually latency free (1 frame) distribution of 4K HDMI video over a 1Gb managed network.
Featuring full interoperability with the IP300UHD product line, the IP350UHD-TX is an industry leading Dante enabled 4K HDCP 2.2 HDMI transmitter that, using visually lossless compression technology, delivers 18Gbps HDMI, Dante & AES67 audio, bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard copper network architecture, or greater distances using the in-built fibre SFP network interface.
The IP350UHD-TX can support both video and Dante audio distribution from a single network. A second RJ45 connection allows for the Dante audio network interface to be segregated from the video over IP network if required.
The unit can be powered via PoE from the network switch, or locally should the switch not support PoE.
With multiple configuration options available, the flexibility of the Blustream Multicast video over IP solution makes this platform ideal for multiple installation types.

Key Features
Advanced 4K HDMI 2.0 video over 1Gb managed network supporting 18Gbps HDMI signals
 Virtually unlimited system size
 Extends HDMI up to a distance of 100m over a single CAT cable
 SFP port for signal distribution over fibre
 Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
 Supports up to 4K UHD 60Hz 4:4:4
 Supports HDR including Dolby Vision LLM
 Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
 SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
 In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
 In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
 Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
 Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
 PoE (Power over Ethernet) to power Blustream unit from PoE switch
 HDCP 2.2 compliant with advanced EDID management
 Balanced/unbalanced analogue L/R audio embedding
 Audio breakout to analogue L/R audio, supporting both balanced and unbalanced audio signals
 OLED front panel display for advanced system information and manual configuration
 Optional 24V power supply (should Ethernet switch not support PoE)
 Compatible with Blustream IP300UHD-RX and IP350UHD-TX/RX products
 IP300/350 Multicast platform features 4 operational modes:
   - Matrix distribution (requires 1Gb network switch)
   - Video wall (requires 1Gb network switch)
   - One-to-one HDMI extender (no network switch required)
   - One-to-many HDMI extender (no network switch required)

Box Contents
1 x IP350UHD-TX
1 x IRR Receiver
1 x IRE1 Emitter
2 x Audio 5-pin Phoenix Connector
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit
