  • BluStream IP Multicast 1080p Video Transmitter Over 100Mbps Network

    IP50HD-TX

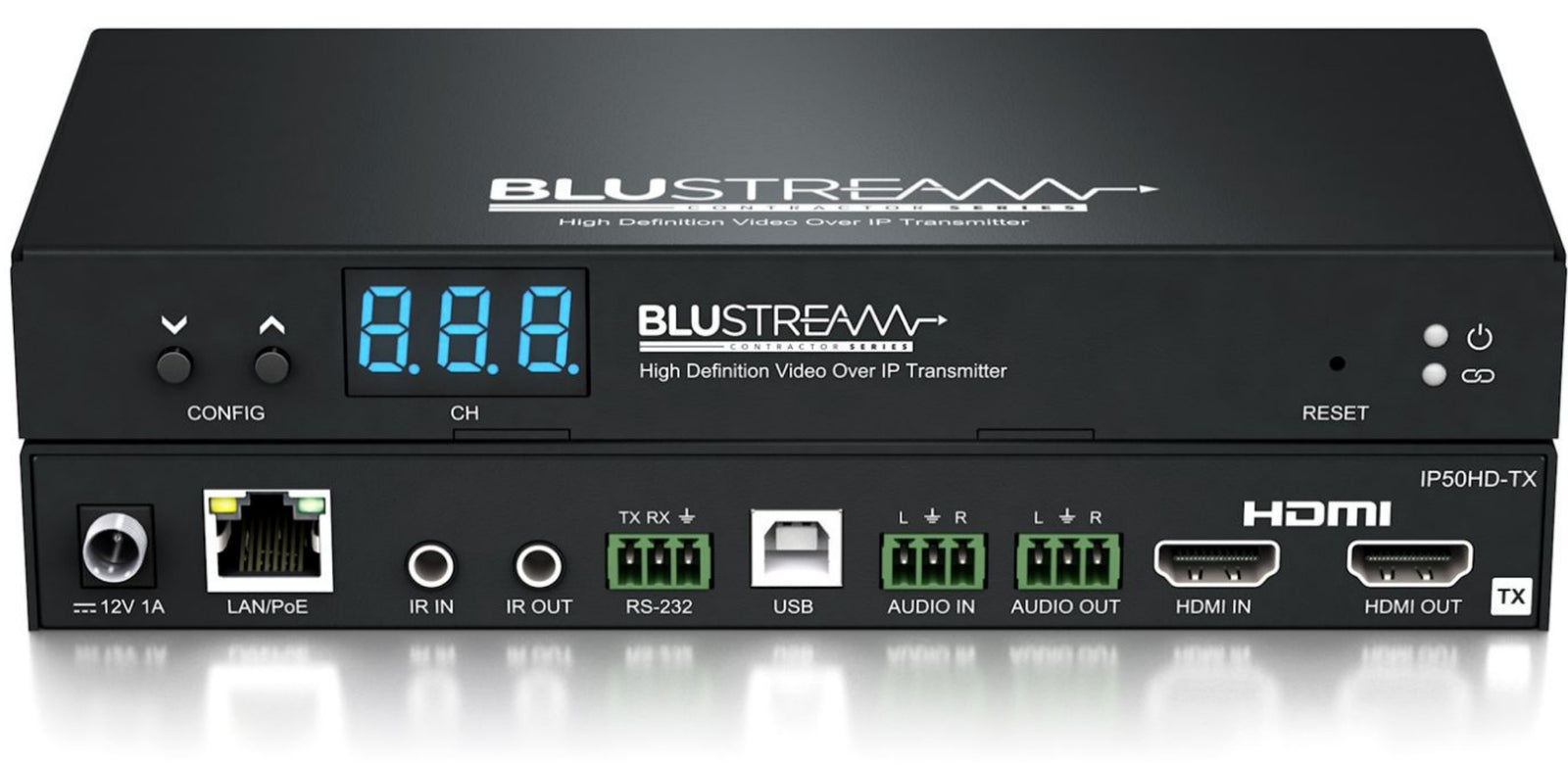

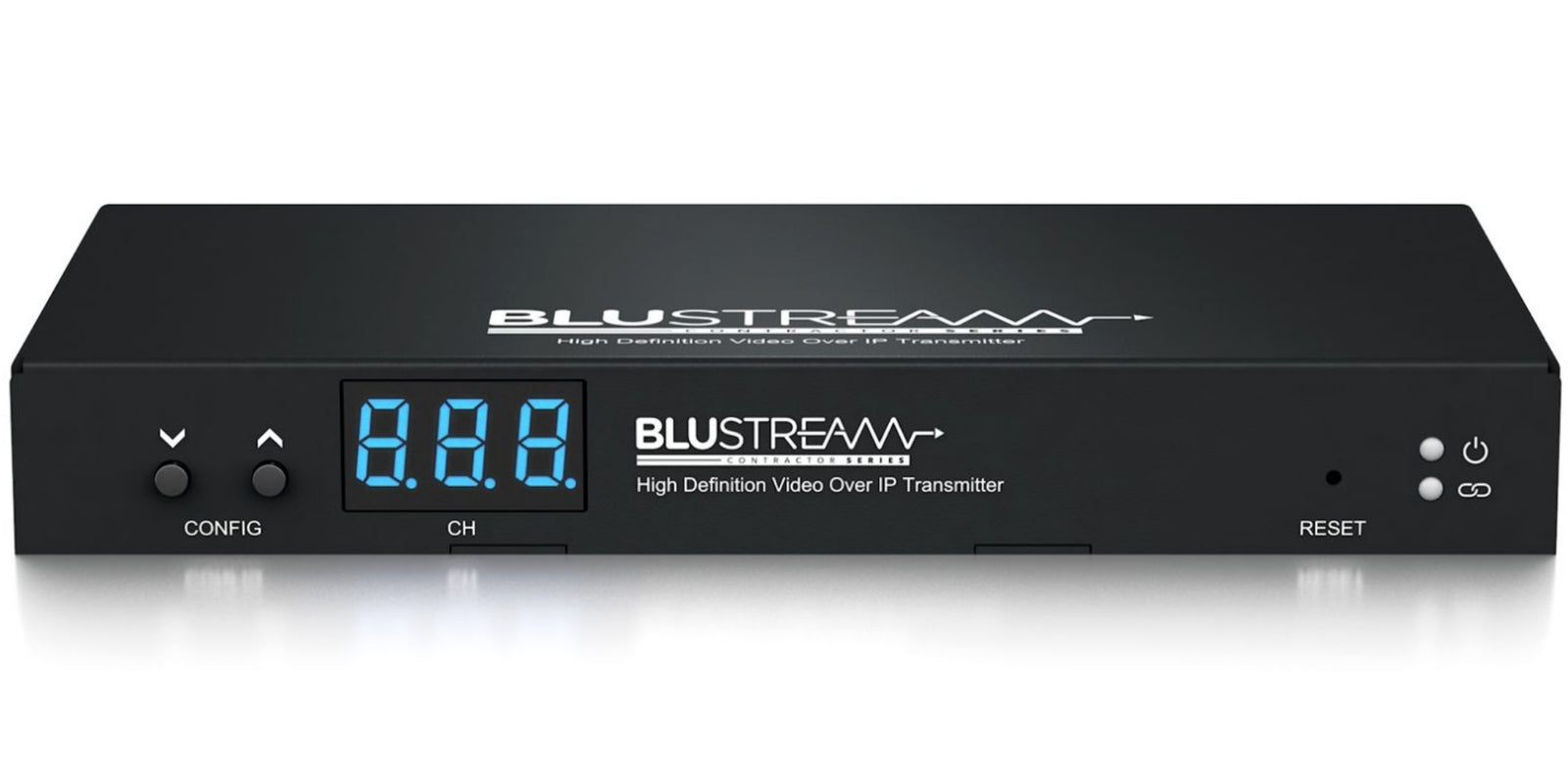

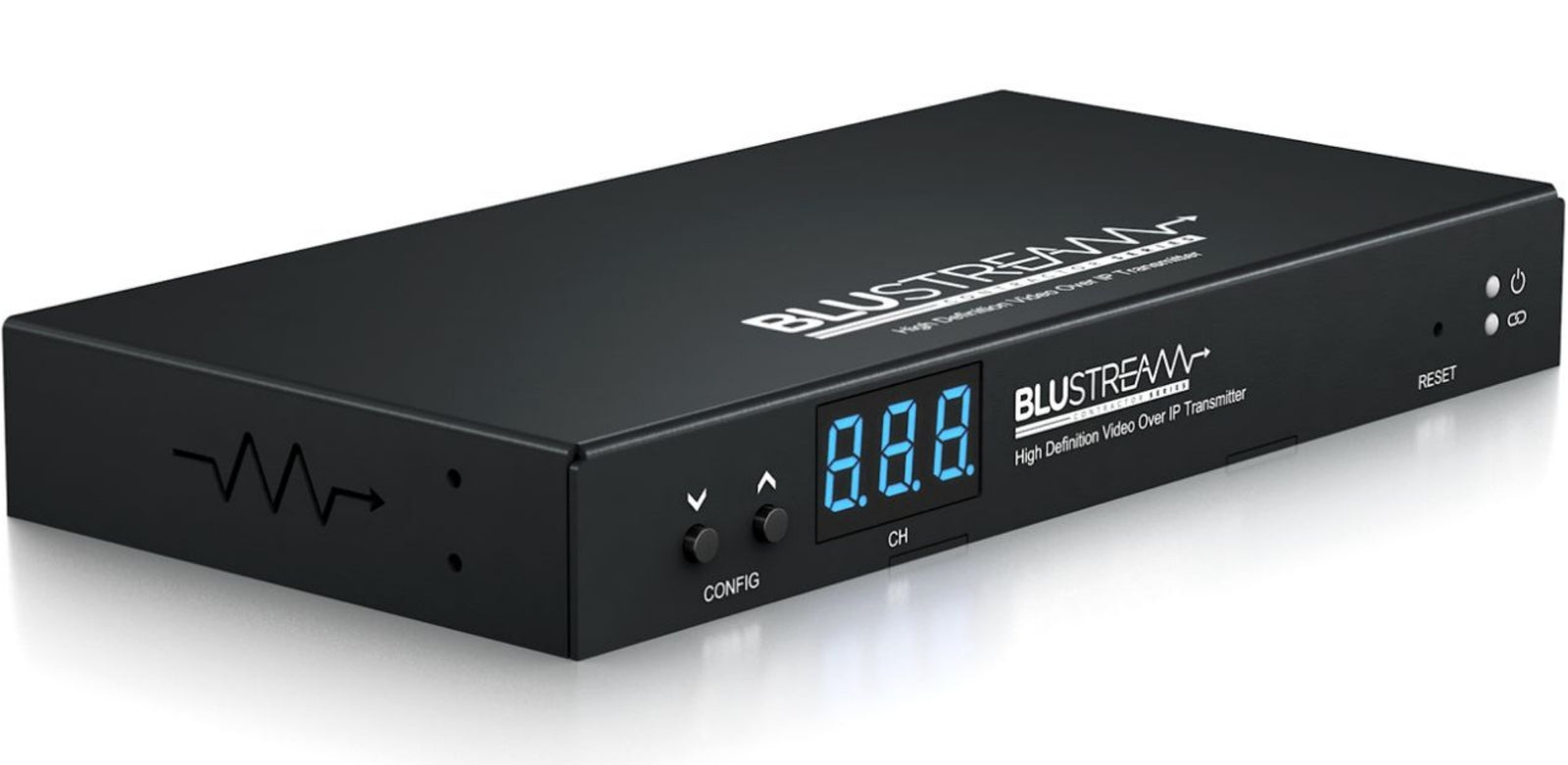

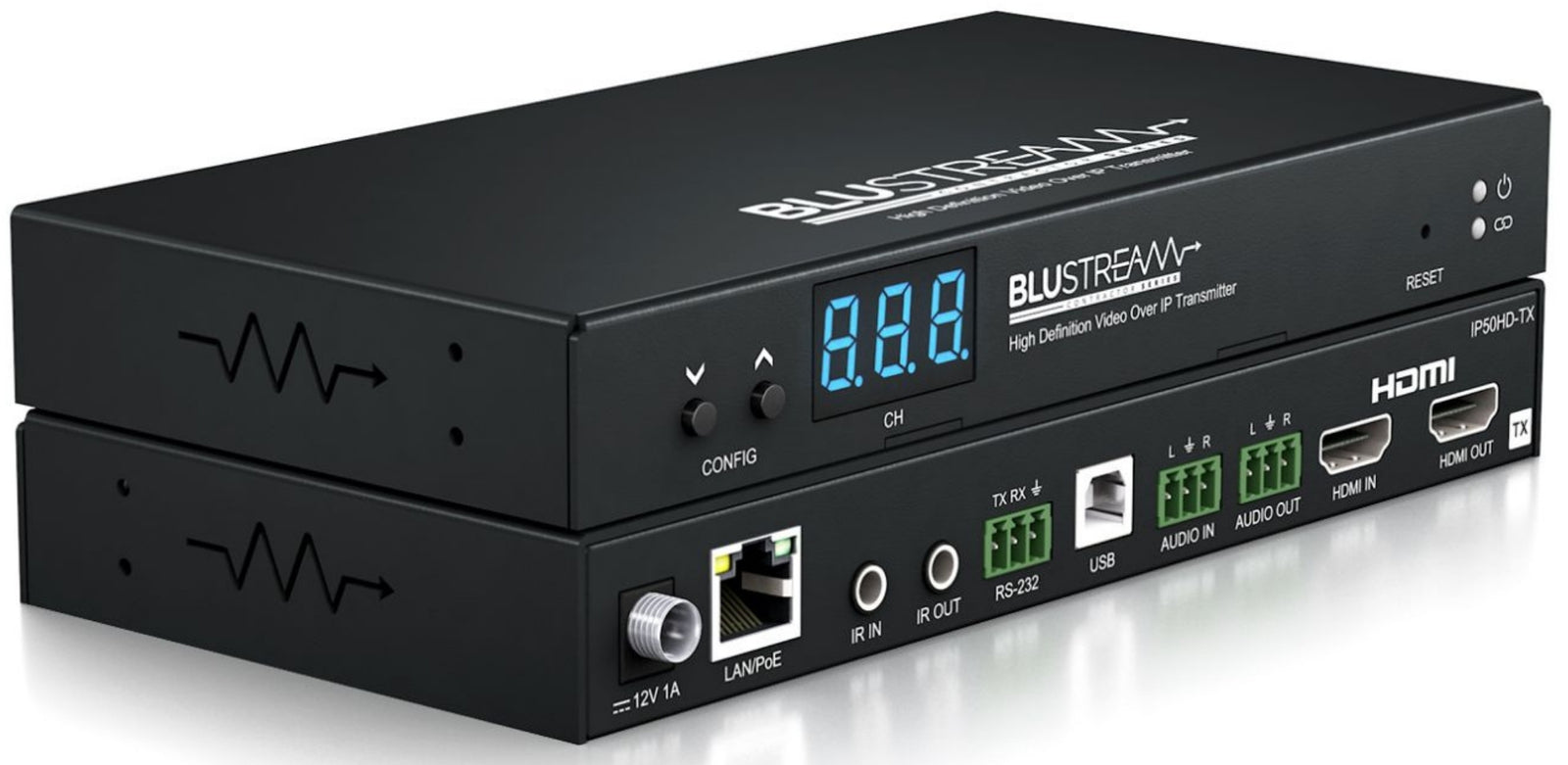

    High Definition Video over IP Transmitter. Our Contractor HD Multicast distribution platform allows distribution of AV and control signals over a 100Mbps network.
    The IP50HD-TX is an industry leading 1080p HDMI transmitter that, using H.265 compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
    The transmitter includes a HDMI loop-out for cascading to multiple devices and can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast HD solution is ideal for both commercial and residential installations.

    IP50HD-TX


    Key Features
     Advanced HD video, control and KVM over network infrastructure
     Extends HDMI up to a distance of 100m over a single CAT cable
     Supports unicast transmission over unmanaged networks
     Supports multicast transmission for large managed networks
     Supports up to 1080p @ 60Hz
     Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
     Supports PCM 2.0 channel audio only
     Advanced signal management for independent routing of IR, RS-232, USB/KVM, and video/audio
     PoE (Power over Ethernet) to power product from a PoE switch
     HDCP1.4 compliant with advanced EDID management
     Analogue L/R audio embedding and audio breakout (2ch PCM only)
     Local 12V 1A power supply should Ethernet switch not support PoE (supplied separately)
     Features 2 operational modes:
       - Matrix distribution (requires 100Mbps network switch)
       - One-to-one HDMI extender (no network switch required)

    Box Contents
    1 x IP50HD-TX
    1 x IR Receiver
    1 x IR Emitter
    1 x Mounting Kit
    4 x Rubber Feet

  • Specification Details

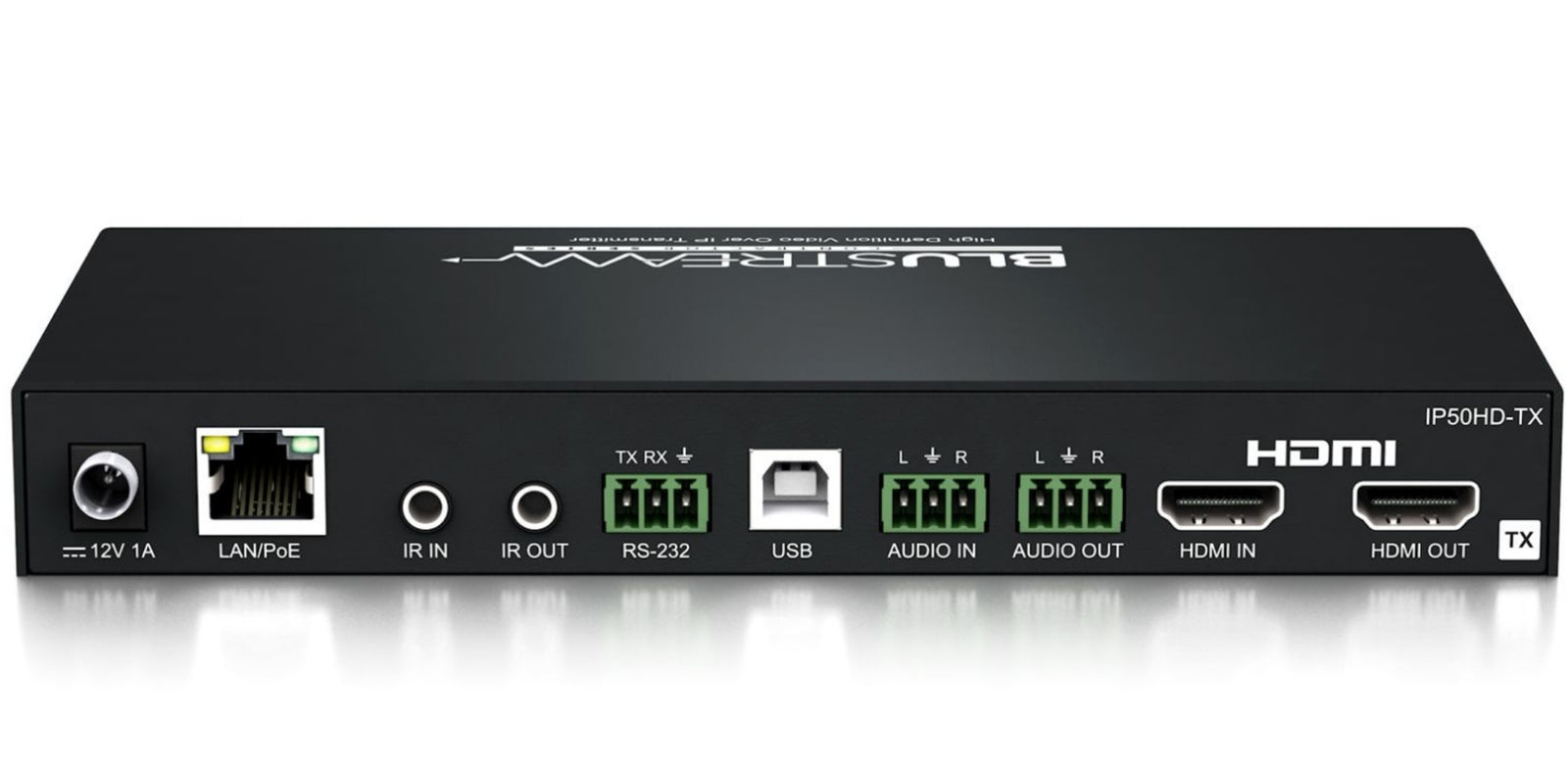

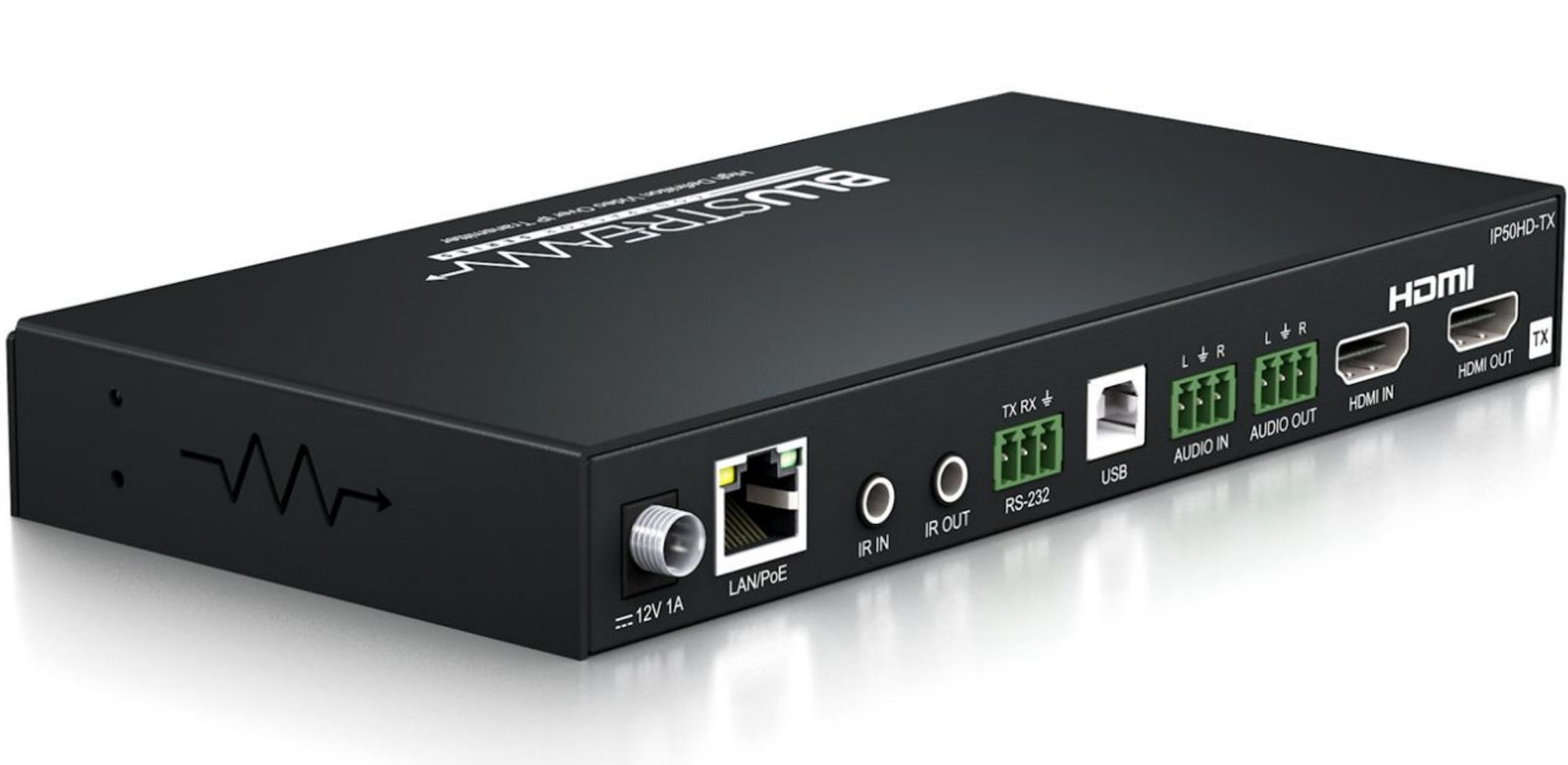

    Video Input 1 x HDMI Type A, 19-pin, female, locking
    Video Output 1 x LAN RJ45 connector, 1 x HDMI Type A, 19-pin, female, locking
    Latency 3 frames (<120ms subject to video compression, frame rate and scaling); No latency on HDMI Loop out
    Audio Input 1 x 3-pin Phoenix connector
    Audio Output 1 x 3-pin Phoenix connector
    Ethernet Port 1 x LAN RJ45 connector
    RS-232 Serial Port 1 x 3-pin Phoenix connector
    USB/KVM Host Port 1 x USB-Type B
    IR Input 1 x 3.5mm stereo jack
    IR Output 1 x 3.5mm mono jack
    PoE Draw 3.7W (typical), 4.0W (max load)
    Mounting Kit Included
    Dimensions (W x D x H) 190mm x 95mm x 25mm
    Dimensions Including Connections 190mm x 100mm x 25mm, without feet
    Operating Temperature 32°F to 104°F (0°C to 40°C)
    Storage Temperature -4°F to 140°F (-20°C to 60°C)
