BluStream IP Multicast 4K UHD Video Receiver Over 1GB Network

Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Network switch.

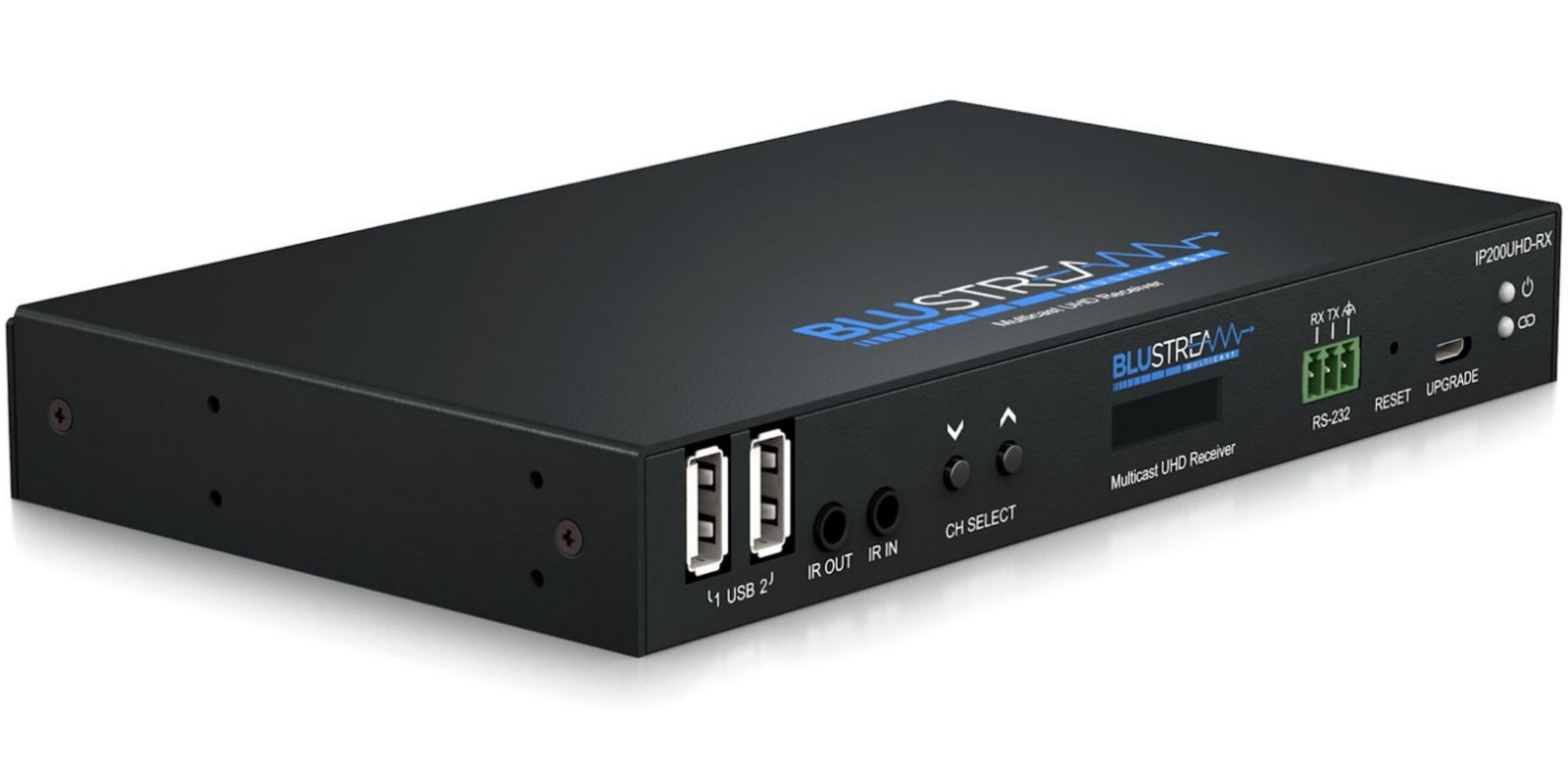

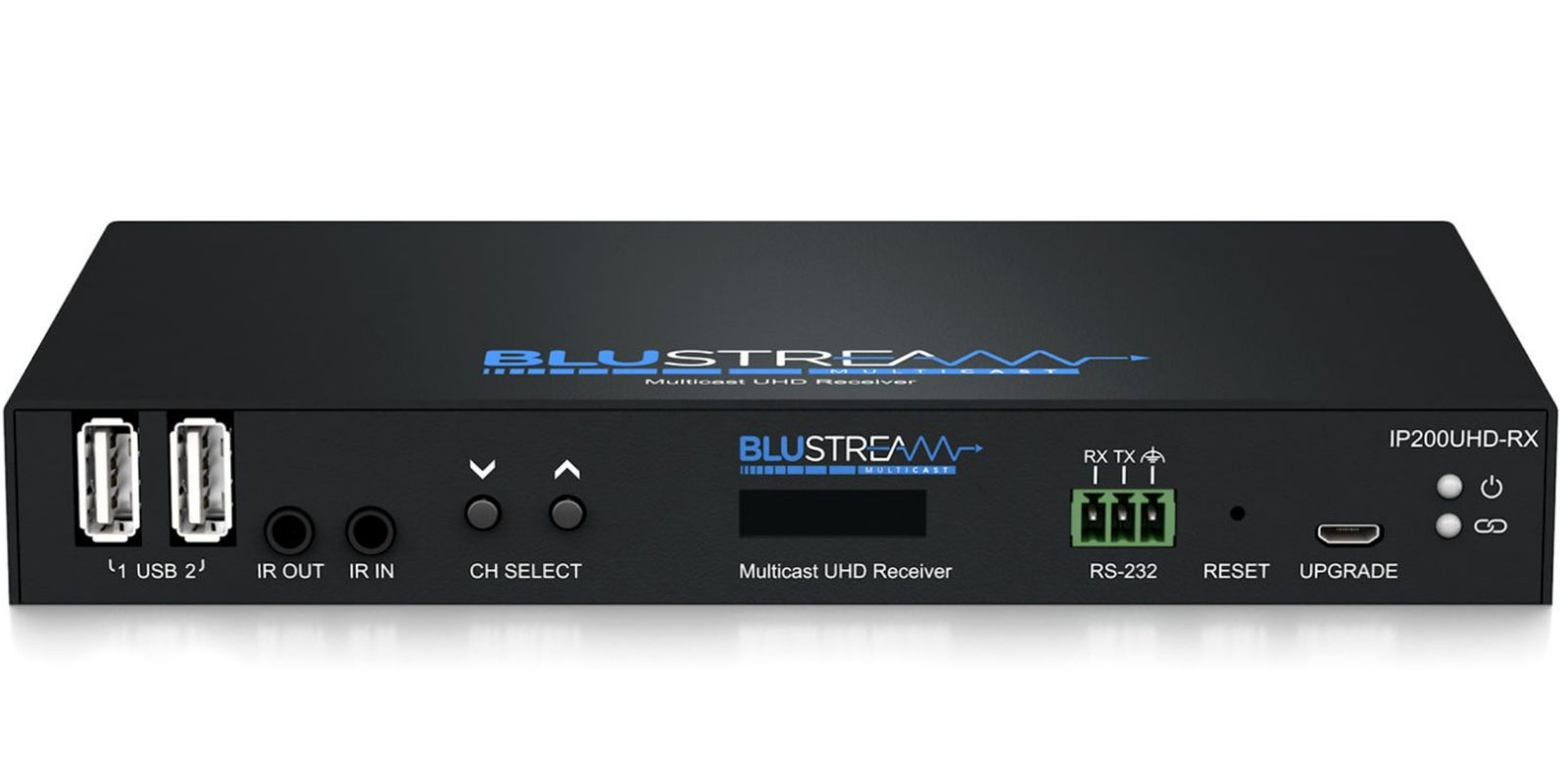

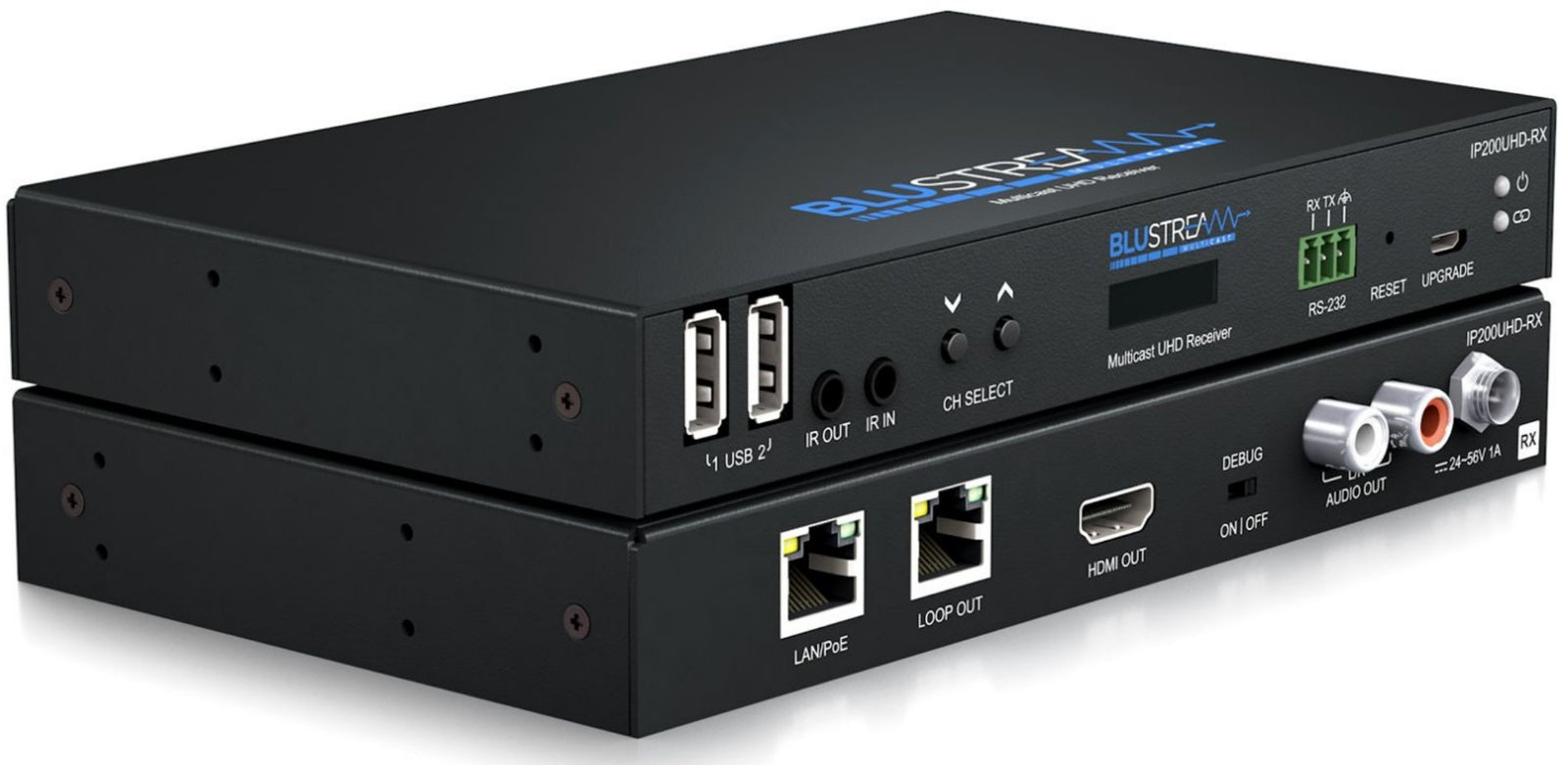

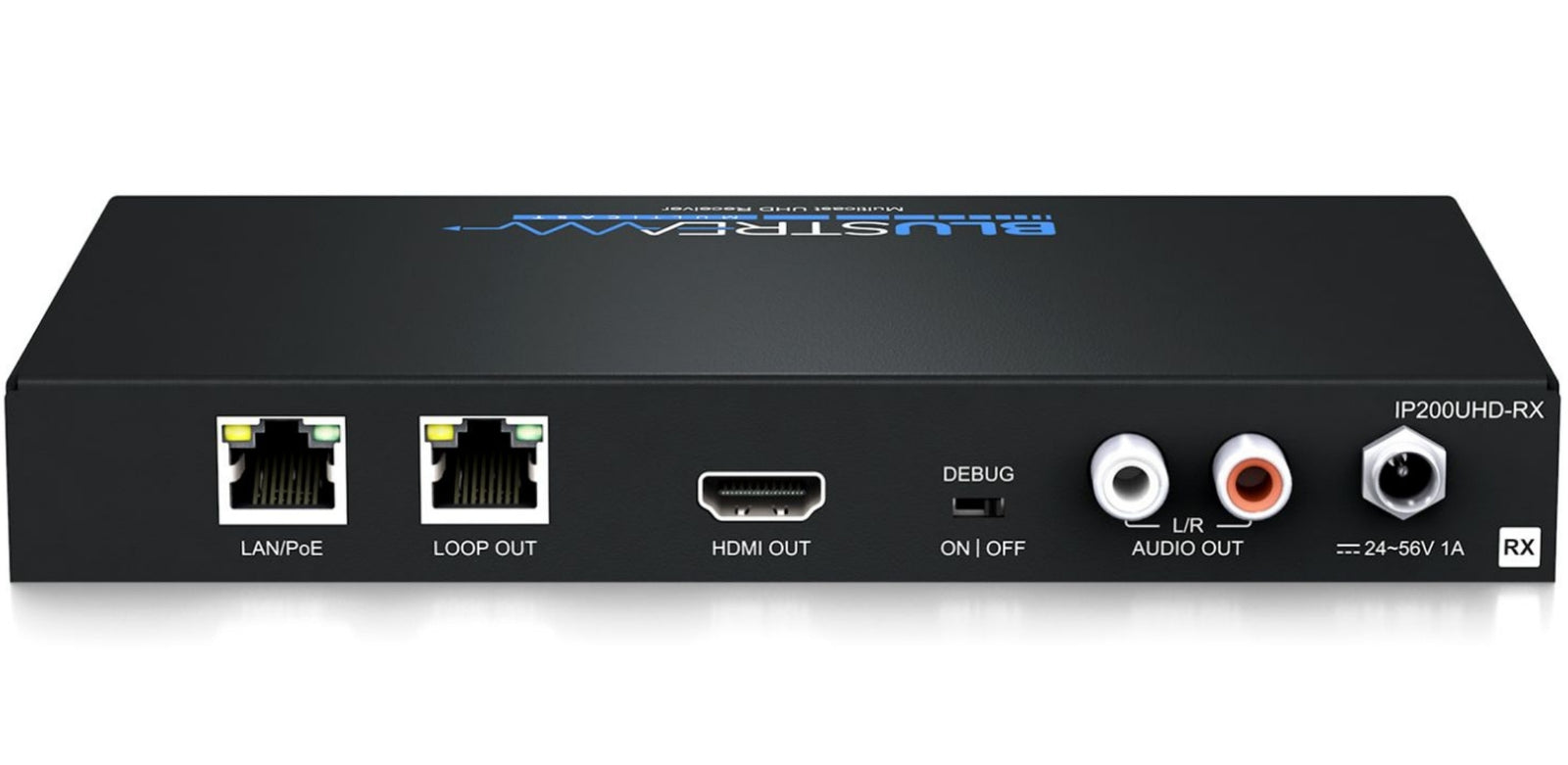

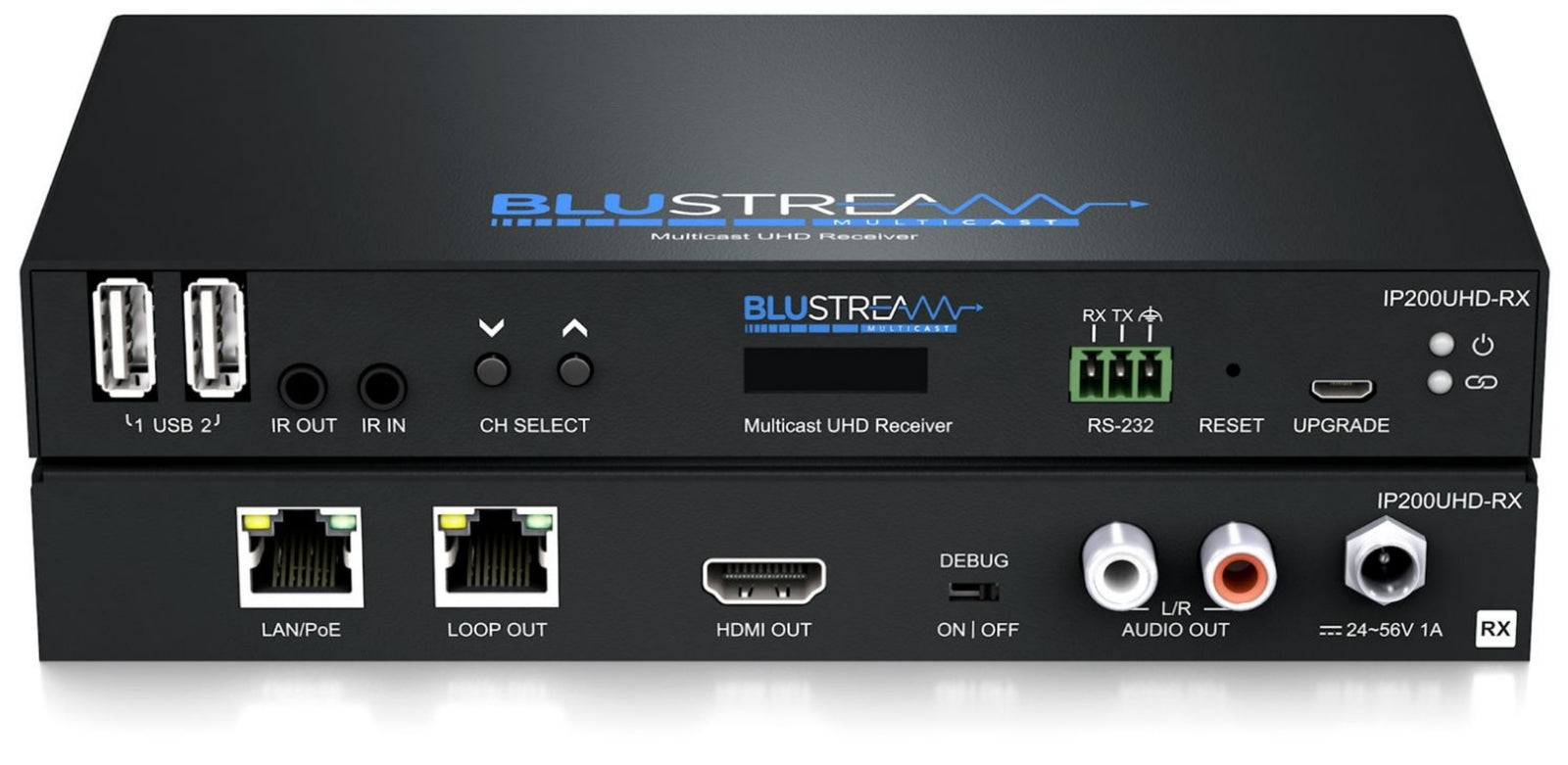

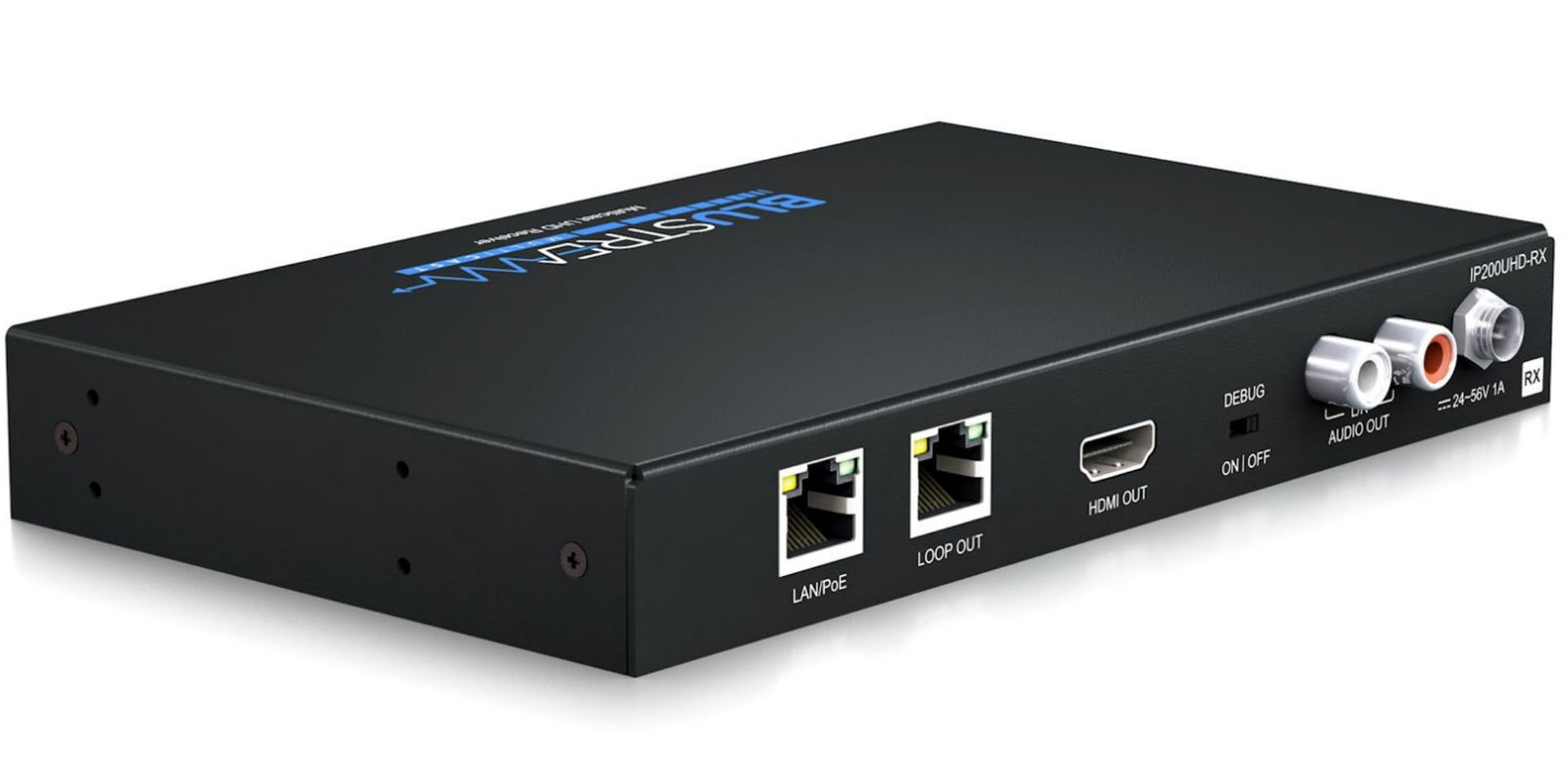

The IP200UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that, using visually lossless compression technology, delivers HDMI, Bi-directional IR, RS-232 & USB / KVM up to lengths of 100m over standard network architecture
The IP200UHD-RX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.


Key Features
 Advanced UHD video over 1GB Network
 Virtually unlimited system size
 Extends HDMI up to a distance of 100m over a single CAT cable
 Video up-scaling and down-scaling
 Supports up to 4K @ 30Hz UHD video output
 Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
 Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
 PoE (Power over Ethernet) to power Blustream products from PoE switch
 HDCP 2.2 compliant with advanced EDID management
 Analogue L/R audio breakout
 LAN loop-out for one-to-many extender mode
 Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately
 Features 4 operational modes:
   - Matrix distribution (requires 1GB network switch)
   - Video wall (requires 1GB network switch)
   - One-to-one HDMI extender (no network switch required)
   - One-to-many HDMI extender (no network switch required)

Box Contents
1 x IP200UHD-RX
1 x (IRR) IR Receiver
1 x (IR1) IR Transmitter
1 x Serial 3-pin Phoenix Connector
1 x Mounting Kit
