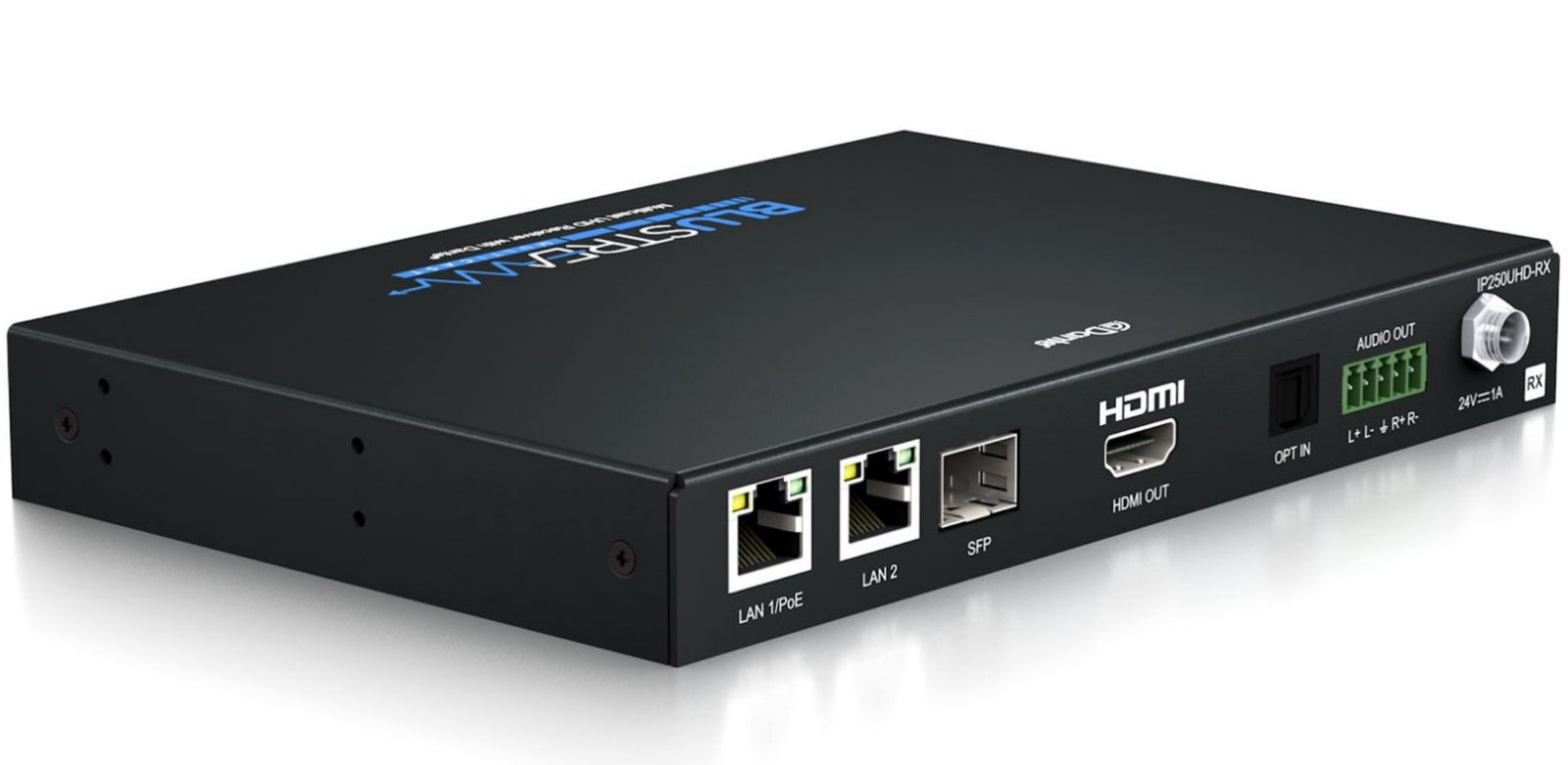

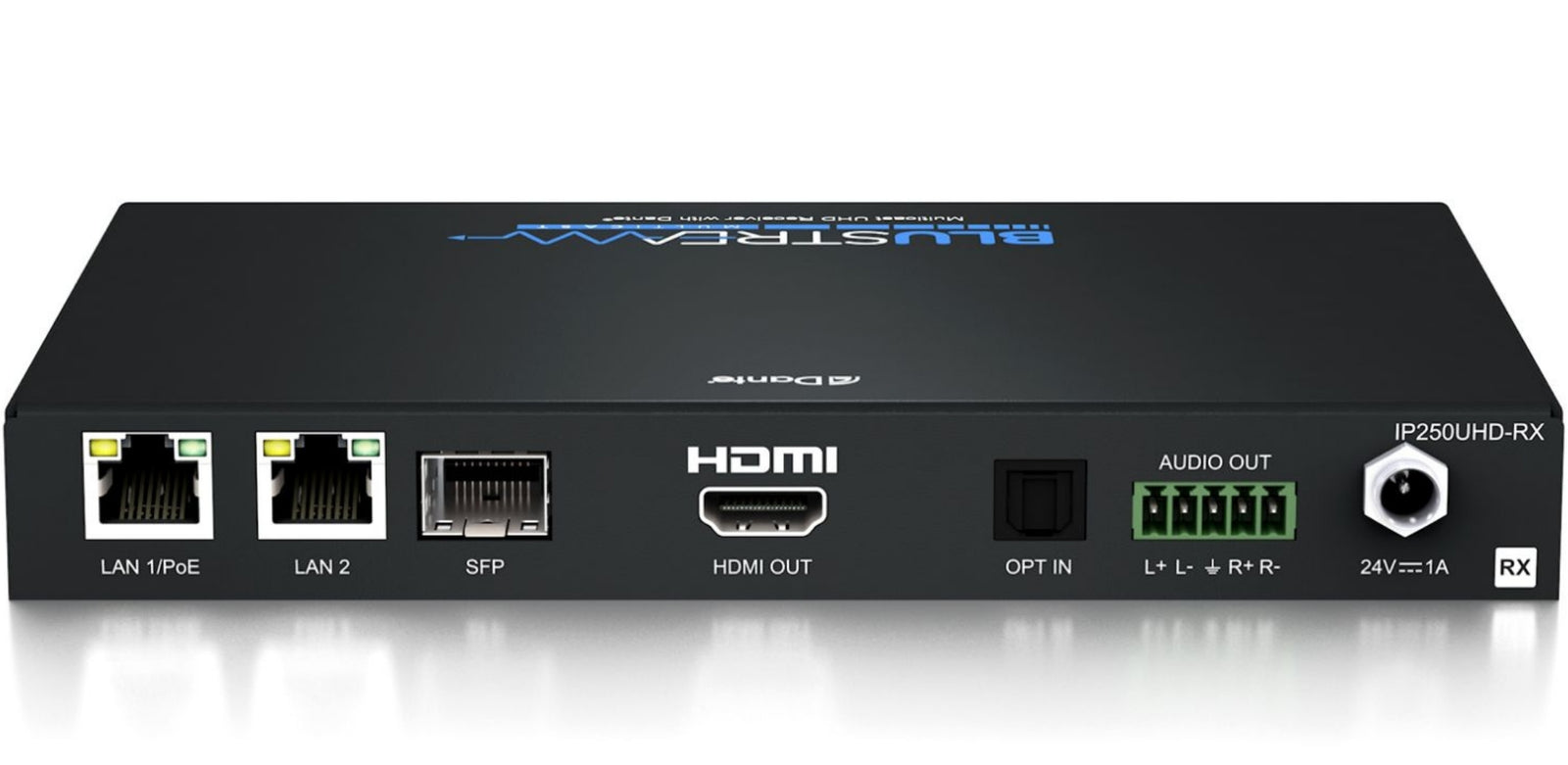

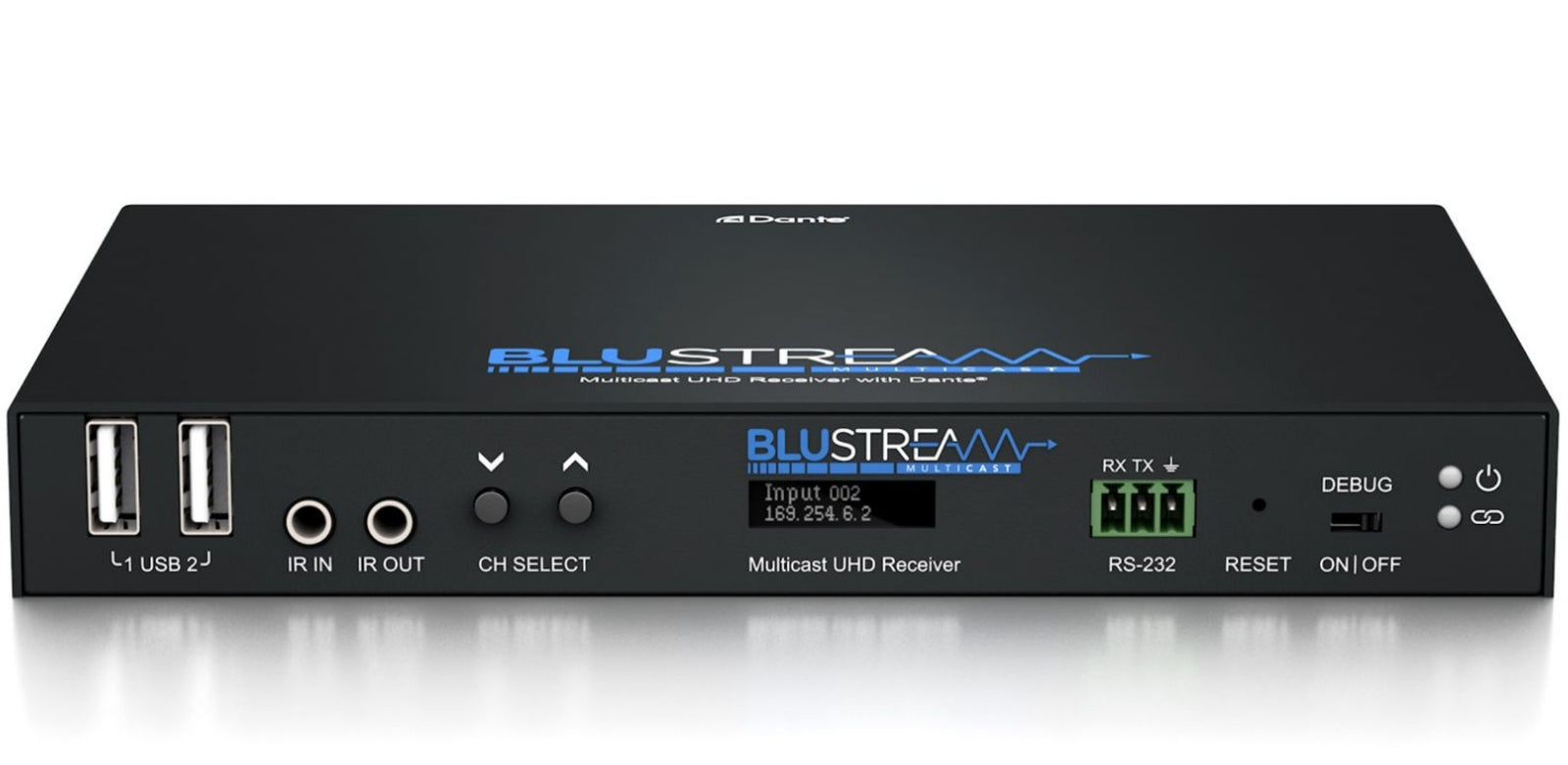

BluStream IP Multicast 4K UHD Video Receiver Over 1GB Network | IP250UHD-RX

BluStream IP Multicast 4K UHD Video Receiver Over 1GB Network

Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1Gb Managed Network.
Compatible with the current IP200 platform, the IP250UHD-RX is an industry leading 4K HDCP 2.2 HDMI video scaling receiver that, using visually lossless compression technology, delivers 10Gb HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture, or greater distances using the in-built Fibre SFP port.
The IP250UHD-RX features dual RJ45 network ports for independent or combined HDMI and/or Dante signal distribution.
The unit can be powered via PoE from the network switch or locally should the switch not support PoE. With multiple configuration options available, the Multicast solution is ideal for both commercial and residential installations.


Key Features
Advanced UHD video over 1Gb Managed Network
 Operates as a stand-alone system, or together with existing IP200UHD products
 Virtually unlimited system size
 Extends HDMI and Dante up to a distance of 100m over a single CAT cable
 Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
 SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
 Video up-scaling and down-scaling
 Supports up to 4K 30Hz UHD video output
 In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
 In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
 Optical (S/PDIF) audio input for conversion of a stereo digital audio format into a Dante audio system
 Analogue L/R audio outputs support both balanced and unbalanced audio signals
 Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
 Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
 OLED front panel display for advanced system information and manual configuration
 PoE (Power over Ethernet) to power Blustream Multicast products from a PoE switch
 HDCP 2.2 compliant with advanced EDID management
 Local 24V 1A power supply should Ethernet switch not support PoE (not included)
 Features 4 operational modes:
   - Matrix distribution (requires 1Gb network switch)
   - Video wall (requires 1Gb network switch)
   - One-to-one HDMI extender (no network switch required)
   - One-to-many HDMI extender (no network switch required)

Box Contents
1 x IP250UHD-RX
1 x IRR IR Receiver
1 x IR1 IR Emitter
1 x Serial 3-pin phoenix connector
1 x Mounting kit
1 x Quick Reference Guide
