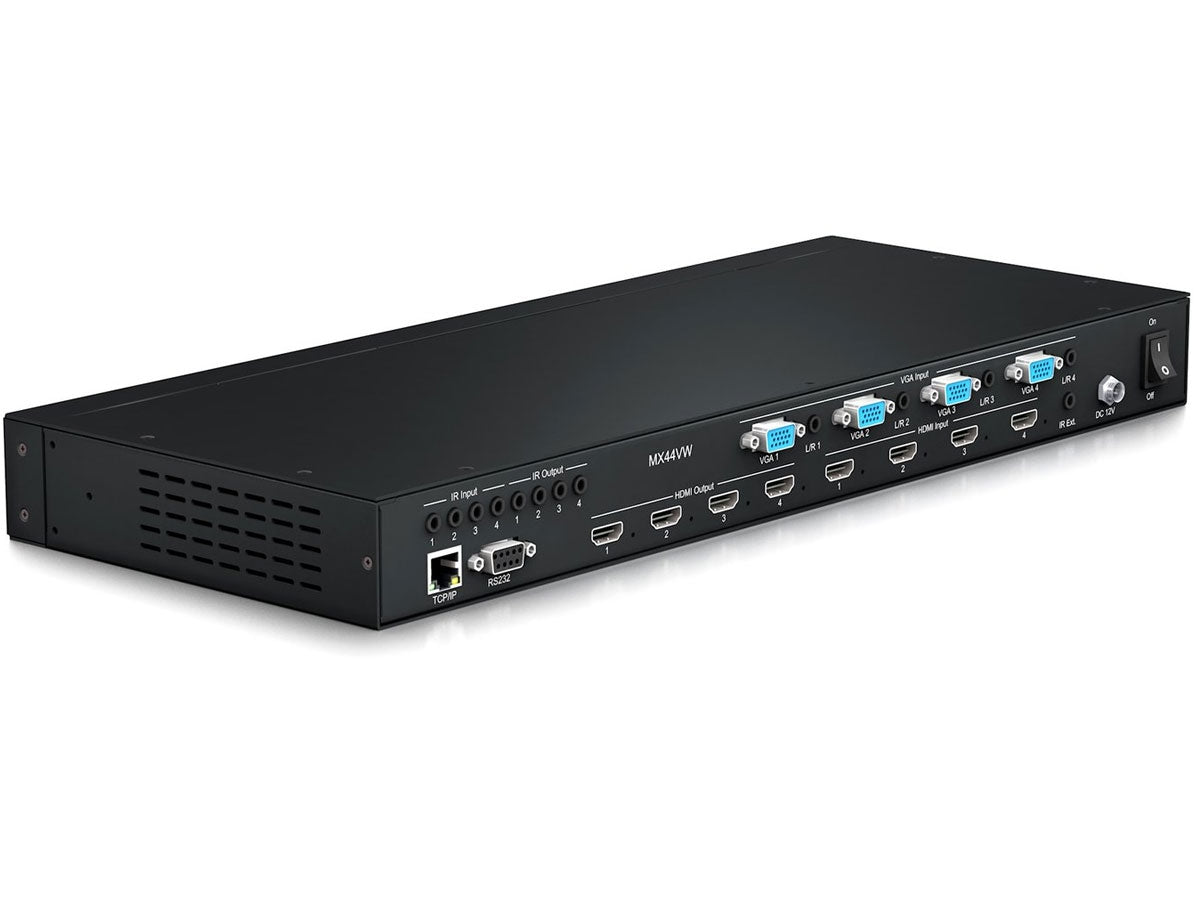

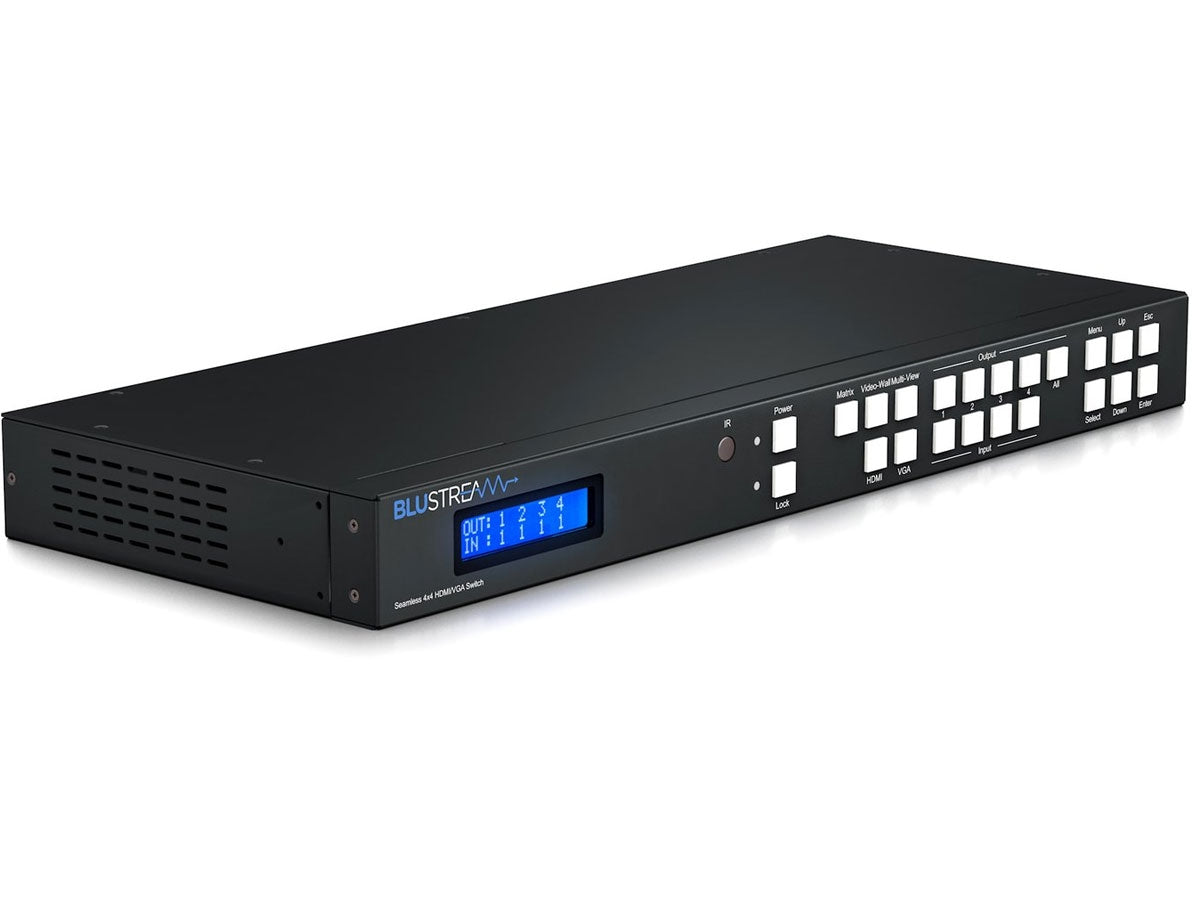

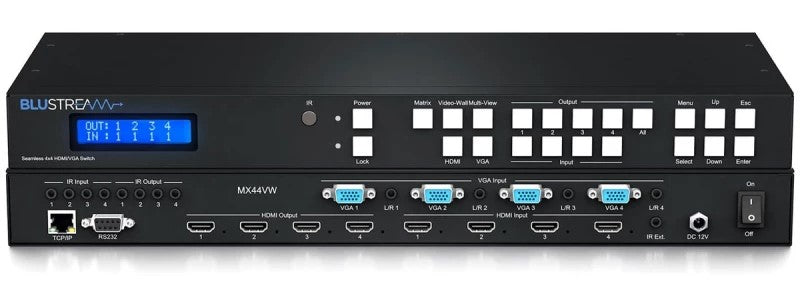

Our MX44VW 4K HDMI / VGA matrix is a multi-purpose high-speed video processing system. The MX44VW can be configured for 3 different output modes.
The MX44VW can perform as a 4x4 seamless matrix switcher, as a 2x2, 4x1 or 1x4 video wall solution, and as a quad multi-view presentation system.
Inputs can be assigned as either HDMI or VGA with associated L/R analogue audio with control of the switcher via the front-panel push buttons, Blustream Matrix App, IR remote control, RS-232 interface and TCP/IP.
Features 3 operational modes:
- 4x4 Seamless Switching Matrix (HDMI or VGA inputs)
- Video Wall (2x2, 4x1 or 1x4 configuration)
- Multi-Viewer mode with preset layouts
• Features 4 x video inputs that can be configured as HDMI video or VGA video with associated L/R analogue audio instantaneous seamless video switching (Matrix and Video Wall modes)
• Video inputs support industry standard video resolutions including VGA-WUXGA (up to 1920x1200 @60Hz) and 480i-4K (3840x2160 @30Hz 4:4:4, 4096x2160 @24Hz 4:4:4)
• HDMI output resolution fixed to 1080p @60Hz
• Supports HDMI 2ch PCM audio only
• Discreet IR routing
• Supplied with Blustream IR receivers and emitters
• Control via front panel, IR, RS-232, TCP/IP and the Blustream matrix App
• 3rd party control drivers available for all major home control brands
• Advanced EDID management
• HDCP 1.4 compliant
| Specification | Details |
|---|---|
| Video Input Connectors | 4 x HDMI Type A, 19-pin, female, locking<br>4 x VGA |
| Video Output Connectors | 4 x HDMI Type A, 19-pin, female, locking |
| Audio Input Connectors | 4 x Analogue audio 3.5mm stereo Jack |
| RS-232 Serial Port | DB-9, female |
| TCP/IP Control | RJ45, female |
| IR Input Ports | 5 x 3.5mm stereo jack |
| IR Output Ports | 4 x 3.5mm mono jack |
| Mounting kit included | Yes |
| Casing Dimensions | 440mm x 45mm x 180mm |
| Dimensions with connections | 440mm x 44mm x 187mm |
| Shipping Weight | 4.0kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Power Supply | 12V/3A DC |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
| User Manual | Downloads |
