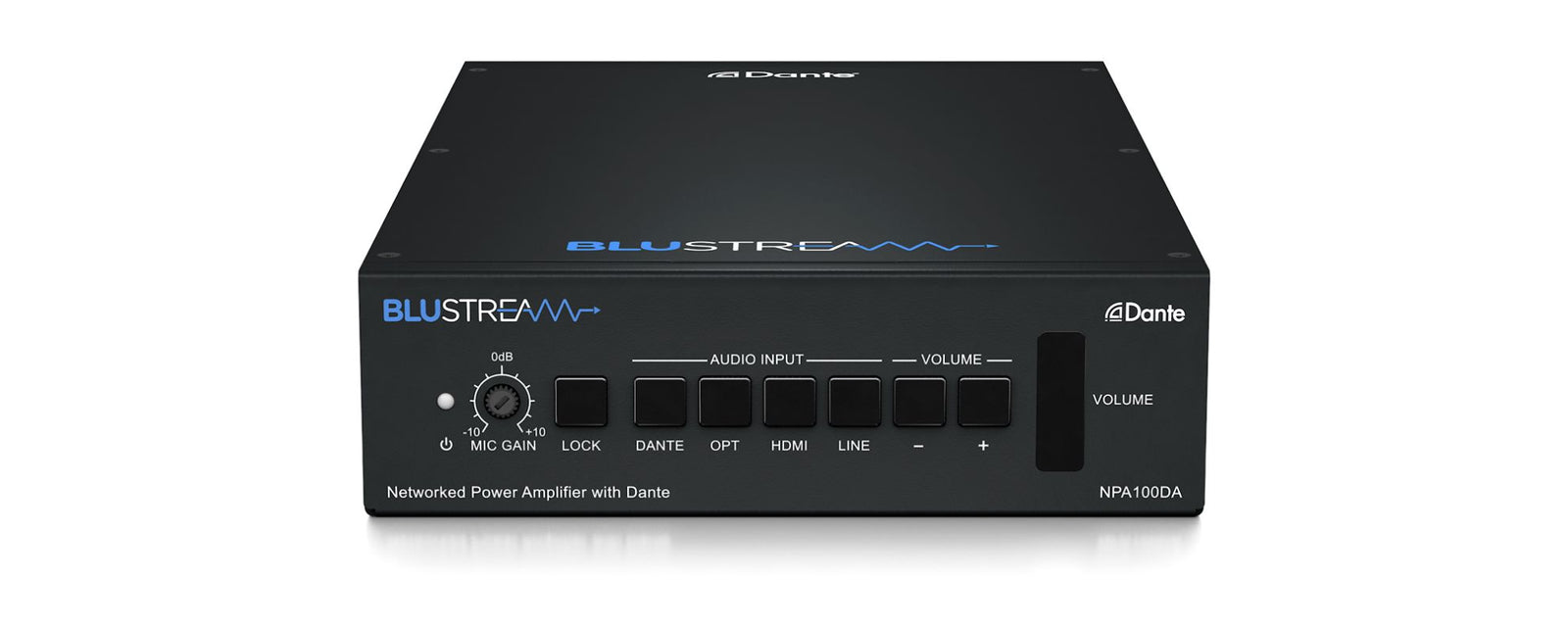

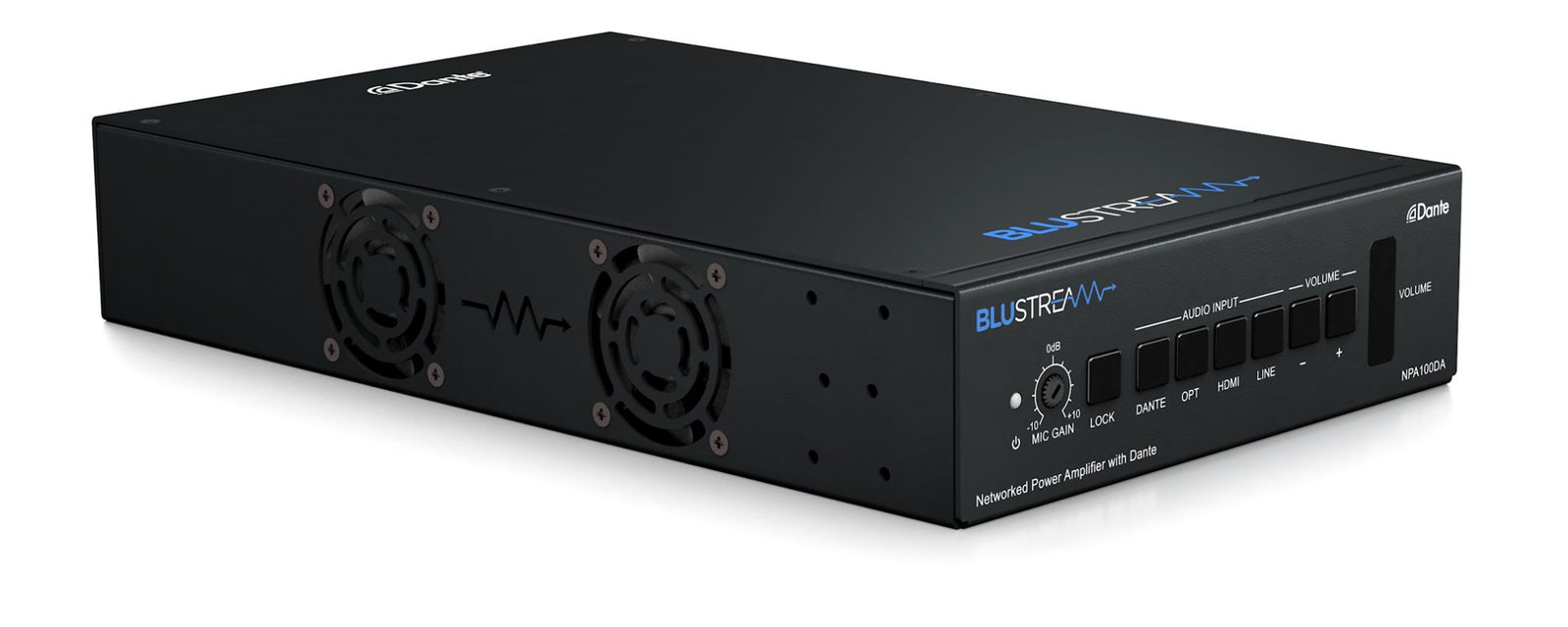

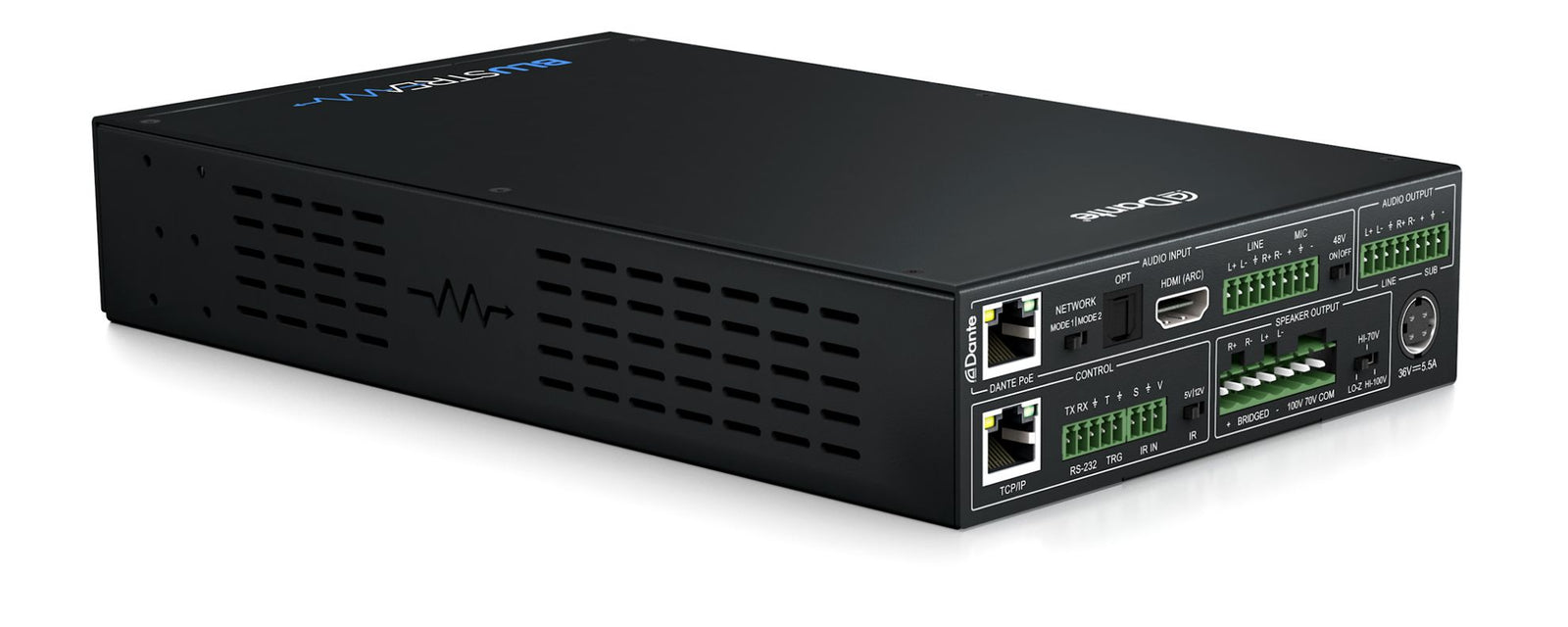

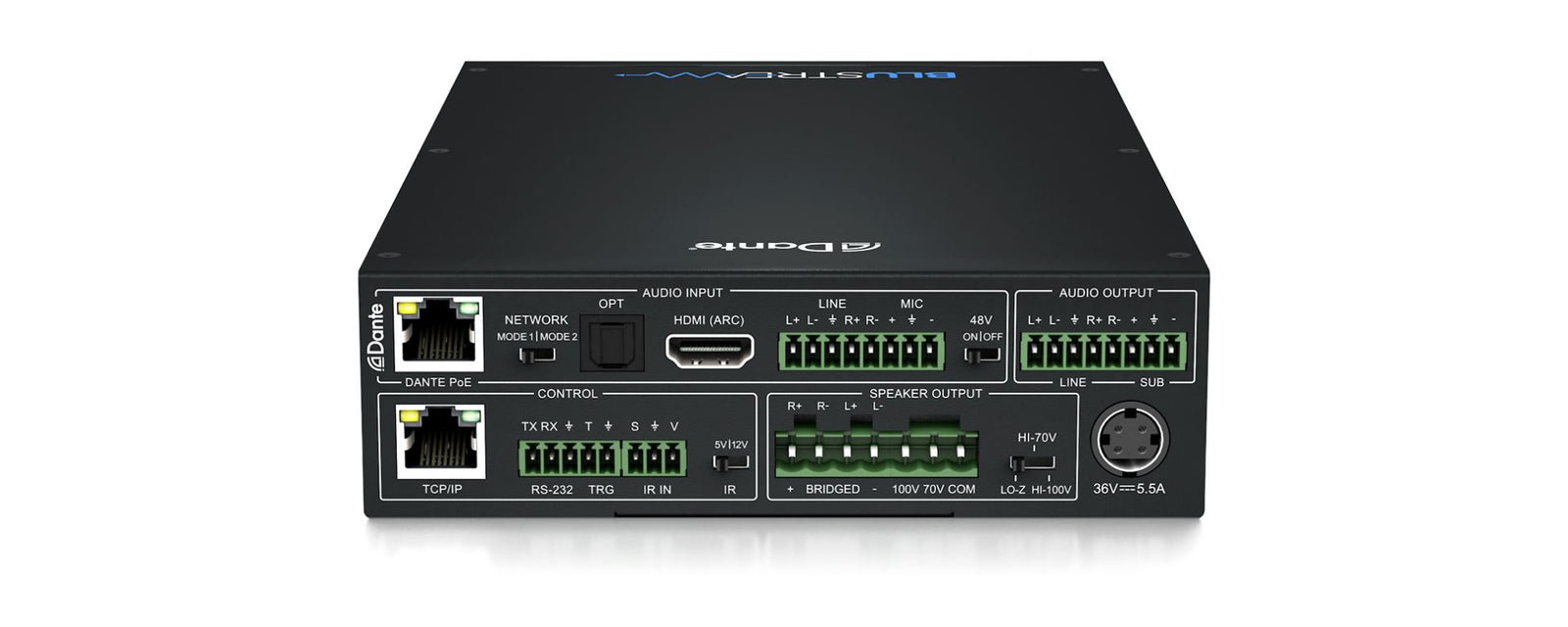

BluStream Networked Power Amplifier with Dante | NPA100DA

Our NPA100DA networked audio zone amplifier delivers advanced audio integration within a commercial or residential AV installation.

The NPA100DA features a 2x 50W digital amplifier (1 x 100W mono) or 70V / 100V hi-level constant voltage output, dedicated LFE subwoofer output, Dante audio integration and 2ch balanced / un-balanced audio outputs.

The NPA100DA supports a variety of inputs including 2ch Dante audio, HDMI ARC, MIC audio with 48V Phantom power support, optical audio and 2ch balanced / un-balanced analogue audio.

The NPA100DA can be powered via PoE++ from a compatible network switch, or locally should the switch not support PoE++. The unit also includes the ability to lower the amplifier power output subject to PoE capabilities, support for combined or independent LAN and Dante connections, DSP with a 31 band EQ, audio delay for lip sync correction, independent gain control for audio inputs and control via front panel, IR, RS-232, TCP/IP, Web Gui or 12v trigger.

Key Features
• Advanced network audio amplifier with Dante integration

• Supports 2 x 50W @ 4 / 8 ohm, 1 x 100W @ 4 / 8 ohm, or 70 / 100V constant output for
multiple speakers with longer cable runs

• Supports power via PoE++ on Dante LAN connection or via local power supply*

• Dual network option - independent Dante and LAN control ports, or combined to a single LAN port

• Audio inputs include:
   - 2ch Dante/AES67 audio input
   - HDMI ARC with CEC volume control
   - MIC audio input with phantom power and auto‐ducking
   - 2ch Analogue audio input – unbalanced & balanced
   - 1 x Optical (S/PDIF) audio input

• Audio outputs include:
   - 2ch Dante/AES67 audio Output
   - 2ch variable/fixed analogue output, balanced/un‐balanced
   - 1 x LFE subwoofer output

• Independent gain control for input channels

• DSP with 31 band EQ with +/-10dB gain and audio delay

• Local 12V input trigger for automated power control

• Control via front panel, IR, RS‐232 and IP

• Auto standby mode with signal sensing

• In‐built web-GUI for setup and control

Box Contents
1 x NPA100DA
1 x 36V/5.5A power supply
1 x Remote control
1 x IR receiver
1 x Rack mounting kit
1 x Wall / surface mounting Kit
4 x Rubber feet
1 x Quick reference guide
