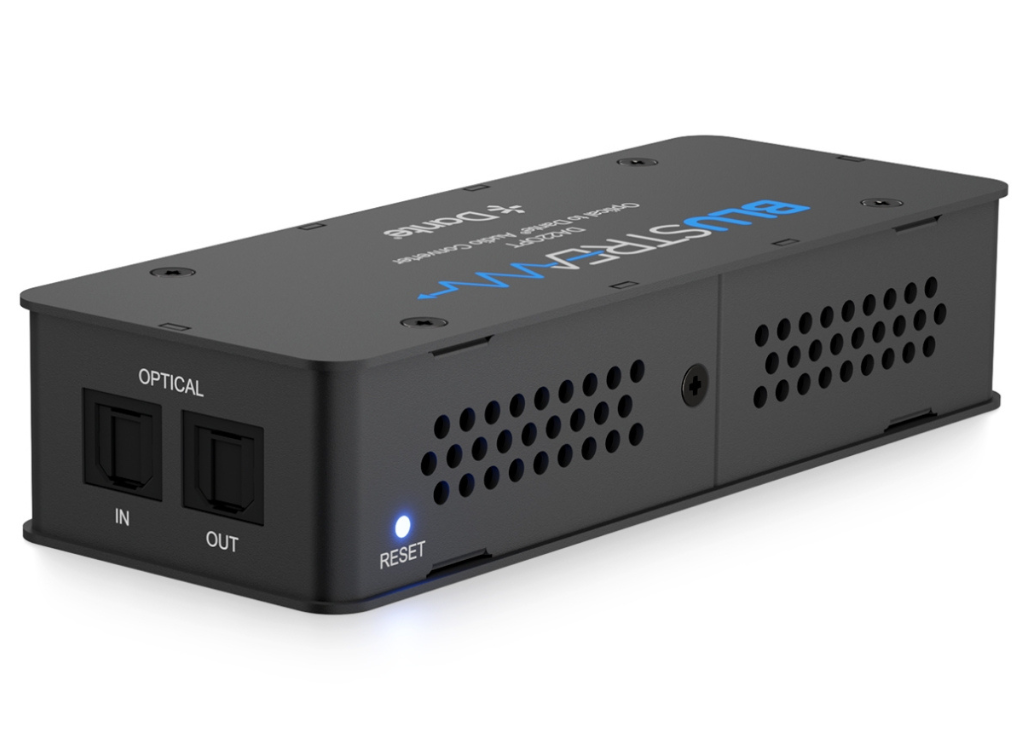

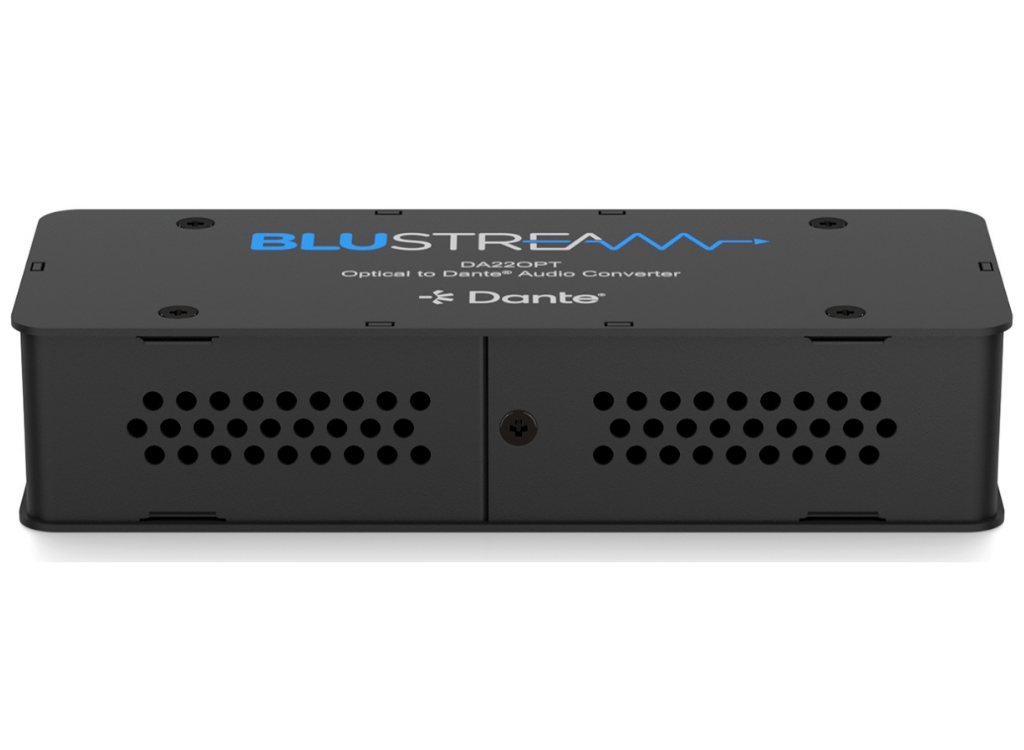

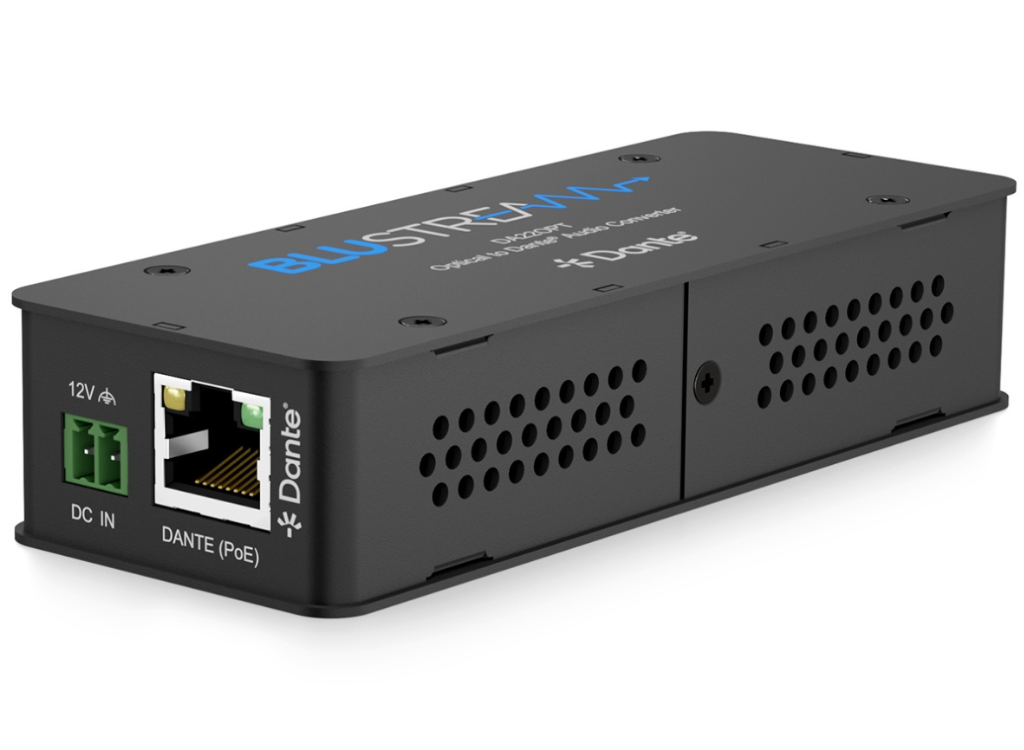

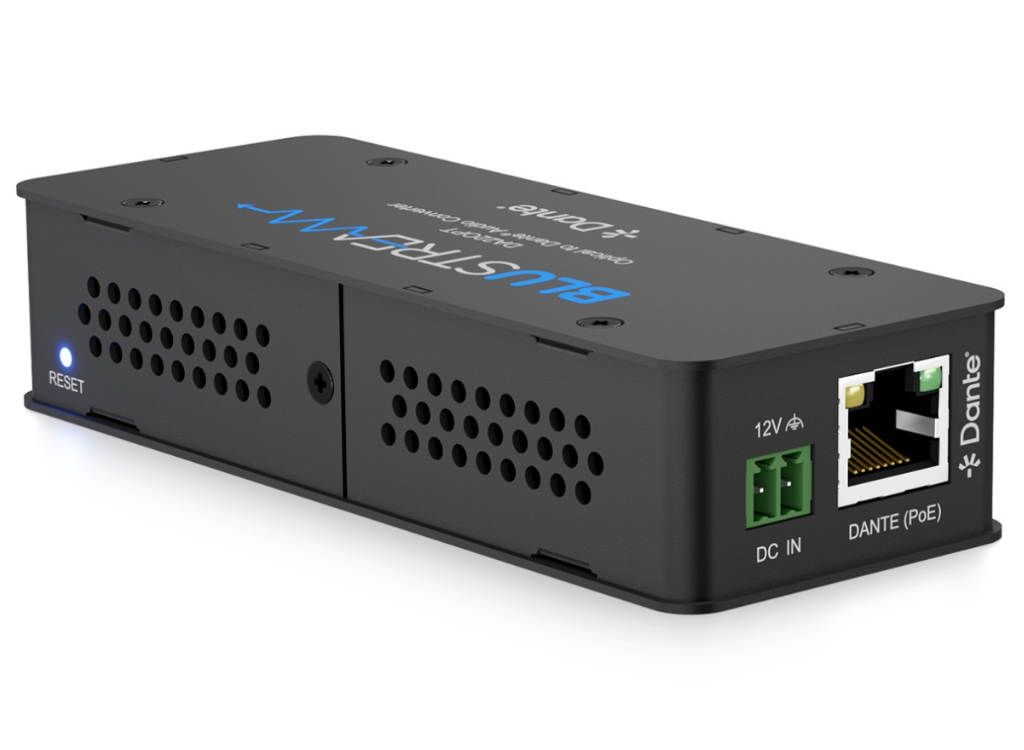

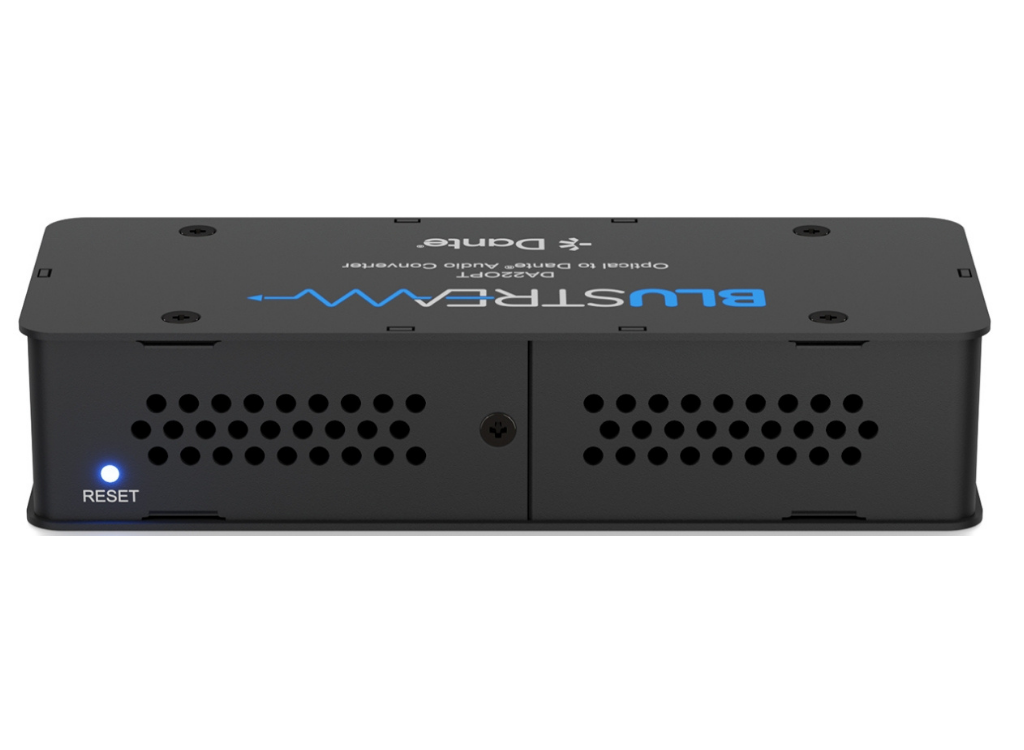

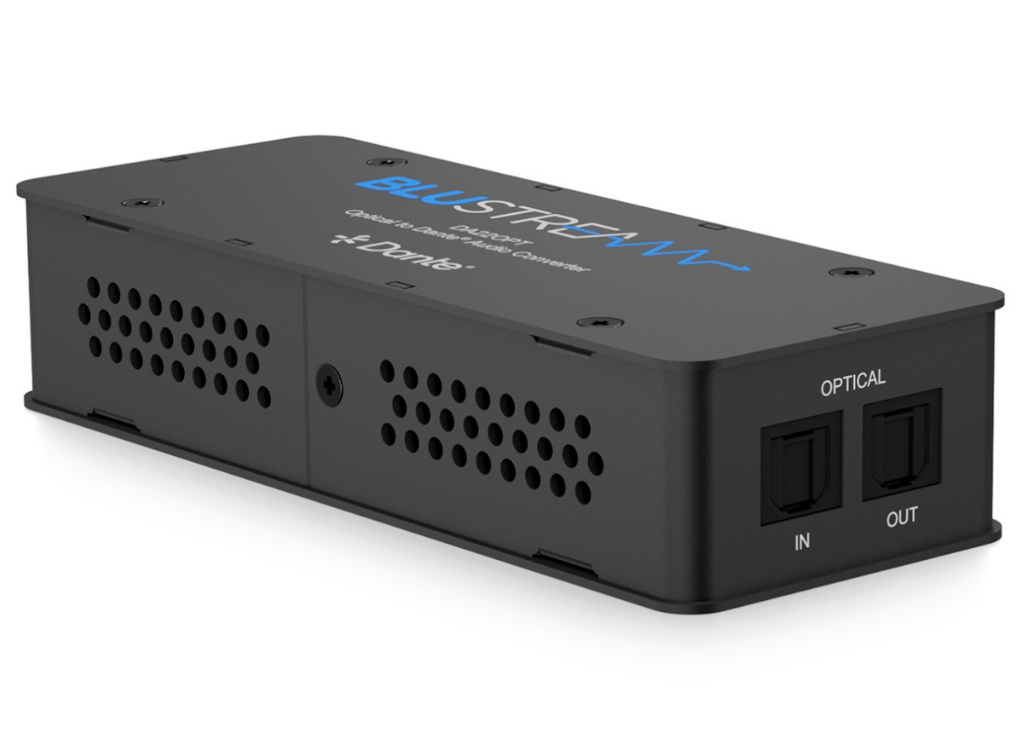

Our DA22OPT has been designed to both encode 2ch optical S/PDIF audio to a Dante® digital signal, and decode a Dante® digital signal to 2ch optical S/PDIF audio. The DA22OPT is a plug & play device that is powered using PoE (Power Over Ethernet). The DA22OPT also supports AES67 RTP audio transport.
Key Features
• Encodes 2ch optical S/PDIF audio to a Dante® digital signal
• Decodes a 2ch Dante® digital signal to optical S/PDIF audio
• Optical S/PDIF signal can be routed from Input to Output by binding the connection in Dante Controller
• Supports: 44.1, 48, 88.2 & 96 KHz sample rates @ 16, 24 & 32 Bit
• Configurable Dante® device latency (supports 2, 3, 4, 5 or 10ms configurable using Dante® Controller)
• +6dB / -24dB input sensitivity and output gain control adjustment
• Supports AES67 RTP audio transport
• Features Class 0 802.3af PoE for powering of product from any PoE switch
• Local 12v power supply input for when network switch does not support PoE*
* PS121PH power supply sold separately
Box Contents
1 x DA22OPT
1 x Quick Reference Guide
| Feature | Specification |
|---|---|

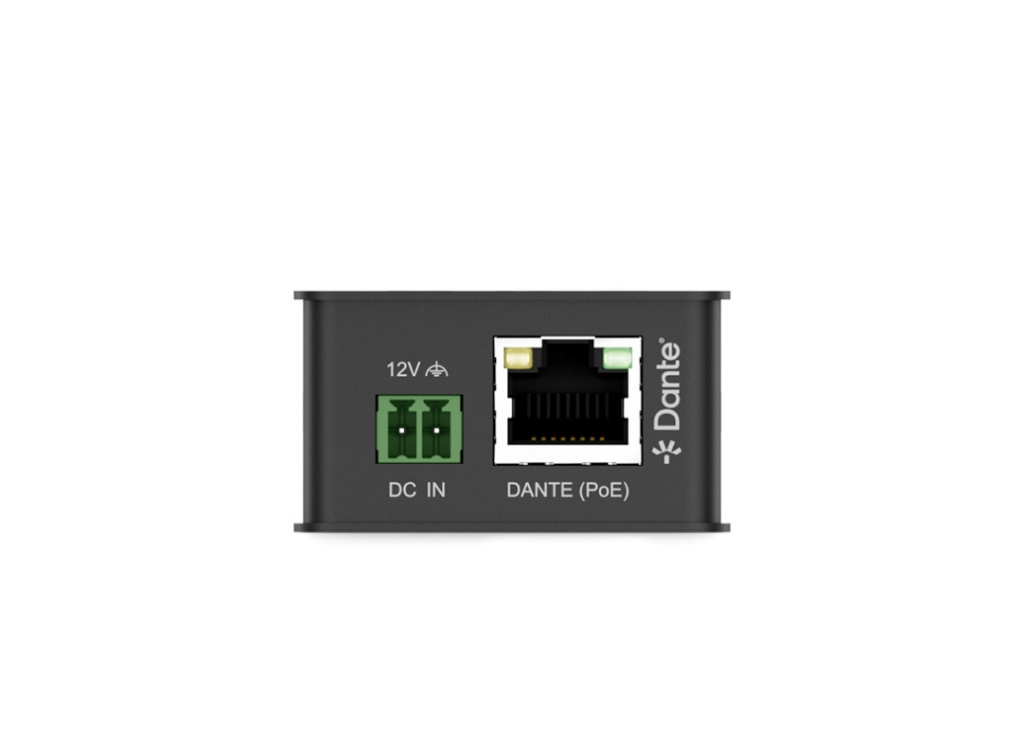

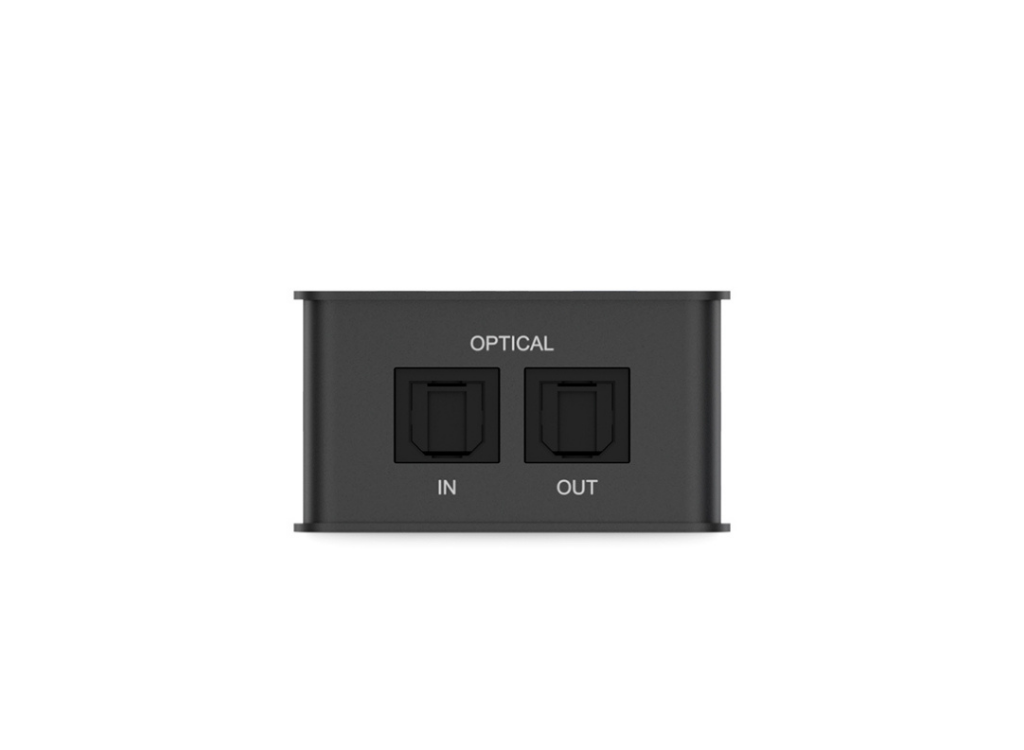

| Audio Input/Output Connectors | 1 x RJ45, female (100 Mbps Dante® network) 2 x Optical Toslink (S/PDIF) |
| Casing Dimensions (L x W x H) | 120mm x 47mm x 26mm |
| Shipping Weight | 0.3 Kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | Class 0 IEEE 802.3af POE PD or 5V USB |
