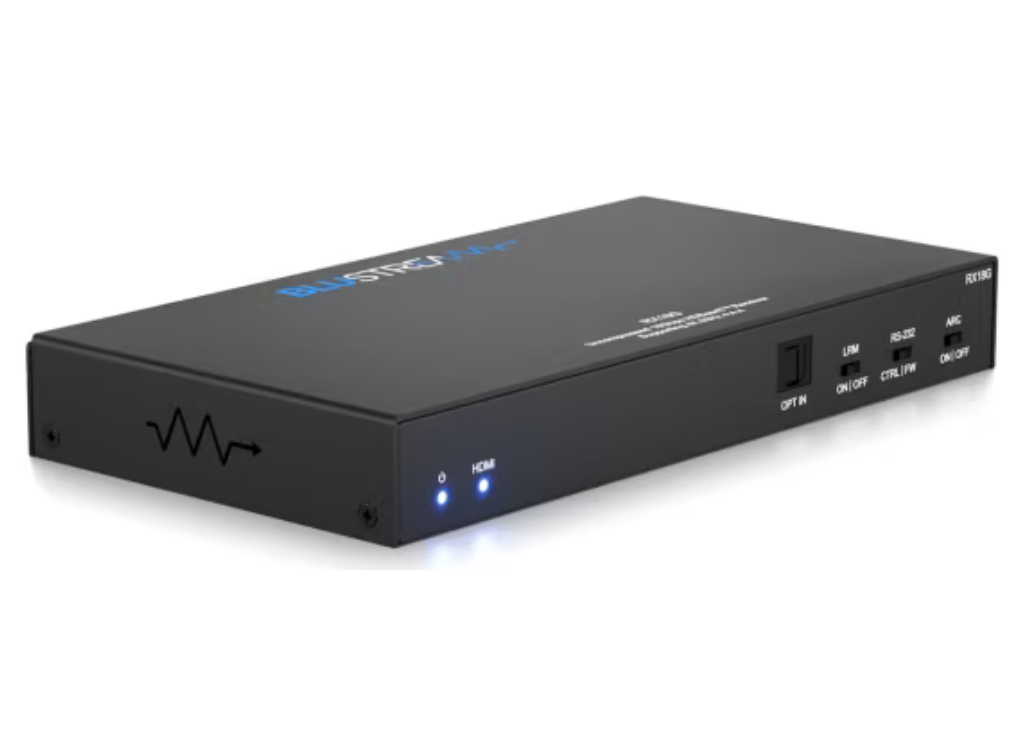

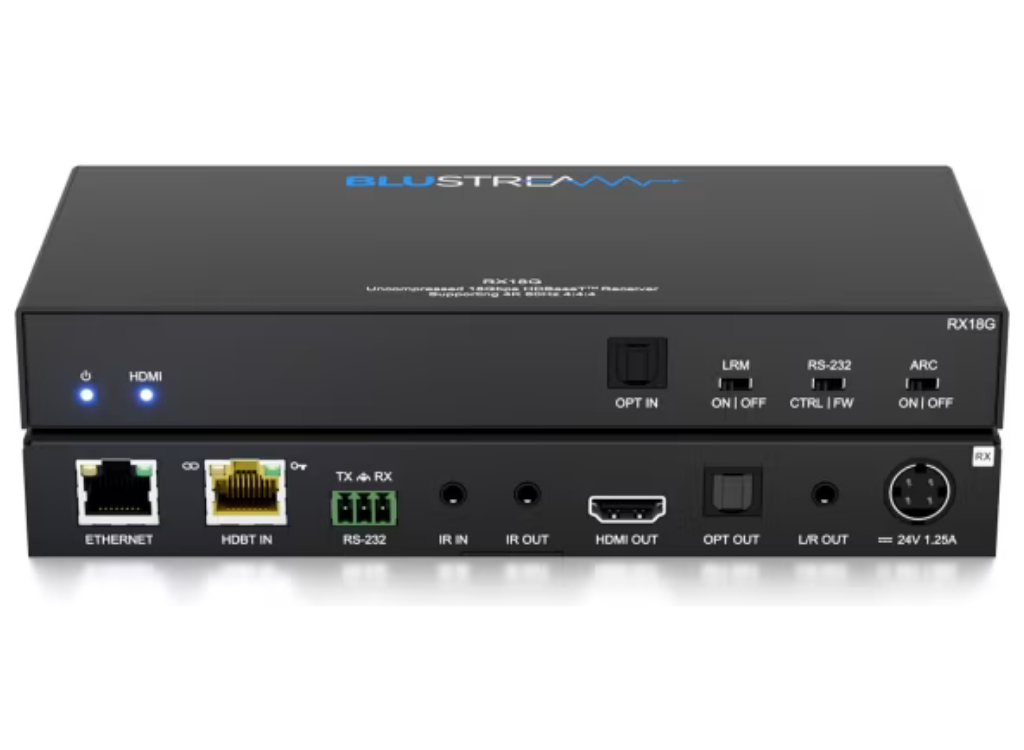

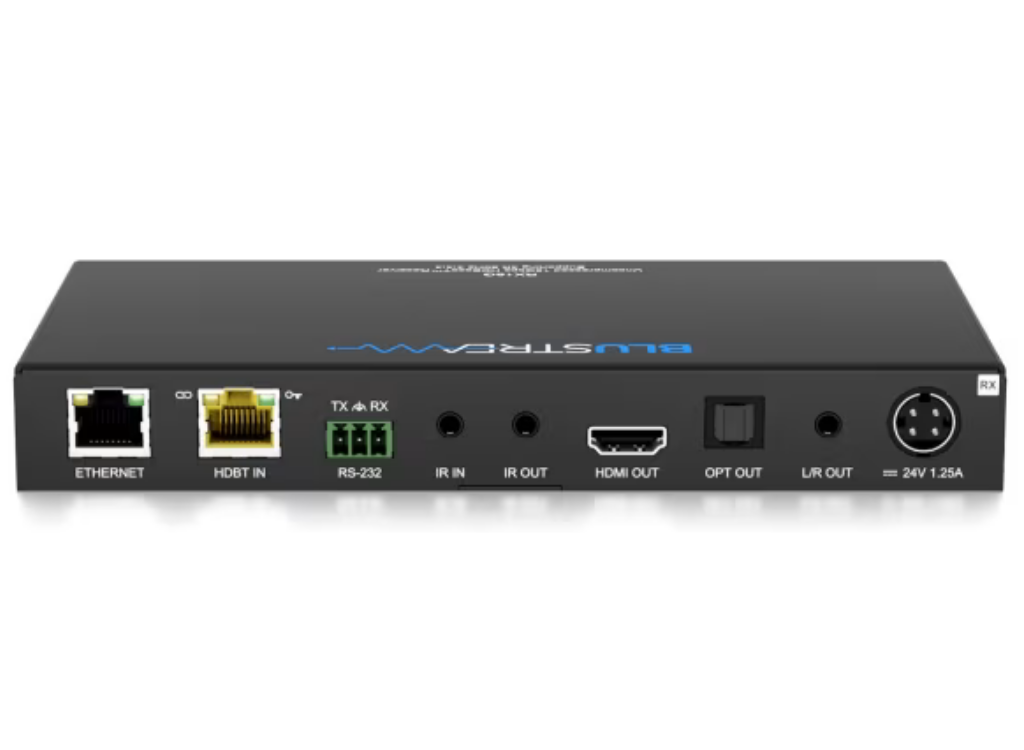

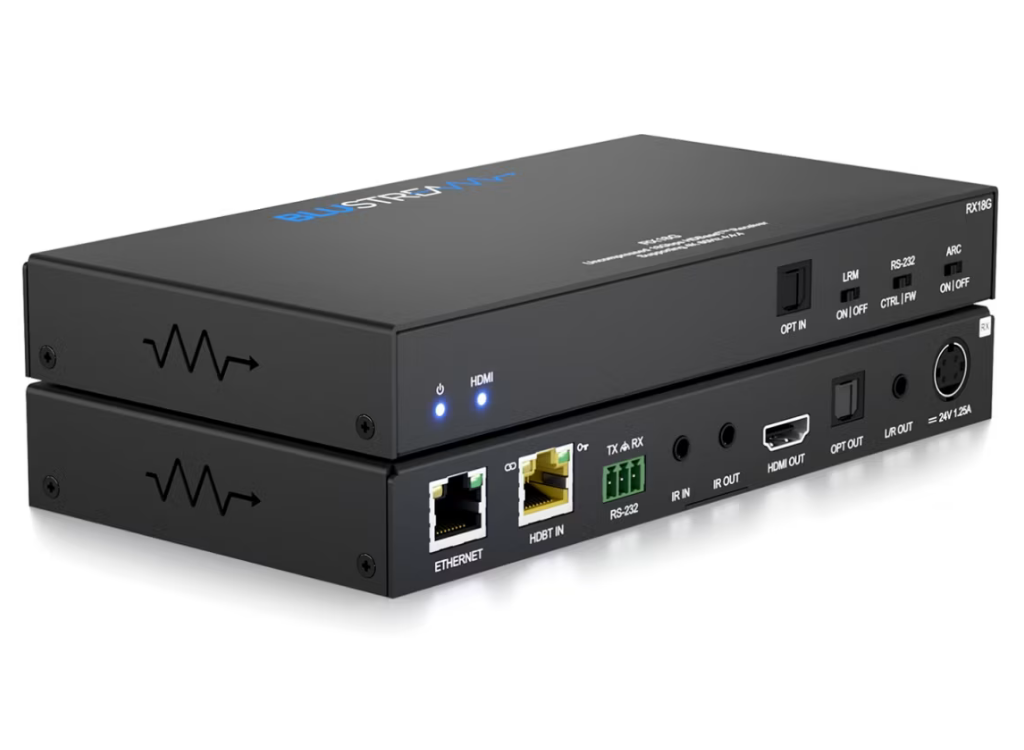

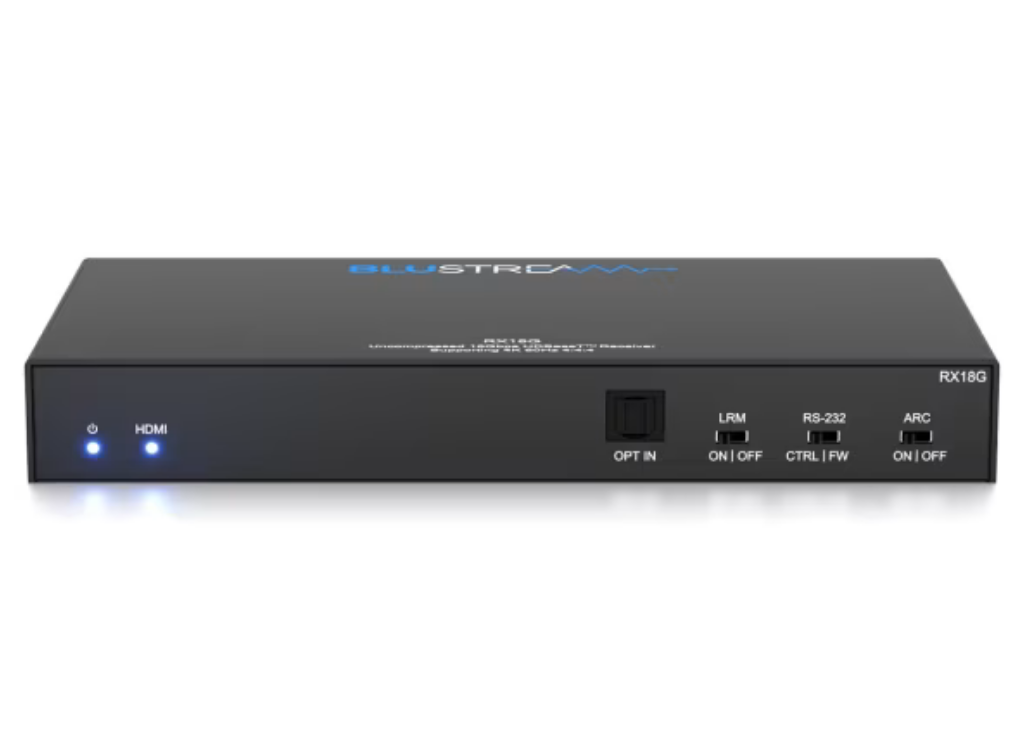

The RX18G receiver is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.
The RX18G supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.
The RX18G supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable while also providing enhanced features including ARC via HDMI or Optical (S/PDIF), and 1Gb Ethernet pass through.
Key Features
• Advanced HDBaseT™ spec 3.0 technology offering distribution of video and audio over a single CAT6A cable
• Supports uncompressed HDMI2.0 18Gbps 4K 60Hz 4:4:4 specification including HDR
• Extends HDMI 1080p video up to 150m (HDBaseT™ long-reach mode)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports ARC (Audio Return Channel) from connected display via HDMI or Optical digital inputs (when used with compatible Blustream matrix)
• Bi-directional 1Gb Ethernet pass through when used with compatible Blustream matrix solution
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Bi-directional RS-232 pass-through
• Supports bi-directional IR pass-through from compatible Blustream matrix
• Supports PoC (Power over Cable) from compatible Blustream matrix
• HDCP 2.3 support
• Recommended receiver to be used with Blustream HMX88-18G and HMX44-18G matrix *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
Box Contents
1 x RX18G
1 x Mounting Bracket Set
1 x Quick Reference Guide
| Feature | Description |
|---|---|
| Video Input Connectors | 1 x HDBaseT™ RJ45 connector |
| Video Output Connectors | 1 x HDMI Type A, female |
| RS232 Input Port | 1 x 3-pin Phoenix connector |
| Audio Output Connectors | 1 x Analogue audio L/R (3.5mm stereo jack), 1 x Optical (S/PDIF) |
| Audio Input Connectors | 1 x Optical (S/PDIF) |
| Ethernet Port | 1 x RJ45 connector |
| IR Input Port | 1 x 3.5mm stereo jack |
| IR Output Port | 1 x 3.5mm mono jack |
| Mounting Kit | Included |
| Casing Dimensions (W x H x D) | 190 x 100 x 25mm |
| Dimensions Including Connections (W x H x D) | 190 x 108 x 25mm |
| Power Supply | 24V/1.25A DC, 4-pin DIN |
| Shipping Weight | 1.0 Kg |
| Operating Temperature | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature | -4°F to 140°F (-25°C to +70°C) |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
