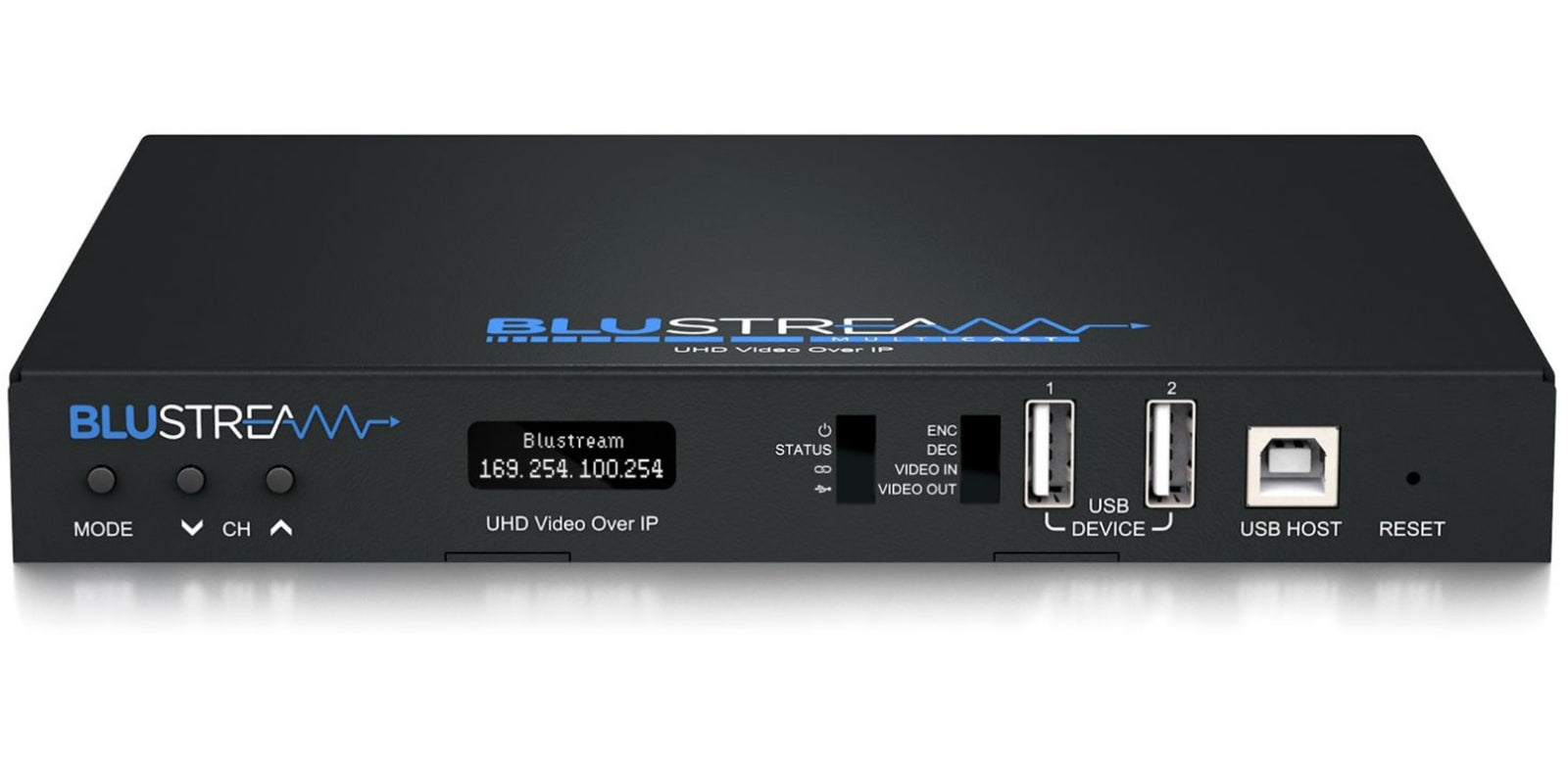

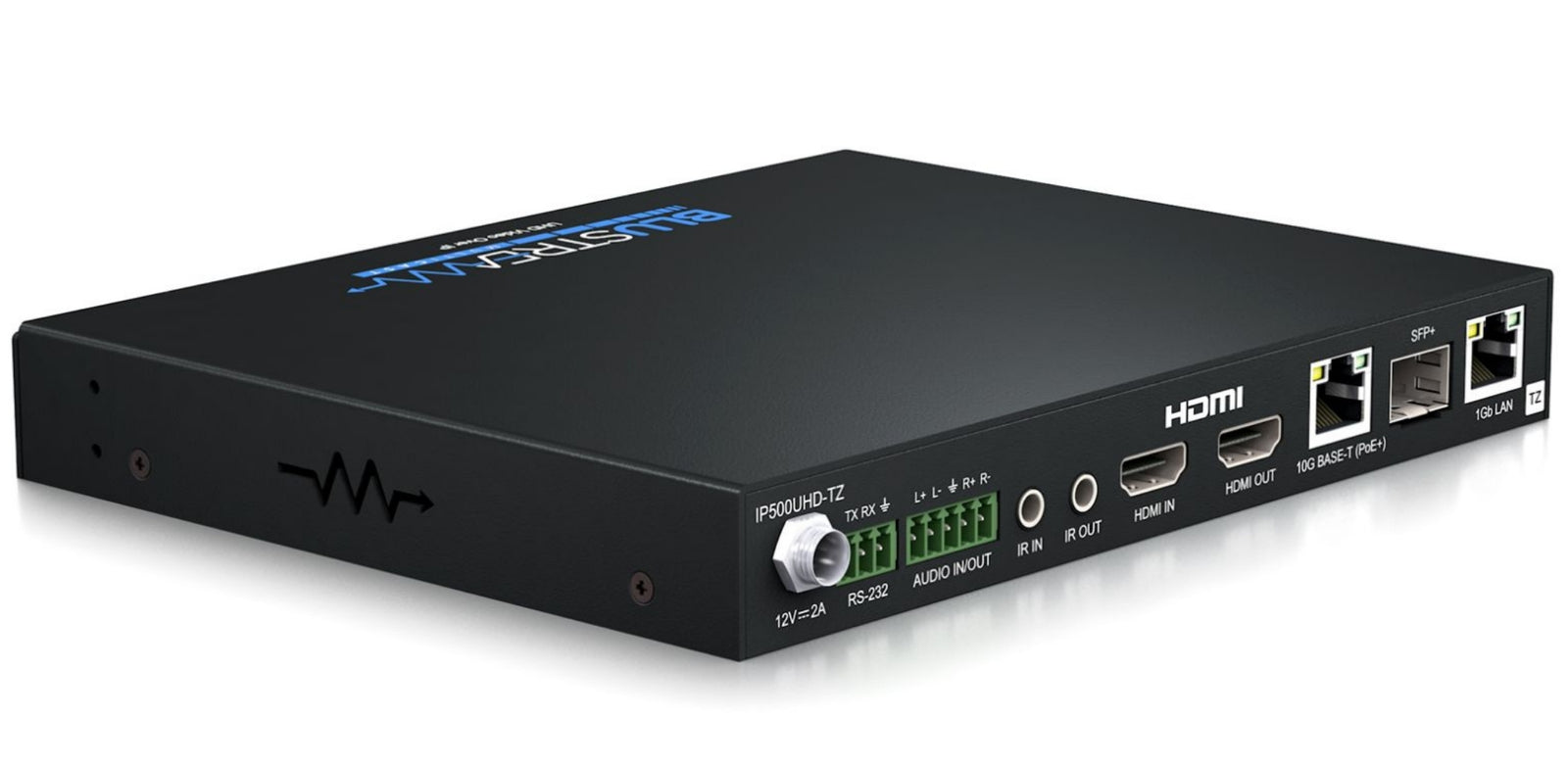

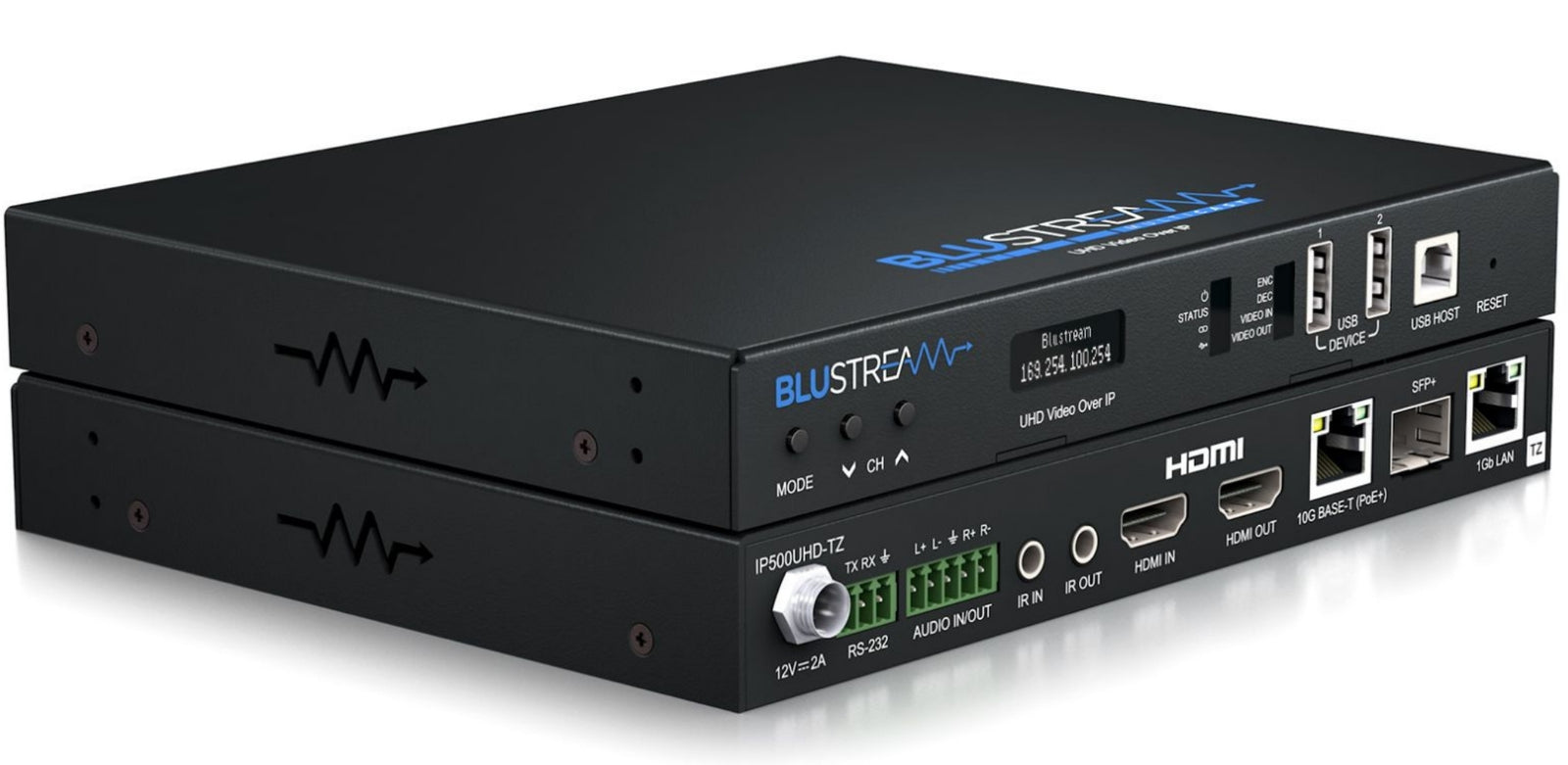

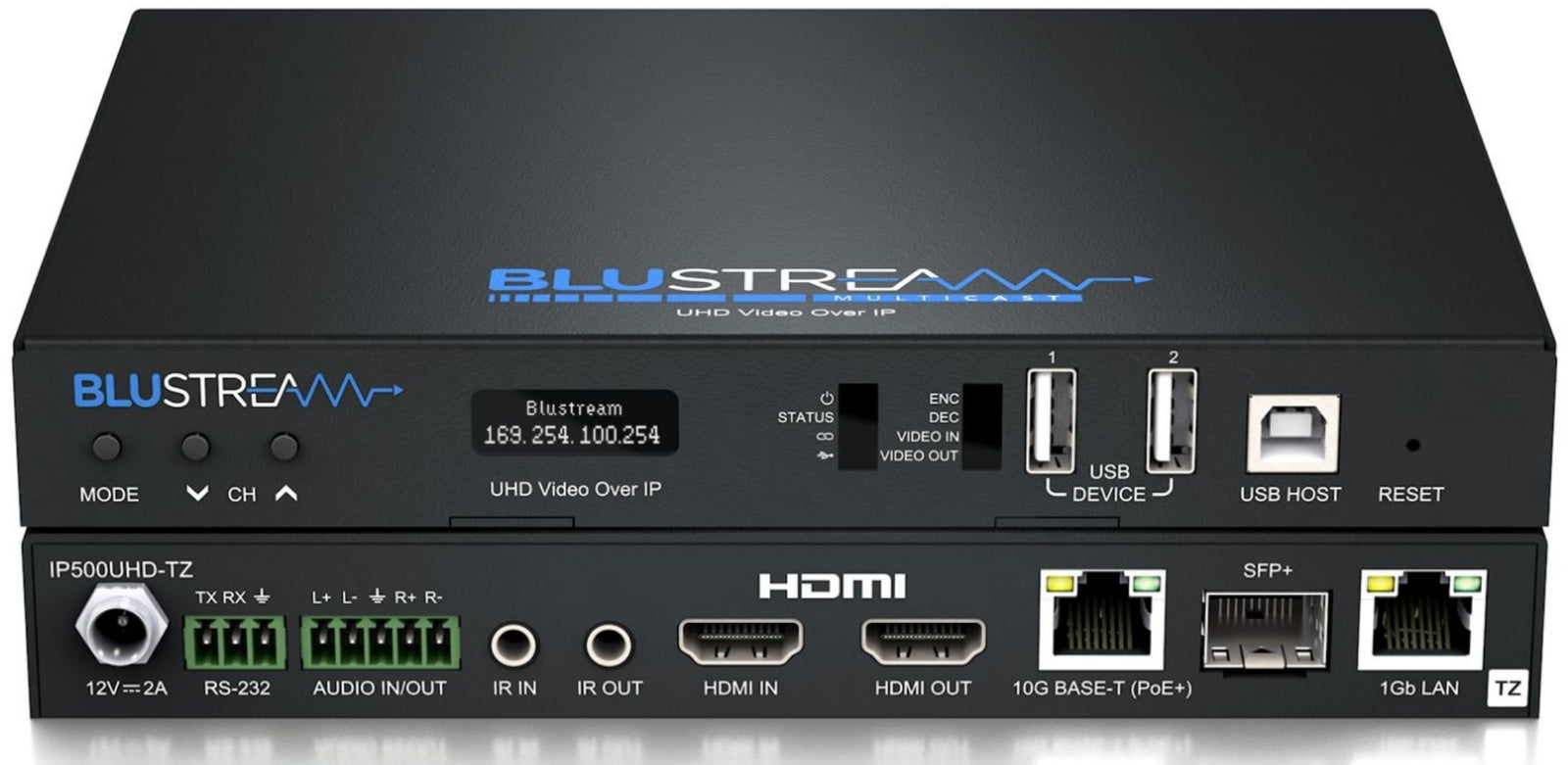

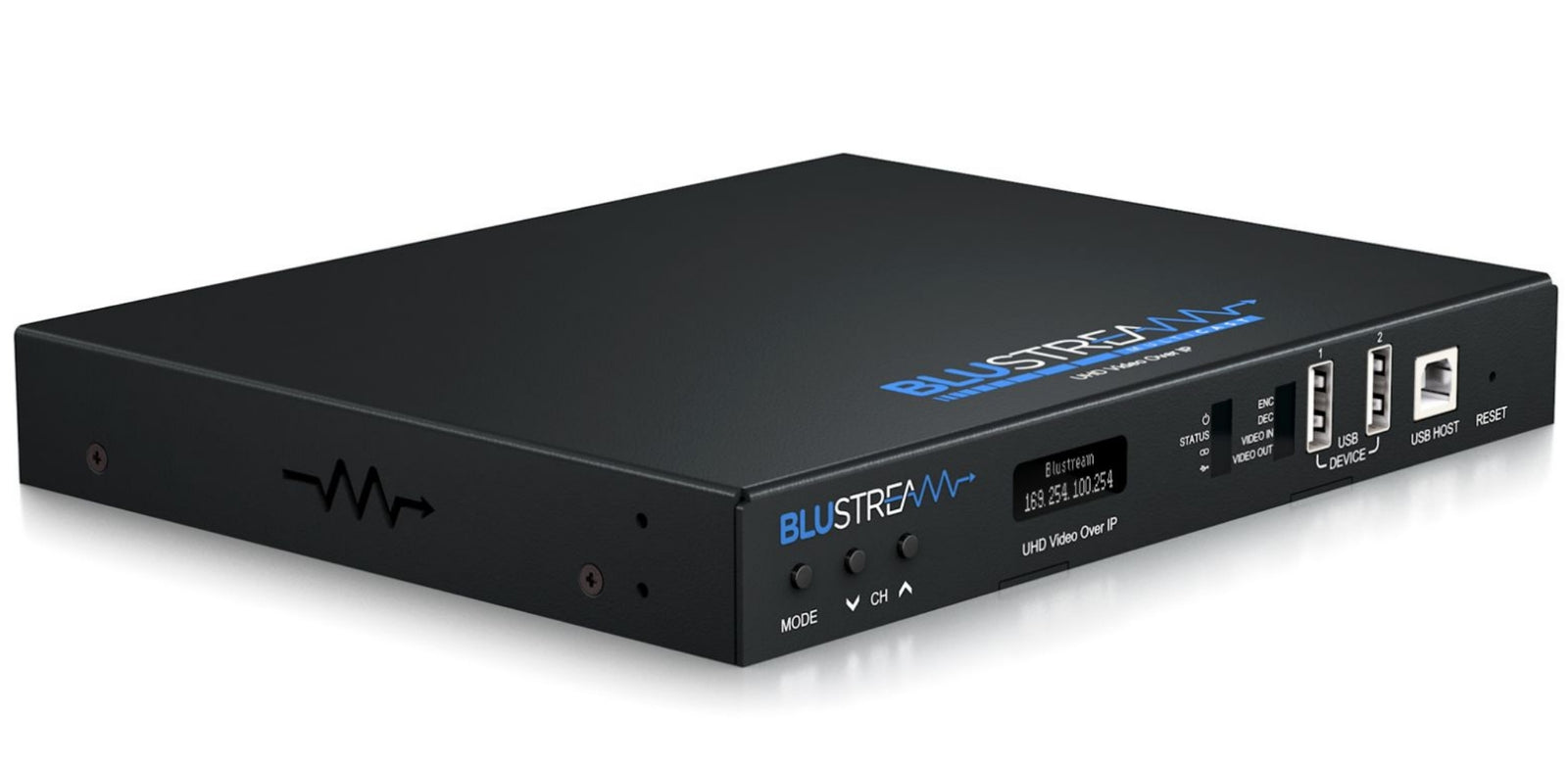

The Blustream IP500UHD Transceiver is a SDVoE AV over IP solution that provides the highest-quality, un-compromised 18Gbps 4K with zero latency Audio/Video extension over copper or optical fibre 10Gb Managed Networks.
The IP500UHD-TZ includes support for HDMI 2.0 including distribution of HDR (High Dynamic Range), 10-bit colour content, and multi-channel HD audio signals.
The IP500UHD-TZ provides advanced features including PoE+ and transmission of multiple control and data signals alongside audio and video, including IR, RS-232, USB (KVM) and 1Gb Ethernet.
The IP500UHD-TZ is ideal for mission-critical 18Gbps HDMI installations where multiple transceivers can be combined with one or more 10GbE copper / fibre switches to form a distributed video matrix, multi-viewer, or video wall system.
Key Features
Advanced 18Gbps UHD Video over 10Gb Managed Network with visually lossless compression and zero latency
Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4, and with 10/12-bit HDR sources, including Dolby Vision
Transceiver can be configured as a point of transmission or a receiver as required
Supports video scaling and single-frame switching
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio and DTS:X transmissions
Support fixed signal routing function for IR, RS-232, CEC and USB
USB end-to-end / point-to-point pass-through
Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
Bi-directional 10/100/1000BaseT Ethernet pass-through
Supports bi-directional 5V or 12V IR pass-through
PoE+ (Power over Ethernet) to power Blustream Multicast products from PoE+ switch
HDCP 2.2 compliant with advanced EDID management
Local 12V 2.5A power input (should Ethernet switch not support PoE+, PSU sold separately)
Features 4 operational modes:
- Matrix distribution (requires 10Gb network switch)
- Video wall (requires 10Gb network switch)
- Multiview mode (requires 10Gb network switch)
- One-to-one HDMI extender (no network switch required)
Box Contents
1 x IP500UHD-TZ
1 x IR Receiver
1 x IR Emitter
4 x Rubber Feet
1 x Mounting Kit
1 x Quick Reference Guide

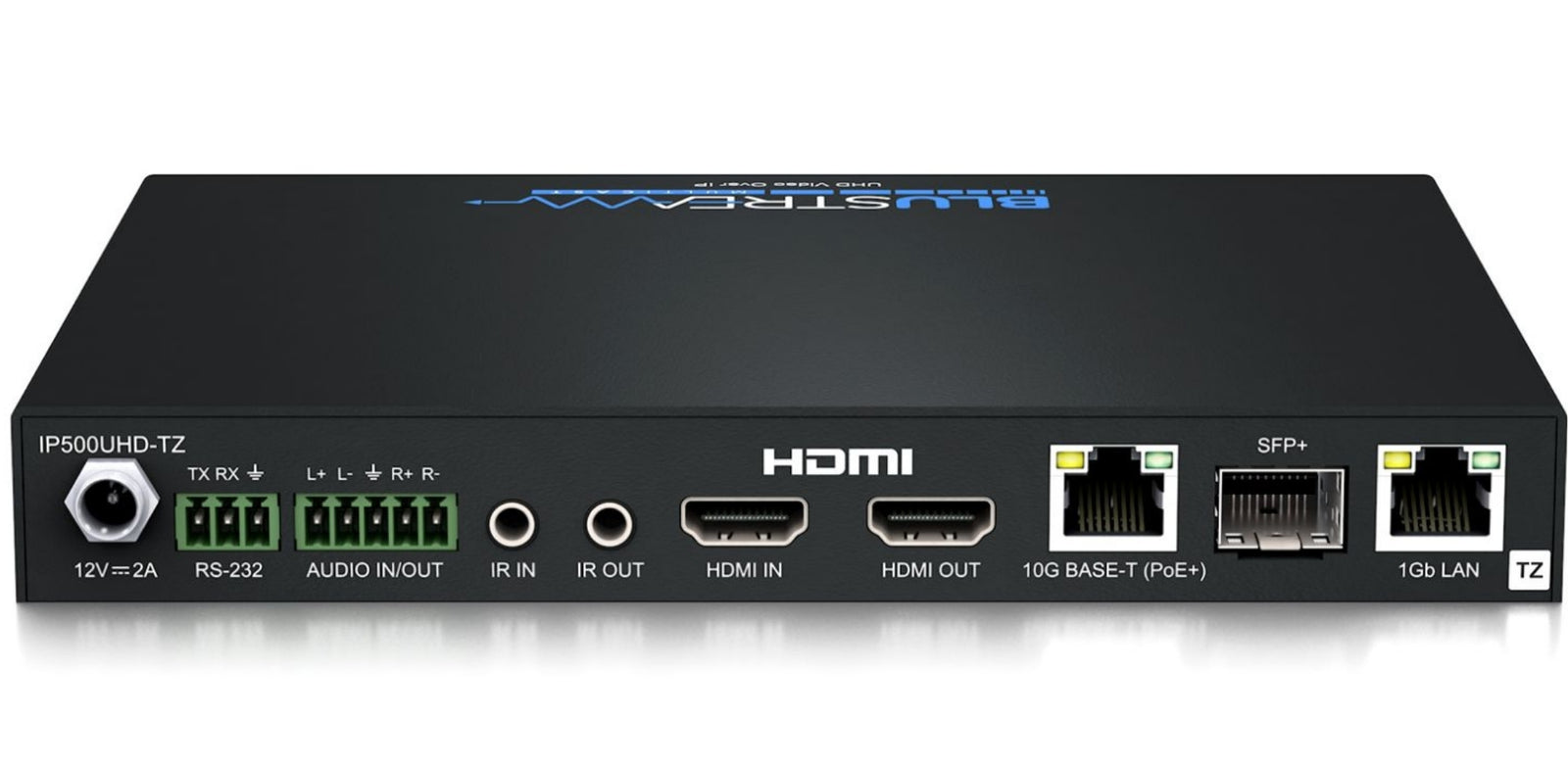

| Feature | Details |
|---|---|
| Video Input | 1 x HDMI Type A, female |
| Video Output | 1 x HDMI Type A, female |
| Latency | 100 µs (0.1ms) no compression, <16ms with mild compression (10-18Gbps) |
| Audio I/O | 1 x 5-pin Phoenix connector |
| Ethernet Port | 1 x 10GBaseT RJ45 Video, 1 x SFP+ module, 1 x 1Gb LAN RJ45 pass-through |
| RS-232 Port | 1 x 3-pin Phoenix connector |
| USB/KVM Port | 1 x USB-Type B (host), 2 x USB-Type A (device) |
| IR Input | 1 x 3.5mm stereo jack |
| IR Output | 1 x 3.5mm mono jack |
| PoE+ Draw | 12.8W (typical), 13.5W (max load) |
| Dimensions (W x D x H) | 191mm x 153mm x 25mm |
| Dimensions (With Connections) | 191mm x 158mm x 25mm |
| Shipping Weight | 1kg |
| Operating Temp | 32°F to 104°F (0°C to 40°C) |
| Storage Temp | -4°F to 140°F (-20°C to 60°C) |
| Description | Downloads |
|---|---|
| BluStream SDVoE IP Multicast UHD Video Transmitter Over 10GB Network | IP500UHD-TZ Downloads , Drivers and Firmware | Downloads |
