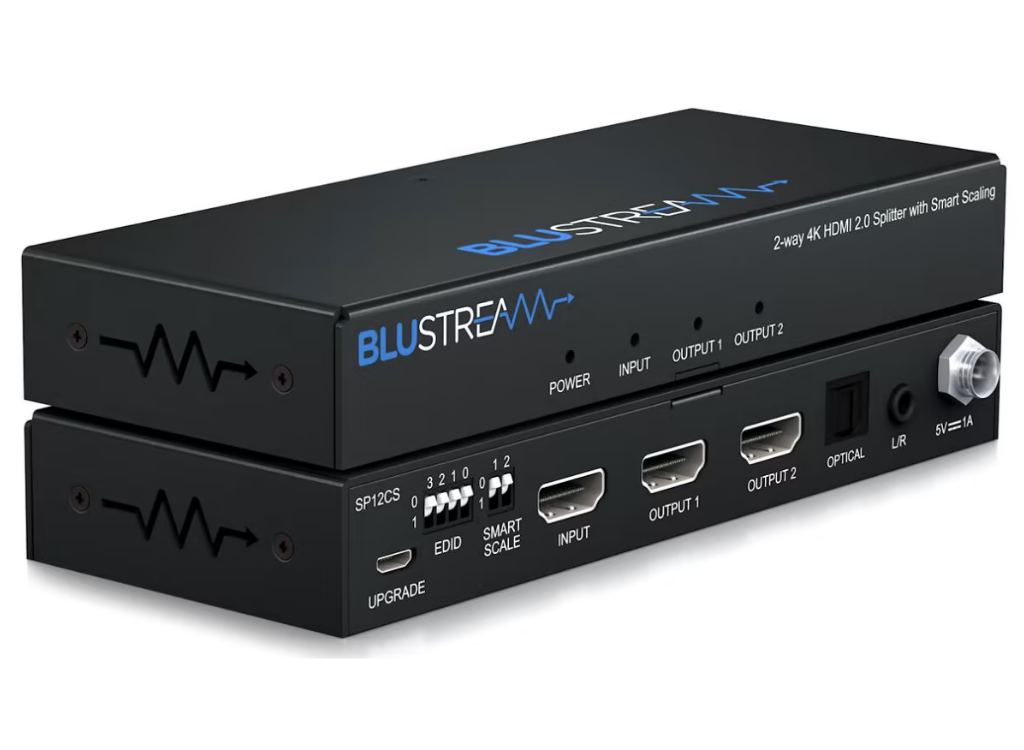

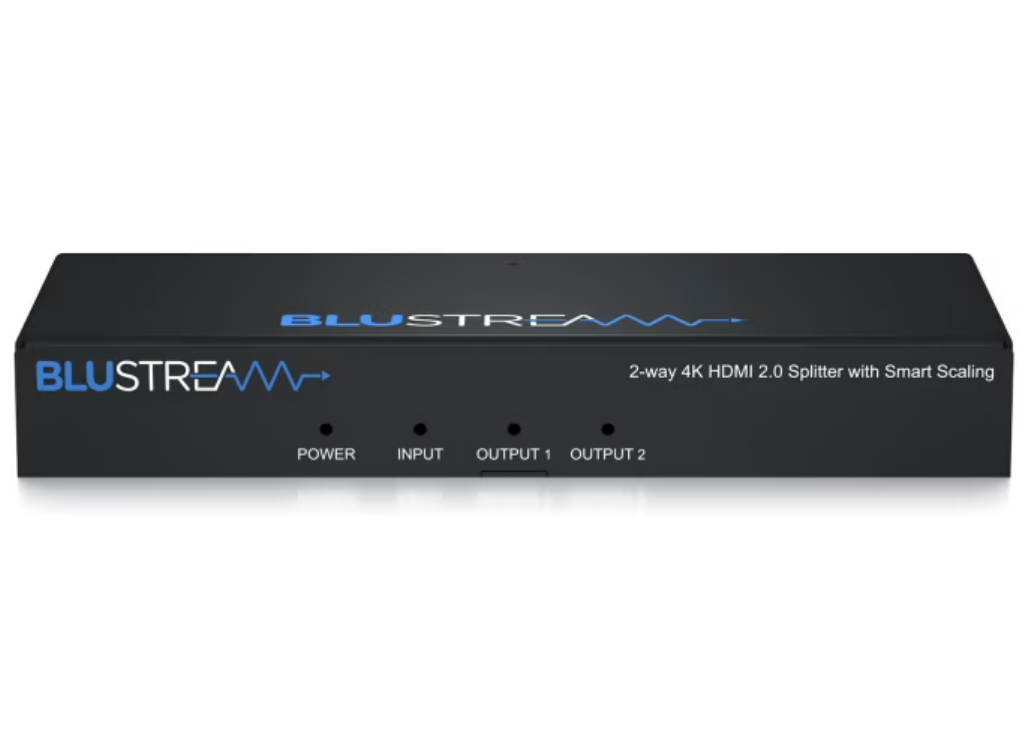

Our SP12CS 4K HDMI 2.0 splitter distributes a single HDMI source to two simultaneous outputs with both digital (S/PDIF) and analogue audio breakout.
The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.
Key Features
• Features 1x HDMI input that is replicated to 2x HDMI outputs
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports up to 4K UHD 60Hz 4:4:4
• Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
• CEC (Consumer Electronic Command) will only pass between the source device and the sink connected to output 1
• Advanced EDID management
• HDCP 2.2 Support
Box Contents
1x SP12CS
1x 5V/1A DC power supply
1x Mounting Kit
1x Quick Reference Guide
| Feature | Description |
|---|---|
| Video Input Connectors | 1x HDMI Type A |
| Video Output Connectors | 2x HDMI Type A |
| EDID | 4-PIN DIP switch |
| Smart Scale | 2-PIN DIP switch |
| Audio Output Connectors | 1x Digital (Optical), 1x Analogue audio L/R (3.5mm stereo Jack) |
| Dimensions (W x D x H) | 158mm x 64mm x 23mm, without feet |
| Shipping Weight | 0.7kg |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
| Power Supply | 5V/1A DC |
| Description | Downloads |
|---|---|
| Datasheet | Downloads |
