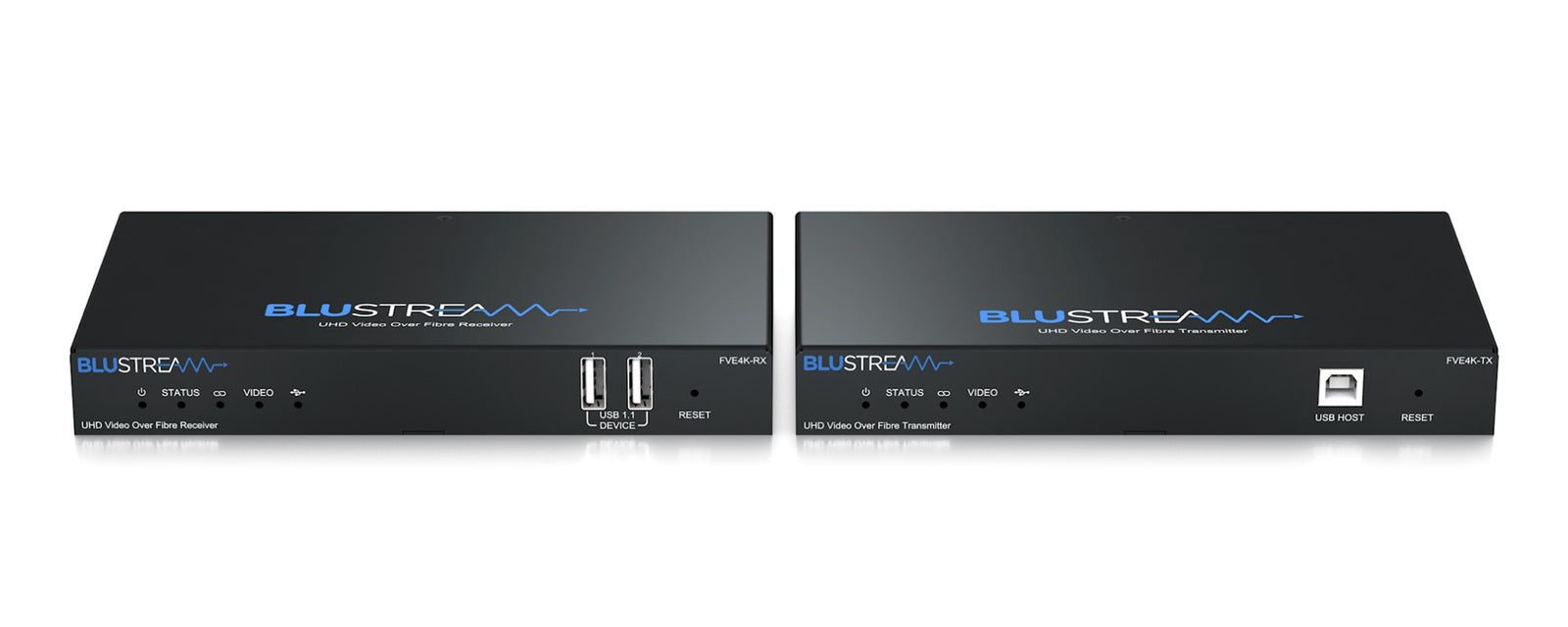

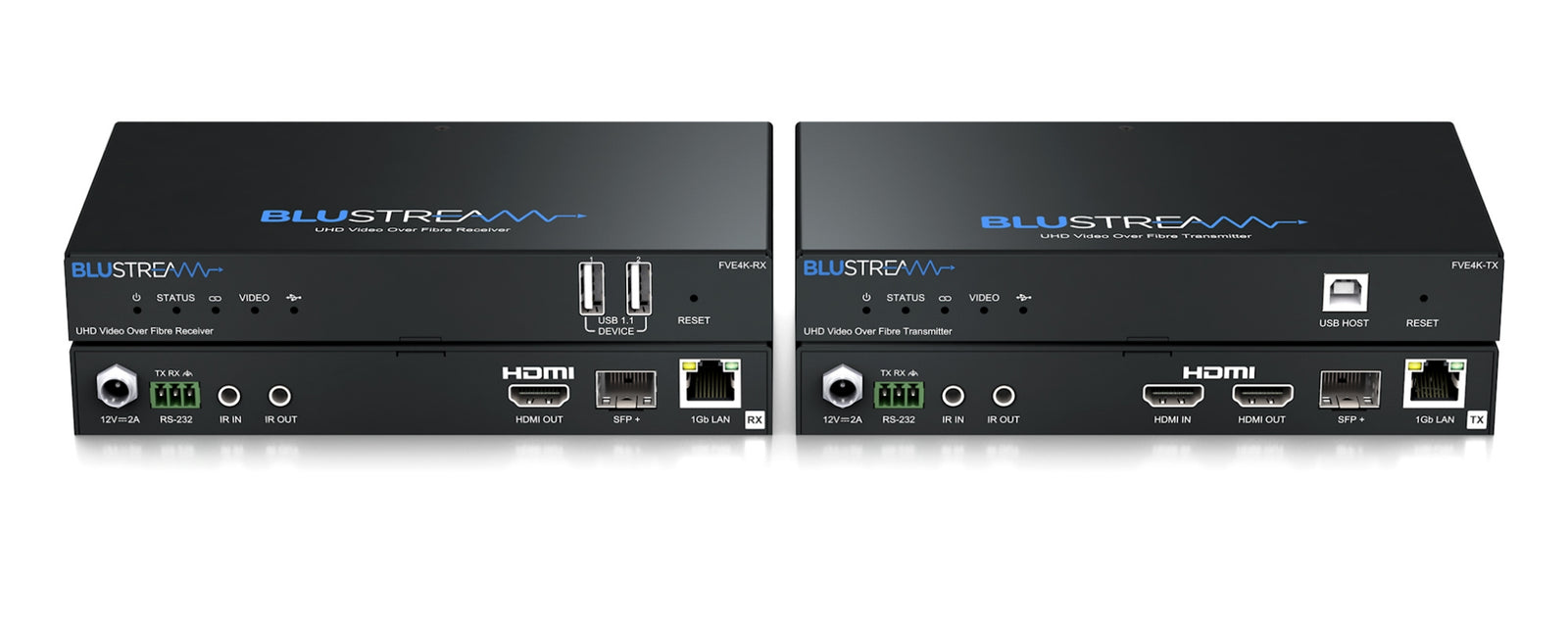

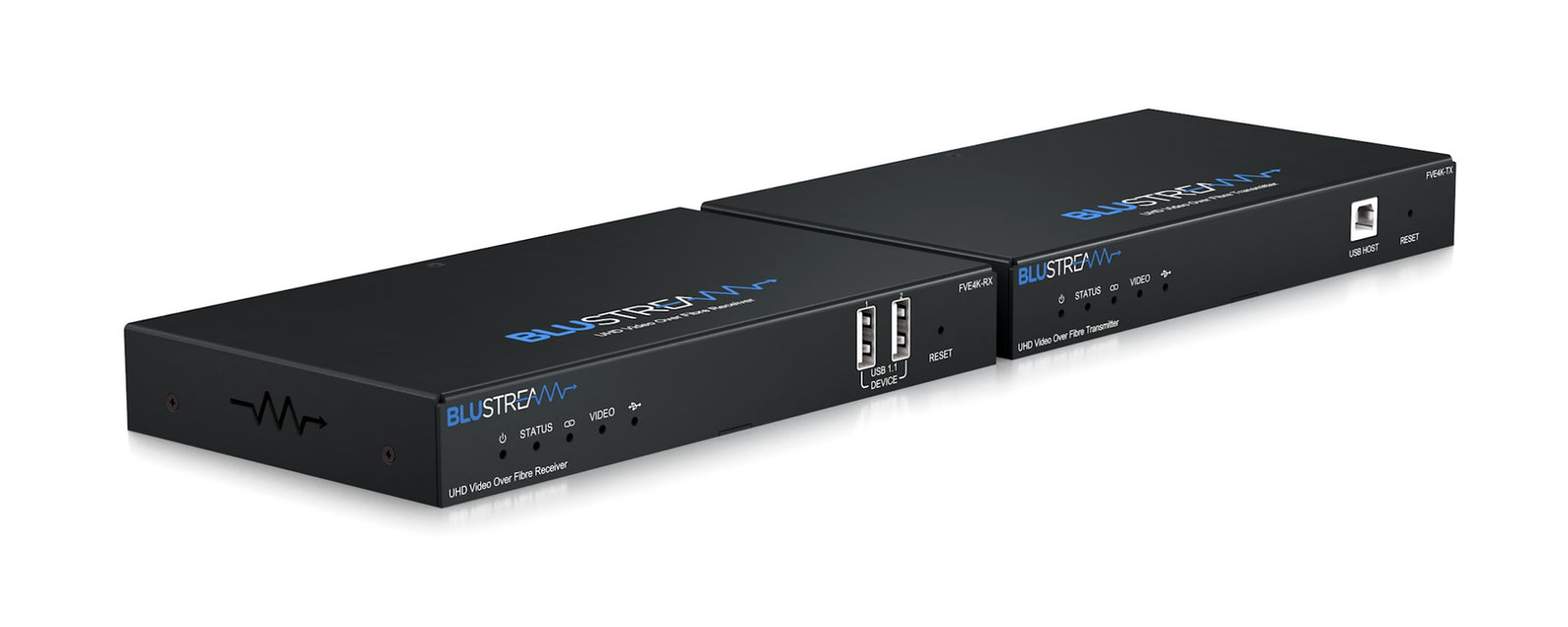

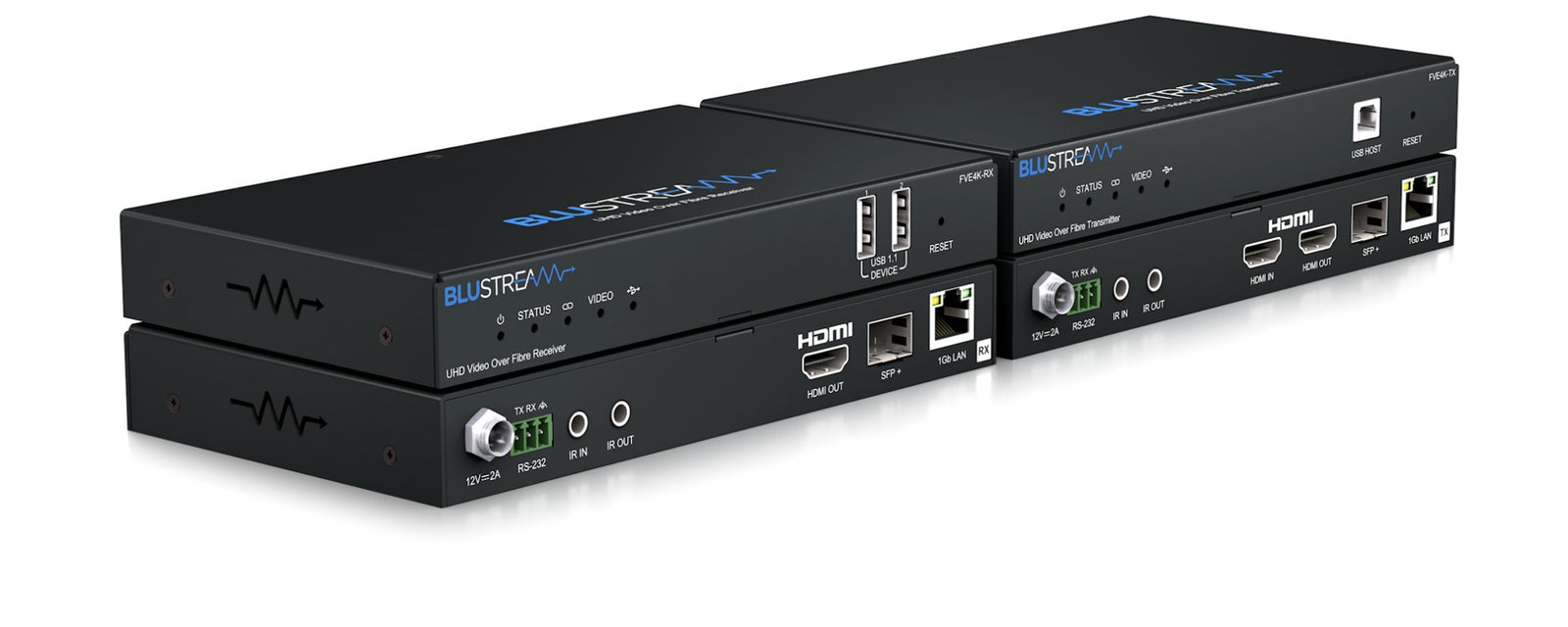

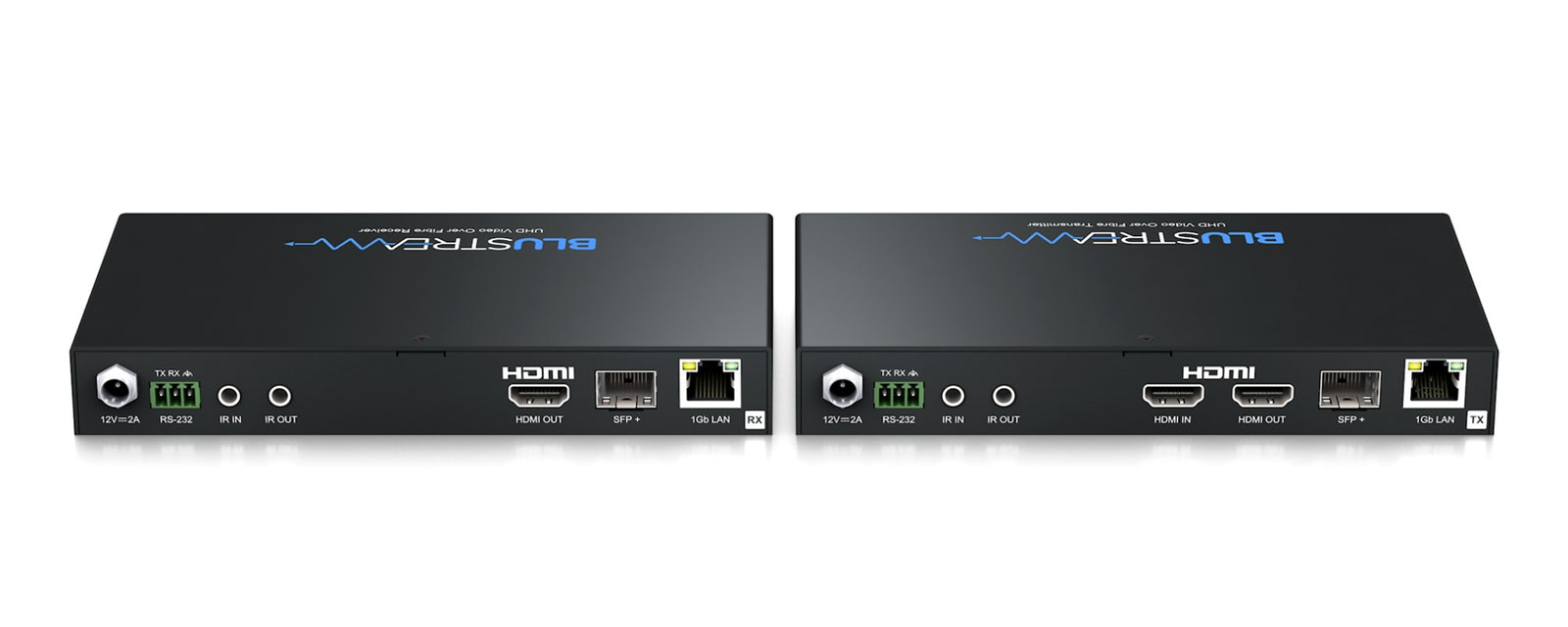

BluStream UHD Video Over Fibre Extender | FVE4K-KIT
The FVE4K-KIT is an industry leading HDMI2.0 4K 60Hz 4:4:4 HDCP 2.2 fibre extender solution utilising the latest in SDVoE technology.
The FVE4K-KIT supports un-compromised distribution of the latest 4K resolutions including HDR / Dolby Vision LLM resulting in the ability to transmit 18Gbps signals over distances not capable of being achieved over copper cabling.
The FVE4K-KIT supports bi-directional IR, RS-232, USB1.1, and 1Gbps LAN up to distances supported by the 10Gbps SFP+ modules and fibre cable in use.
Key Features
• Advanced 18Gbps UHD Video over 10Gbps fibre cable with visually lossless compression and zero latency
• Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4 and 10/12-bit HDR sources, including Dolby Vision LLM
• Features 1x HDMI loop-out on FVE4K-TX for integrating local displays or cascading to
multiple devices
• Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• USB 1.1 point to point pass-through
• Bi-directional 10/100/1000BaseT Ethernet pass-through
• Supports bi-directional 5V or 12V IR pass-through
• Bi-directional RS-232 pass-through
• HDCP 2.2 compliant with advanced EDID management
• Local 12V 2A power supply required at TX & RX (supplied)
Box Contents
1 x FVE4K-TX
1 x FVE4K-RX
2 x 12V/2A DC power supply
1 x IR emitter
1 x IR receiver
2 x Mounting kit
1 x Quick Reference Guide
-
Feature |
FVE4K-RX |
FVE4K-TX |
FVE4K-KIT |
Video Input Connectors |
1 x SFP+ module video network |
1 x HDMI Type A, female |
N/A |
Video Output Connectors |
1 x HDMI Type A, female |
1 x SFP+ module video network, 1 x HDMI Type A, female |
|
Ethernet Port |
1 x 1Gb LAN RJ45 pass-through |
1 x 1Gb LAN RJ45 pass-through |
N/A |
USB / KVM Port |
2 x USB-Type A (Devices) |
1 x USB-Type B (Host) |
N/A |
5V IR Input Port |
1 x 3.5mm stereo jack |
1 x 3.5mm stereo jack |
N/A |
5V IR Output Port |
1 x 3.5mm mono jack |
1 x 3.5mm mono jack |
N/A |
RS-232 Port |
1 x 3-pin Phoenix connector |
1 x 3-pin Phoenix connector |
N/A |
Power Supply |
12V/2A DC, screw type connector |
12V/2A DC, screw type connector |
N/A |
Casing Dimensions (WxDxH) |
N/A |
N/A |
180mm x 103mm x 24mm (without connections) |
Casing Dimensions (WxDxH) |
N/A |
N/A |
180mm x 108mm x 24mm (with connections) |
Shipping Weight |
N/A |
N/A |
1.6kg |
Operating Temperature |
32°F to 104°F (0°C to +40°C) |
32°F to 104°F (0°C to +40°C) |
32°F to 104°F (0°C to +40°C) |
Storage Temperature |
-4°F to 140°F (-20°C to +60°C) |
-4°F to 140°F (-20°C to +60°C) |
-4°F to 140°F (-20°C to +60°C) |
Distance Capabilities |
N/A |
N/A |
Single mode fibre (up to 10km), Multimode fibre (OM3: 300m, OM4: 400m, OM5: 300m) |
-
