BluStream USB 3.2 Gen1 HDBaseT™ Extender EU Wall Plate - Device | UEX3D-WP-EU
SKU: UEX3D-WP-EU
£275.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-

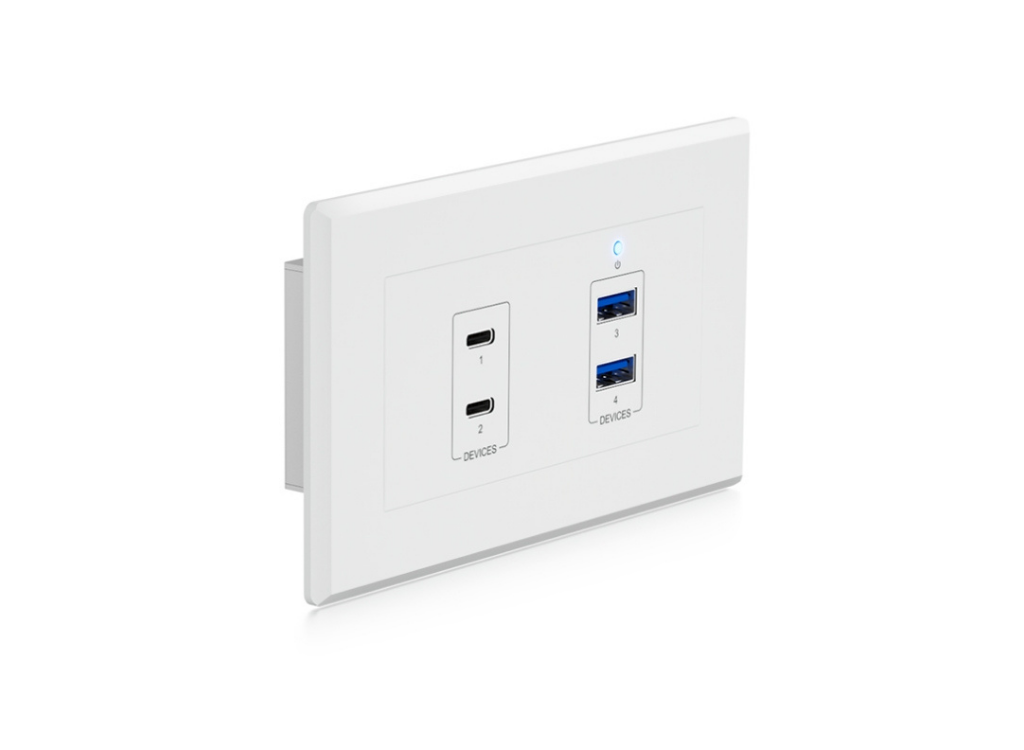

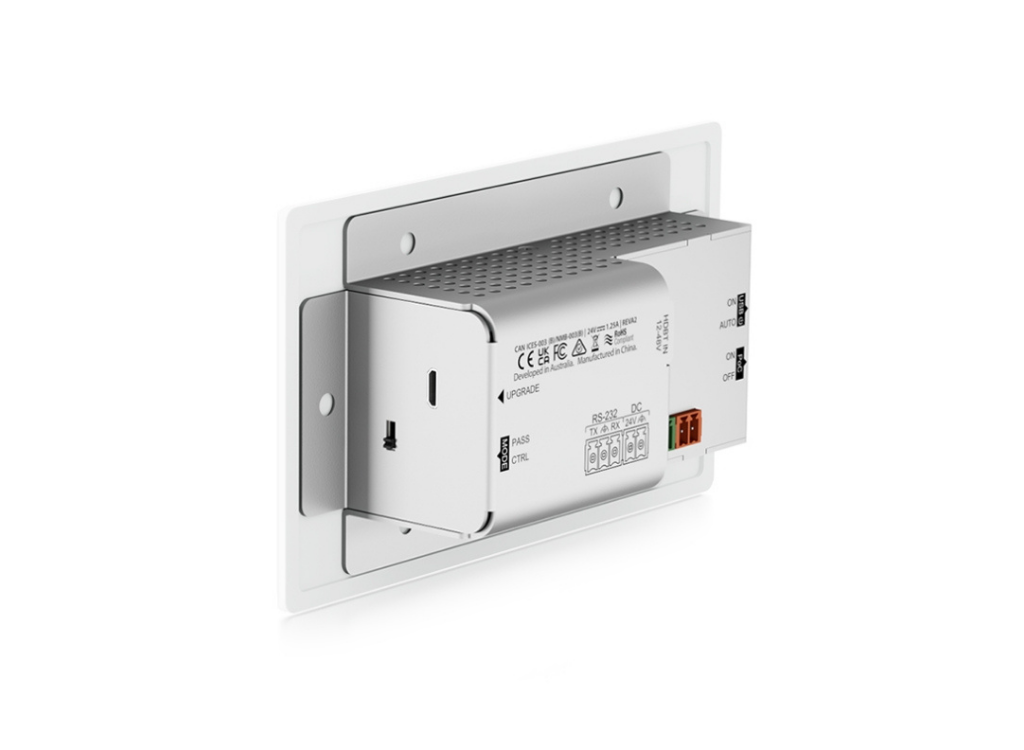

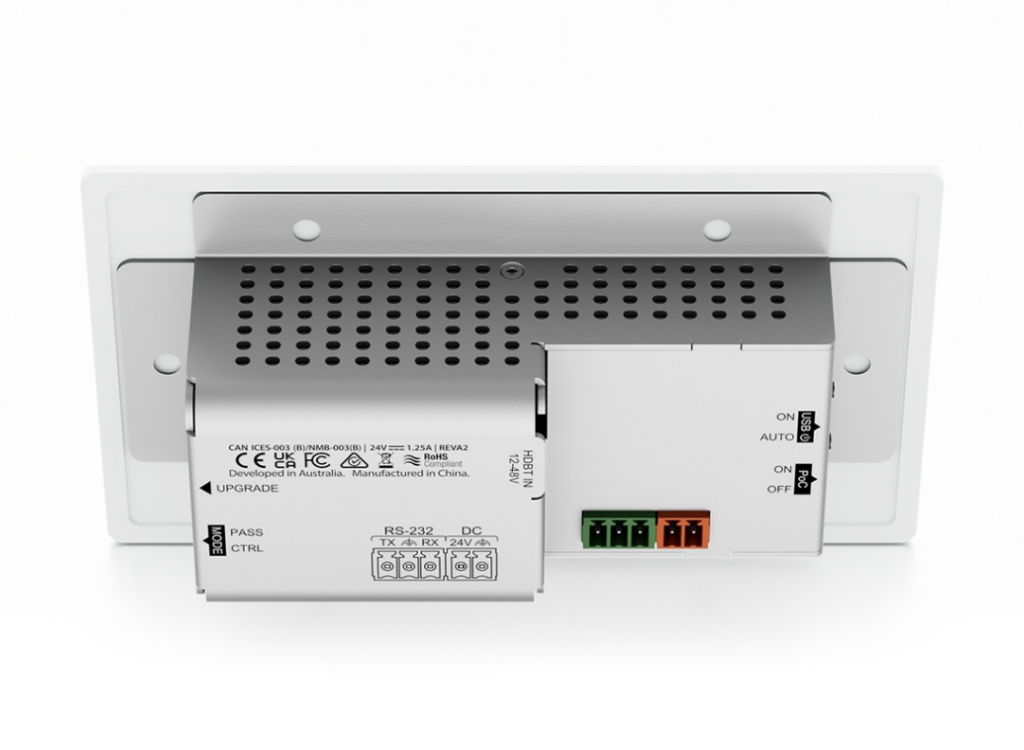

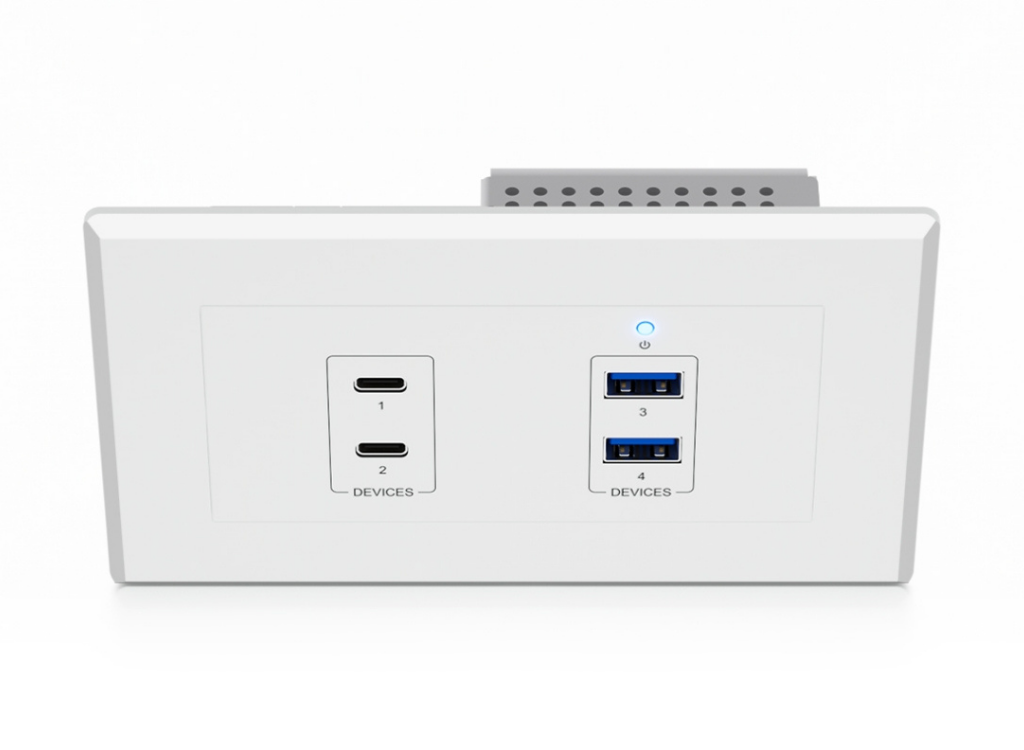

BluStream USB 3.2 Gen1 HDBaseT™ Extender EU Wall Plate - Device | UEX3D-WP-EU
The UEX3D-WP-EU is a USB Device solution utilises HDBaseT™ technology to allow for remote connectivity to a USB 3.2 Gen1 Host at distances of up to 100m over a single CAT6A cable in a dual EU / UK wall plate format. The UEX3D-WP-EU allows for 4 x USB Devices (2 x USB type A, and 2 x USB-C) to be connected to a compatible Blustream USB HDBaseT Receiver (Host) extender with support for a combined transmission data bandwidth of up to 5Gbps.
The UEX3D-WP-EU is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT link. The UEX3D-WP-EU is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices and other USB 3.2 Gen1 devices.
* Requires compatible Blustream USB 3.2 HDBaseT Host product
Key Features
• USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB-C and 2 x USB-B ports for connection to USB devices
• Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
• Backwards compatible with USB 2.0 & 1.1 devices
• Combined USB3.2 Gen1 data transfer rate up to 5Gbps *
• Provides up to 3A combined power to USB devices (up to 1.7A per single USB port)
• Configurable USB device power management via API commands
• Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12-48V PoC)
• Supports bi-directional RS-232 when used with compatible HDBaseT™ products
• PoC function can be enabled/disabled via dipswitch
• Simple plug and play, no driver installation or setup requiredCompatible with Blustream UEX3H and UEX3H-WP
* Signal distribution bandwidth and distance are subject to length of device and host USB cables, and CAT cable type. It is recommended to use a minimum of CAT6A cabling. Please note: this product is for USB 3.2 data transfer only, and does not support DP Alt Mode video pass-through
Box Contents
1 x UEX3D-WP-EU
1 x Magnetic Faceplate
1 x 24V/1.5A power supply
1 x RS-232 control cable (3-Pin to DB9)
1 x Quick Reference Card
-
Feature Specification CAT Connectors 1 x RJ45 connector USB Device Ports 2 x USB Type C female, 2 x USB Type A female Local Power Input 1 x 2-Pin Phoenix connector Firmware Upgrade 1 x Micro-USB RS-232 1 x 3-Pin Phoenix connector Power Supply 24V/1.5A DC Dimensions (W x H x D) 136mm x 76mm x 46mm (without faceplate) Faceplate Dimensions (W x H x D) 146mm x 86mm x 6mm (faceplate) Mounting Hole Spacing UK 121mm CTC, EU 60mm CTC Backbox Mounting Depth 40mm (min), 47mm (rec), UK/EU double gang Shipping Weight 0.8kg Operating Temperature 32°F to 104°F (-5°C to +55°C) Storage Temperature -4°F to 140°F (-25°C to +70°C) -
Document Link Datasheet Downloads User Manual Downloads
