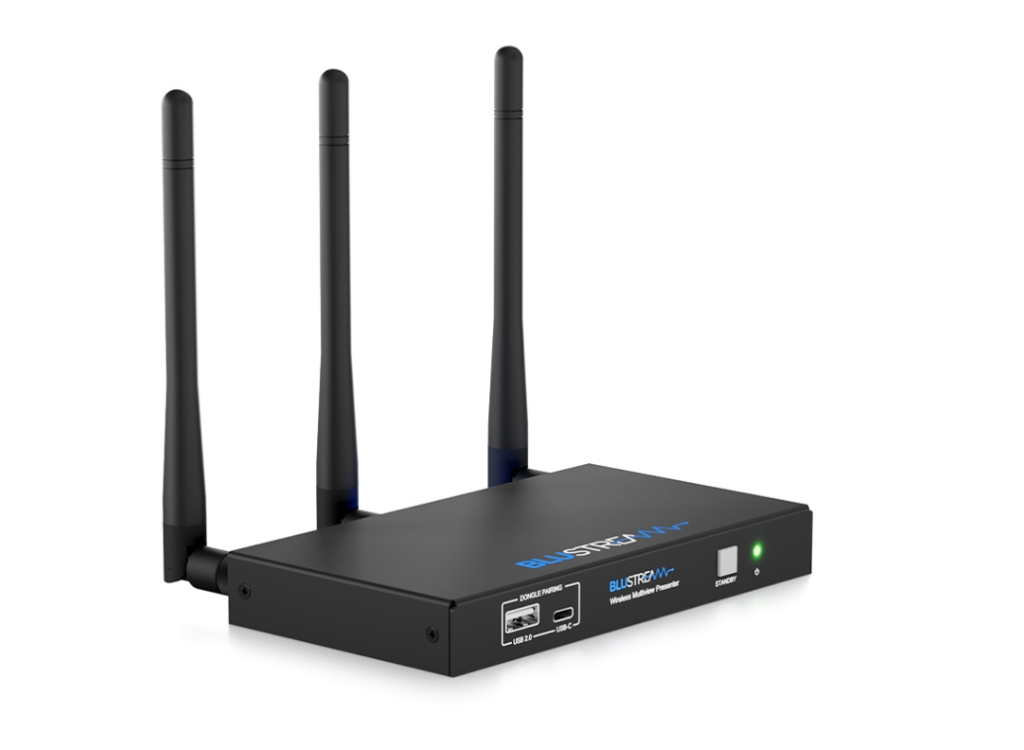

BluStream Wireless Multiview Presenter | WMF51
The WMF51 is a 4K multi-format presentation switch featuring AirPlay, Miracast® and Chromecast® inputs to a single HDMI output. The WMF51 provides enhanced features including multi-view presentation, video scaling, a web-GUI for control and configuration, localised 2.4/5G WiFi hotspot and dual LAN connectivity.
The WMF51 also features OSD control, USB touch-back to connected host device, whiteboard and screen overlay annotation, with manual or automated source selection. The WMF51 can be controlled via front panel, RS-232 or TCP/IP.
The WMF51 is also compatible with Blustream WMF-USBC and WMF-HDMI plug and play wireless dongles, providing an ideal BYOD solution for your boardroom, classroom, or huddle-space application.
Key Features
• 4K multi-format multi-view presentation switch
• Features AirPlay, Miracast®, Chromecast® and Blustream wireless dongle support which can be switched to a single HDMI output
• Multiview presentation with up to 4 concurrent video signals with configurable screen layout
• In-built video scaler with output timing up to 4K 60Hz 4:4:4
• Localised 2.4G/5G WiFi hotspot to host AirPlay, Miracast® and Chromecast® local point-to-point mode (up to 1080p)
• Dual LAN connection for integration to existing network infrastructures
• Supports USB 3.0 touch-back feature via WMF-USBC / WMF-HDMI dongles and Miracast®*
• Audio breakout to analogue L/R audio
• Web interface module for control and configuration of unit
• OSD control with preview function
• Whiteboard and screen overlay annotation feature
• Control via front panel, RS-232 and TCP/IP with manual or auto source selection
• Features Class 0 IEEE 802.3af PoE for powering of product from a PoE switch *Miracast touch-back compatibility subject to Windows features. USB 3.0 connection is for connectivity to an interactive display for touch-back capabilities only, and does not feature the full USB 3.0 bandwidth capabilities for use with VC / UC equipment.
Box Contents
1 x WMF51
1 x 3-pin Phoenix Connector (RS-232)
3 x Antenna
1 x Mounting Kit
1 x Quick Reference Guide
1 x 12v / 1.5A DC Power Supply
-
| Feature |
Specification |
| WiFi Specification |
2.4GHz EIRP < 20dBm, 5.1505.250GHz EIRP < 23dBm, 5.7255.850GHz EIRP < 13.98dBm |
| Dimensions (W x H x D) |
165mm x 22mm x 90mm (excluding antennas) |
| Shipping Weight |
1.5kg |
| Operating Temperature |
0°C to 45°C (32°F to +113°F) |
| Storage Temperature |
-20°C to 70°C (-4°F to +158°F) |
| Power Supply |
Class 0 IEEE 802.3af PoE PD or 12V/1.5A DC |

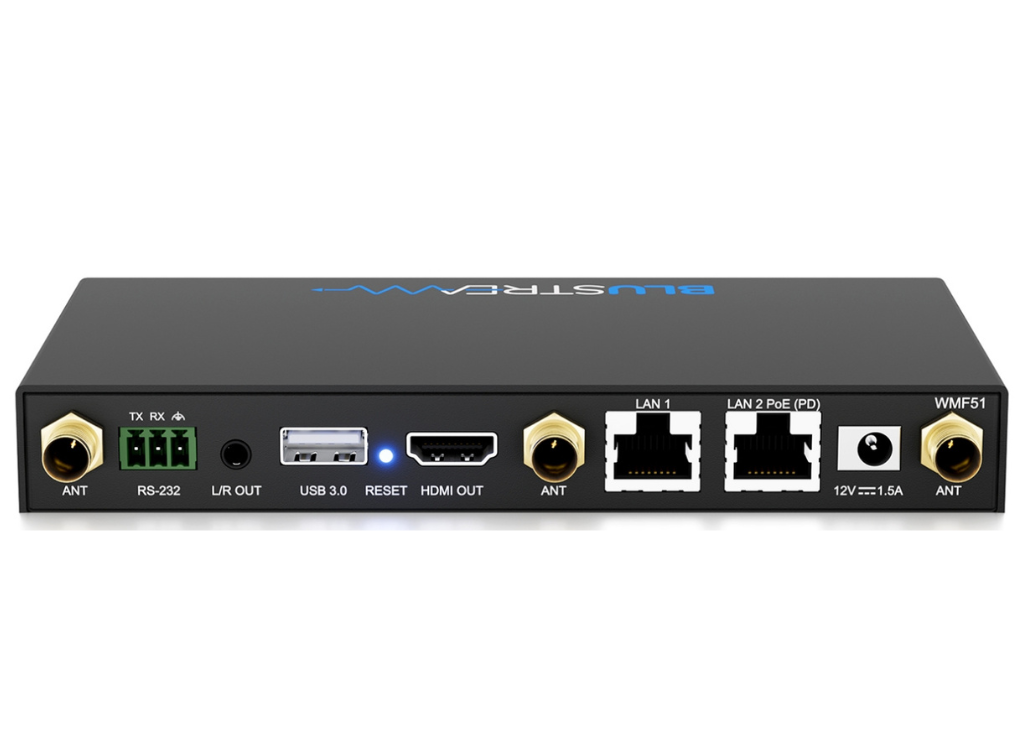

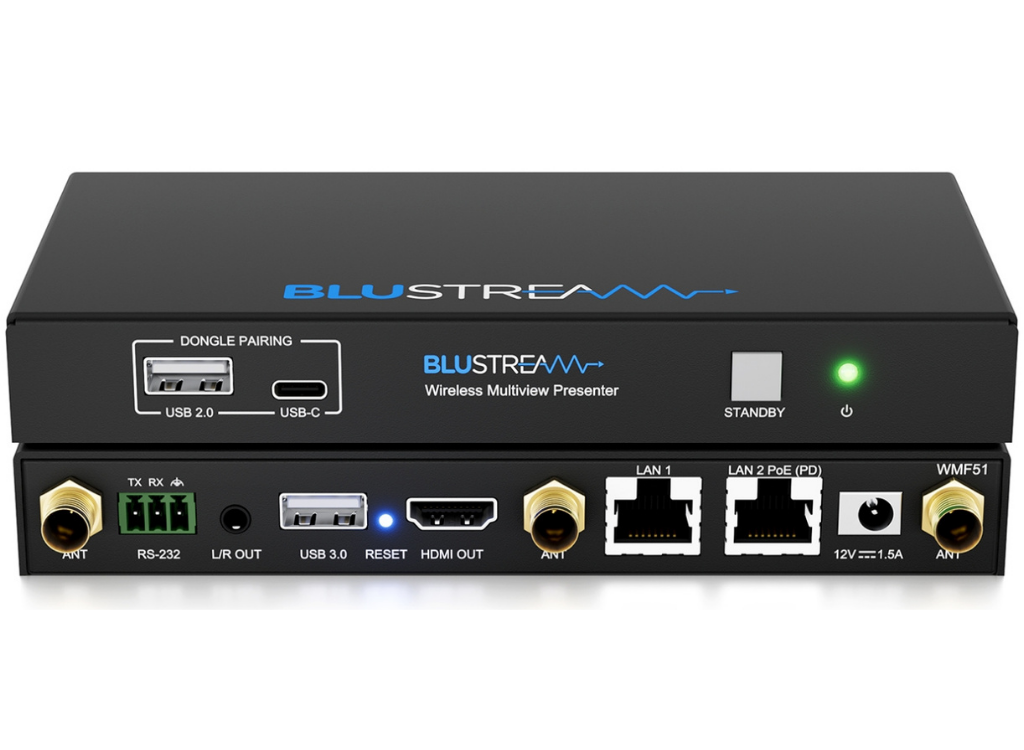

| Video Output Connectors |
1 x HDMI Type A, 19-pin, female |
| Audio Output Connectors |
1 x 3.5mm stereo jack (2ch analogue audio) |
| RS-232 Serial Port |
1 x 3-pin Phoenix connector |
| TCP/IP Control |
2 x RJ45, female (1000Mbps x1, 100Mbps x1) |
| USB Connector |
1 x USB 3.0 Type A, female (USB touch-back only) |
| USB Pairing Connectors |
1 x USB 2.0 Type A, female, 1 x USB Type C, female |
| WiFi Antenna Connections |
3 x SMA, female connector, MIMO antennas (2.4G & 5G, WIFI IEEE 802.11 b/g/n/ac up to 1200Mbps) |
| WiFi Encryption |
AES WPA PSK, WPA2 PSK |
-
