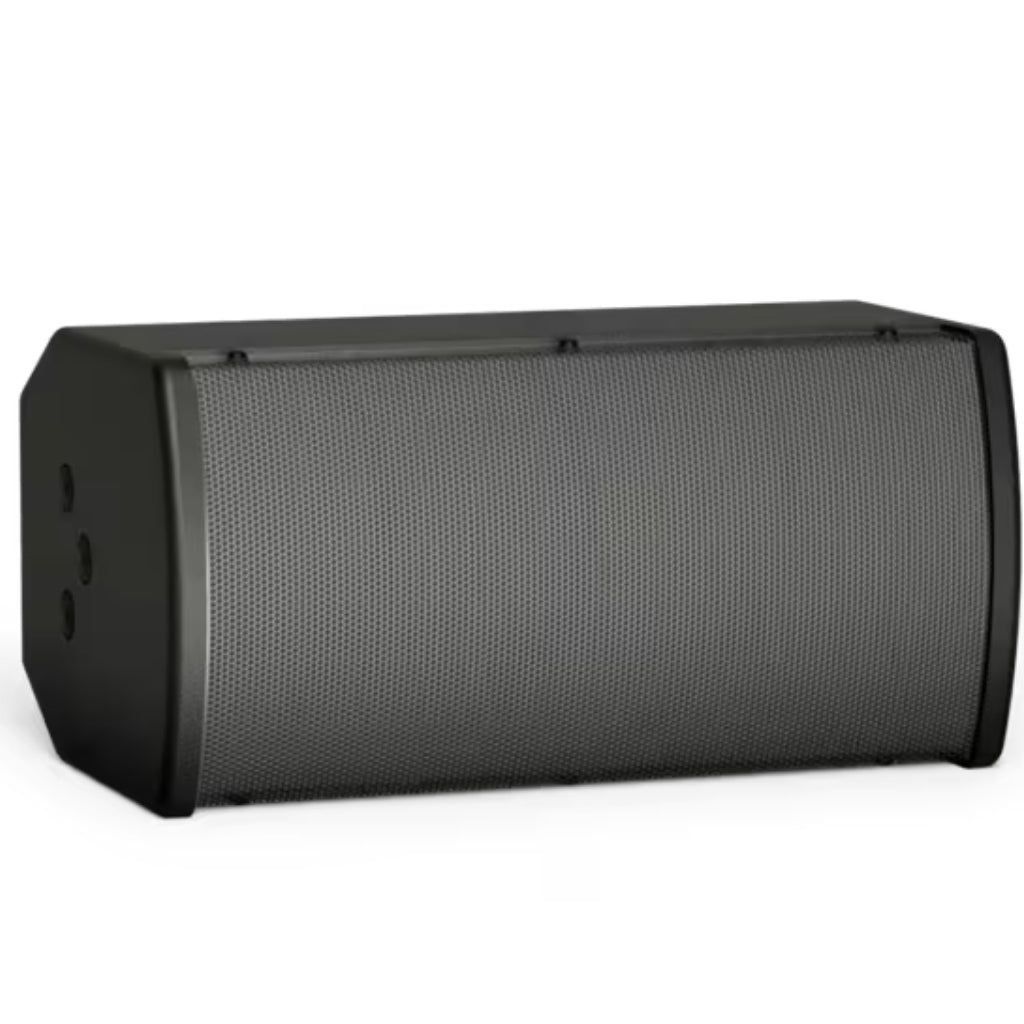

The newly expanded AMU multi-use loudspeaker series combines a powerful mix of driver configurations and coverage patterns with a variety of mounting options and orientations. Together with indoor/outdoor flexibility and two colors, AMU offers virtually endless installation options to solve your specific needs. Featuring high-output sound, exceptional vocal clarity, and rich musical depth, the AMU Series shines in both large distributed and small- to mid-sized audio systems. The integrated 70/100V transformer includes a bypass switch for live sound reinforcement. Systems can be enhanced with the MB210-WR dual 10-inch weatherized subwoofer, and PowerShareX amplifiers include factory-optimized presets for peak performance and simplified installation. The AMU105 is an ultra-compact ArenaMatch Utility model for outdoor applications that require excellent audio from an unobtrusive loudspeaker. It provides wide, even coverage with a 100° × 100° constant-directivity high-frequency horn, 100 Hz – 16 kHz frequency response, 118 dB peak SPL, and supports the lowest vocal ranges with a Bose Professional LF5 5.25-inch woofer.
FEATURES

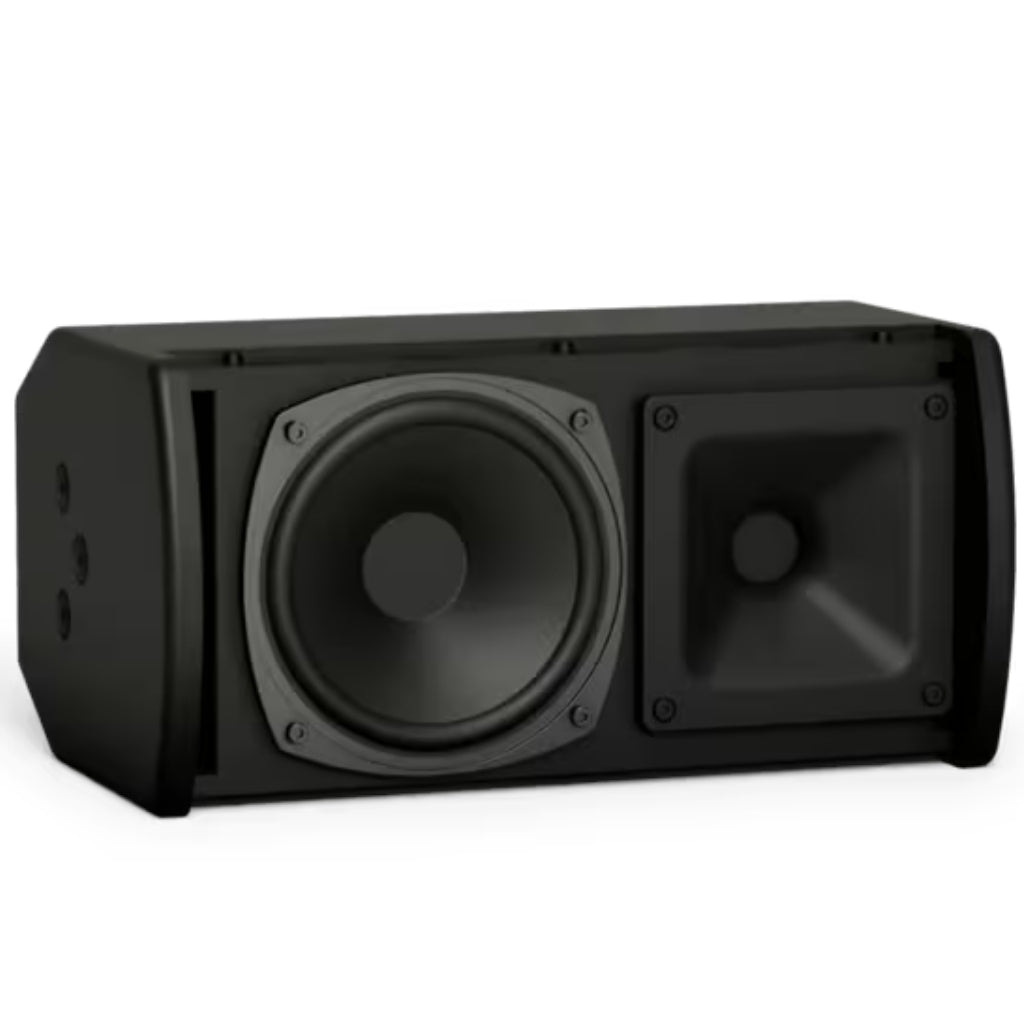

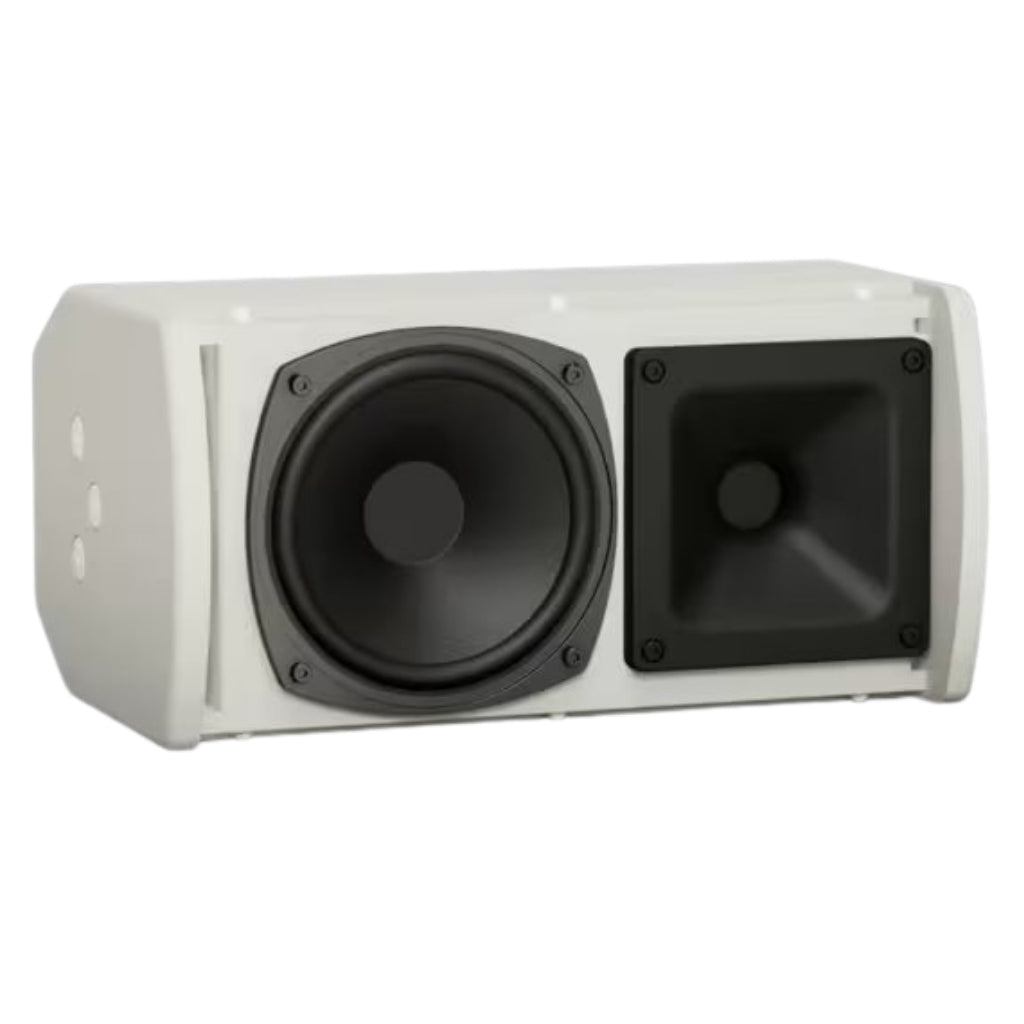

Two-way transducer setup, featuring a high excursion woofer and high-frequency compression driver, enhanced by a passive crossover with optimized filters

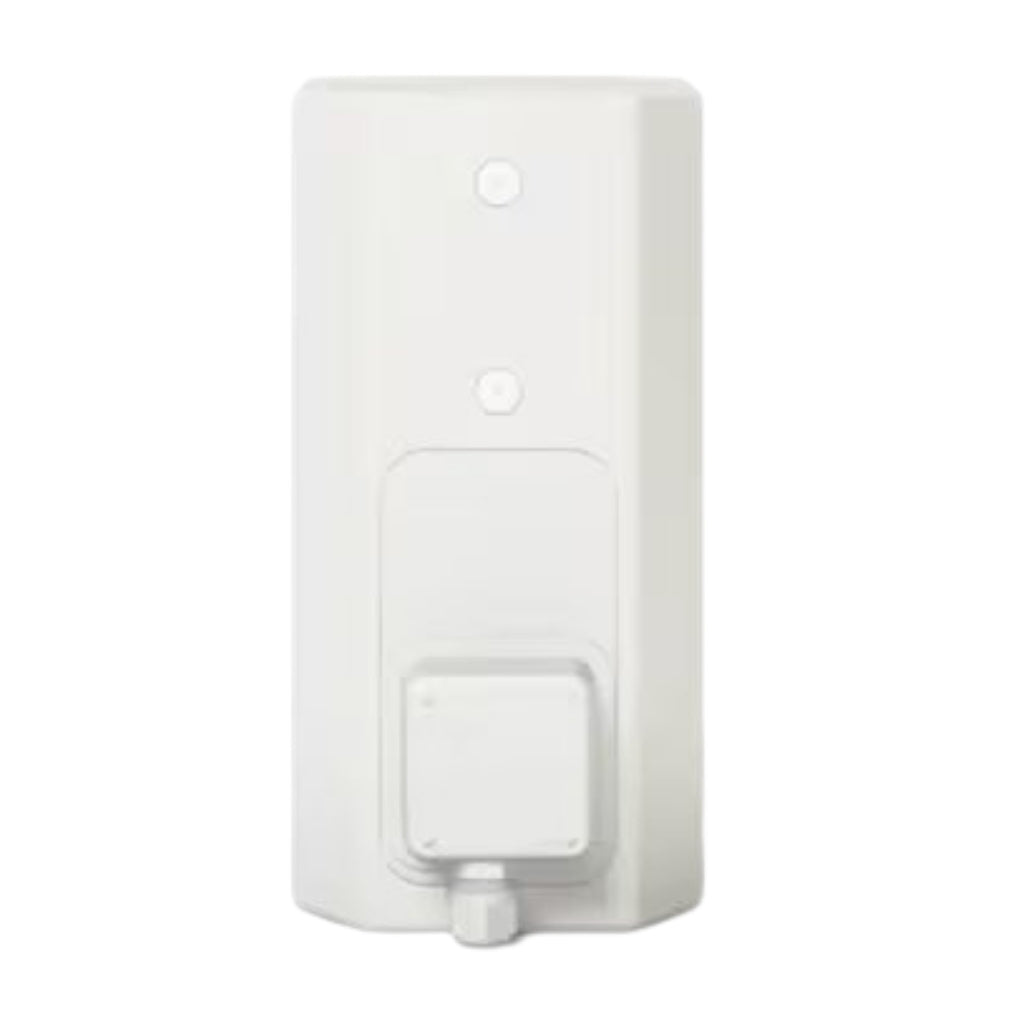

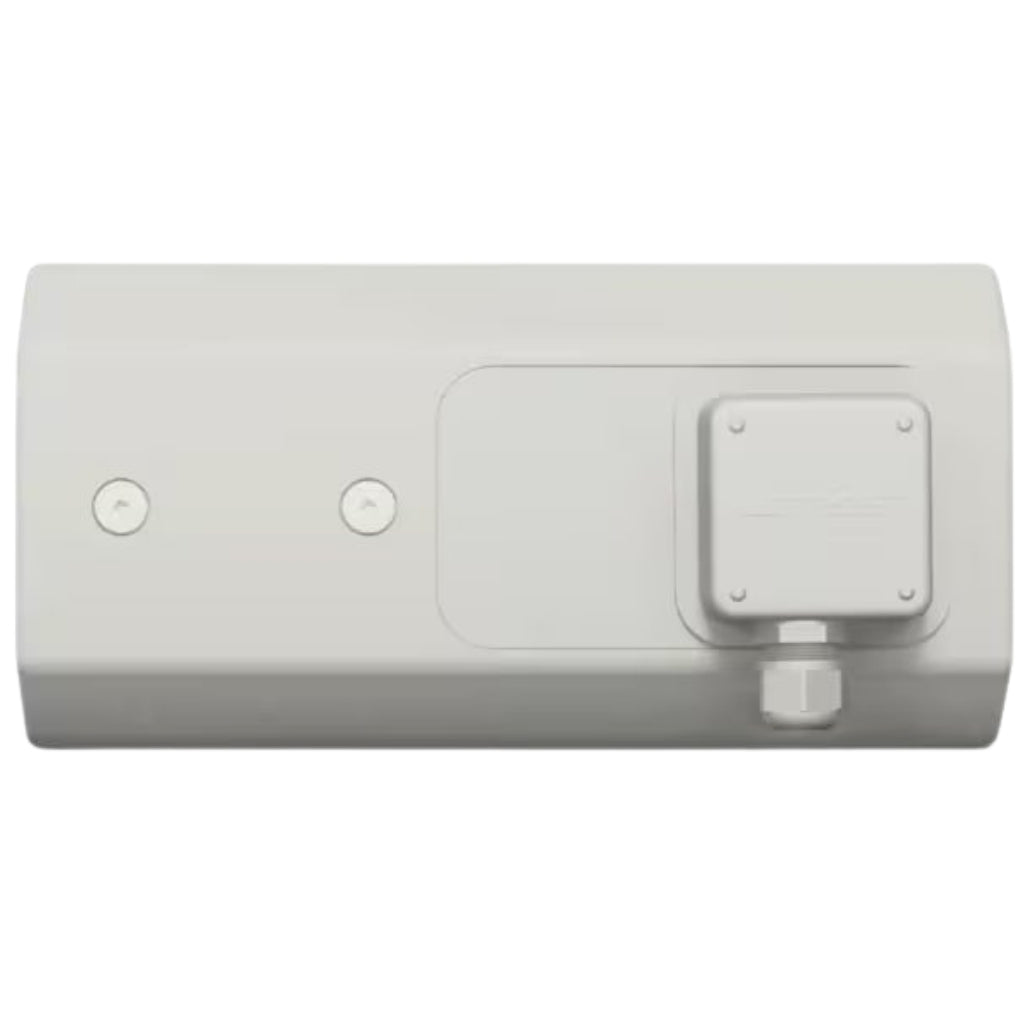

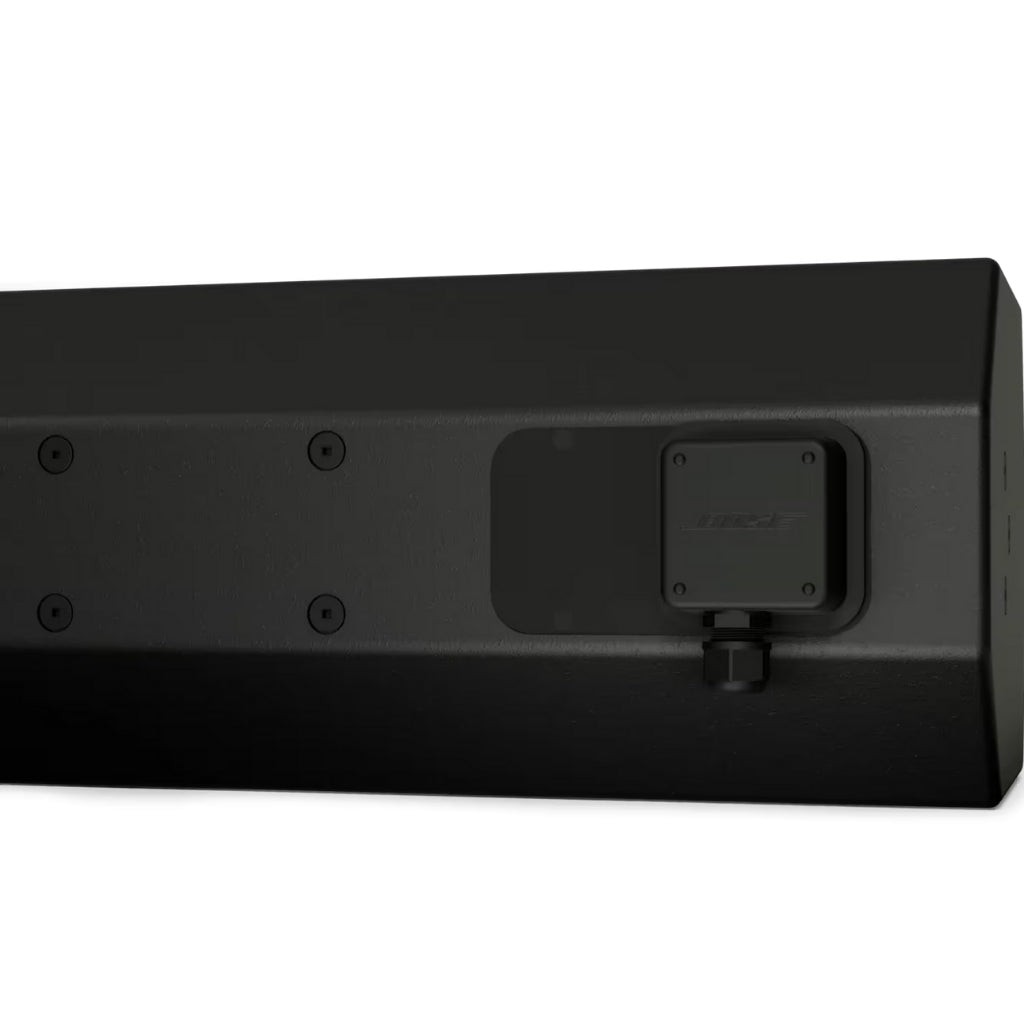

IP55 weather-rated with three-layer stainless steel grille, water-resistant woofer, industrial polyurethane exterior coating, and molded cover for input panel protection

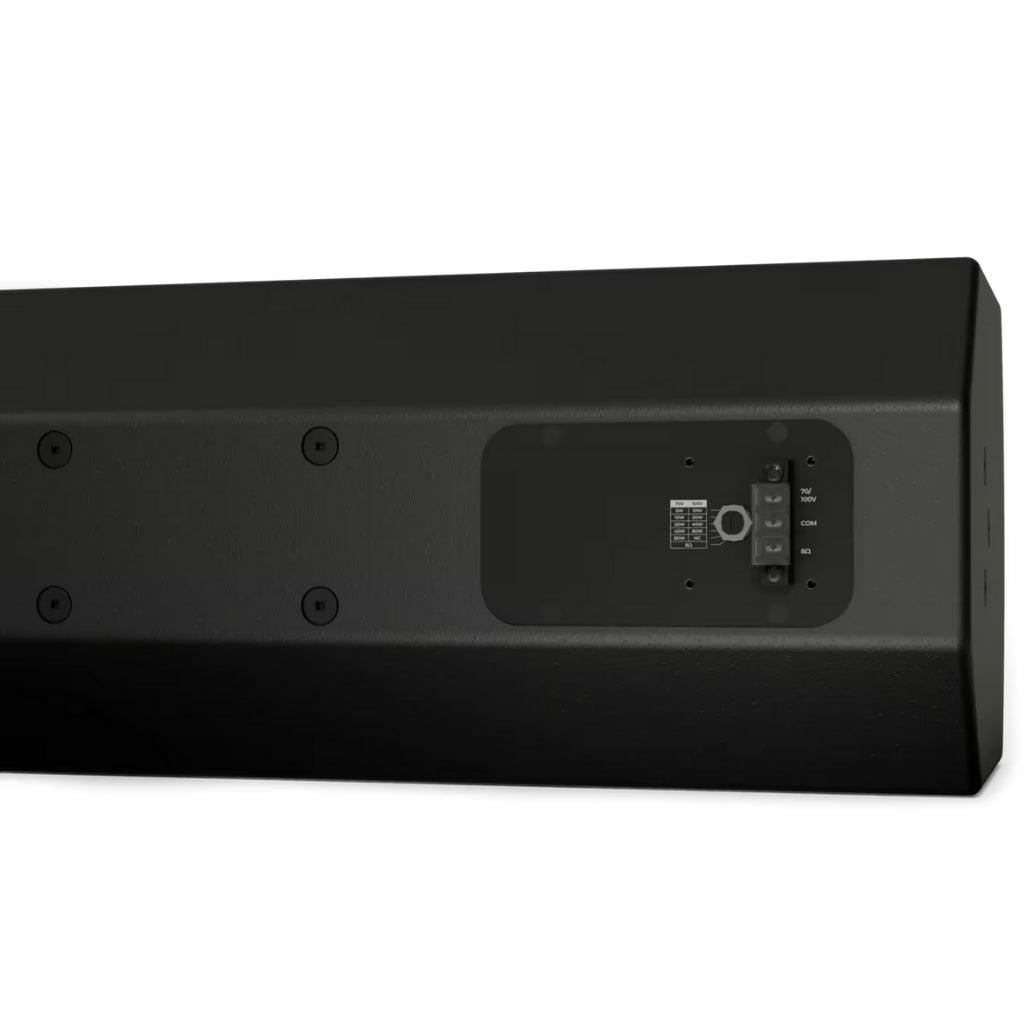

Weather-sealed internal 70/100V transformer with tap setting switch and 8-ohm bypass

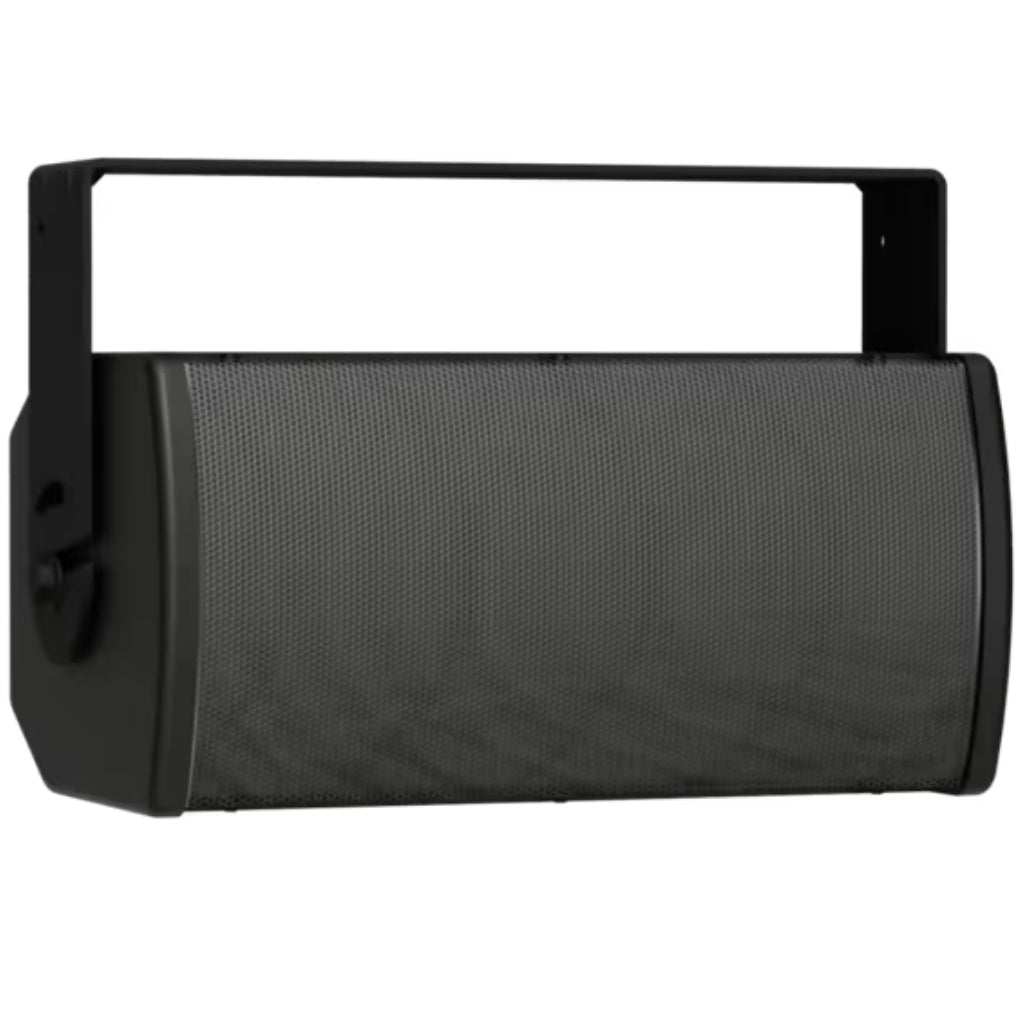

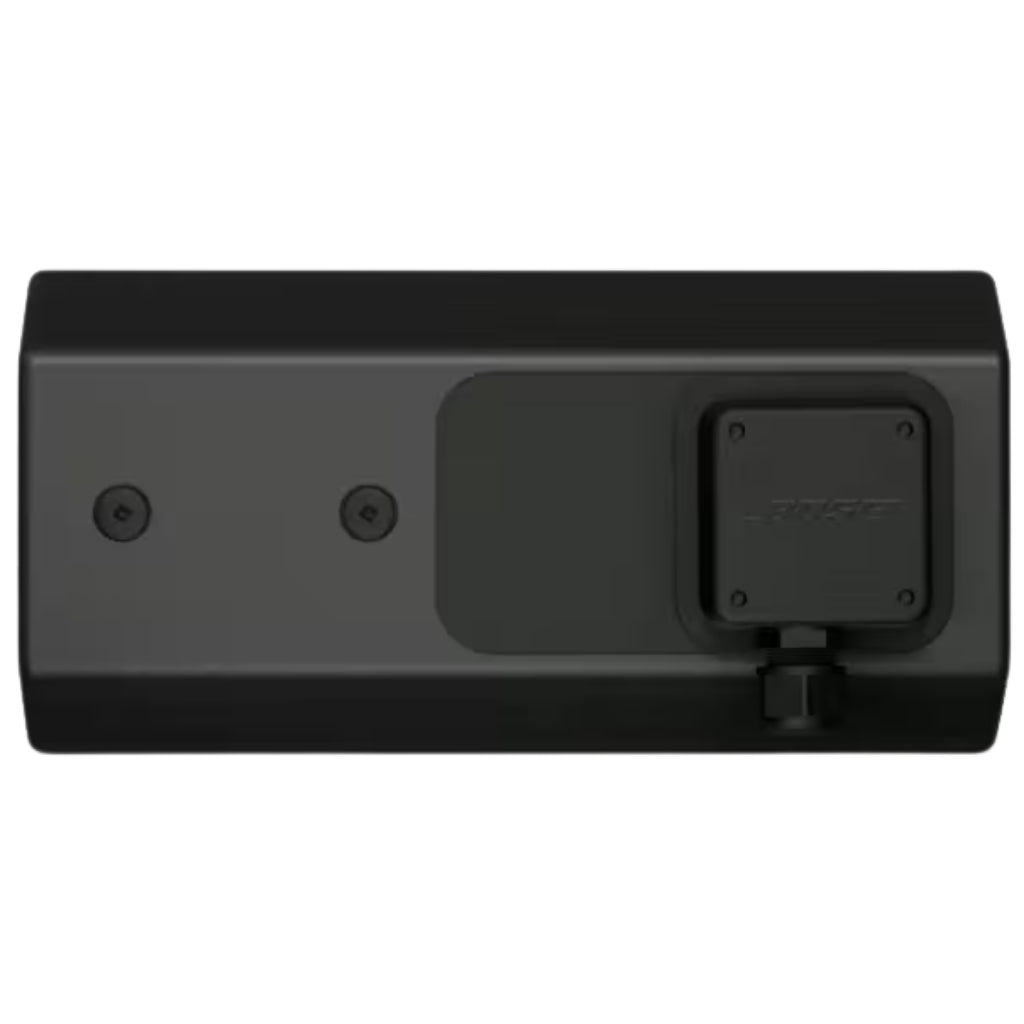

Stainless-steel U-bracket with rear-enclosure M8 threaded inserts to accept third-party accessory mounting hardware

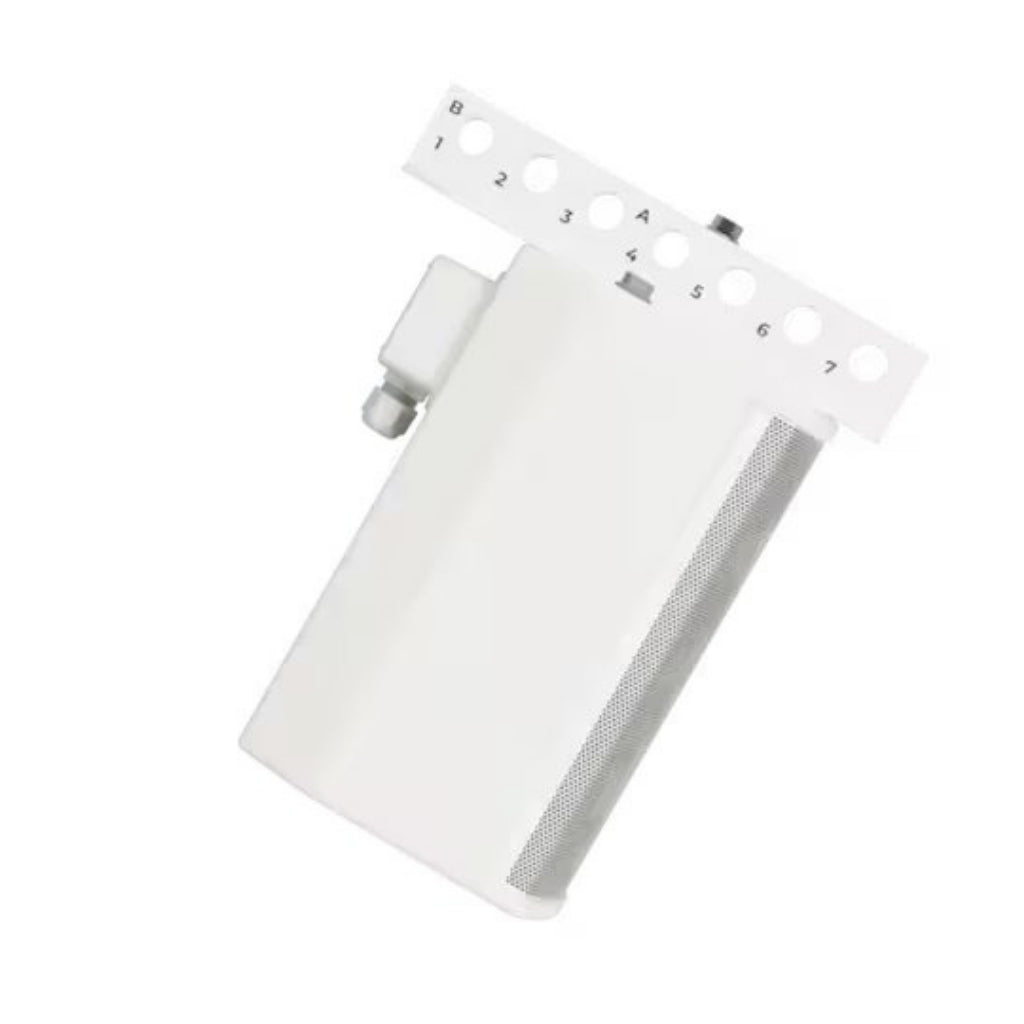

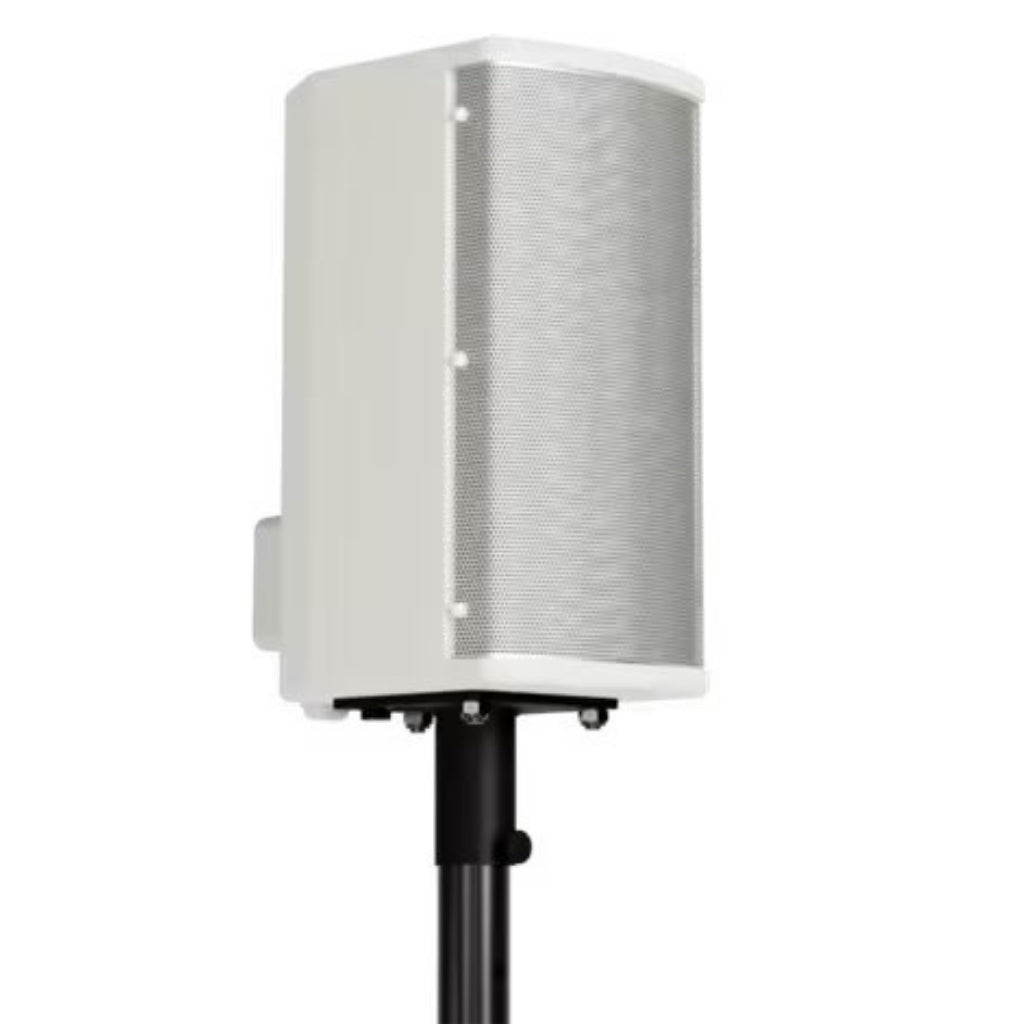

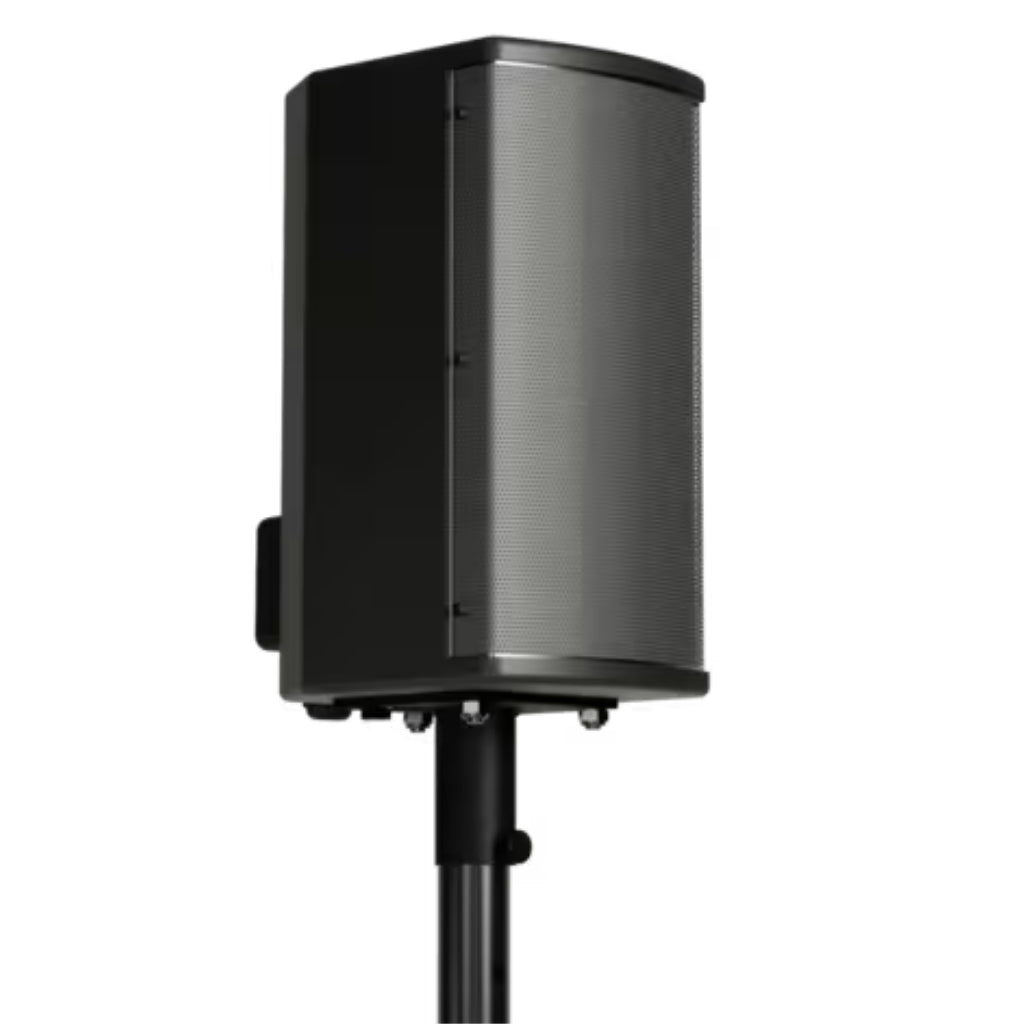

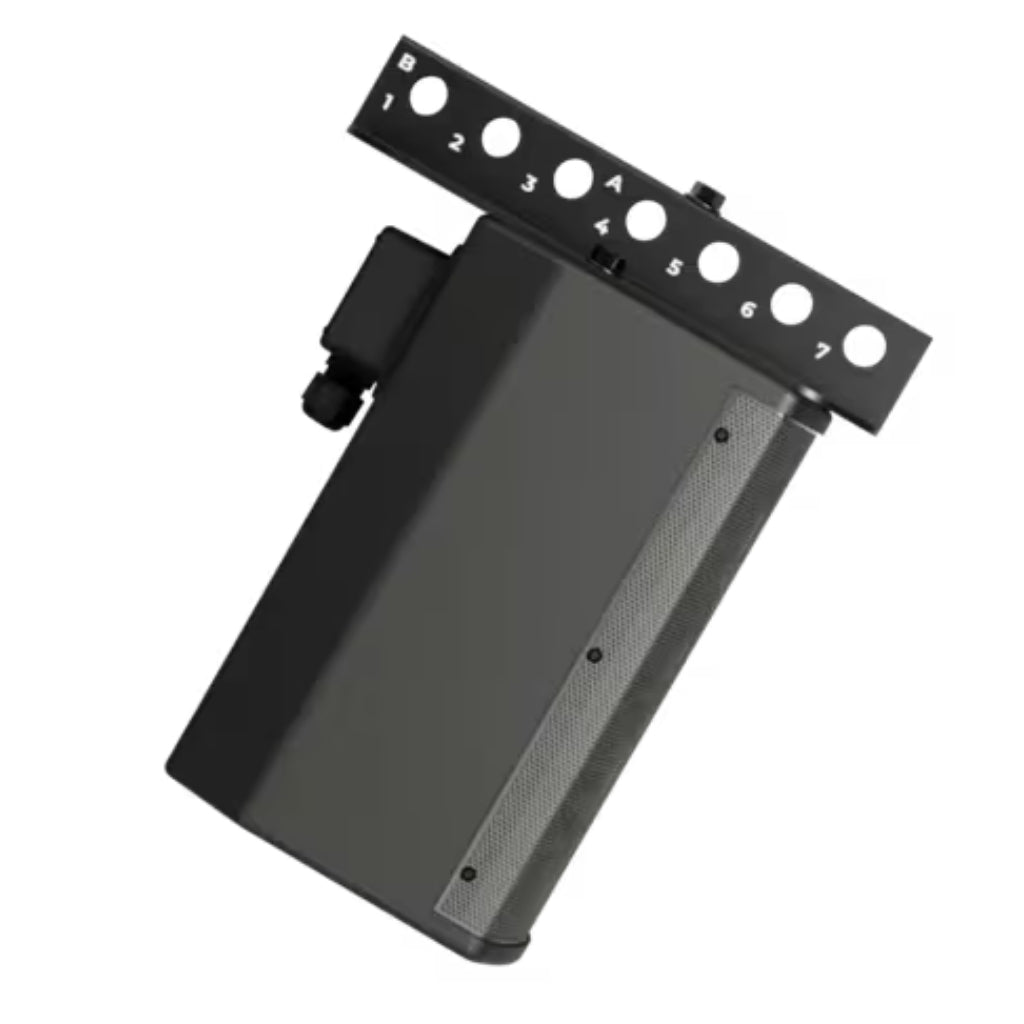

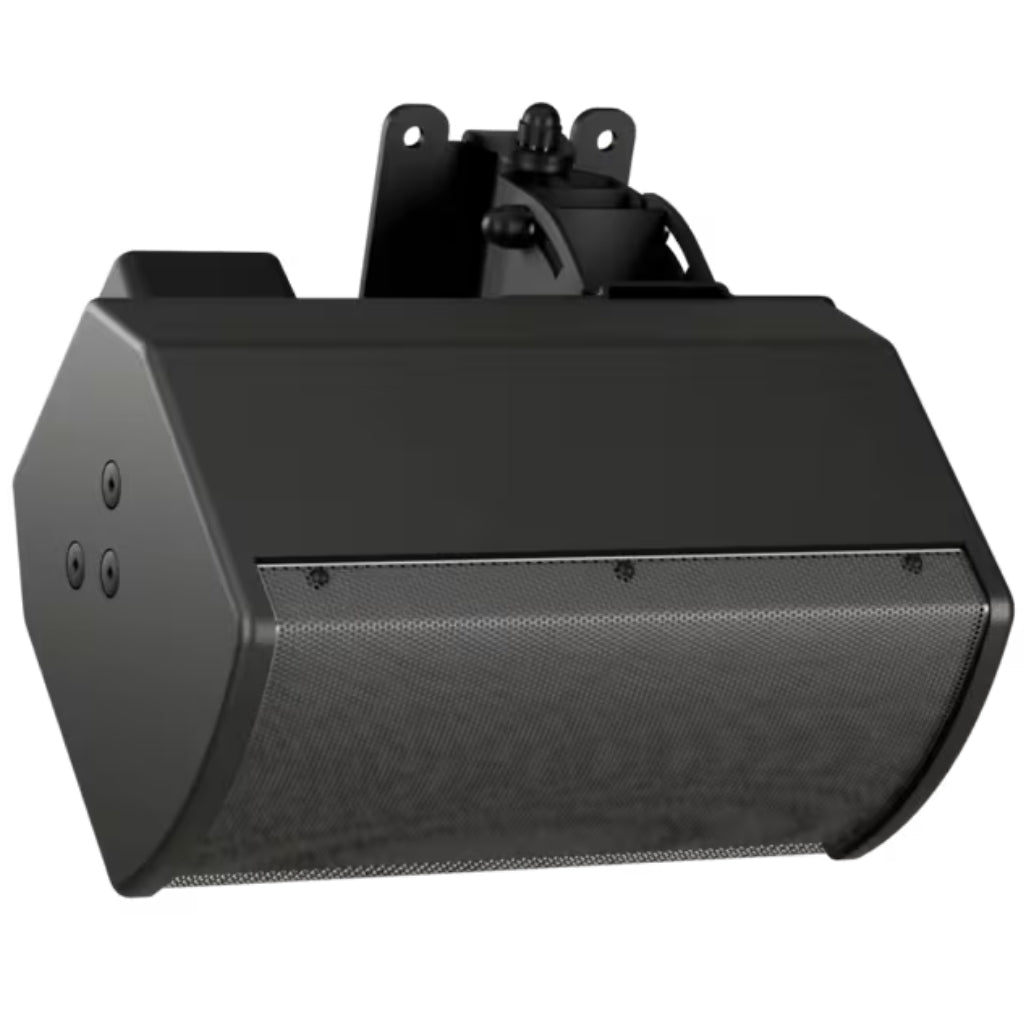

Compatible accessories include: Surface-Mount Pan-and-Tilt Bracket, Single-Point Suspension Bracket with multi-angle attachment points, and External Pole Adapter for portable use
Compact cabinet construction with rust-resistant suspension points
Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
Easy integration with Bose Professional electronics and loudspeakers makes configuration and operation much simpler and quicker
AMU is a stocked product with no custom order or surcharge

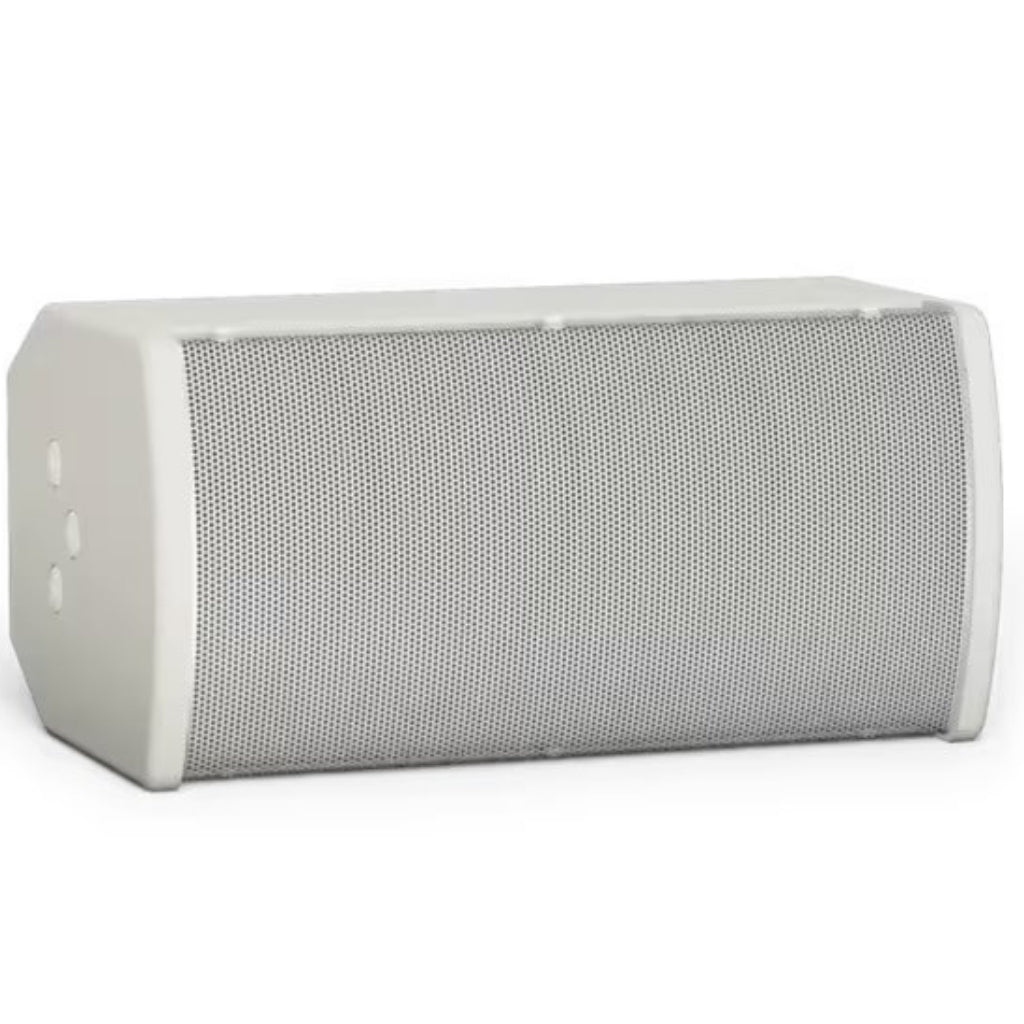

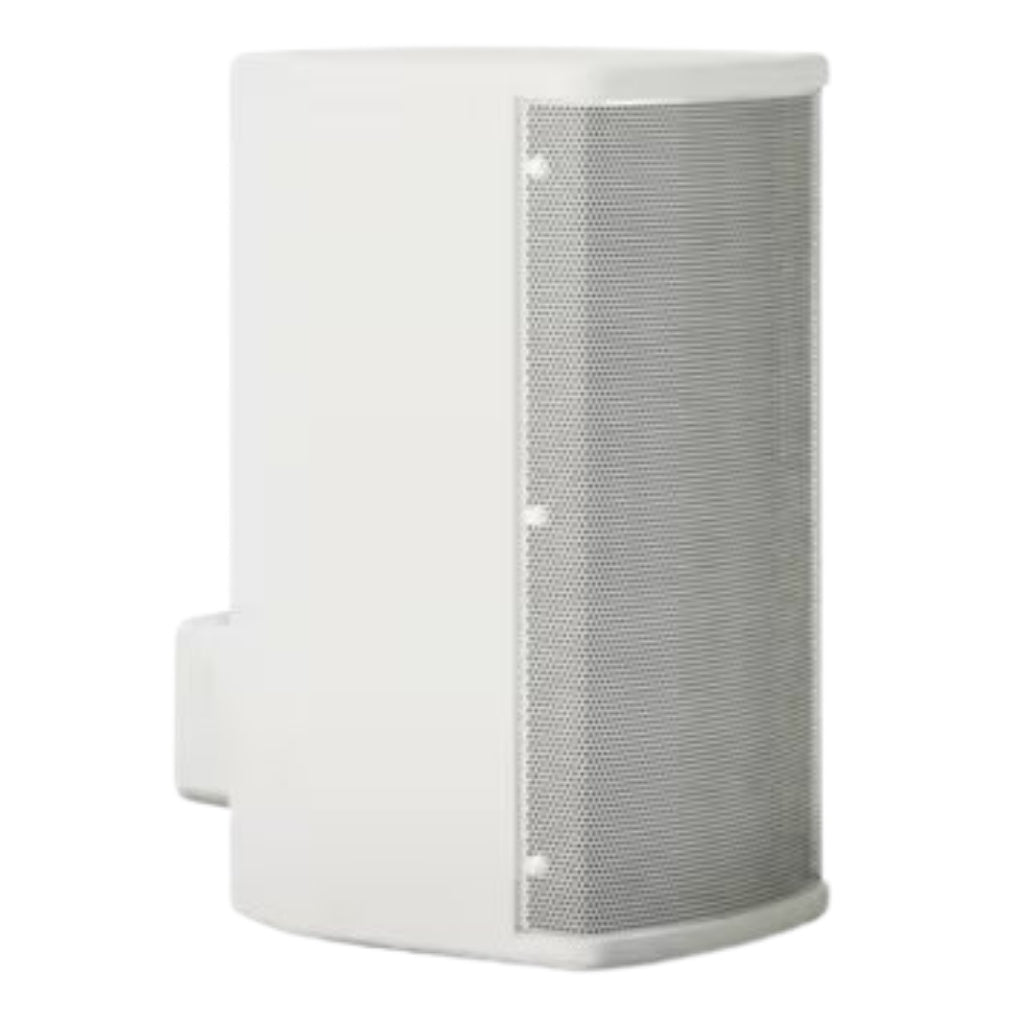

Available in black or white finish to match the design of your project
Applications
Designed for a wide range of applications, including:
Bars, high-energy restaurants
Fitness centers
Auditoriums
Medium/small places of worship
Gathering/common areas with live performances
Indoor entertainment, sports and activity centers
Multipurpose halls
Outdoor dining and bar areas
Hospitality/lodging
Concourses
Public walkways
Outdoor pool and common areas
Theme parks
Stadia
| Feature | Description |
|---|---|
| EN 54-24 Certified | Yes |
| Safety Ratings | EN 54-24: 2008, Loudspeaker for Voice Alarm Systems |
| Colors | Black, White |
| Enclosure Material | Exterior-grade plywood |
| Environmental | Indoor/outdoor, IP55-rated for direct exposure |
| Grille | 3 layers: perforated stainless steel, acoustic foam, stainless-steel mesh, powder-coated finish |
| Ingress Protection | IP55 per EN60529; IP33C per EN 54-24 |
| Mounting | 2 × M8 threaded inserts for U-bracket, 2 × M8 threaded inserts on rear (75 mm pattern) |
| Dimensions (H×W×D) | 6.0 × 12.0 × 9.0 in (152 × 304 × 229 mm) |
| Net Weight | 14.4 lb (6.5 kg) / 16.5 lb (7.5 kg) with U-bracket |
| Shipping Weight | 21.0 lb (9.5 kg) |
| Frequency Range (-10 dB) | 90 Hz – 18,000 Hz |
| Coverage (H) | 100° |
| Coverage (V) | 100° |
| Max SPL @ 1 m | 116 dB (free field), 118 dB (wall/ceiling) |
| Nominal Impedance | 8 Ω |
| Power Handling (Continuous) | 100 W |
| Power Handling (Peak) | 400 W |
| Sensitivity | 90 dB (free field), 92 dB (wall/ceiling) |
| Transformer Taps (100V) | 10, 20, 40, 80 W |
| Transformer Taps (70V) | 5 W, 10 W, 20 W, 40 W, 80 W |
| Crossover | 2.0 kHz, passive |
| High-Frequency Driver | 1 × EMB2S compression driver, 2 in voice coil |
| Low-Frequency Driver | 1 × LF5 high-excursion 5.25 in woofer, 1.5 in voice coil |
| Product Codes | 811433-0110: AMU105 Black 811433-0210: AMU105 White |
| Warranty | 5 years / 2 years |
| Included in Packaging | (1) AMU105 loudspeaker (1) U-bracket (4) M8 screws (4) M4 screws (1) Input cover (2) Rubber washers (1) T3 square drive (1) Installation guide |
| Description | Downloads |
|---|---|
| Bose ArenaMatch AMU105 Compact High-Performance Loudspeaker DataSheet | Downloads |
| Bose ArenaMatch AMU105 Compact High-Performance Loudspeaker Installation Guide | Downloads |
