Bose CC‑1 Zone Controller – Wall‑Mount Volume Control for FreeSpace, PowerShare & ControlSpace Systems

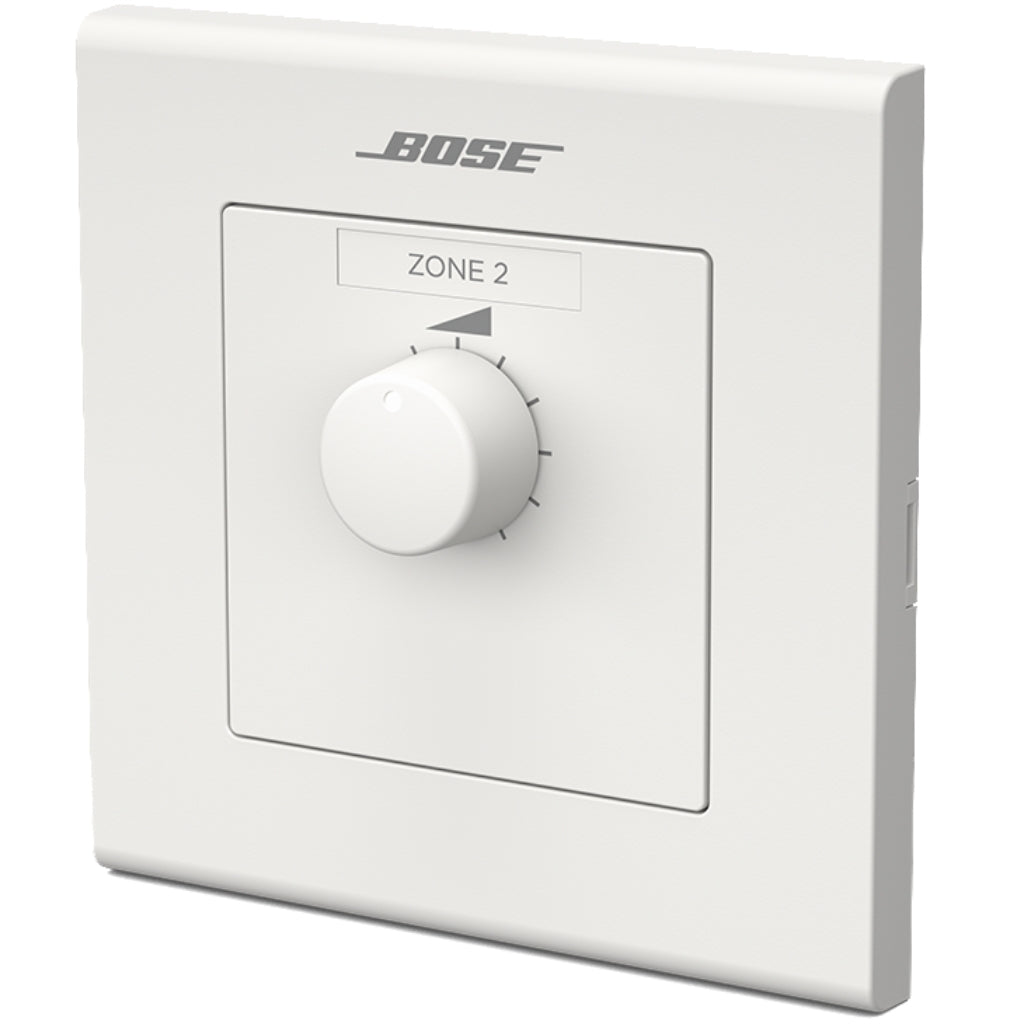

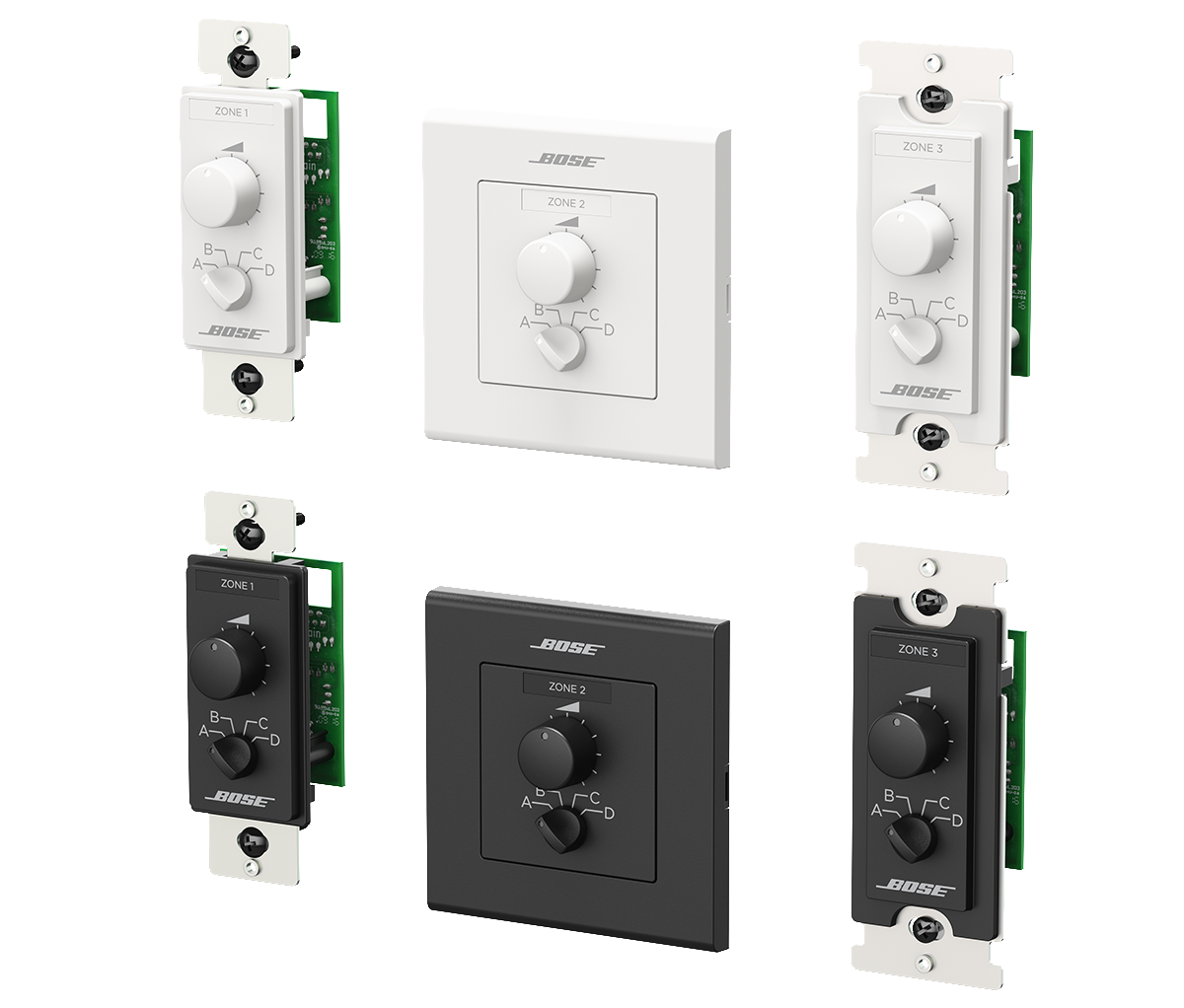

Bose Professional ControlCenter CC-1 zone controllers provide volume control for FreeSpace, PowerShare, and ControlSpace products. Three models are available in either black or white and fit 1-gang electrical boxes in North America, Europe, and Japan.
FEATURES

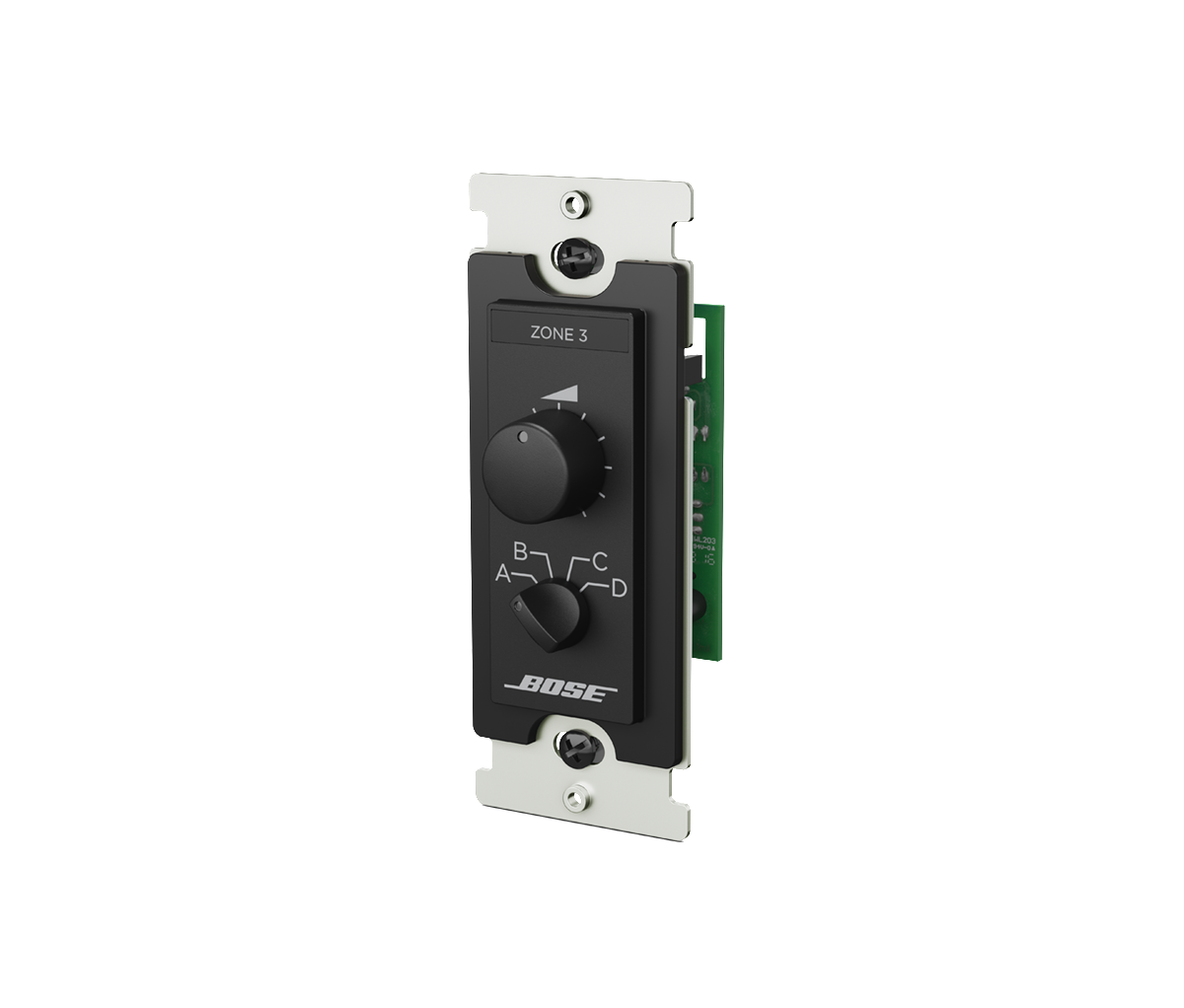

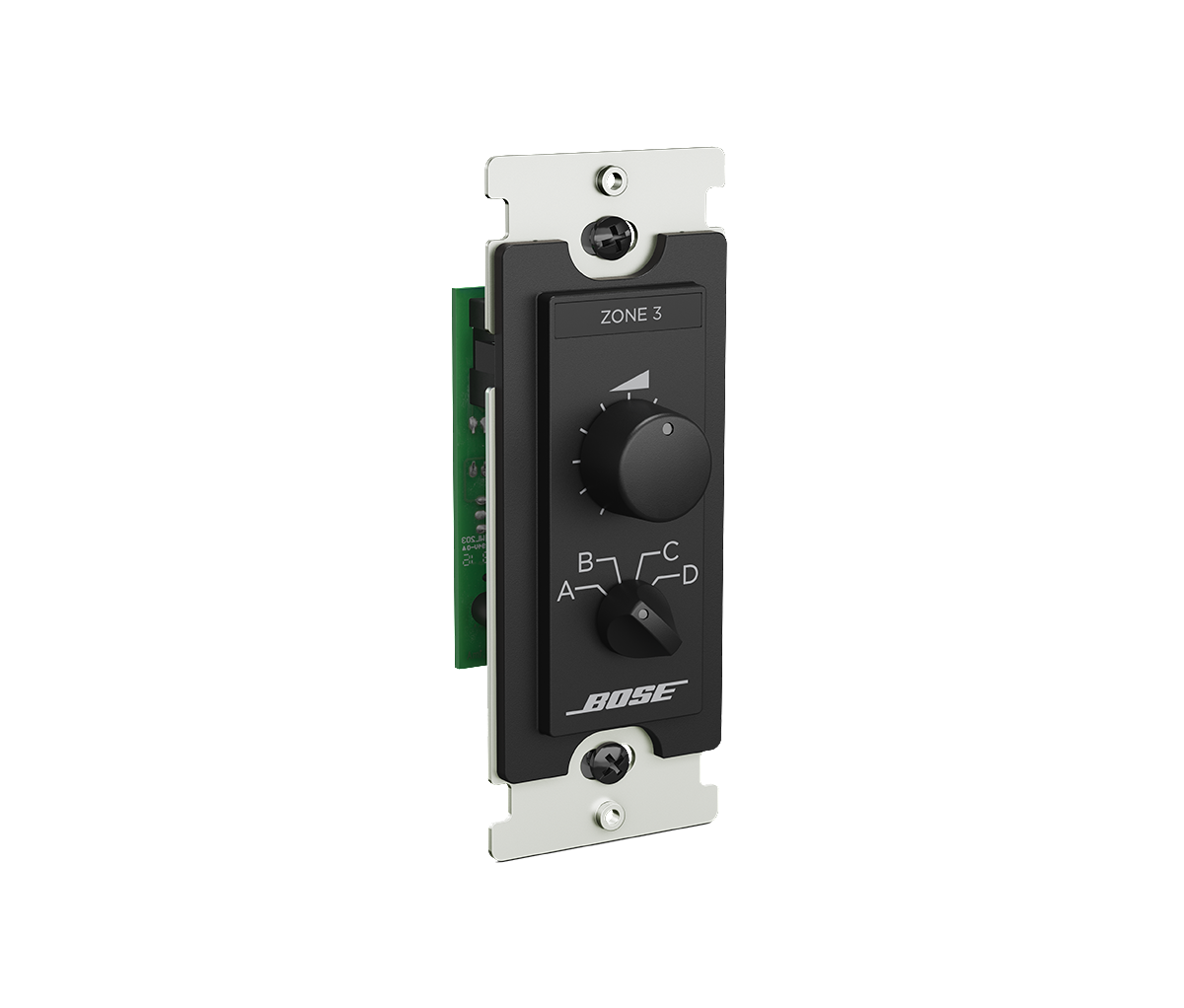

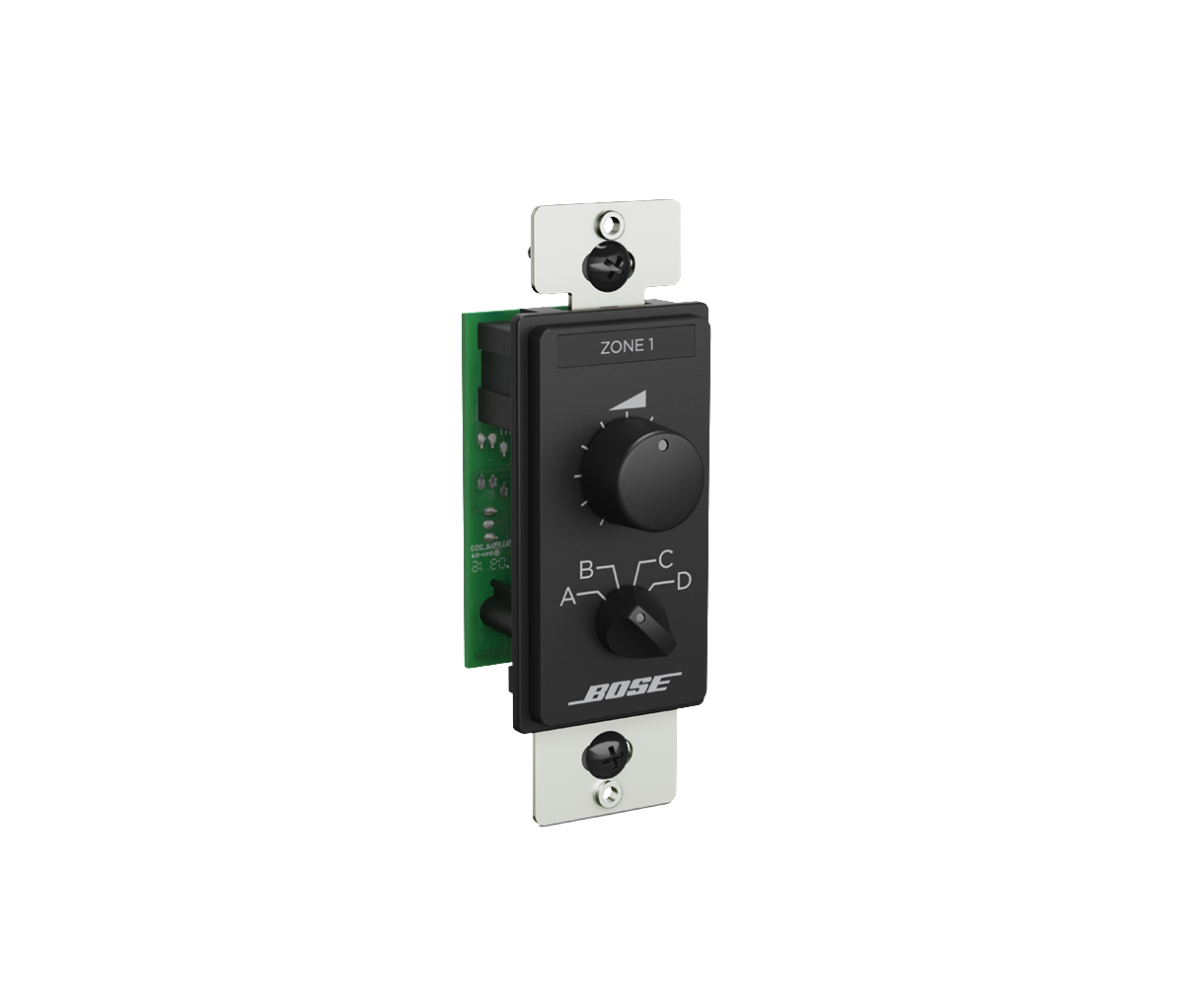

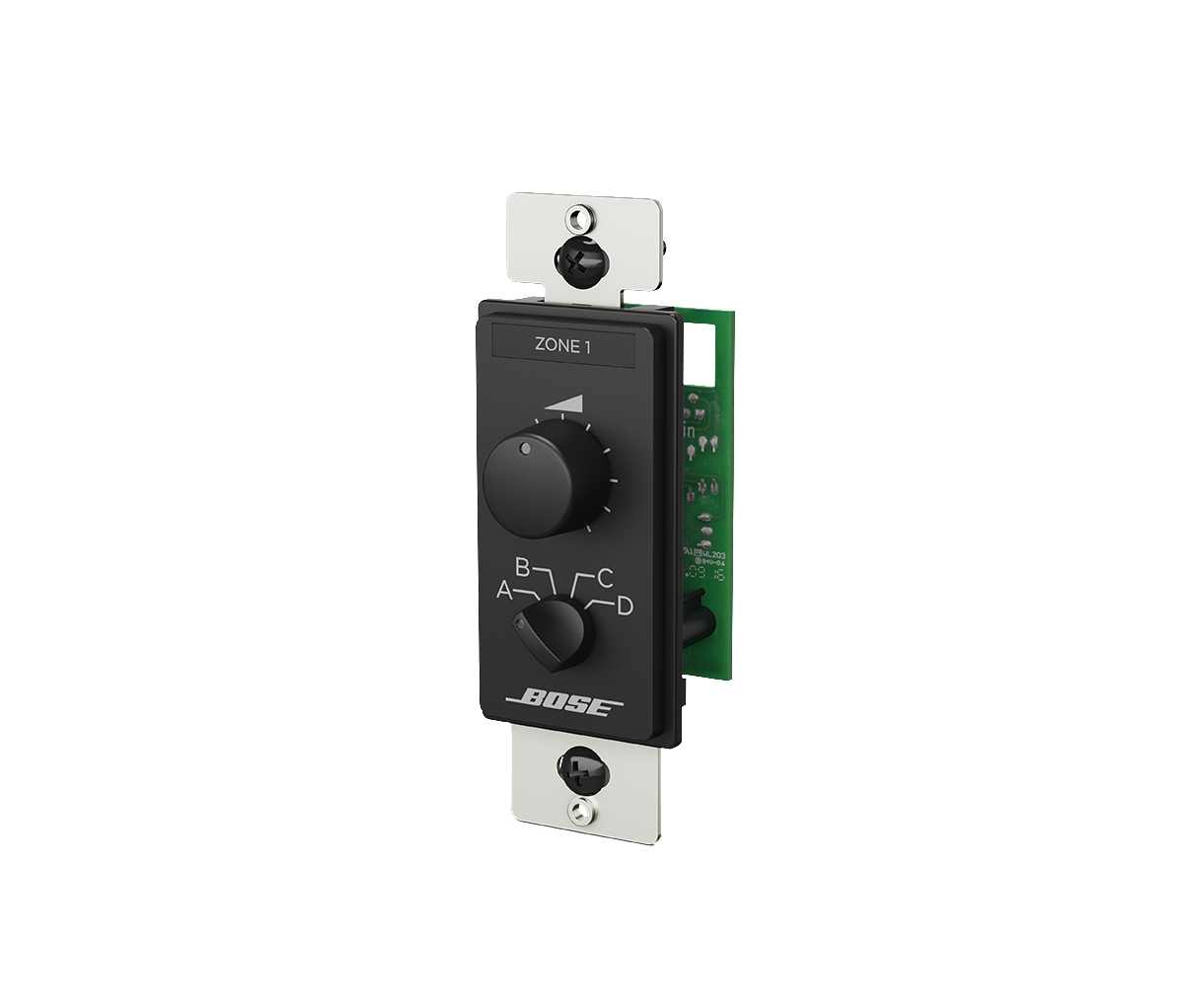

ControlCenter series: The ControlCenter series is a set of remote controls for use with Bose Professional FreeSpace amplifiers, PowerShare amplifiers, and ControlSpace processors. The three models offer volume control (CC-1), volume plus A/B source selection (CC-2), and volume plus A/B/C/D source selection (CC-3).

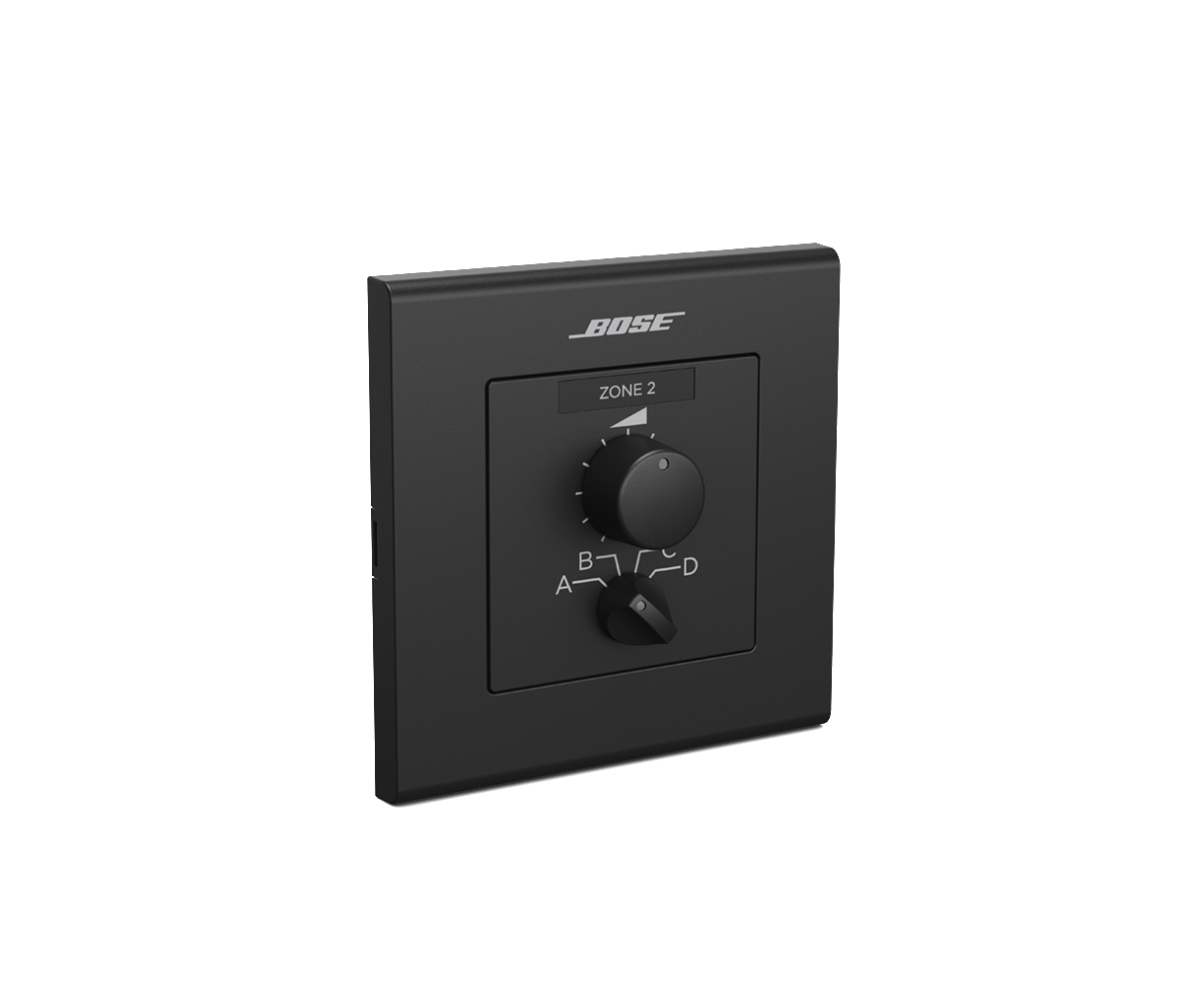

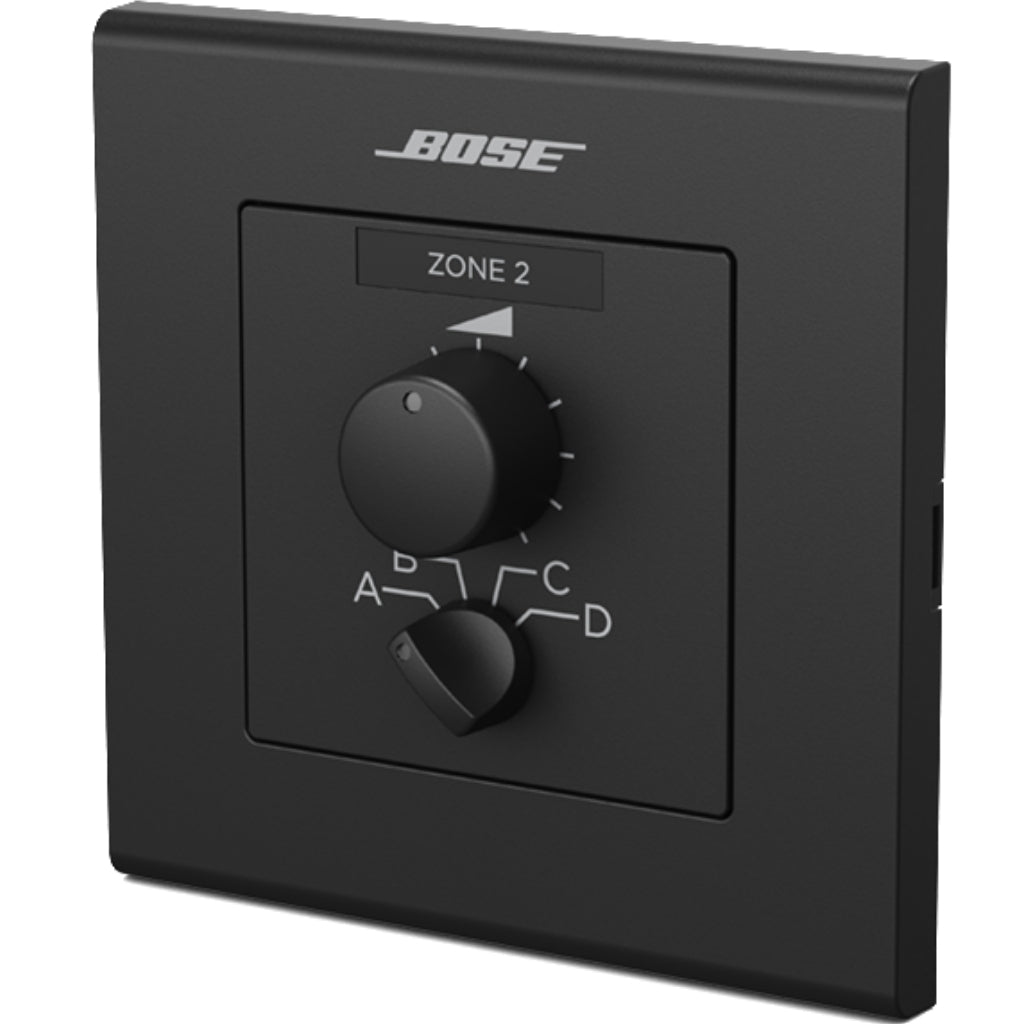

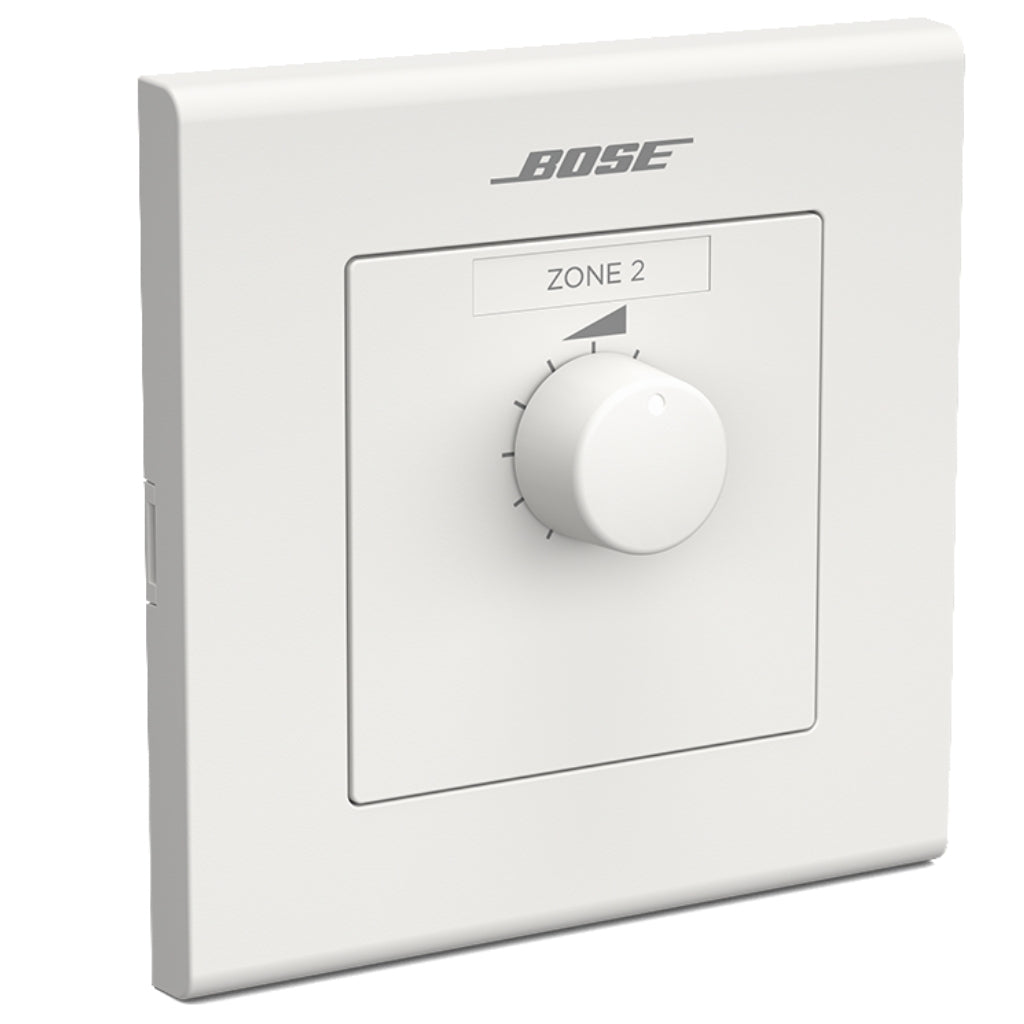

ControlCenter models: North American and Japanese models are designed for use with Decora-style wall plate covers (not included). The 86 × 86 mm European model is supplied as a finished wall plate.
Custom labels: Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling.
CV41 4-to-1 converter: The CV41 4-to-1 converter facilitates homerun wiring of CC-1 controllers.
Applications
Designed for a wide range of applications, including:
Retail stores
Restaurants and bars
Hospitality venues
Religious and worship facilities
Auxiliary zones
| Feature | Description |
|---|---|
| Cable Requirements | Cat 5 |
| Max Controller Quantity | 4 per ControlSpace processor |
| Max Cable Length | 2000 ft (609 m) to FreeSpace or PowerShare amplifiers / 500 ft (152 m) shielded, 100 ft (30 m) unshielded to ControlSpace processors |
| Connectors | (2) RJ-45, TIA/EIA 568B wiring standard |
| Compatible With | ControlCenter CV41, ControlSpace ESP-880A, FreeSpace IZA 190-HZ, FreeSpace IZA 250-LZ, FreeSpace IZA 2120-HZ, FreeSpace IZA 2120-LZ |
| Front Panel Controls | (1) volume knob |
| Colors | Black, White |
| Mounting | 1-gang electrical box (North America, Europe, Japan) |
| Dimensions (H×W×D) | North America: 4.1 in × 1.5 in × 1.4 in (105 mm × 38 mm × 36 mm) Europe: 3.4 in × 3.4 in × 1.4 in (86 mm × 86 mm × 36 mm) Japan: 4.3 in × 1.7 in × 1.5 in (110 mm × 42 mm × 38 mm) |
| Product Codes | 768932-0110 (CC‑1, black, 120V, North America) 768932-0210 (CC‑1, white, 120V, North America) 768932-2110 (CC‑1, black, 230V, Europe) 768932-2210 (CC‑1, white, 230V, Europe) 768932-3110 (CC‑1, black, 100V, Japan) 768932-3210 (CC‑1, white, 100V, Japan) |
| Included in Packaging | (1) ControlCenter CC-1 |
| Description | Downloads |
|---|---|
| Bose ControlCenter CC-1 Zone Controller 230V | 768932-2110 DataSheet | Downloads |
| Bose ControlCenter CC-1 Zone Controller 230V | 768932-2110 Installation Guide | Downloads |
