Bose Professional ControlCenter digital zone controllers provide volume and source selection for Bose Professional CSP, ESP, and EX sound processors. Powered using PoE, up to 16 units for CSP and 32 units for CSN can be used simultaneously on an Ethernet-based network. Three models are available in either black or white, feature volume/source LED indicators, and fit 1-gang electrical boxes in North America, Europe, and Japan.
FEATURES
Three main models: the CC-1D for simple volume control, the CC-2D for volume plus A/B source selection, and the CC-3D for volume plus A/B/C/D source selection
User-friendly interface features a single rotary encoder for volume (knob turn), source selection (knob push) and mute (knob push and hold) with an illuminated volume and source LED indication
Attractive, understated styling with two color options and regional variants to blend in seamlessly with most spaces
Networkable and PoE-powered: Ethernet-based and uses PoE for power; no special cabling or external power supplies required
Programmable: Installers can set discrete volume ranges and source options in software; up to 16 units for CSP and 32 units for CSN can be used simultaneously in expansive projects with CSP and ESP-based systems.
Custom labels: Each zone controller includes a sheet of pre-printed labels, with two blanks for custom labeling

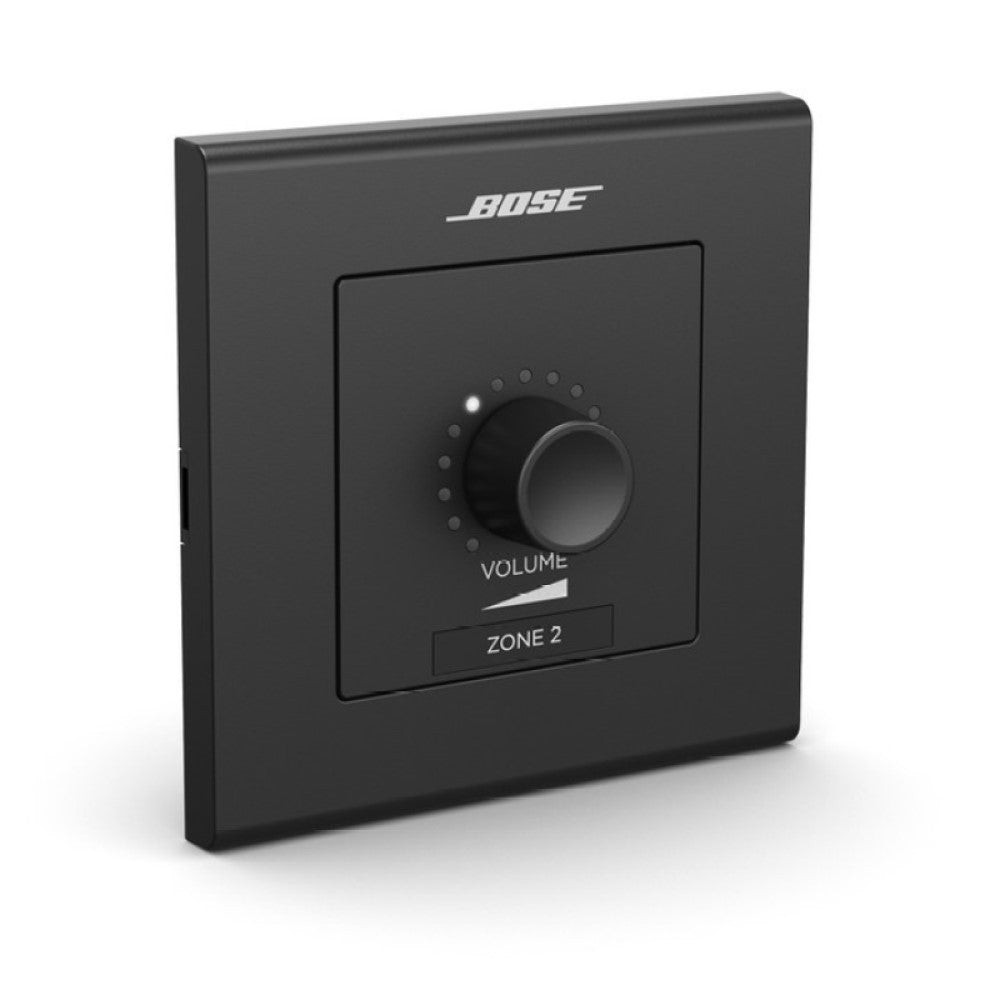

Regional variants: Each main model comes in three regional sub-models to support different sized electrical boxes. North American and Japanese models are designed for use with Decora-style wall plate covers (not included). The 86 × 86 mm European model is supplied as a finished wall plate
Compatible with CSP, ESP, and EX sound processors and Bose Professional PowerMatch networked amplifiers
| Feature | Description |
|---|---|
| Cable Requirements | Cat 5e, unshielded twisted-pair (UTP) |
| Max Controller Quantity | 16 per CSP processor, 32 per ControlSpace network |
| Connectors | (1) RJ-45 |
| Power Range | Power over Ethernet (PoE) required |
| Compatible With | ControlSpace ESP-880A, EX-1280, EX-440C, EX-1280C, CSP-428, CSP-1248, DS4 Ceiling Audio Solution, ES1 Ceiling Audio Solution |
| Front Panel Controls | Volume/source selection/mute knob (rotary/push) |
| LED Indicators | Volume LED ring, 2 source LEDs (CC-2D), 4 source LEDs (CC-3D) |
| Colors | Black, White |
| Mounting | 1-gang electrical box (NA, EU, JP) |
| Operating Temp | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions (NA) | 4.1 × 1.8 × 1.8 in (105 × 40 × 46 mm) |
| Dimensions (EU) | 3.4 × 3.4 × 1.7 in (86 × 86 × 43 mm) |
| Dimensions (JP) | 4.3 × 1.7 × 1.9 in (110 × 42 × 48 mm) |
| Net Weight | 0.2 lb (0.1 kg) all regions |
| Product Codes | 808461-0110: CC‑1D Black NA 808461-0210: CC‑1D White NA 808461-2110: CC‑1D Black EU 808461-2210: CC‑1D White EU 808461-3110: CC‑1D Black JP 808461-3210: CC‑1D White JP 808928-0110: CC‑2D Black NA 808928-0210: CC‑2D White NA 808928-2110: CC‑2D Black EU 808928-2210: CC‑2D White EU 808928-3110: CC‑2D Black JP 808928-3210: CC‑2D White JP 808930-0110: CC‑3D Black NA 808930-0210: CC‑3D White NA 808930-2110: CC‑3D Black EU 808930-2210: CC‑3D White EU 808930-3110: CC‑3D Black JP 808930-3210: CC‑3D White JP |
| Included in Packaging | (1) ControlCenter CC‑1D/CC‑2D/CC‑3D controller (2) mounting screws (1) custom label (1) installation guide |
| Description | Downloads |
|---|---|
| BOSE ControlCenter CC-1D Digital Zone Controllers DataSheet | Downloads |
| BOSE ControlCenter CC-1D Digital Zone Controllers Installation Guide | Downloads |
