Bose ControlSpace CC-16 Digital Volume Control | 41761

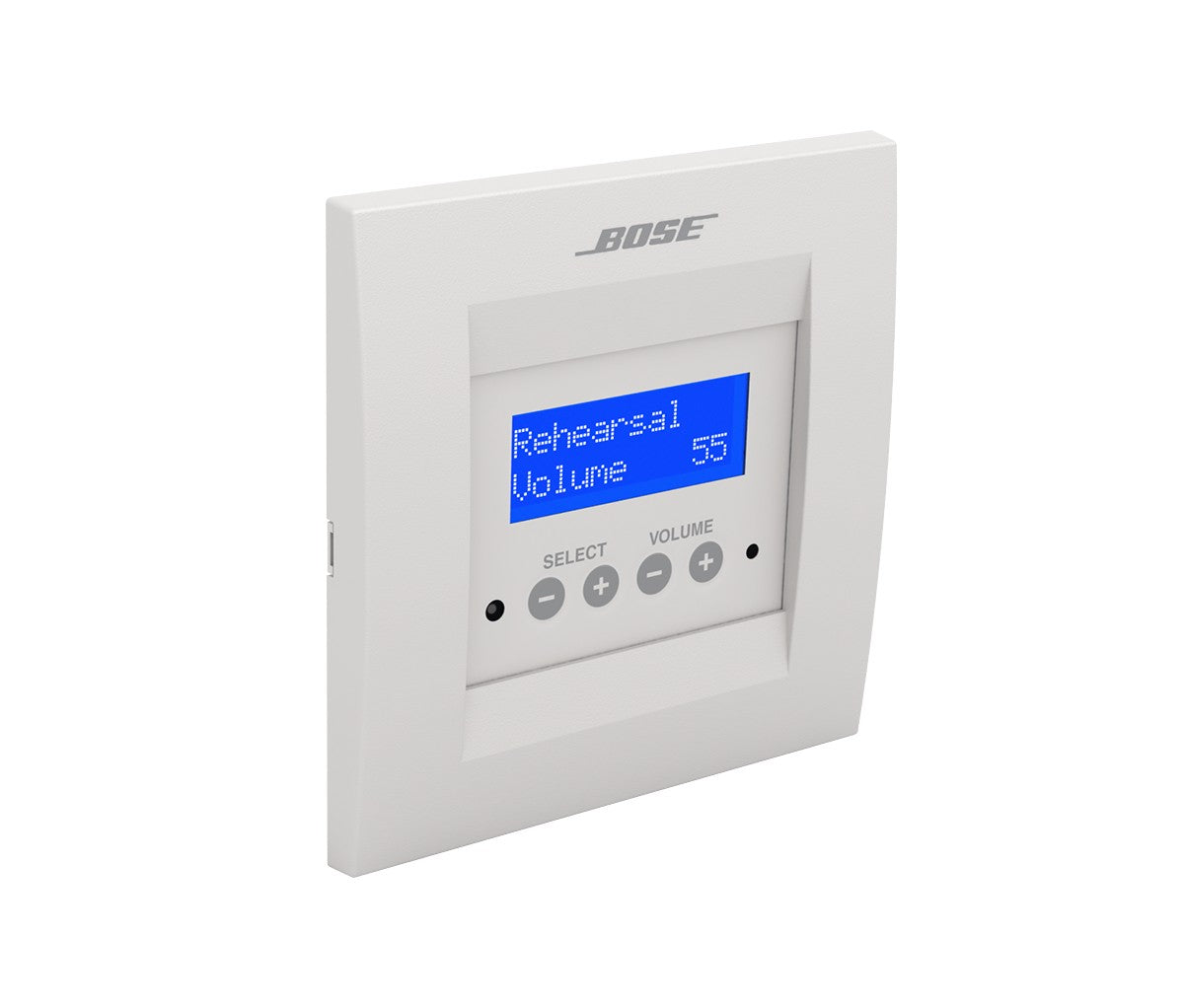

The Bose Professional ControlSpace CC-16 zone controller is an elegant wall-mounted device designed to provide end-user control of ControlSpace systems. Custom programming allows the CC-16 to control a variety of system elements, from switching remote audio sources to selecting "scenes" or system configurations. The CC-16 features a bitmap LCD and four buttons for displaying and controlling the system settings.
FEATURES
Elegant styling with intuitive controls for end user operation
122 × 32 pixel backlit blue LCD
Sealed volume +/- and select +/- pushbuttons
Simplified drag-and-drop setup using ControlSpace Designer
DIP switch addressing on back of unit
Programmable control of system elements (switching of audio sources, system configurations)
Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users
Customizable on-screen wording provides easier system operation
Programmable software lock-out
Fits into a standard 2-gang electrical wall box
| Feature | Description |
|---|---|
| Compliance | EMC: ICES-003 Class B, EN55103-1, EN55103-2, FCC Part 15 Class B |
| Cable Requirements | Cat 5 (24–18 AWG), unshielded twisted-pair (UTP) |
| Max Controller Quantity | 15 per ControlSpace ESP processor |
| Max Cable Length | 2000 ft (609 m) |
| Connectors | (1) Euroblock, 6 pins |
| Power Range | 8–18 VDC, 100 mA |
| Compatible With | ControlSpace ESP-880A, ControlSpace EX-1280, ControlSpace EX-1280C, DS4 Ceiling Audio Solution |
| Front Panel Controls | (2) volume buttons (+, –), (2) select buttons (+, –) |
| Display | 122 × 32 pixel LCD, backlit blue |
| Colors | White |
| Mounting | 2-gang electrical box (North America, Japan) |
| Dimensions (H×W×D) | 4.8 in × 4.7 in × 1.5 in (121 mm × 118 mm × 37 mm) |
| Product Codes | 41761 (ControlCenter CC-16, white) |
| Included in Packaging | (1) ControlSpace CC-16, (1) installation guide |
| Description | Downloads |
|---|---|
| Bose ControlSpace CC-16 Digital Volume Control | 41761 Installation Guide | Downloads |
