BOSE ControlSpace EX-1280 Digital Signal Processor | 834317-2110
SKU: 834317-2110
£2,339.85 (Excl. VAT)
- Description
- Specifications
- Downloads
-

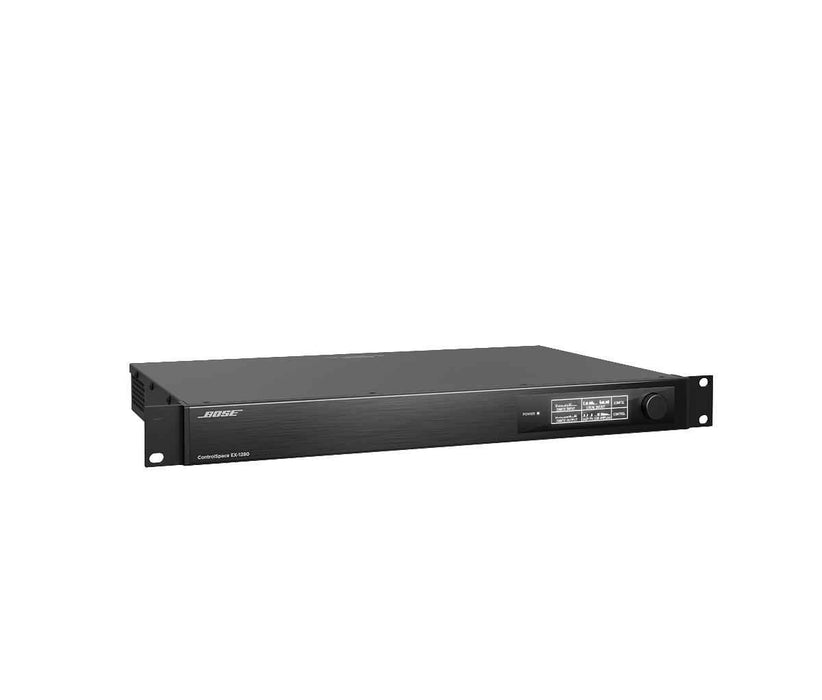

BOSE ControlSpace EX-1280 Digital Signal Processor | 834317-2110
With an open-architecture, single-rack-unit design, the ControlSpace EX-1280 is a robust digital signal processor equipped for general-purpose audio processing applications. Twelve mic/line analog inputs, eight analog outputs, a Bose Professional AmpLink output, and 64 × 64 Dante connectivity allow for flexible configuration and high-quality sound system control. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.
FEATURES
Open-architecture, 1RU design built for general-purpose and PA applications
USB connection facilitates easy integration with PC audio sources
Dante audio networking supports 64 × 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones, amplifiers, mixers, and endpoints
AmpLink output provides 8 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose Professional amplifiers

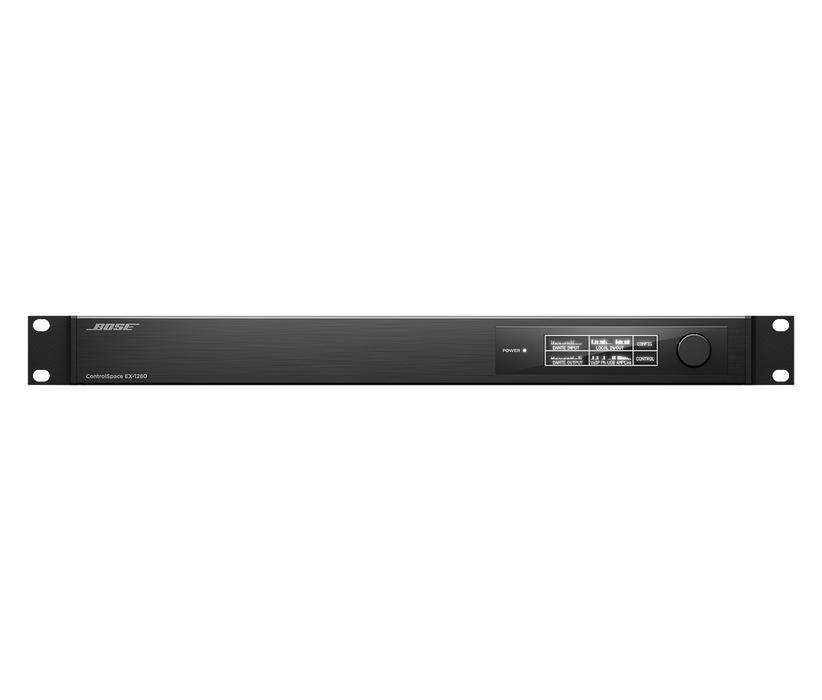

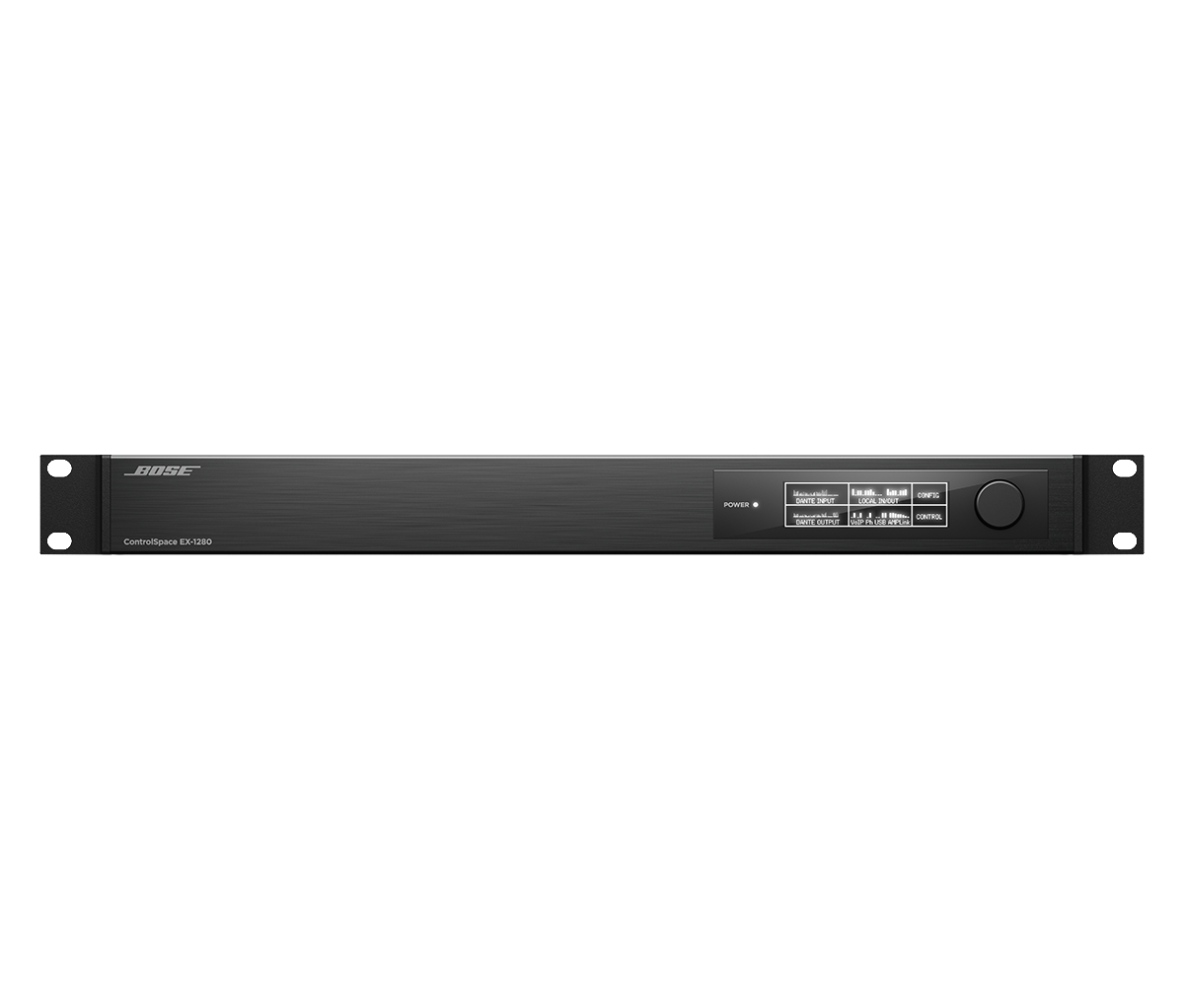

Front-panel interface features a large OLED display and rotary encoder for setting network parameters and monitoring channel activity
GPIO (5 in/5 out) and Serial for interfacing with external devices and control systems
Applications
Designed for a wide range of applications, including:
Performance venues
Stadiums and arenas
Places of worship
Hospitality
Multi-purpose spaces
Courtrooms
Amusement parks -

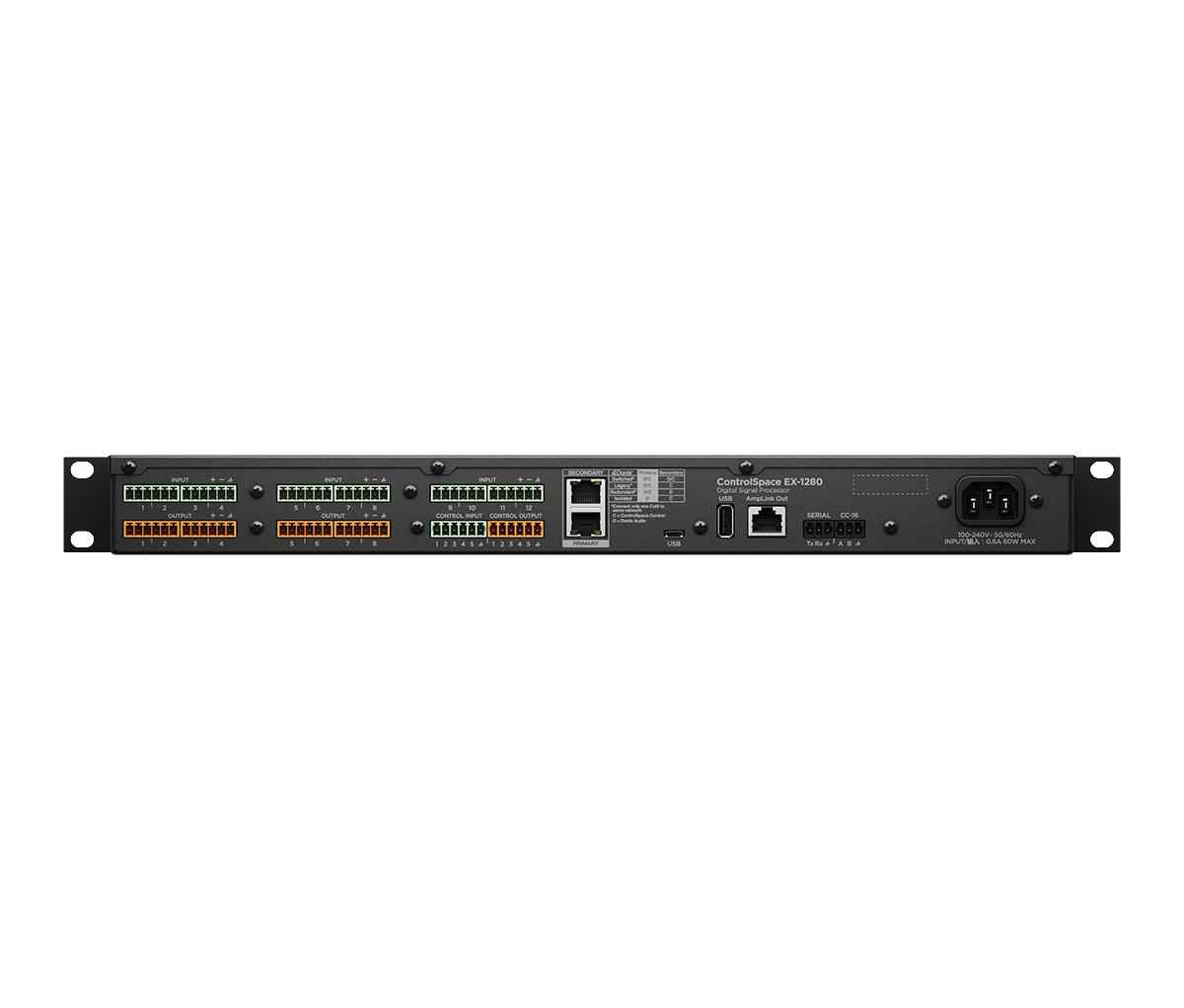

Category Attribute Value Amplification Channel Separation < -105 dB at +4 dBu, 1 kHz Amplification Dynamic Range > 115 dB, A-weighted, 20 Hz–20 kHz Amplification Frequency Response 18 Hz–20 kHz (+0.8/-0.2 dB) Amplification THD+N < 0.003% at +4 dBu / < 0.01% at +44 dBu AEC AEC-Enabled No Audio Inputs Input Channels 12 balanced mic/line Audio Inputs Connectors 1× 6-pin Euroblock (3.81 mm) Audio Inputs Equivalent Input Noise -118 dB at 44 dB gain Audio Inputs Sensitivity Options 0, +14, +24, +32, +44, +54, +64 dB Audio Inputs Input Impedance 12 kΩ at 1 kHz Audio Inputs Maximum Input Level +24 dBu Audio Inputs Phantom Power 48 VDC, 10 mA, software-selectable Digital IO Channels 64×64 Dante, 8 AmpLink Digital IO Connectors 2× RJ-45 (Dante), 1× RJ-45 (AmpLink) Digital IO Type Dante (I/O), AmpLink (Output) Audio Outputs Channels 8 balanced line Audio Outputs Connectors 6× 6-pin Euroblock (3.81 mm) Audio Outputs Max Output Level +24 dBu Audio Outputs Output Impedance 200 Ω Compliance Safety UL60065, IEC/EN62368-1, CSA, etc. Compliance EN 54-24 Certified No Compliance EMC EN 55032, FCC Part 15B, ICES-003, etc. Control Inputs Voltage Range (Analog) 0–3.3 V (5 V max) Control Inputs Digital Input Voltage 0–3.3 V (1.6 V threshold) Control Outputs Outputs 5 digital, 6-pin Euroblock Control Outputs Output Voltage High: 8 V / Low: < 1 V Electrical Mains Connector IEC 60320-C14 inlet Electrical Mains Voltage 85–264 VAC, 50/60 Hz Electrical AC Power Consumption 35 W typical at 40°C Electrical Power Dissipation 60 W (205 BTU/hr) General Software ControlSpace Designer 5.5+ General Computer Interface RJ-45 via network router/switch Indicators Display 256×64 OLED Indicators LED Status 1× power/status LED DSP Delay 43 s DSP A/D and D/A Converters 48 kHz / 24-bit DSP Audio Latency 1.05 ms DSP DSP-Enabled Yes DSP Max Calculation 3.6 GIPS / 2.7 GFLOPS DSP Processor 456 MHz DSP / 600 MHz Arm Cortex-A8 DSP Sample Rate / Bit Depth 48 kHz / 24-bit Physical Color Black Physical Cooling 2 variable-speed side-venting fans Physical Mounting Standard rack ears Physical Temp Range 0°C to 40°C Physical Dimensions (H×W×D) 44 × 483 × 282 mm (1.7×19.0×11.1 in) Physical Net Weight 3.2 kg (7.1 lb) Physical Rack Spaces 1RU Product Codes US 834317-1110 Product Codes EU 834317-2110 Product Codes JP 834317-3110 Product Codes UK 834317-4110 Product Codes AU 834317-5110 Warranty Period 5 years Packaging Included Items 5× 6-pin, 2× 3-pin Euroblocks, 16× cable ties, 1× EX-1280 -
Description Downloads BOSE ControlSpace EX-1280 Digital Signal Processor | 834317-2110 DataSheet Downloads BOSE ControlSpace EX-1280 Digital Signal Processor | 834317-2110 Installation Guide Downloads
