BOSE ControlSpace EX-1280C Conferencing Sound Processor | 772234-2110
SKU: 772234-2110
£3,350.00 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Bose ControlSpace EX‑1280C Conferencing DSP – 12×8 Analog I/O, 64×64 Dante, 12‑Channel AEC & VoIP/PSTN/USB Integration
A flexible DSP platform for scalable systems, ControlSpace EX conferencing processors have the features to support rooms of various sizes and the flexibility to meet future needs. With an open-architecture, all-in-one design, the ControlSpace EX-1280C offers signal processing for integrated-microphone audio conferencing applications. As the highest-capability processor of the ControlSpace EX family, the EX-1280C includes 12 mic/line analog inputs, 8 analog outputs, 8 AmpLink digital outputs, 12 acoustic echo cancellers (AEC), and 64 × 64 Dante connectivity. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.
FEATURES
All-in-one design supports simultaneous VoIP, PSTN and USB soft codecs in a single 1RU model
12 acoustic echo cancellers (AEC) route to both analog and Dante inputs; multiple references allow one EX-1280C processor to support multiple rooms or AEC-sharing across multiple processors
Adaptable noise cancellation on each AEC channel; non-linear processing and comfort noise to enhance the clarity and intelligibility of meetings
2-line VoIP with an internal web interface allowing IT personnel to configure VoIP parameters without design file access or integrator involvement
PSTN connection (RJ-11) for worldwide POTS/analog telephone systems
USB connection facilitates easy integration with PC soft codecs
Dante audio networking supports 64 × 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones
AmpLink port provides 8 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose Professional amplifiers

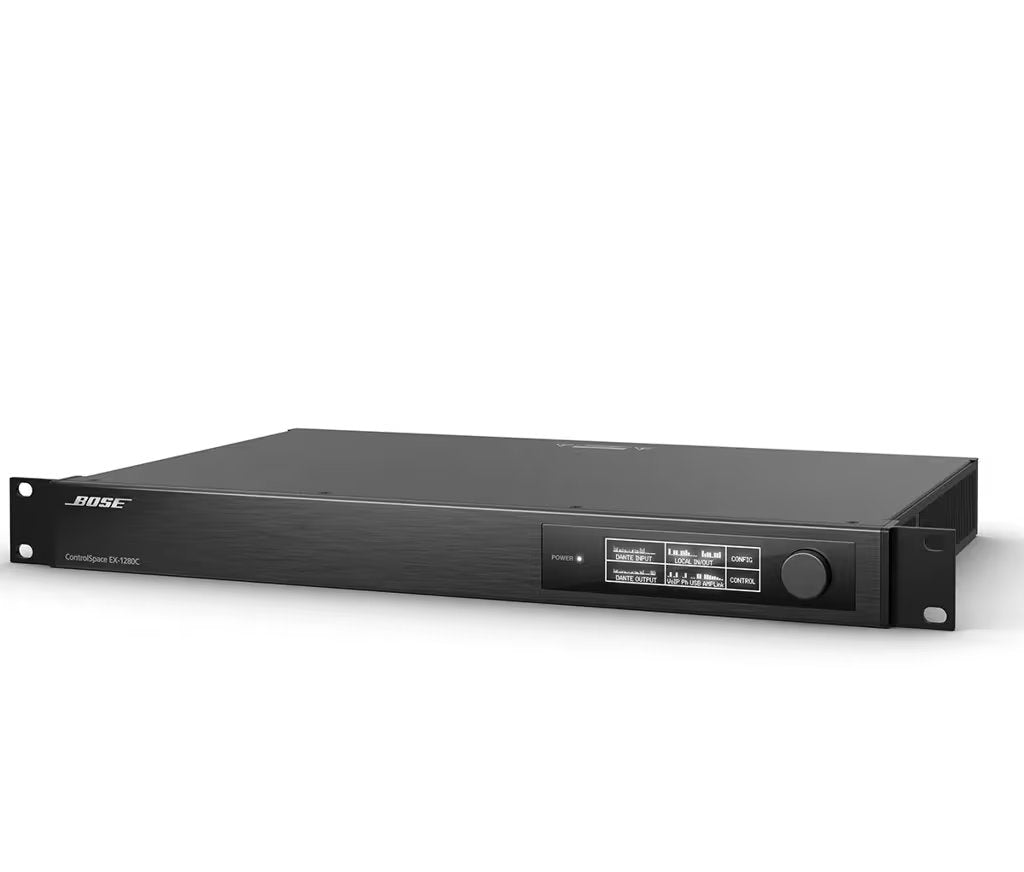

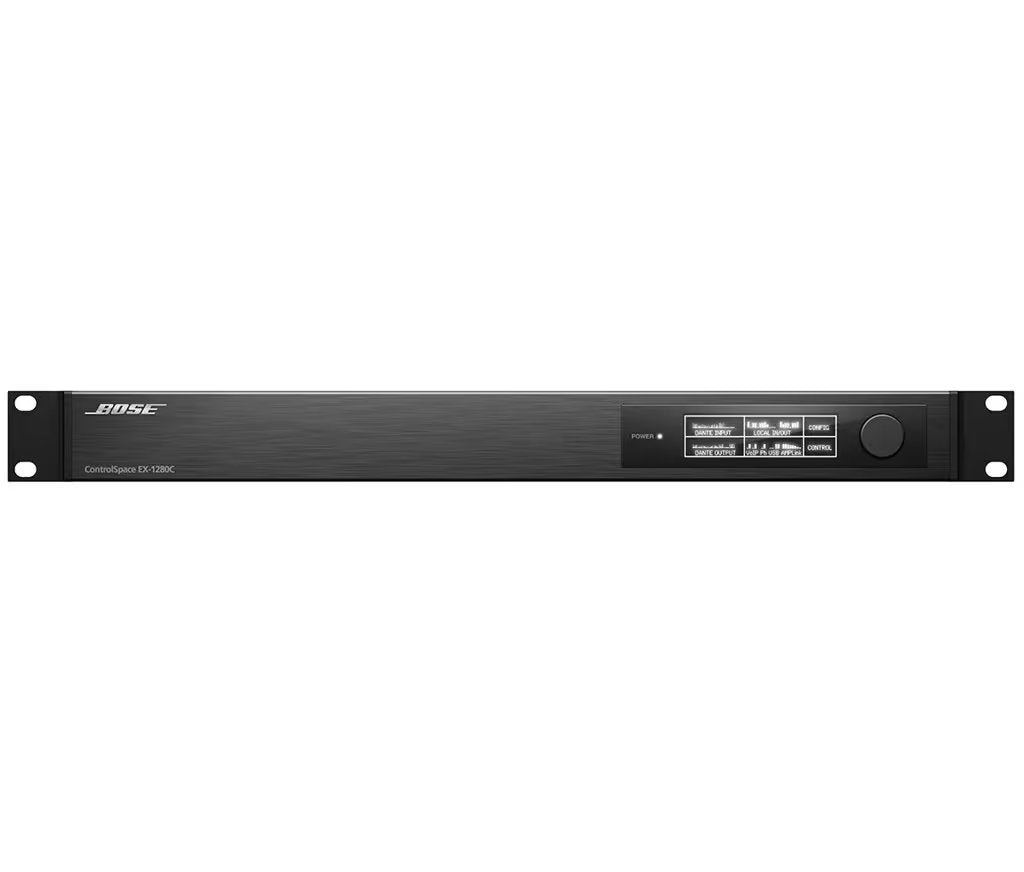

Front-panel interface features large OLED display and rotary encoder for setting network parameters and monitoring channel activity
GPIO (5 in/5 out) for external connections including microphone pushbuttons or driving microphone LEDs
Applications
Designed for a wide range of applications, including:
Performance venues
Stadiums and arenas
Places of worship
Resorts and Hospitality Venues
Multipurpose spaces
Mechanical Diagrams
-
Feature Description Channel Separation < -105 dB at +4 dBu, 1 kHz input signal Dynamic Range > 115 dB, A-weighted, 20 Hz – 20 kHz Frequency Response 20 Hz – 20 kHz (+0.3/-0.1 dB) THD+N 0.002% at +4 dBu (A-weighted) AEC-Enabled Yes, 12 channels AEC Latency 50 ms Noise Reduction 32 dB Tail Length 480 ms Analog Inputs 12 balanced mic/line Input Connectors (1) 6-pin Euroblock, 3.81 mm Equivalent Input Noise -118 dB at 44 dB gain Gain Options 0, +14, +24, +32, +44, +54, +64 dB Input Impedance 12 kΩ at 1 kHz Max Input Level +24 dBu Phantom Power 48 VDC, 10 mA, per input Digital I/O 64×64 Dante, 8 AmpLink out Digital Connectors (2) RJ-45 Dante / (1) RJ-45 AmpLink Analog Outputs 8 balanced line Output Connectors (6) 6-pin Euroblock Max Output Level +24 dBu Output Impedance 200 Ω Safety UL60065, CAN/CSA-C22.2, IEC/EN60065 EMC EN55032, EN61000, FCC Part 15B, ICES-003, CISPR13 Control Inputs 0–3.3 V analog, 0–3.3 V digital Control Outputs (5) digital, 6-pin Euroblock PSTN RJ-11, 1 line USB Micro-B, stereo in/out VoIP RJ-45, 2 lines Mains Connector IEC 60320-C14 Mains Voltage 85–264 VAC, 50/60 Hz AC Power Consumption 35 W typical Power Dissipation 60 W (205 BTU/hr) Software ControlSpace Designer 5.5+ Computer Connection RJ-45 via network Display 256×64 OLED A/D - D/A 48 kHz / 24-bit Dimensions 1.7 × 19.0 × 11.1 in (44 × 483 × 282 mm) Weight 7.3 lb (3.6 kg) Product Codes 772234-1110: 120V, US
772234-2110: 230V, EU
772234-3110: 100V, JP
772234-4110: 230V, UK
772234-5110: 240V, AUWarranty 5 years Included in Packaging (1) ControlSpace EX-1280C
(5) 6-pin Euroblock connectors
(2) 3-pin Euroblock connectors
(16) cable ties
(1) installation guide -
