BOSE DesignMax DM10P-SUB 300W Subwoofer
SKU: 835265-0120
£381.89 (Excl. VAT)
- Description
- Specifications
- Downloads
-

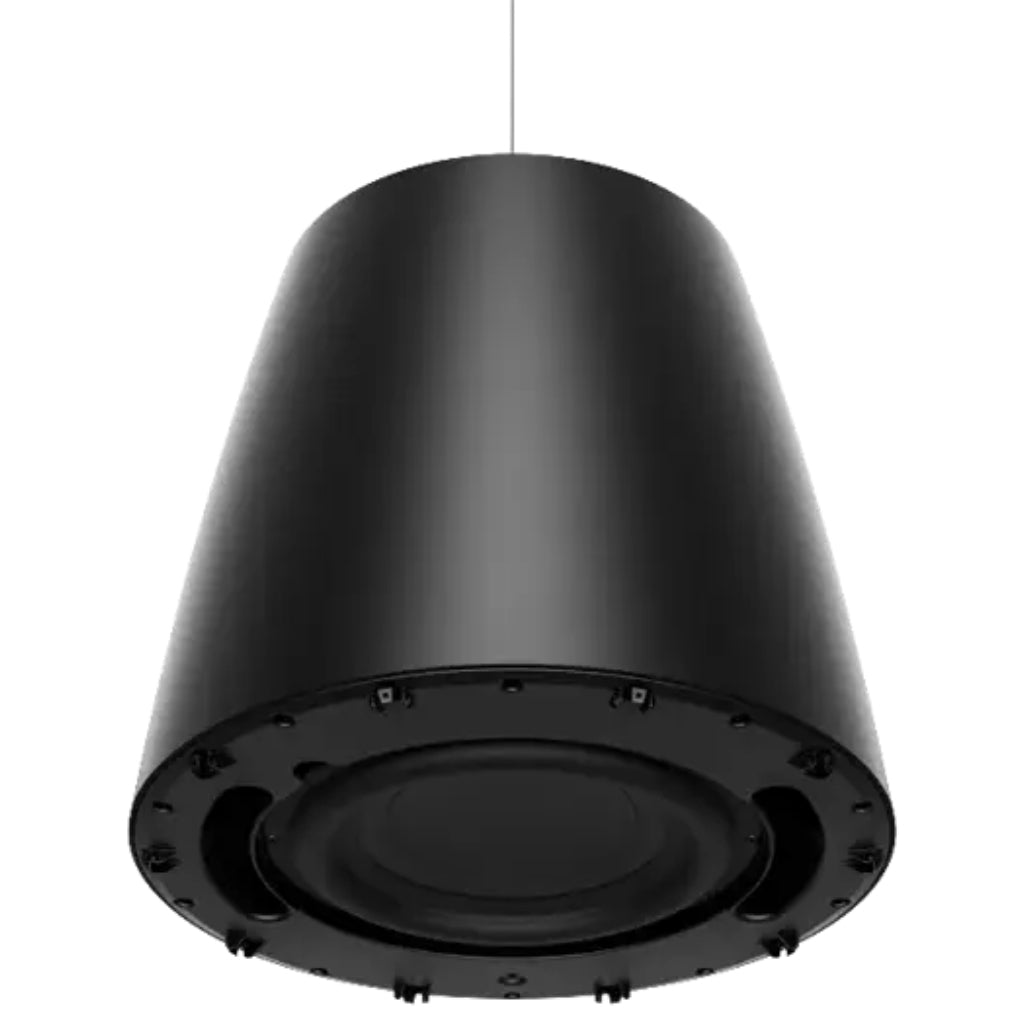

Bose DesignMax DM10P-SUB – 10" Pendant Subwoofer, 300W, 40–125 Hz, Omnidirectional Bass, Sleek Single-Point Suspension
Delivering rich low-end performance, the DesignMax subwoofers bring instantly impressive bass to any commercial sound installation. The 300-watt Bose Professional DM10P-SUB is a 10-inch pendant subwoofer with a 40–125 Hz frequency range and has a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
FEATURES
Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
Choose from three DesignMax subwoofer models — the 180-watt in-ceiling DM8C-SUB, the 300-watt surface-mounted DM10S-SUB, and the sleek 300-watt DM10P-SUB pendant subwoofer
Deliver rich bass performance with custom drivers; for optimal performance, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

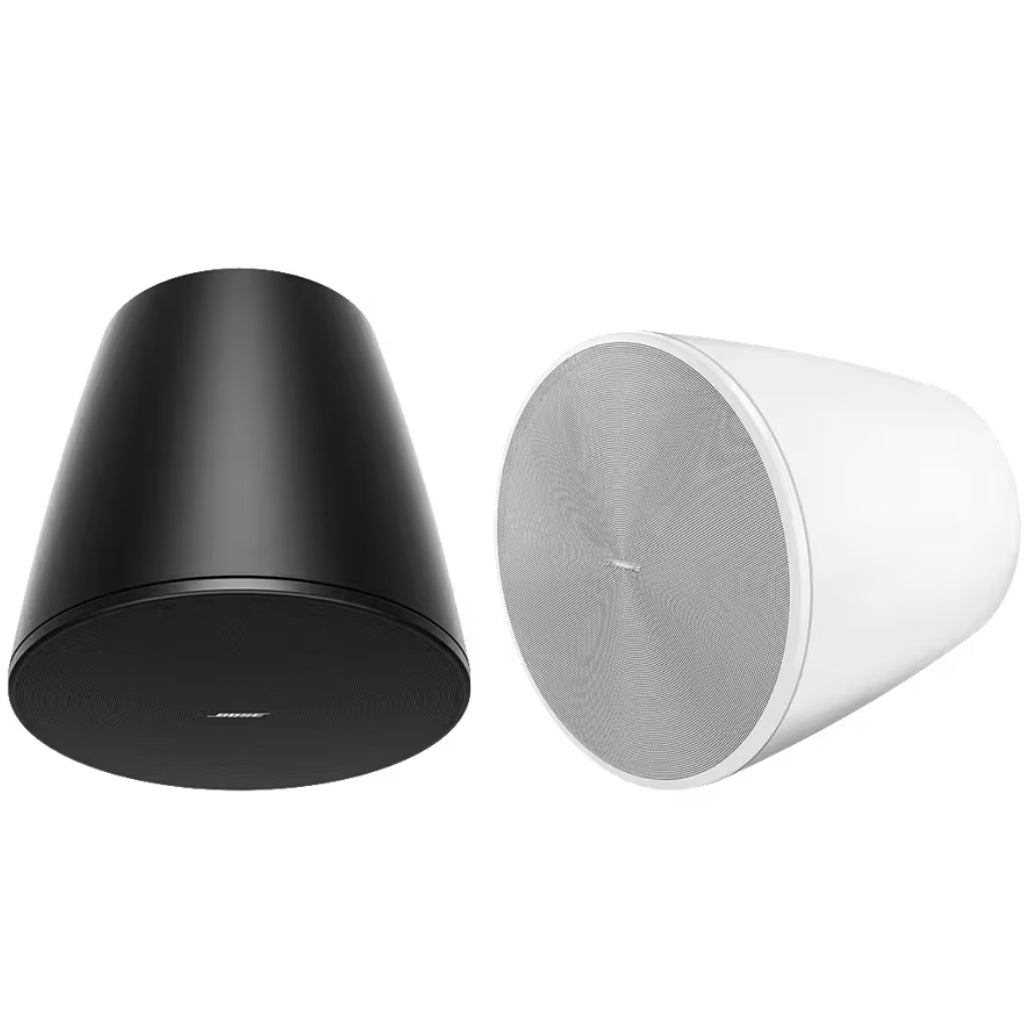

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

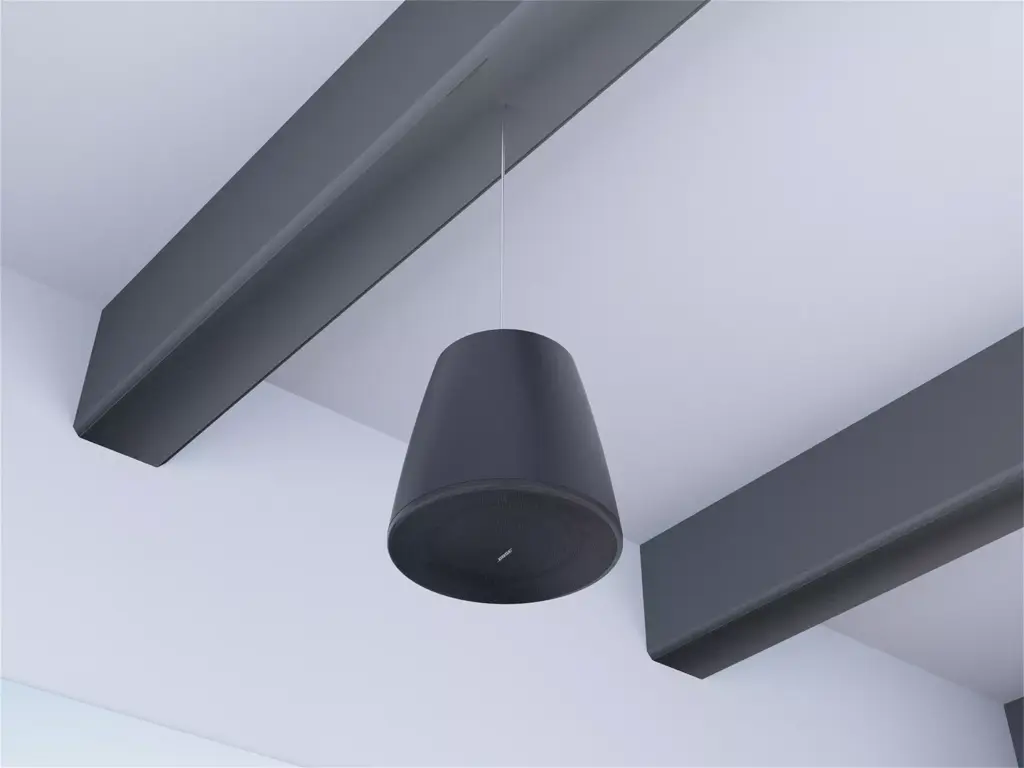

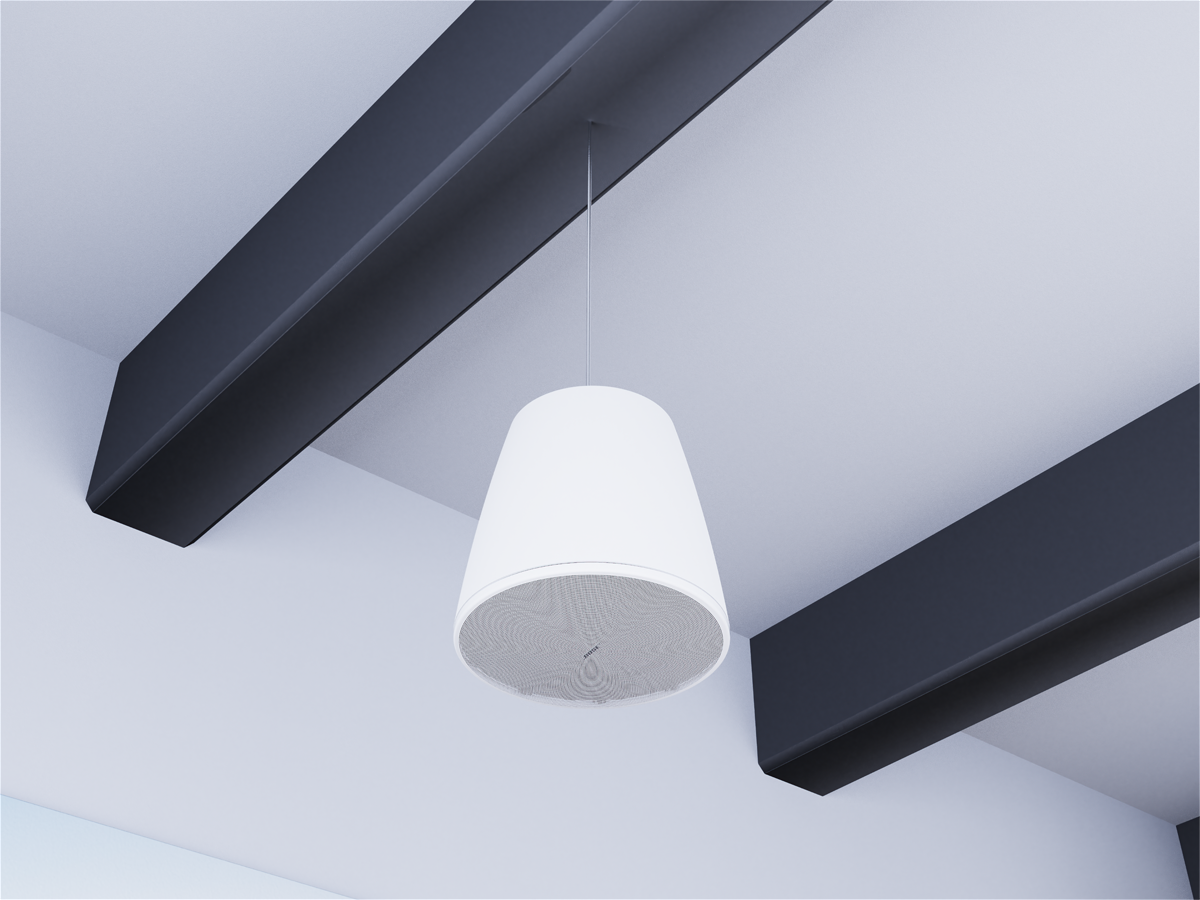

Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access -
Category Attribute Value Compliance Safety Ratings UL 1480A, UL 2239, NFPA 70/90A, CE Compliance Certifications UL/CE-compliant Physical Colors Black, White, Paintable Physical Material Engineered plastics Physical Environment Indoor only Physical Grille Perforated steel, powder-coated Physical Logo Rotatable, removable Physical Mounting 1 suspension & 1 safety cable point Physical Operating Temp. 0°C to 50°C (32°F to 122°F) Physical Dimensions (H×D) 400 × 383 mm Physical Net Weight 8.9 kg Physical Shipping Weight 12.7 kg Performance Frequency Range 40 Hz – 125 Hz Performance Coverage Omnidirectional below 200 Hz Performance Max SPL @1m 110 dB Performance Impedance 8 Ω (bypass) Performance Power Handling 250 W cont. / 1000 W peak Performance Sensitivity 85 dB Performance 100V Taps 40, 80, 150 W, bypass Performance 70V Taps 20, 40, 80, 150 W, bypass Transducers Crossover 80–200 Hz via active DSP crossover Transducers Driver Protection High-pass @ 45 Hz, 24 dB/oct Transducers Woofer 1 × 10 in (254 mm) Packaging Included Subwoofer, cable kit, install guide, ties, tools Product Codes Black 835265-0110, 835265-0120 Product Codes White 835265-0210, 835265-0220 -
Description Downloads BOSE DesignMax DM10P-SUB Subwoofer DataSheet Downloads
