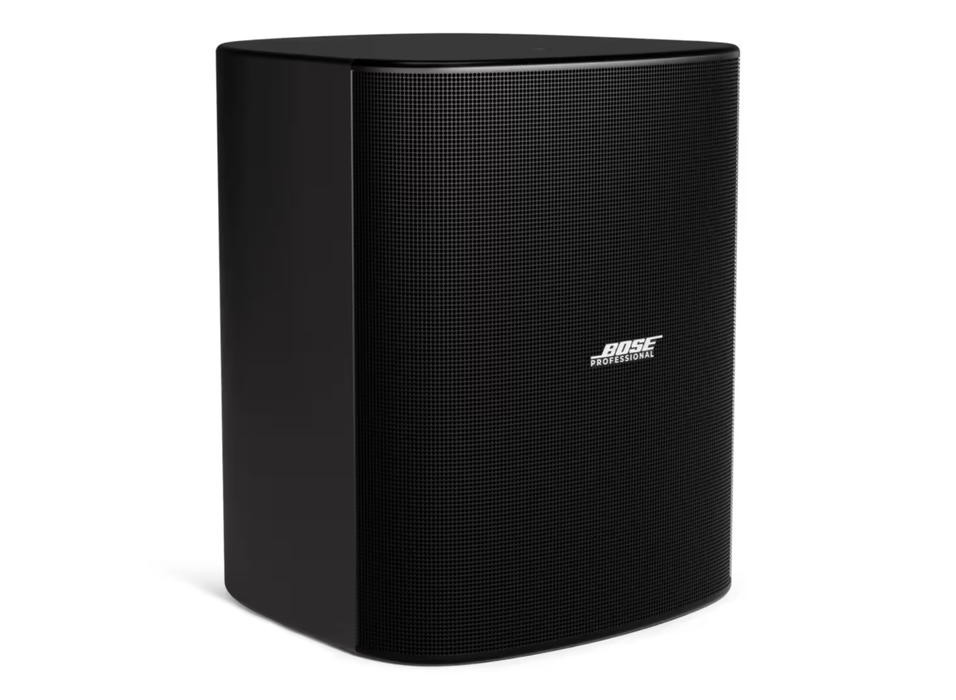

Bose DesignMax DM12SE 12-Inch Coaxial Surface-Mount Loudspeaker - Black
SKU: A01114-0100
£616.05 (Excl. VAT)
- Description
- Specifications
- Downloads
-
High-Output Indoor and Outdoor Surface-Mount Speaker
The Bose Professional DesignMax DM12SE is a weatherized, full-range, 12-inch coaxial surface-mount loudspeaker that delivers deep bass and consistent 102° conical coverage. Combining high output, clear intelligibility, and the sleek aesthetic the DesignMax family is known for, it delivers the flexibility integrators need for indoor or outdoor installations in performance, hospitality, worship, and retail spaces.
FEATURES
12” coaxial transducer delivers clear, full-range sound with consistent 102° conical coverageWeatherized, injection-molded enclosure for indoor and outdoor reliability
Deep bass response down to 38 Hz for powerful low-end performance
Coaxial point-source design ensures clarity and uniformity across the space

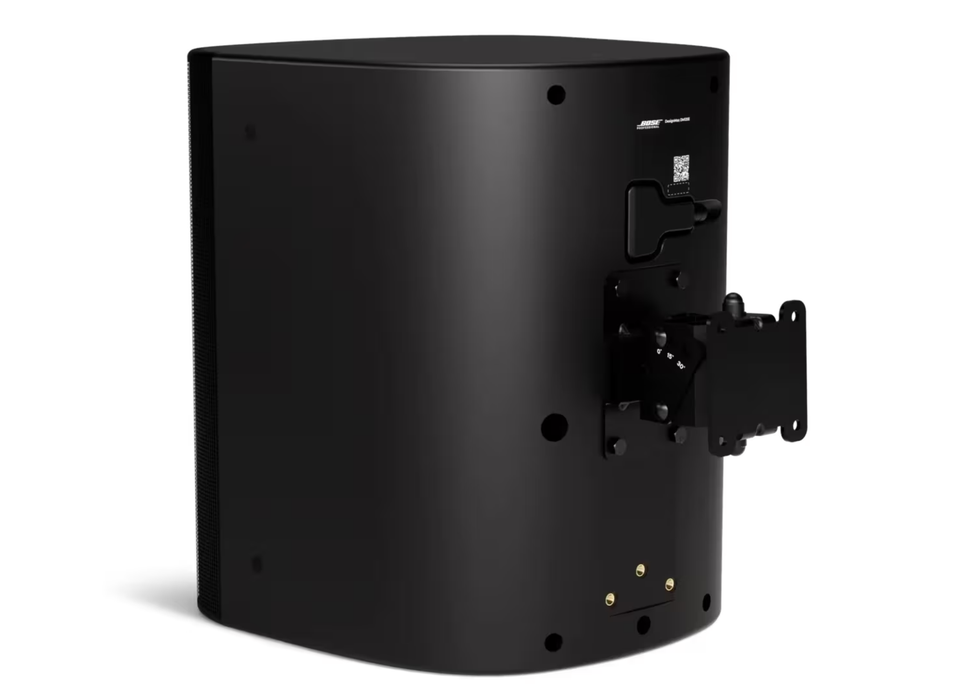

Rugged, outdoor-ready pan/tilt bracket enables fast installs, precise aiming, and long-term reliability
Factory-optimized tunings for Bose Professional amplifiers and processors
Available in black or white finishes matching the sleek DesignMax aesthetic
Applications
Designed for a wide range of applications, including:Performance venues
Places of worship
Hospitality spaces
Fitness studios
Retail stores
Nightlife and bar areas
Outdoor patios and courtyards
Theaters and multipurpose roomsIncluded in Packaging
(1) DesignMax DM12SE
(1) input panel cover
(1) installation guide
(1) Surface-Mount Pan and Tilt Bracket -

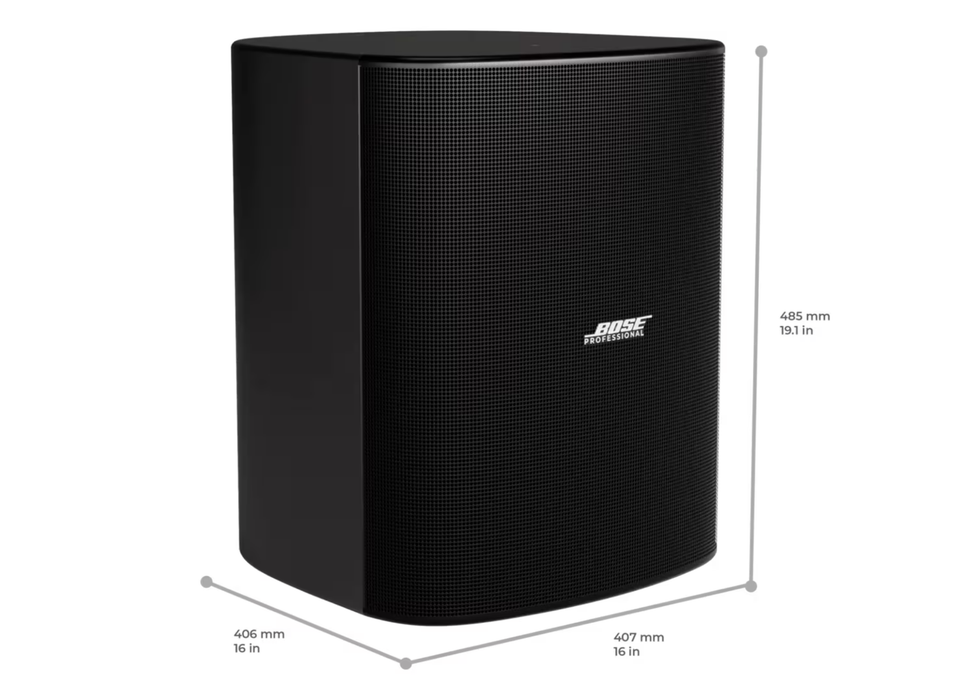

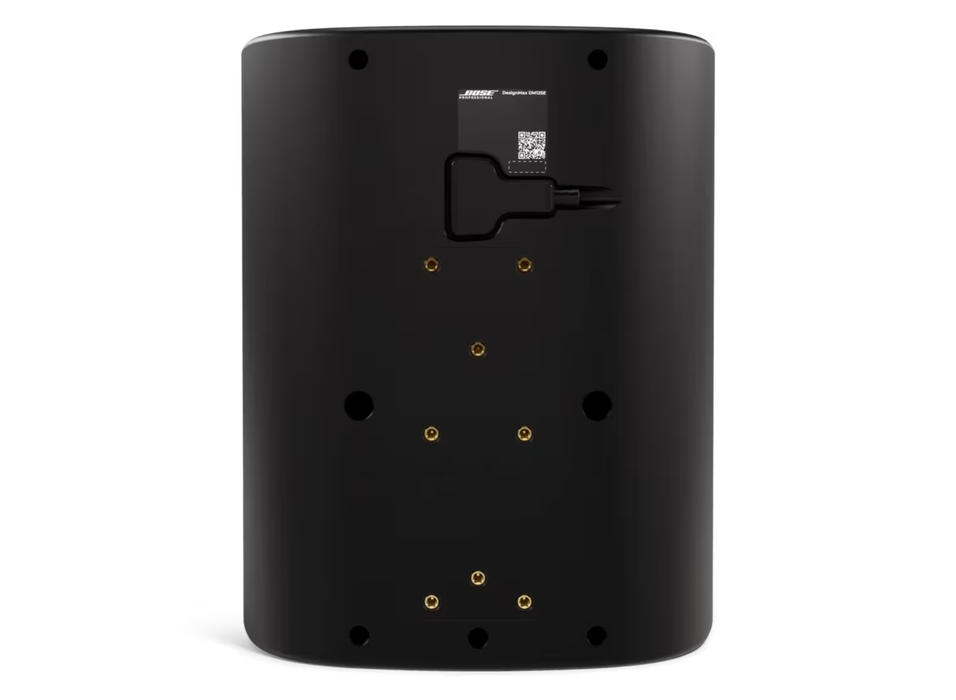

Colors White grille (similar to RAL 9003), black grille (similar to RAL 9005), paintable Enclosure Material Engineered plastics, injection-molded, UV fade-resistant Environmental Outdoors or indoors, IP55 Grille Perforated aluminum, powder-coated finish, tamper-resistant design, paintable Ingress Protection IP55 Logo Rotatable Suspension/Mounting (12) M8 threaded inserts (2 top, 2 side, 8 rear) Operating Temperature Range -25 °C to 70 °C (-13 °F to 158 °F) Product Dimensions (H×W×D) 19.1 in × 16.0 in × 16.0 in (485 mm × 407 mm × 406 mm) Net Weight 37.4 lb (16.9 kg) Frequency Range (-10 dB) 38 Hz – 20,000 Hz Coverage, Horizontal 102° conical Calculated Maximum SPL @ 1 m 119 dB Nominal Impedance 8 Ω Power Handling, Long-Term Continuous 300 W Power Handling, Peak 1200 W Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available Sensitivity (SPL/1 W at 1 m) 94 dB Coverage, Vertical 102° conical Driver Protection Recommended High-pass Protection 40 Hz with minimum 12-dB/octave filter High-Frequency 1 × 1.4 in (36 mm) compression driver, 1.0-in (25 mm) exit, coaxial center-firing, weather-treated Low-Frequency 1 × 12 in (305 mm) woofer, weather-treated -
Description Downloads Datasheet Download
