BOSE DesignMax DM3SE Loudspeakers Black | 829712-0110
SKU: 829712-0110
£389.80 (Excl. VAT)
- Description
- Specifications
- Downloads
-
BOSE DesignMax DM3SE Loudspeakers - Black
This product is EOL Please check the newest model ; 829712-0110

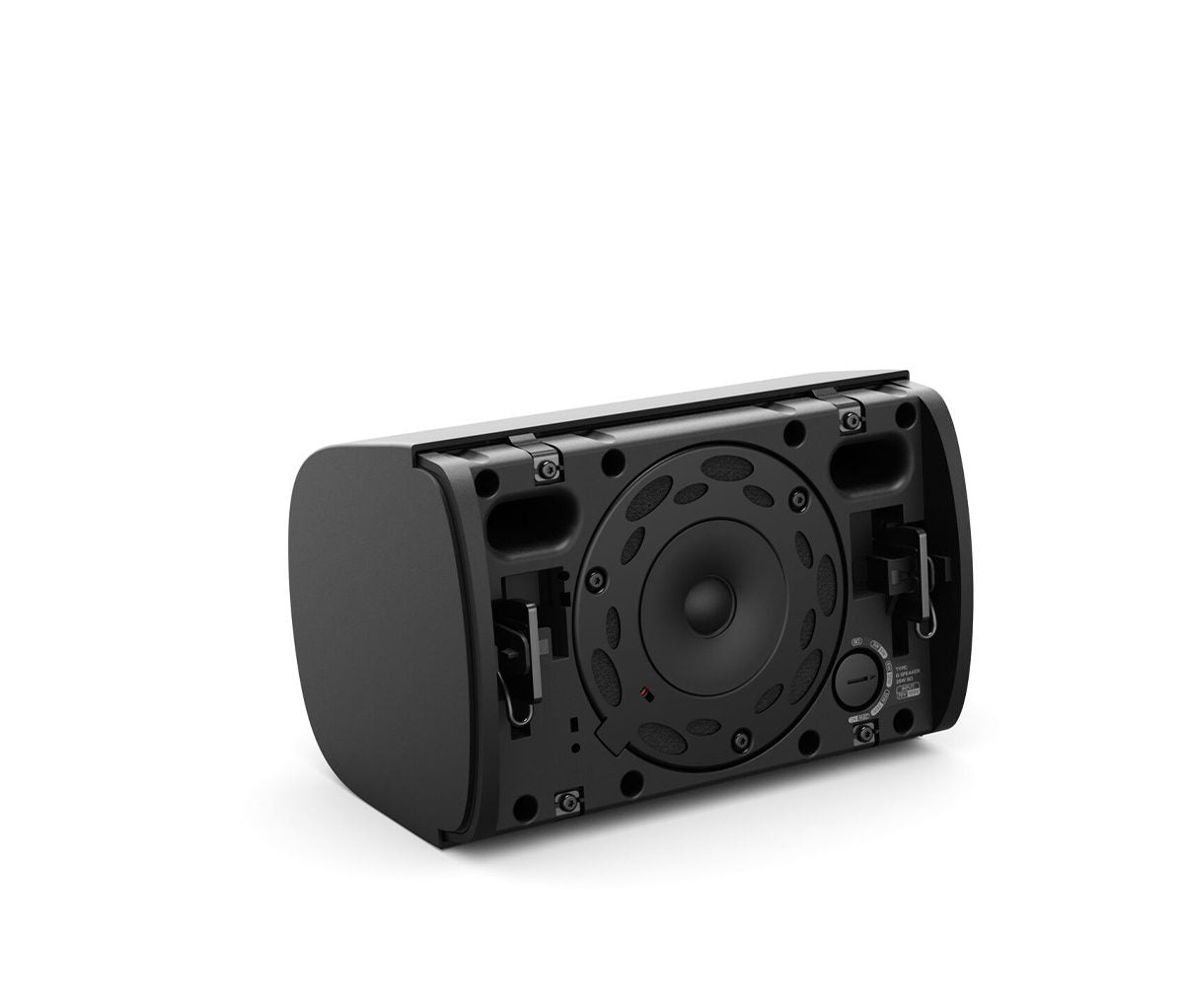

With coaxial two-way drivers, the 30-watt Bose Professional DesignMax DM3SE loudspeaker offers clear, intelligible highs and surprising low end for their size — along with premium aesthetics that complement any commercial sound installation. The DM3SE features a two-way 3.5-inch woofer and 0.75-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 75 Hz – 20 kHz. The DM3SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.FEATURES
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated optionsDeliver clear highs and surprising low-end for their size with coaxial two-way drivers — no DSP or EQ required. For even better sound, combine with select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

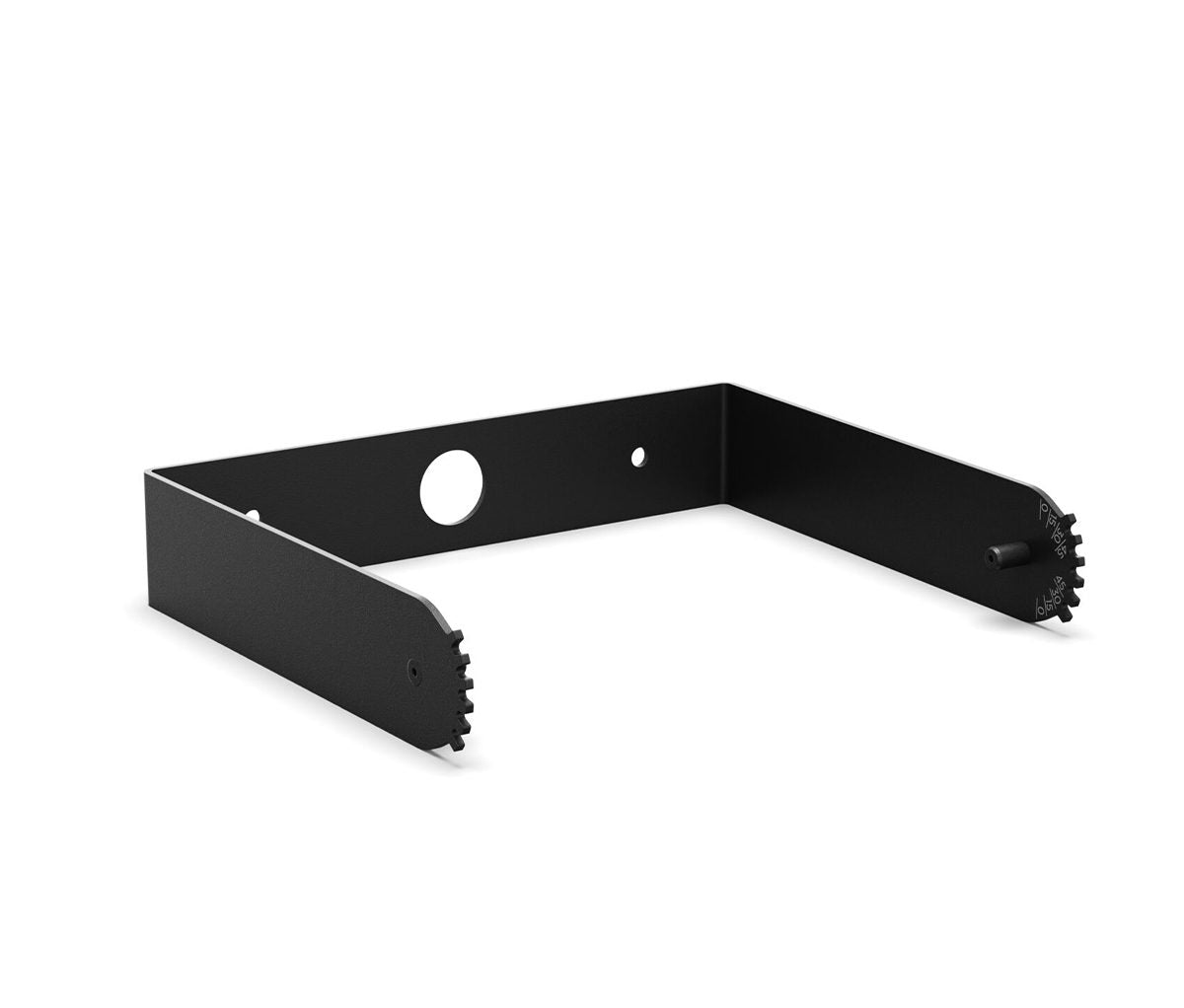

Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage

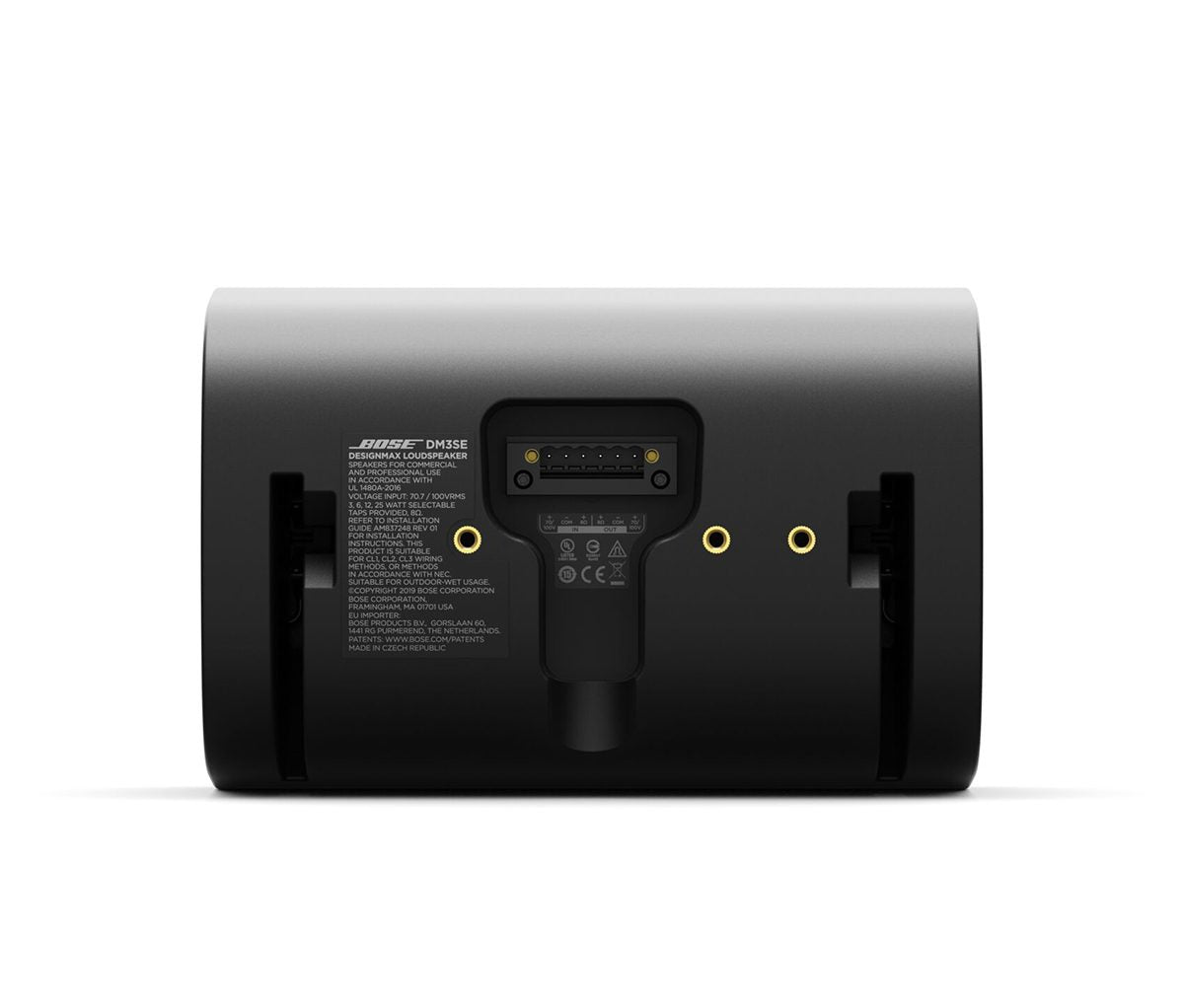

Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Install DM3SE outside — IP55 rating with standard aluminum grille for outdoor use
Applications
Designed for a wide range of applications, including:Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues
-
Category Specifications COMPLIANCE Safety Agency Ratings UL-1480A, S5591/ UL Listed, NFPA70, CE compliant PHYSICAL Colors Black (RAL 9005), white (similar to RAL 9003), paintable Enclosure Material Engineered plastics, highly UV fade-resistant Environmental Testing Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover Grille Material Perforated aluminum, powder-coated finish, tamper-resistant design, paintable Ingress Protection IP55 Logo Rotatable, removable Net Weight 5.6 lb (2.5 kg), loudspeaker with grille (single) Operating Temperature -25 °C to 70 °C (-13 °F to 158 °F) Product Dimensions (H×W×D) 9.1 in × 6.1 in × 6.1 in (232 mm × 154 mm × 155 mm), loudspeaker / 9.1 in × 6.1 in × 6.7 in (232 mm × 154 mm × 171 mm), loudspeaker with bracket Shipping Weight 16.0 lb (7.2 kg), pair PERFORMANCE Frequency Range (-10 dB) 75 Hz – 20,000 Hz Coverage, Horizontal 140° conical Maximum SPL at 1 m 101 dB Nominal Impedance 8 Ω (transformer bypass) Power Handling, Continuous 30 W Power Handling, Peak 120 W Recommended Signal Processing Not required, Bose Professional EQ voicing and SmartBass processing available Sensitivity (SPL/1 W at 1 m) 101 dB Transformer Taps, 100V 6, 12, 25 W, bypass Transformer Taps, 70V 3 W, 6 W, 12 W, 25 W, bypass Coverage, Vertical 140° conical TRANSDUCERS Crossover Frequency 1.7 kHz, passive 2-way crossover Driver Protection Recommended high-pass protection 80 Hz with recommended 24 dB/octave filter High-Frequency Transducer Quantity and Size 1 × 0.75 in (20 mm) neodymium dome tweeter, coaxially mounted, weather-treated Low-Frequency Transducer Quantity and Size 1 × 3.25 in (83 mm) woofer, weather-treated - 829712-0110 : Datasheet
