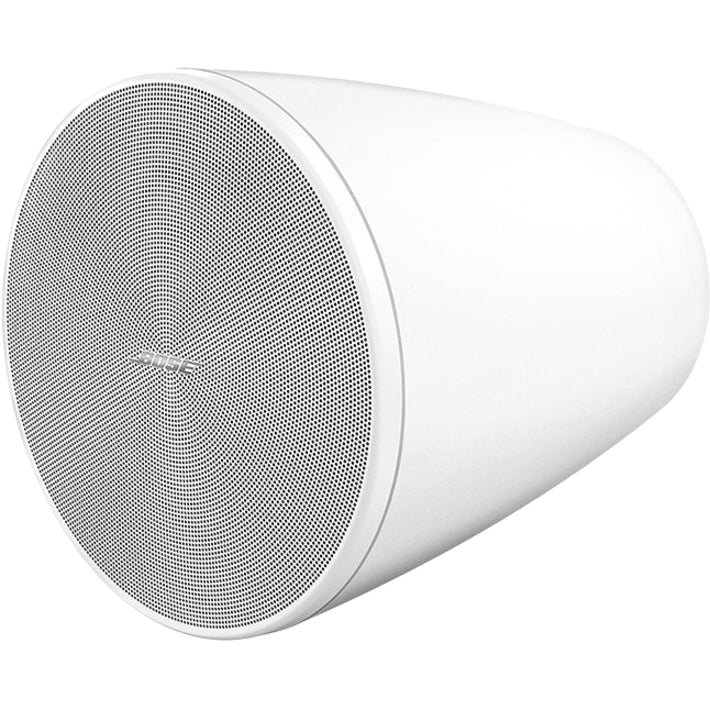

BOSE DesignMax DM5P Loudspeakers - White
This product is EOL Please check the newest model ; 841166-0120, 841166-0220
With a coaxial two-way design, the 60-watt Bose Professional DesignMax DM5P loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 5.25-inch woofer and 1-inch tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5P is a pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.
FEATURES
Complete any commercial sound installation with 15 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options
Choose from three DM5 models — the in-ceiling DM5C, the surface-mounted, outdoor-rated DM5SE, and the sleek DM5P pendant loudspeaker
Deliver rich lows and clear, intelligible highs with a coaxial two-way design — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Provide an open, attractive aesthetic with pendant loudspeakers featuring a recessed single-point suspension system that keeps hardware out of sight and can be used to hold and hide a service loop for easy access
| Category | Specification |
|---|---|
| COMPLIANCE | |
| Safety Agency Ratings | UL-1480A, S5591/UL Listed, NFPA70 & NFPA90-A, CE compliant, UL 2239 for suspension cable |
| PHYSICAL | |
| Colors | Black (similar to RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered plastics |
| Environmental Testing | Indoor only |
| Grille Material | Perforated steel, powder-coated finish |
| Logo | Rotatable, removable |
| Mounting/Rigging Provisions | 1 suspension attachment point, 1 safety cable attachment point |
| Net Weight | 9.1 lb (4.1 kg), single |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Product Dimensions (H×W×D) | 10.2 in × 11.8 in (259 mm × 300 mm), loudspeaker diameter × depth / 15.0 ft × 0.1 in (4.6 m × 2 mm), suspension cable length × diameter |
| Shipping Weight | 24.3 lb (11.0 kg), pair |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 65 Hz – 20,000 Hz |
| Coverage, Horizontal | 120° conical |
| Maximum SPL at 1 m | 105 dB |
| Nominal Impedance | 8 Ω (transformer bypass) |
| Power Handling, Continuous | 50 W |
| Power Handling, Peak | 200 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) | 87 dB |
| Transformer Taps, 100V | 6, 12, 25, 50 W, bypass |
| Transformer Taps, 70V | 3 W, 6 W, 12 W, 25 W, 50 W, bypass |
| Coverage, Vertical | 120° conical |
| TRANSDUCERS | |
| Crossover Frequency | 1.8 kHz, passive 2-way crossover |
| Driver Protection | Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter |
| High-Frequency Transducer Quantity and Size | 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted |
| Low-Frequency Transducer Quantity and Size | 1 × 5.25 in (133 mm) woofer |
