This product is EOL Please check the newest model ; 829705-0220, 829705-0120

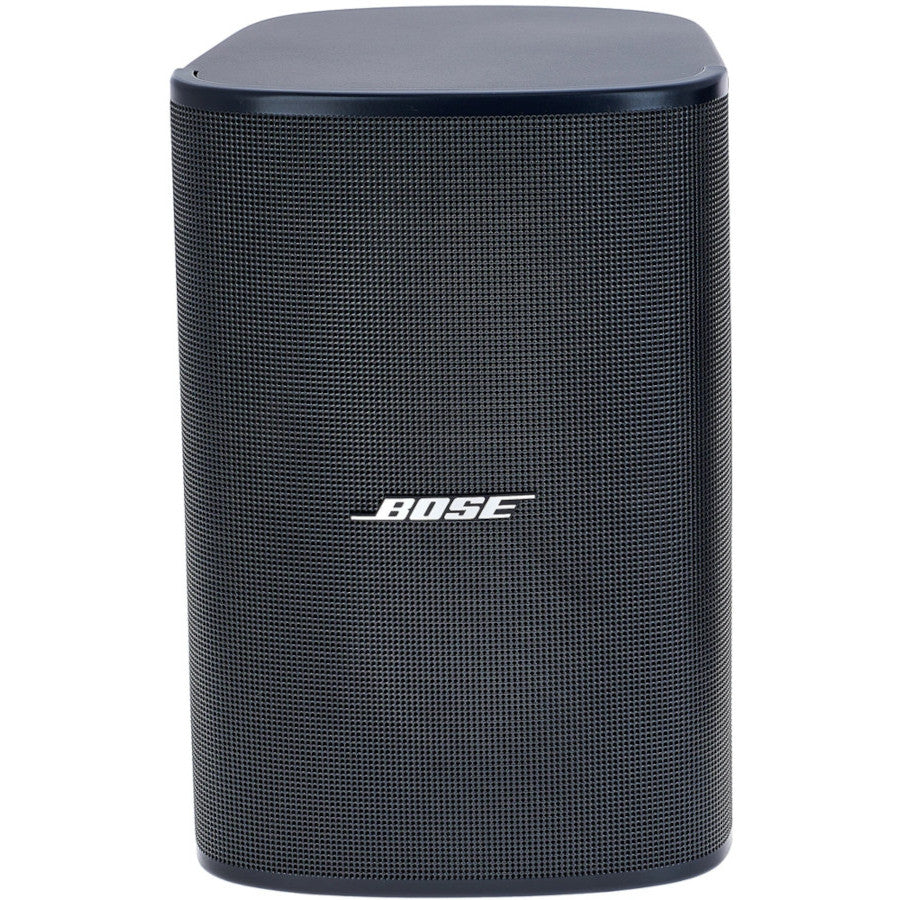

With coaxial two-way drivers, the 60-watt Bose Professional DesignMax DM5SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM5SE features a two-way 5.25-inch woofer and 1-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 65 Hz – 20 kHz. The DM5SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation
FEATURES
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter

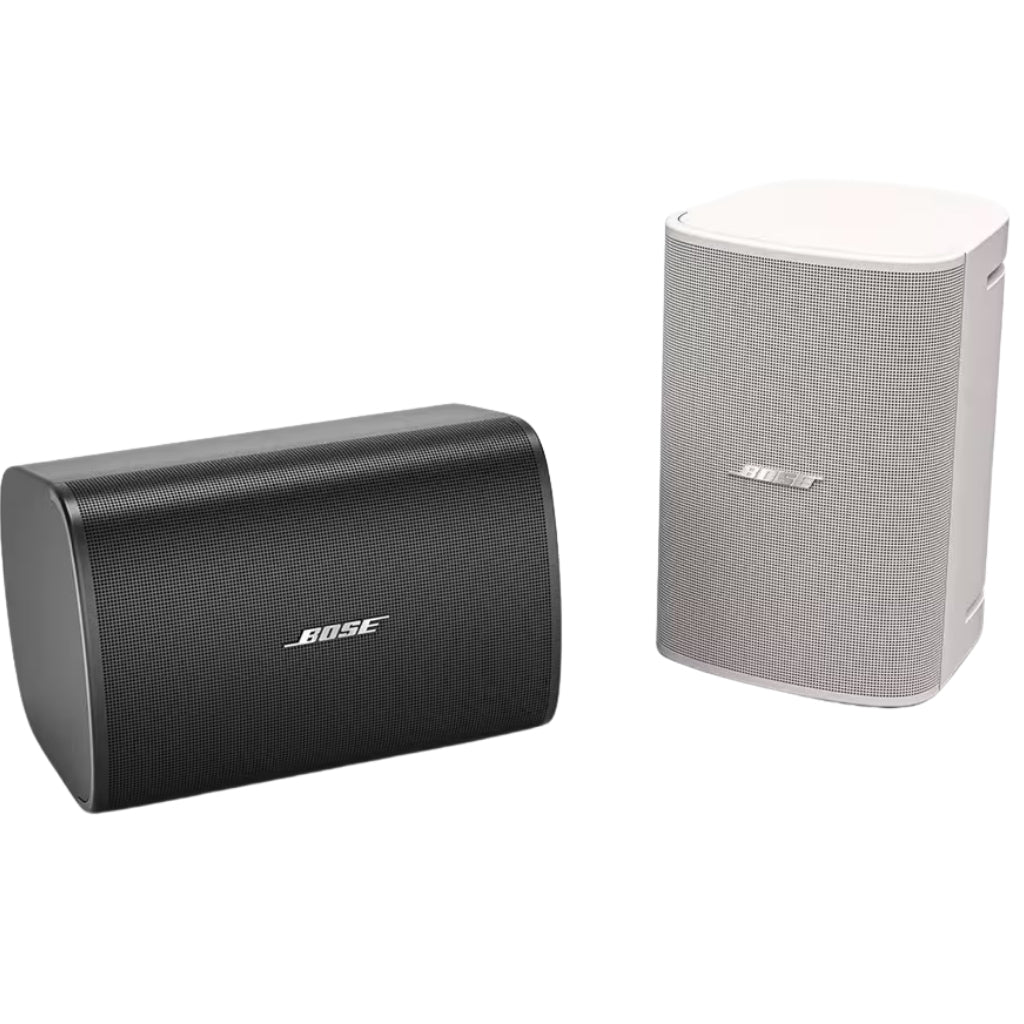

Blend with any room design with elegant form factor, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Install DM5SE outside — IP55 rating with standard aluminum grille for outdoor use
Applications
Designed for a wide range of applications, including:
Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues
| Category | Specification |
|---|---|
| COMPLIANCE | |
| Safety Agency Ratings | UL-1480A, S5591/UL listed, NFPA701, CE compliant |
| PHYSICAL | |

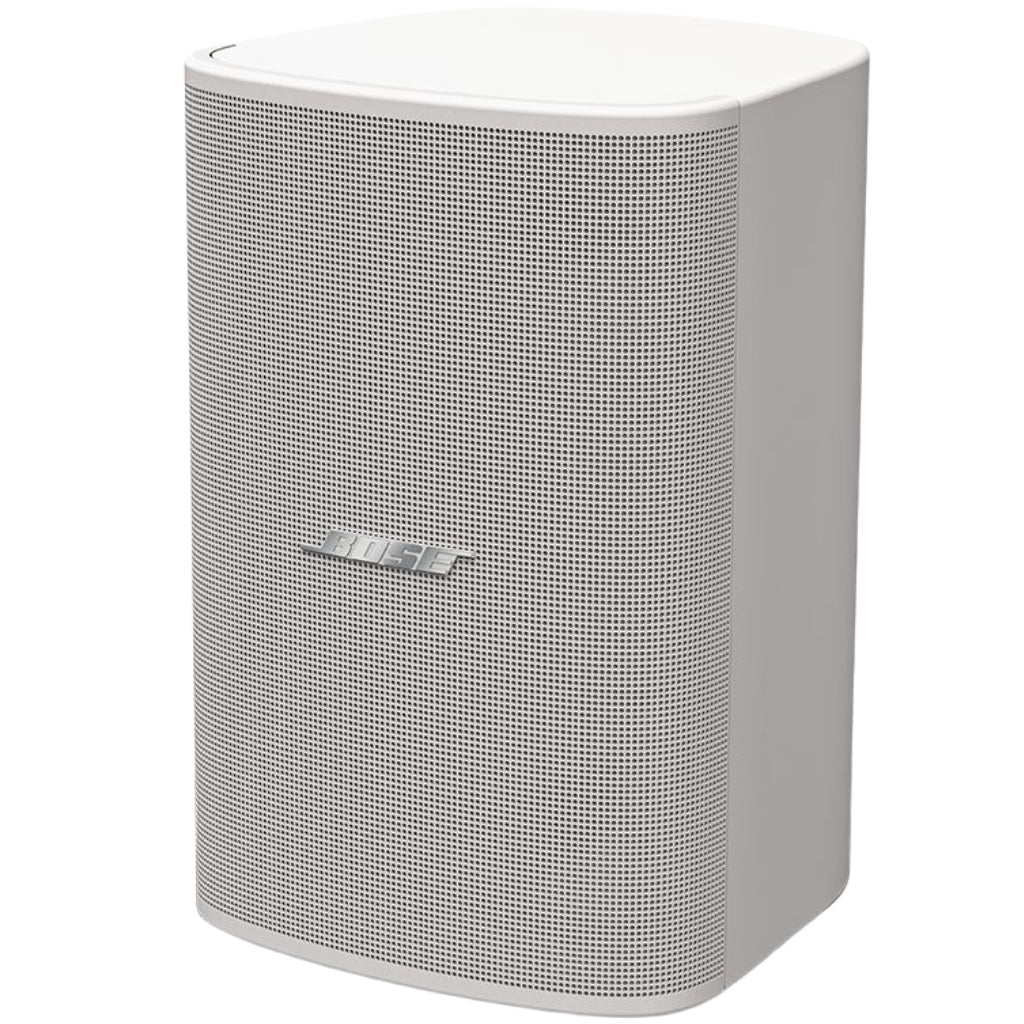

| Colors | Black (RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered plastics, highly UV fade-resistant |
| Environmental Testing | Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather-resistant input cover |
| Grille Material | Perforated aluminum, powder-coated finish, tamper-resistant design, paintable |
| Ingress Protection | IP55 |
| Logo | Rotatable, removable |
| Net Weight | 9.7 lb (4.4 kg), loudspeaker with grille (single) |
| Operating Temperature | -25 °C to 70 °C (-13 °F to 158 °F) |
| Product Dimensions (H×W×D) | 11.2 in × 7.5 in × 7.7 in (286 mm × 192 mm × 197 mm), loudspeaker / 11.2 in × 7.5 in × 8.4 in (286 mm × 192 mm × 215 mm), loudspeaker with bracket |
| Shipping Weight | 25.2 lb (11.4 kg), pair |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 65 Hz – 20,000 Hz |
| Coverage, Horizontal | 135° conical |
| Maximum SPL at 1 m | 107 dB |
| Nominal Impedance | 8 Ω (transformer bypass) |
| Power Handling, Continuous | 60 W |
| Power Handling, Peak | 240 W |
| Recommended Signal Processing | Not required, Bose Professional EQ voicing and SmartBass processing available |
| Sensitivity (SPL/1 W at 1 m) | 89 dB |
| Transformer Taps, 100V | 6, 12, 25, 50 W, bypass |
| Transformer Taps, 70V | 3 W, 6 W, 12 W, 25 W, 50 W, bypass |
| Coverage, Vertical | 135° conical |
| TRANSDUCERS | |
| Crossover Frequency | 1.8 kHz, passive 2-way crossover |
| Driver Protection | Recommended high-pass protection 65 Hz with minimum 24 dB/octave filter |
| High-Frequency Transducer Quantity and Size | 1 × 1 in (25 mm) neodymium dome tweeter, coaxially mounted |
| Low-Frequency Transducer Quantity and Size | 1 × 5.25 in (133 mm) woofer |
