BOSE DesignMax DM6C 125W Loudspeakers (1 pair)
SKU: 829679-0120
£565.34 (Excl. VAT)
- Description
- Specifications
- Downloads
-

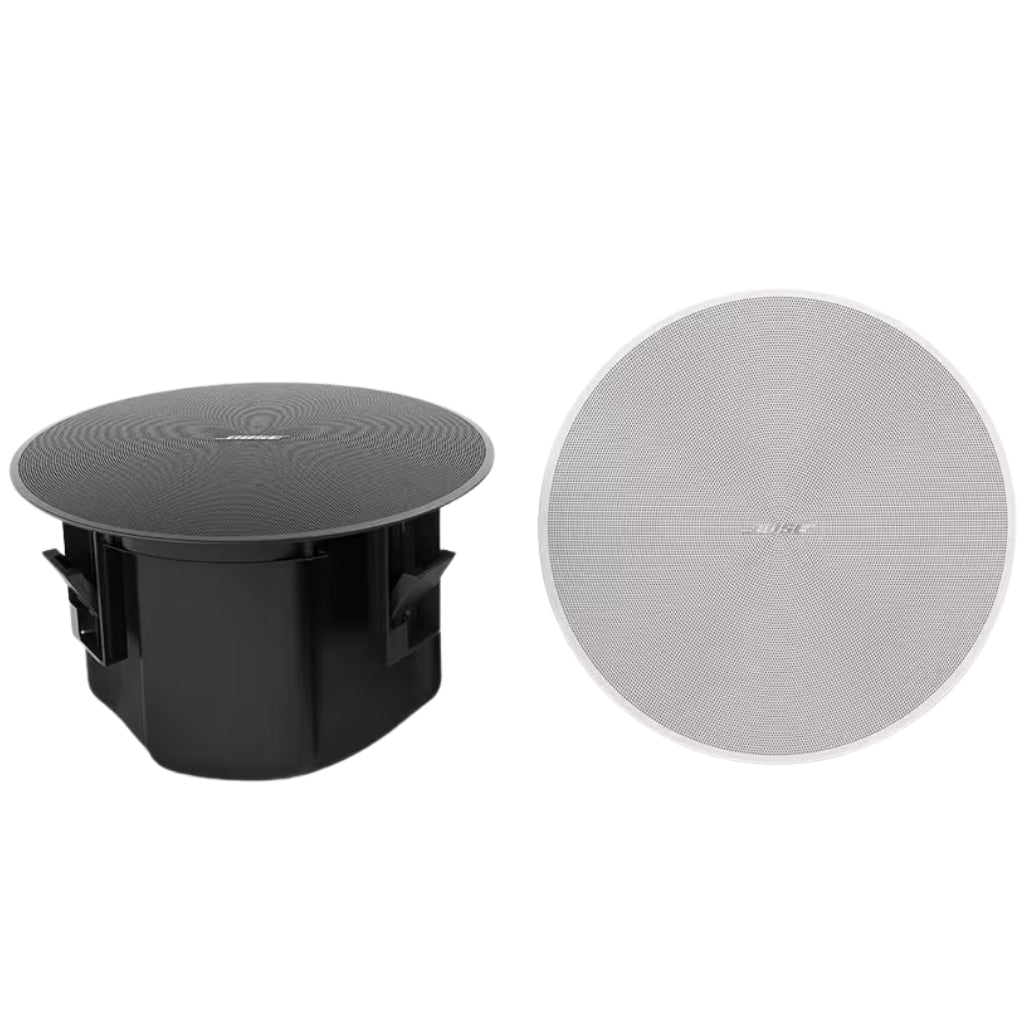

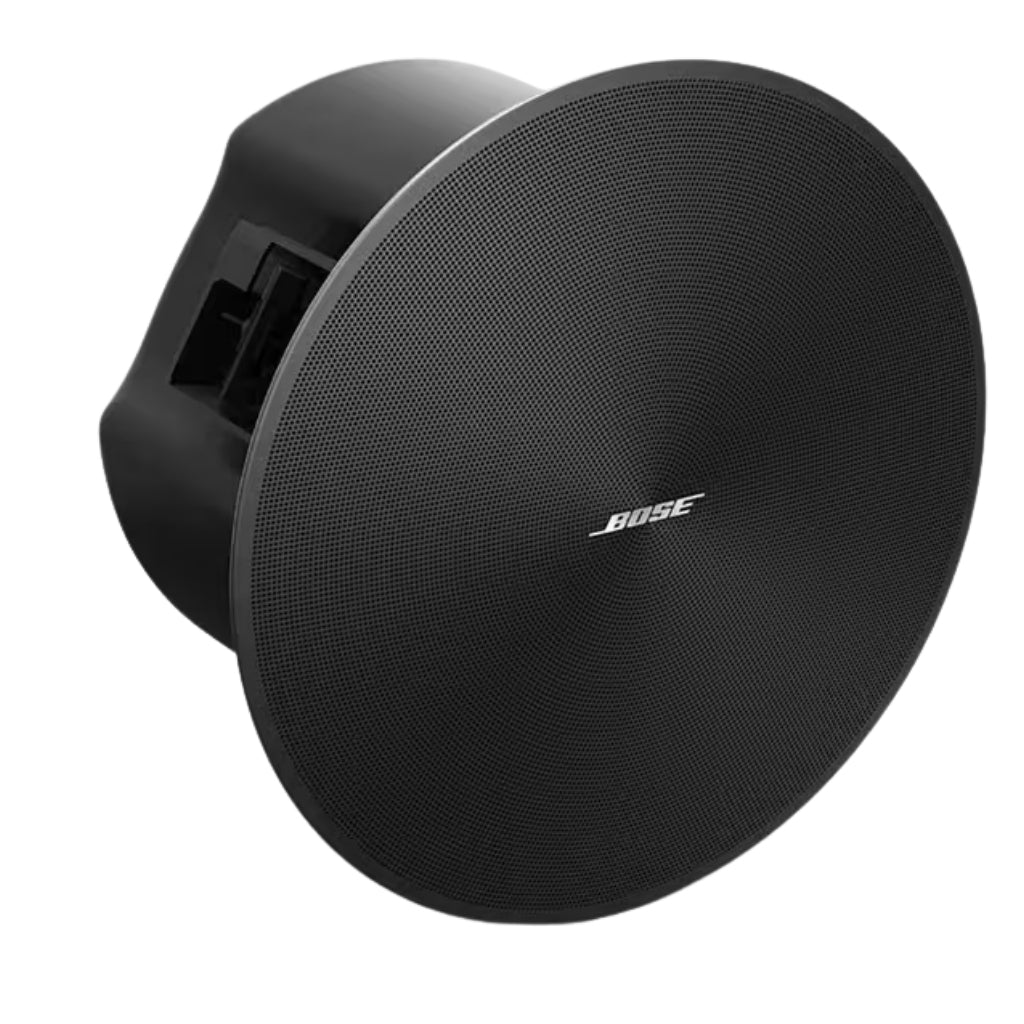

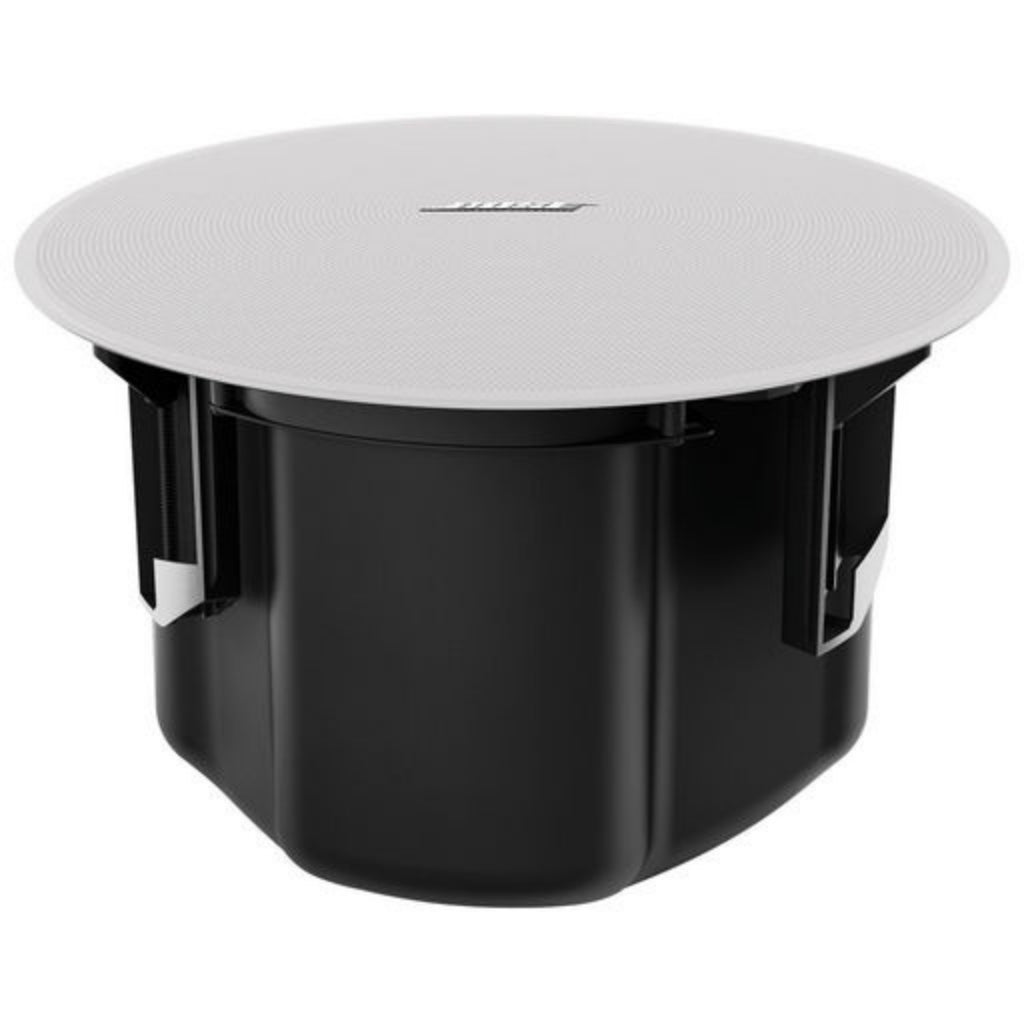

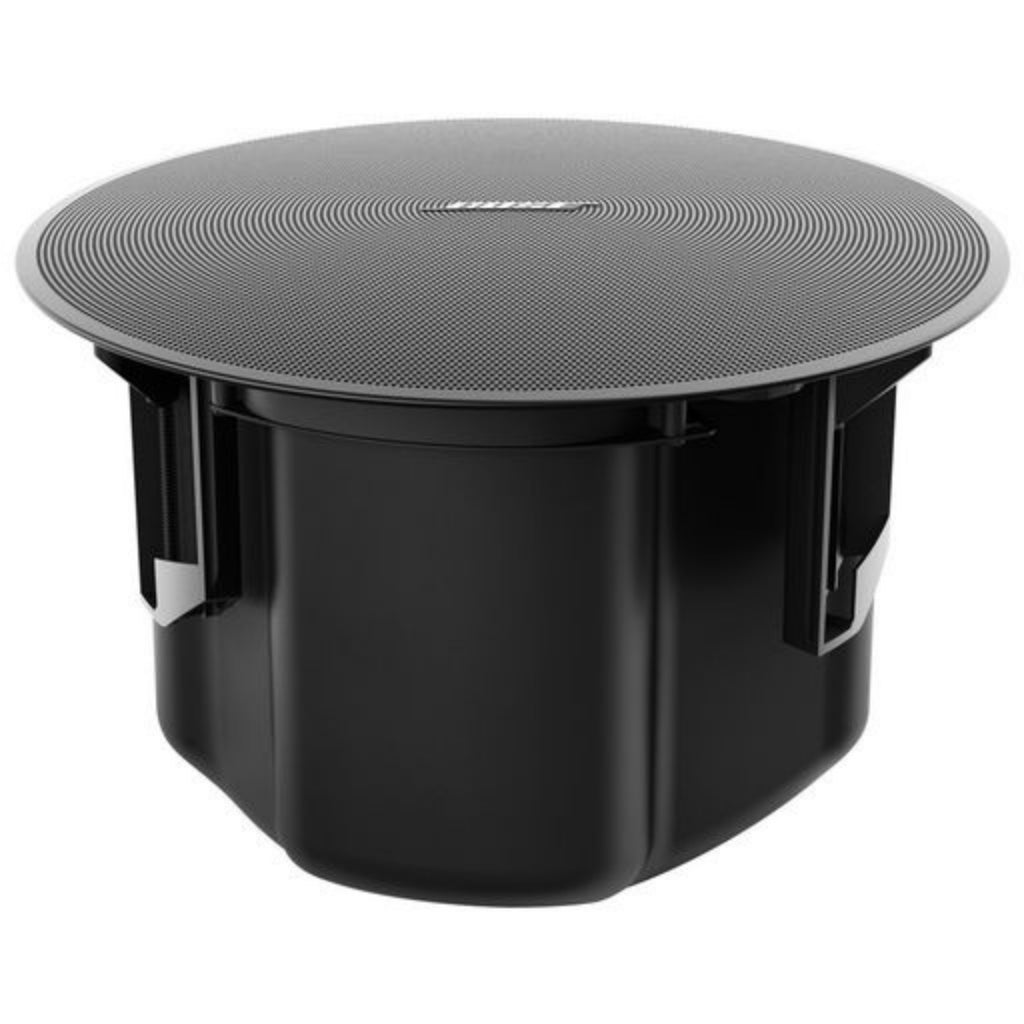

Bose DesignMax DM6C In-Ceiling Loudspeakers – 6.5" Coaxial, 125W RMS, Premium Commercial Audio
With coaxial two-way drivers, the 125-watt Bose Professional DesignMax DM6C loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM6C features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz – 20 kHz. The in-ceiling DM6C is installed easily via QuickHold mounting arms.
FEATURES
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter

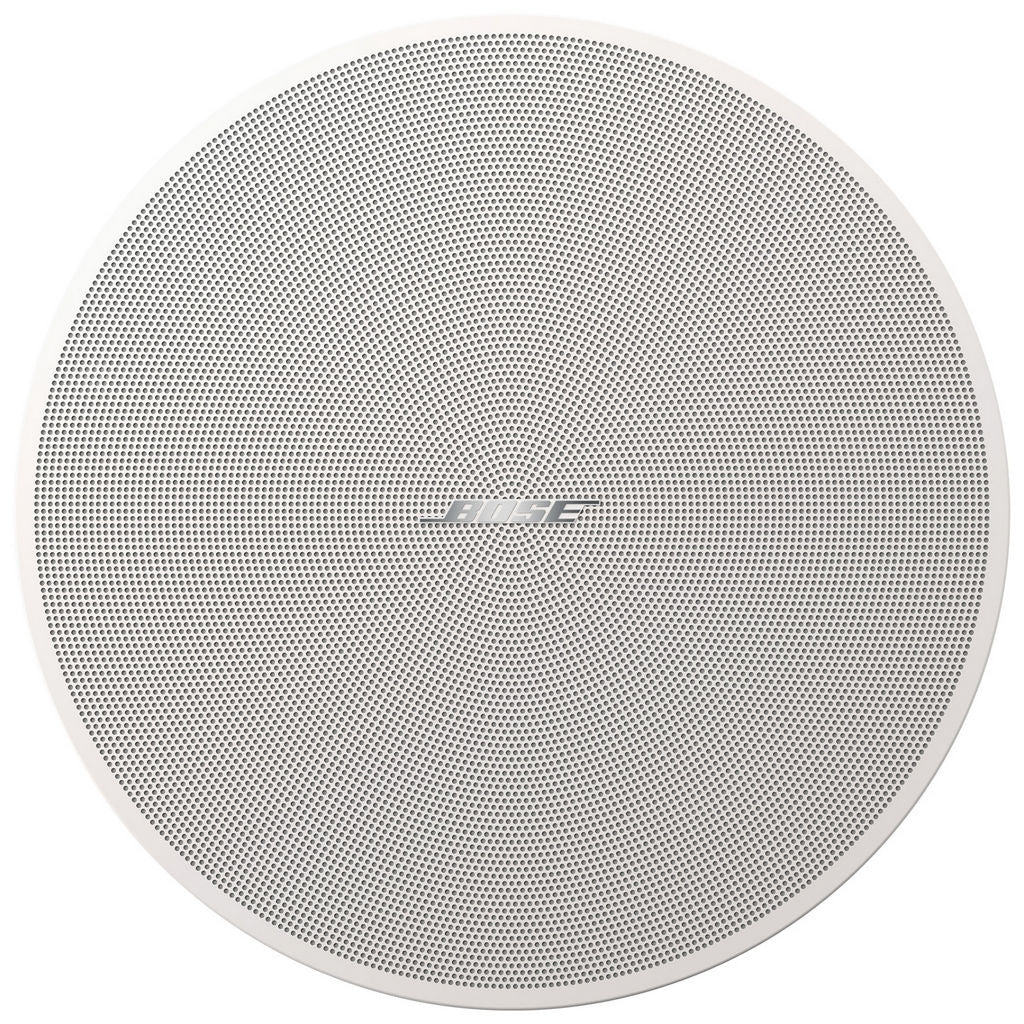

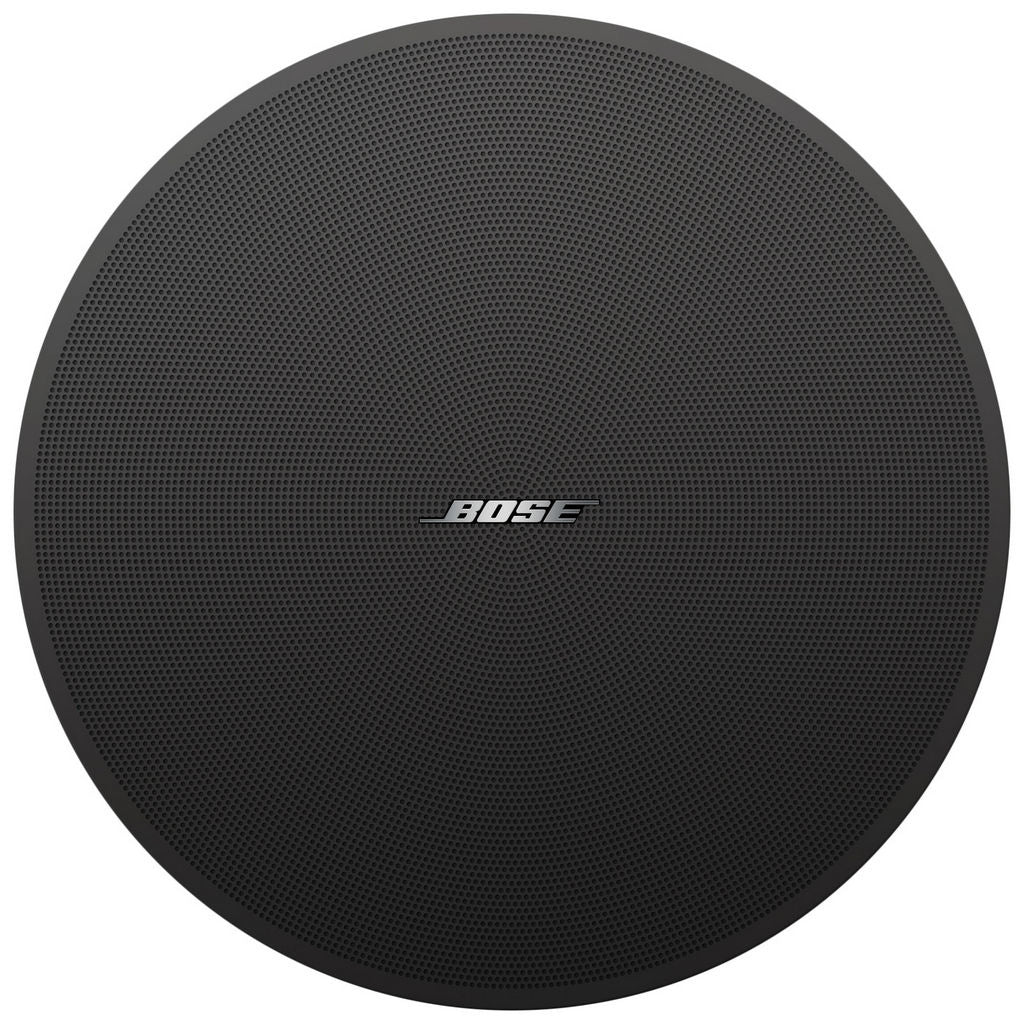

Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Applications
Designed for a wide range of applications, including:
Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues -
Category Attribute Value Compliance Safety Ratings UL 1480A, UL 2043, NFPA 70/90A, CE Physical Color Options Black, White, Paintable Physical Material Plastic front & steel backcan Physical Usage Indoor only Physical Grille Type Steel, magnetic, paintable Physical Cutout Size 292 mm (11.5 in) Physical Logo Feature Rotatable, removable Physical Mounting Method QuickHold arms + safety points Physical Temp Range 0°C to 50°C Physical Product Size 356×239 mm (speaker), 287×223 mm (backcan) Physical Product Weight 6.5 kg Physical Shipping Weight 17.7 kg (pair) Performance Frequency 59 Hz – 20,000 Hz Performance Horizontal x Vertical 120° x 120° conical Performance Max SPL 109 dB Performance Impedance 8 Ω Performance Cont/Peak Power 125 W / 500 W Performance Sensitivity 88 dB Performance 100V/70V Taps 100V: 5–80 W / 70V: 2.5–80 W, bypass Transducers Crossover 1.7 kHz, passive 2-way Transducers Protection Filter High-pass 60 Hz, 24 dB/oct Transducers Tweeter 1× 1.25" neodymium dome Transducers Woofer 1× 6.5" woofer -
Description Downloads DesignMax DM6C Loudspeakers (1 pair) DataSheet Downloads
