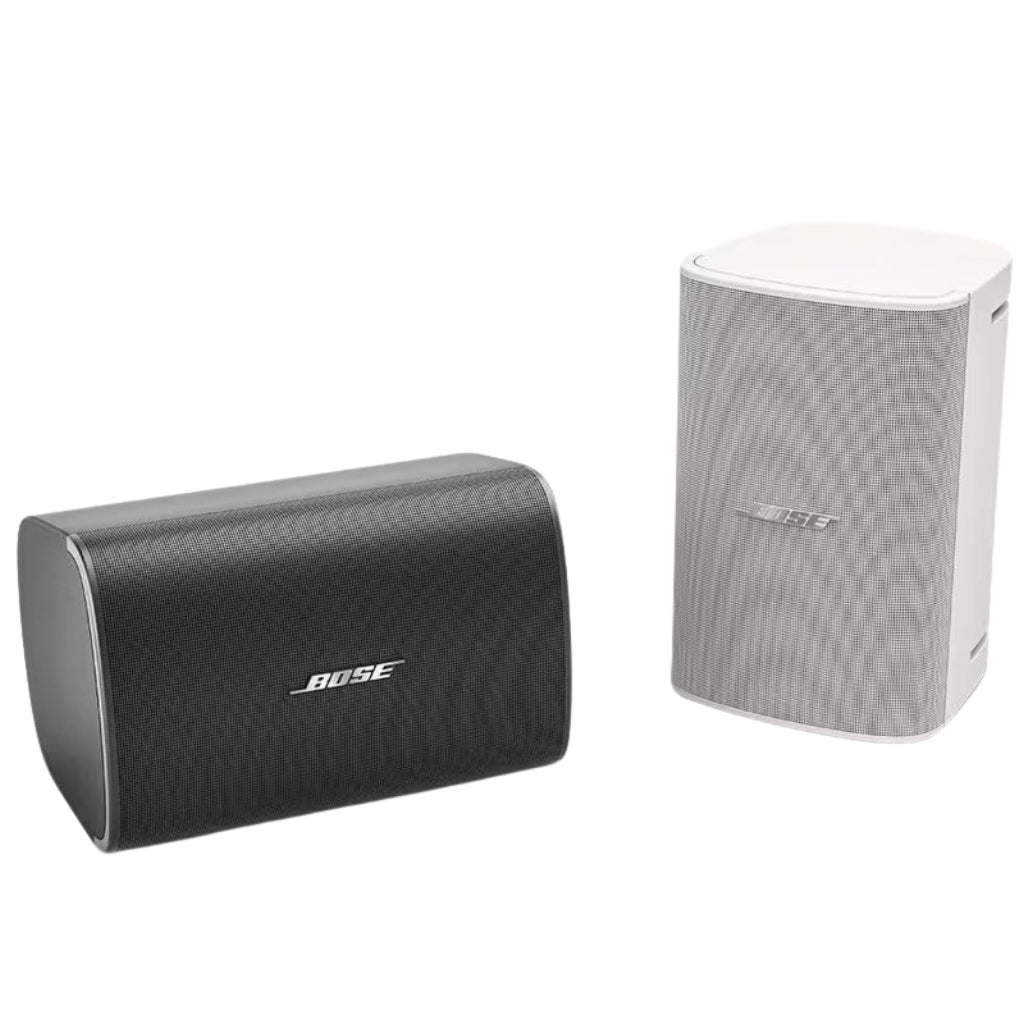

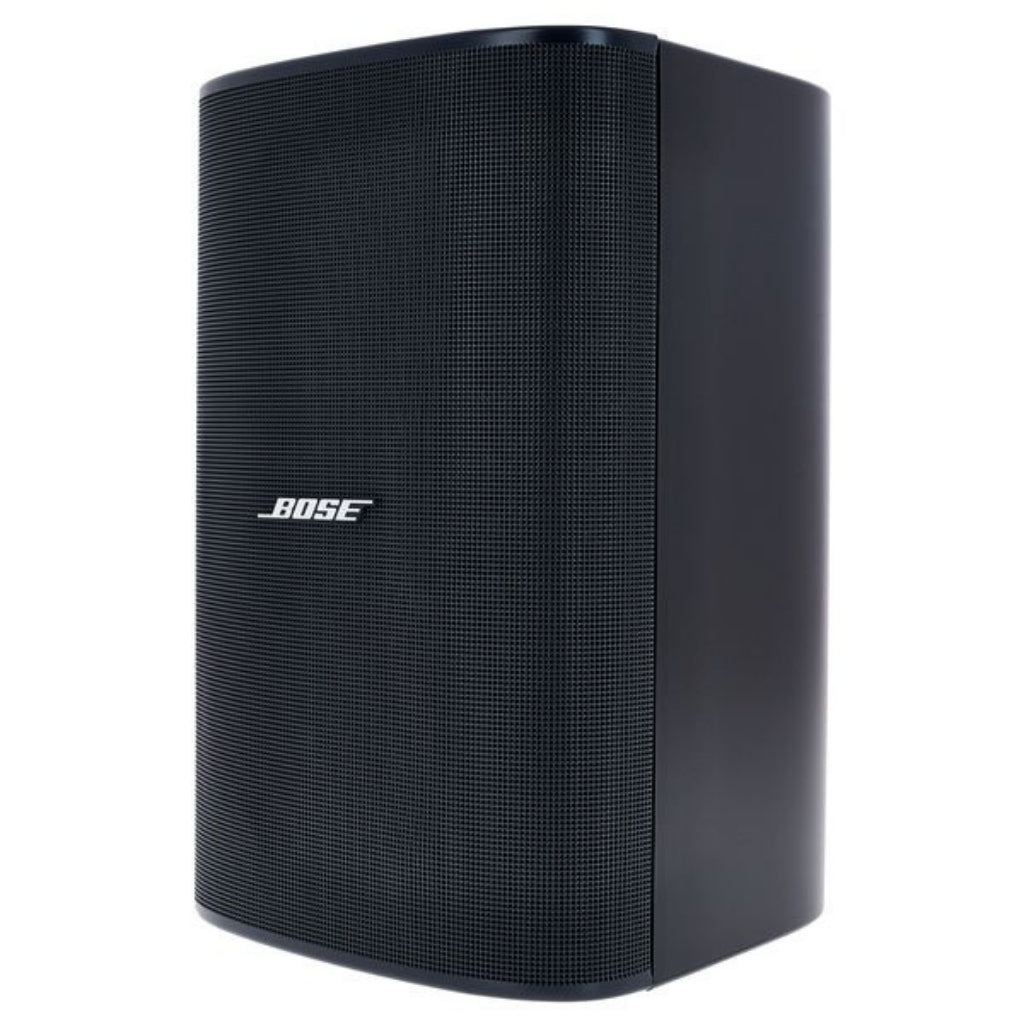

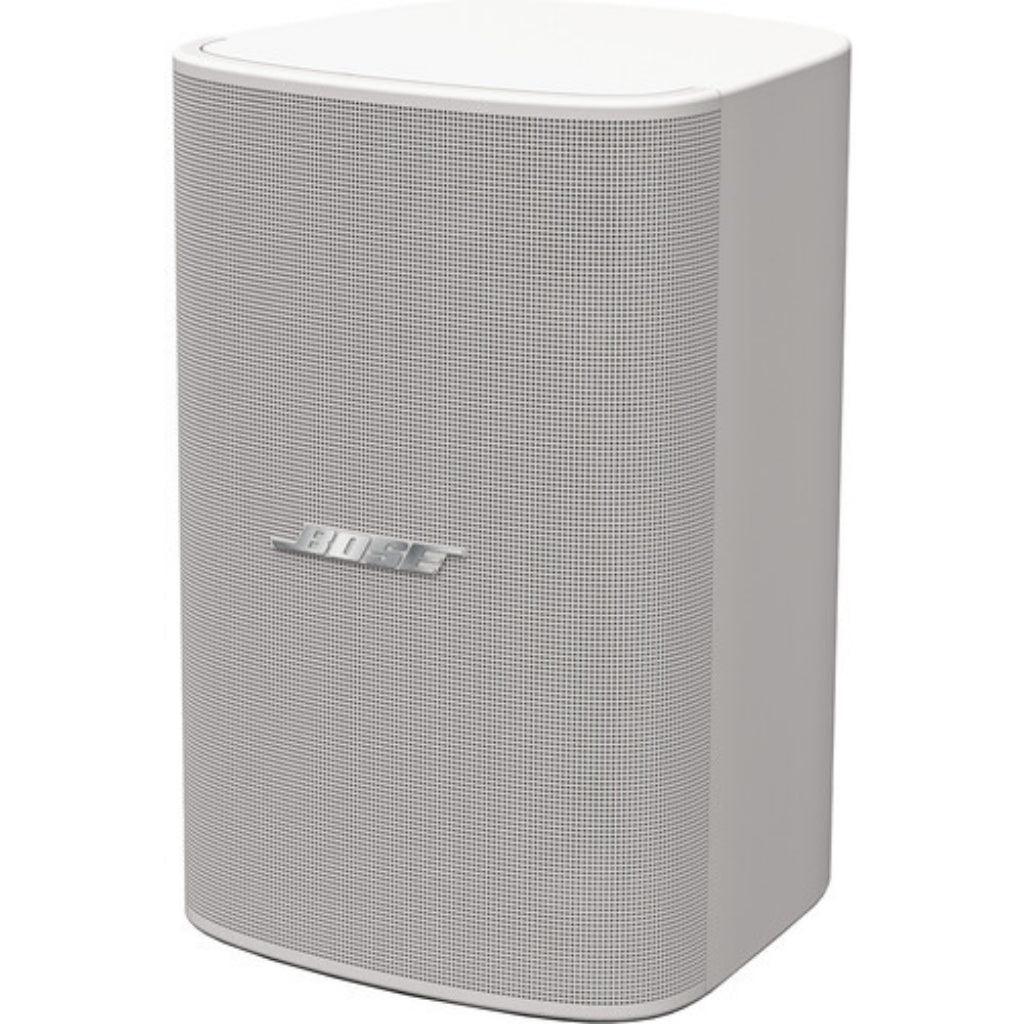

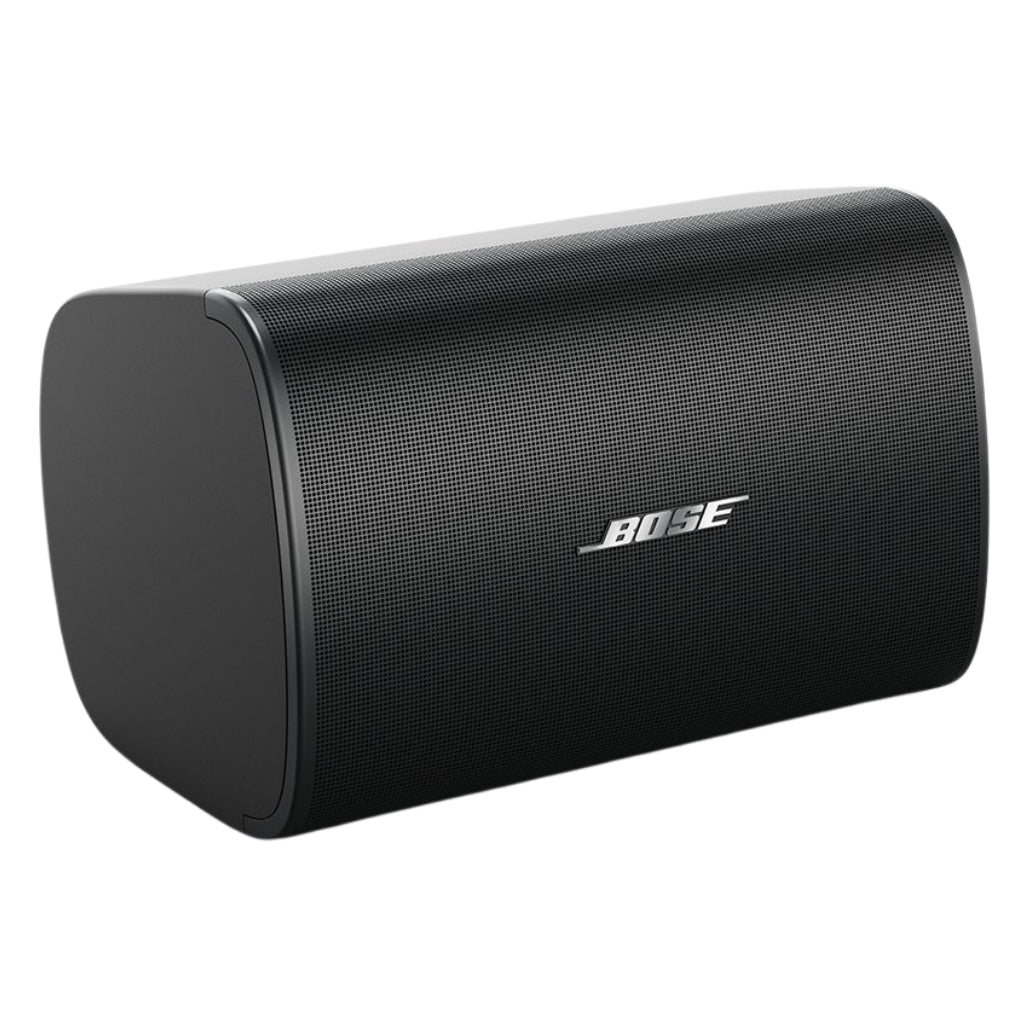

With coaxial two-way drivers, the 125-watt Bose Professional DesignMax DM6SE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The DM6SE features a 6.5-inch woofer and a 1.25-inch coaxial tweeter mounted within the Dispersion Alignment system, delivering a frequency range of 59 Hz – 20 kHz. The DM6SE is surface-mounted, IP55 outdoor-rated, and locks onto a hidden QuickHold U-bracket for fast, secure installation.
FEATURES
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Install DM6SE outside — IP55 rating with standard aluminum grille for outdoor use
Applications
Designed for a wide range of applications, including:
Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues
| Category | Attribute | Value |
|---|---|---|
| COMPLIANCE | Safety Ratings | UL 1480A, NFPA 70, CE-compliant |
| PHYSICAL | Colors | Black (RAL 9005), White (RAL 9003), Paintable |
| Enclosure Material | UV-resistant engineered plastics | |
| Environmental | Outdoor, IP55, wet-location ready | |
| Grille | Perforated aluminum, tamper-resistant, powder-coated | |
| Ingress Protection | IP55 | |
| Logo | Rotatable, removable | |
| Operating Temp | -25 °C to 70 °C (-13 °F to 158 °F) | |
| Dimensions (H×W×D) | 13.4 × 8.7 × 9.0 in (340 × 222 × 229 mm) | |
| With Bracket (H×W×D) | 13.4 × 8.7 × 9.7 in (340 × 222 × 245 mm) | |
| Net Weight | 13.1 lb (5.9 kg) | |
| Shipping Weight | 32.5 lb (14.7 kg), pair | |
| PERFORMANCE | Frequency Range (-10 dB) | 59 Hz – 20,000 Hz |
| Coverage (H × V) | 125° conical | |
| Max SPL @ 1 m | 111 dB | |
| Nominal Impedance | 8 Ω (bypass) | |
| Power Handling (Cont./Peak) | 125 W / 500 W | |
| Sensitivity (1W @ 1m) | 90 dB | |
| Signal Processing | Optional Bose EQ & SmartBass | |
| Transformer Taps (100V) | 5, 10, 20, 40, 80 W, bypass | |
| Transformer Taps (70V) | 2.5, 5, 10, 20, 40, 80 W, bypass | |
| TRANSDUCERS | Crossover | 1.7 kHz passive 2-way |
| Driver Protection | 60 Hz high-pass, 24 dB/oct | |
| HF Driver | 1.25" Neodymium tweeter, coaxial, weather-treated | |
| LF Driver | 6.5" Weather-treated woofer | |
| PRODUCT CODES | 829682-0110 | DM6SE PAIR BLACK |
| 829682-0210 | DM6SE PAIR WHITE | |
| 829682-0120 | DM6SE PAIR BLACK (NEW) | |
| 829682-0220 | DM6SE PAIR WHITE (NEW) | |
| INCLUDED ITEMS | (1) Powder-coated steel U-bracket |
| Description | Downloads |
|---|---|
| BOSE DesignMax DM6SE Loudspeakers (1 pair) DataSheet | Downloads |
| BOSE DesignMax DM6SE Loudspeakers (1 pair) Painting Guide | Downloads |
