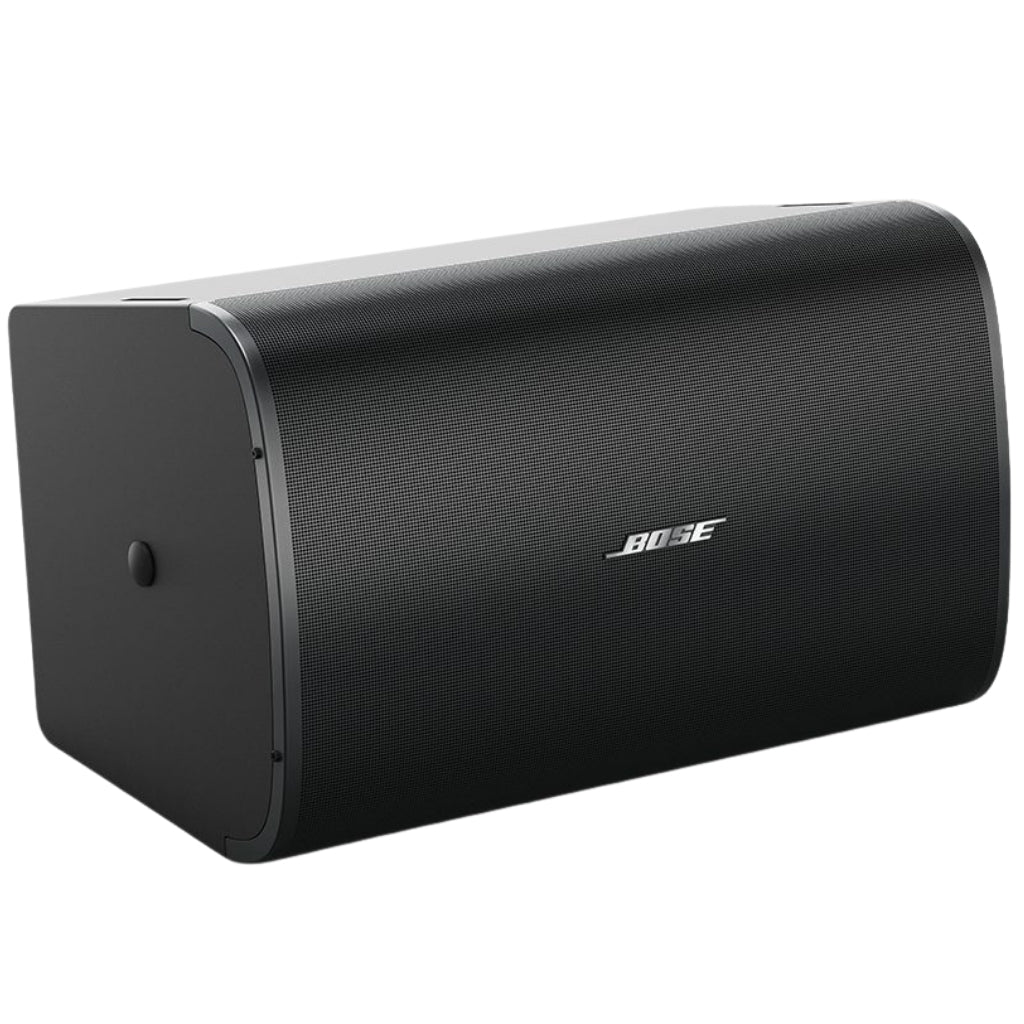

BOSE DesignMax DM8S Surface-Mounted Loudspeaker
SKU: 801332-0110
£495.60 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Bose DesignMax DM8S 150W Surface‑Mount Loudspeaker – 8″ Woofer & 1″ Compression Driver for High‑SPL Foreground Music
With coaxial two-way drivers, the 150-watt DesignMax DM8S loudspeaker delivers powerful SPL suitable for foreground music — along with premium aesthetics that complement any commercial sound installation. The DM8s features a two-way, 8-inch woofer and a center firing coaxial 1-inch compression driver, delivering a 52 Hz – 20 kHz frequency range. The DM8S is surface-mounted and locks onto a hidden QuickHold U-bracket for fast, secure installation.
Key Features
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options.
Deliver rich lows and clear, intelligible highs with coaxial two-way drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos. Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage.
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenumrated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier.
Deliver high SPL for clear foreground music. -
Feature Description Frequency Response (–3 dB) 60 – 20,000 Hz Frequency Range (–10 dB) 52 – 20,000 Hz Nominal Coverage Angle (1 – 4 kHz) 130° conical Nominal Coverage Angle (1 – 10 kHz) 115° conical Power Handling (Continuous) 150 W / 125 W Power Handling (Peak) 600 W / 500 W Sensitivity 93 dB (SPL/1W @ 1m) Max SPL @ 1m 115 dB / Peak 121 dB Crossover 1.5 kHz passive 2-way EQ Not required, Bose EQ voicing & SmartBass available High-Pass Protection 48 Hz, 24 dB/octave filter Overload Protection Resistor-network with auto reset Transformer Taps 70V: 2.5–80 W, bypass / 100V: 5–80 W, bypass Low Frequency 1 × 8" woofer (203 mm) High Frequency 1 × 1" compression driver (25 mm) Nominal Impedance 8 Ω (bypass) Enclosure Material Engineered plastics, UV fade resistant Bracket Material Powder-coated steel Grille Magnetic perforated steel, paintable, tamper-resistant Logo Rotatable, removable Color Black: RAL 9005 / White: RAL 9003 / Paintable Environmental Indoor only Safety Agency UL-1480A, S5591, NFPA70, CE Operating Temp 0 °C to 50 °C (32 °F to 122 °F) Connectors Euroblock 6-pin, loop-through Mounting QuickHold with U-bracket, 0°/15°/30°/45° angles Dimensions (H×W×D) 395 × 249 × 255 mm (15.6 × 9.8 × 10.0 in) Dimensions w/ Bracket 395 × 249 × 272 mm (15.6 × 9.8 × 10.7 in) Net Weight 10.3 kg (22.8 lbs) Shipping Weight 13.2 kg (29.0 lbs) Included Accessories U-Bracket, powder-coated steel Optional Accessories Pan & Tilt Bracket Product Codes 801332-0110: DM8S Black
801332-0210: DM8S White -
Description Downloads BOSE DesignMax DM8S Surface-Mounted Loudspeaker Black | 801332-0110 DataSheet Downloads
