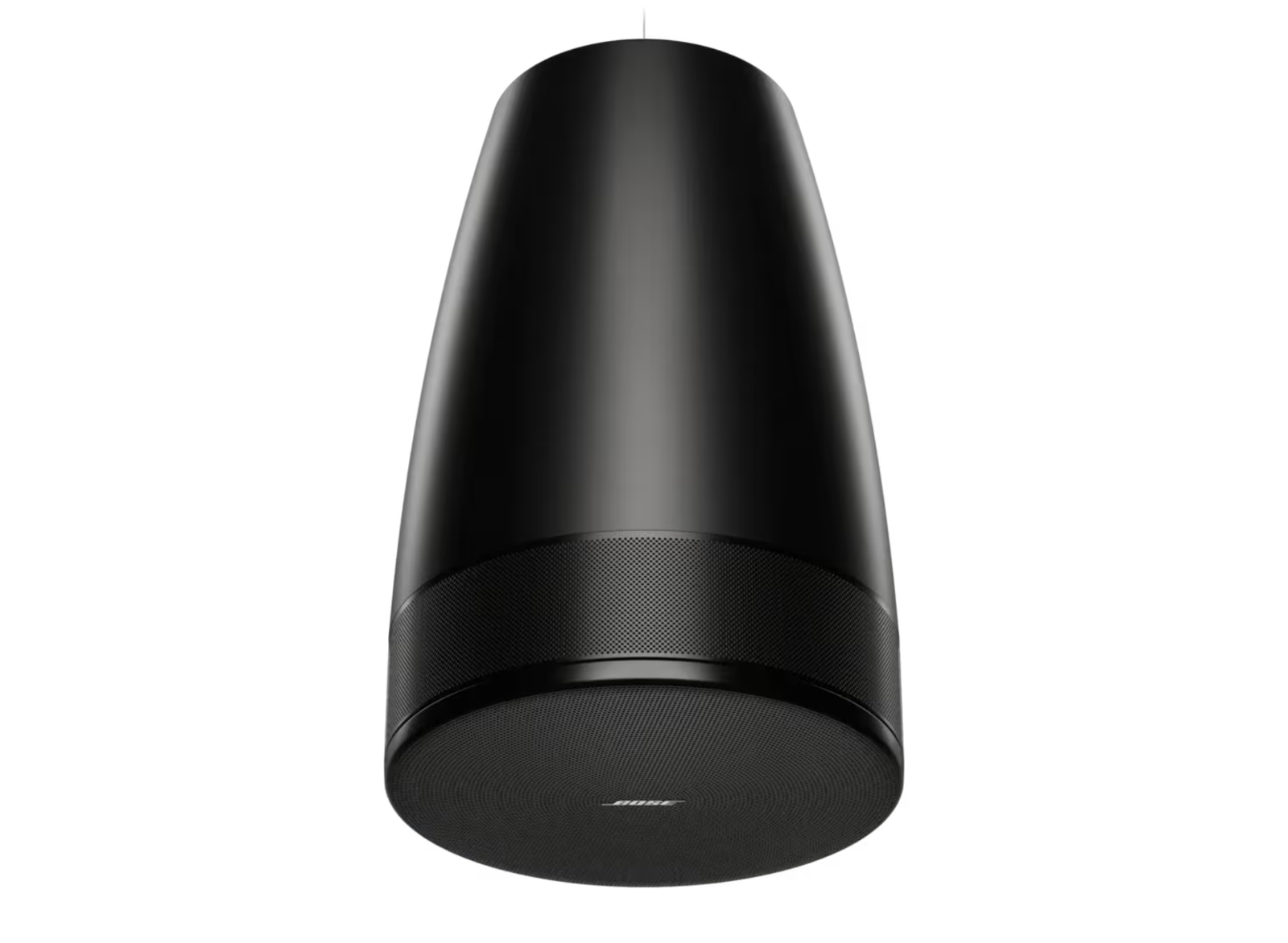

The DesignMax Luna pendant loudspeaker offers full-range performance from a sleek, modern design—making it easy to get great sound in open-ceiling spaces. The proprietary Ring Array™ configuration combines eight 2-inch mid-high drivers with an integrated 8-inch woofer, delivering clear, balanced sound down to 40 Hz. With 111 dB max SPL and consistent 140° coverage, Luna reduces the number of speakers needed while preserving clarity, aesthetics, and design flexibility. Single- or two-point suspension allows for fast installs and perfectly balanced hangs—even in challenging ceiling conditions—while concealed wiring keeps everything looking clean. Luna marks a giant leap forward in pendant loudspeakers, raising the bar for what’s sonically possible in retail stores, restaurants, fitness studios, and other design-conscious spaces.
FEATURES

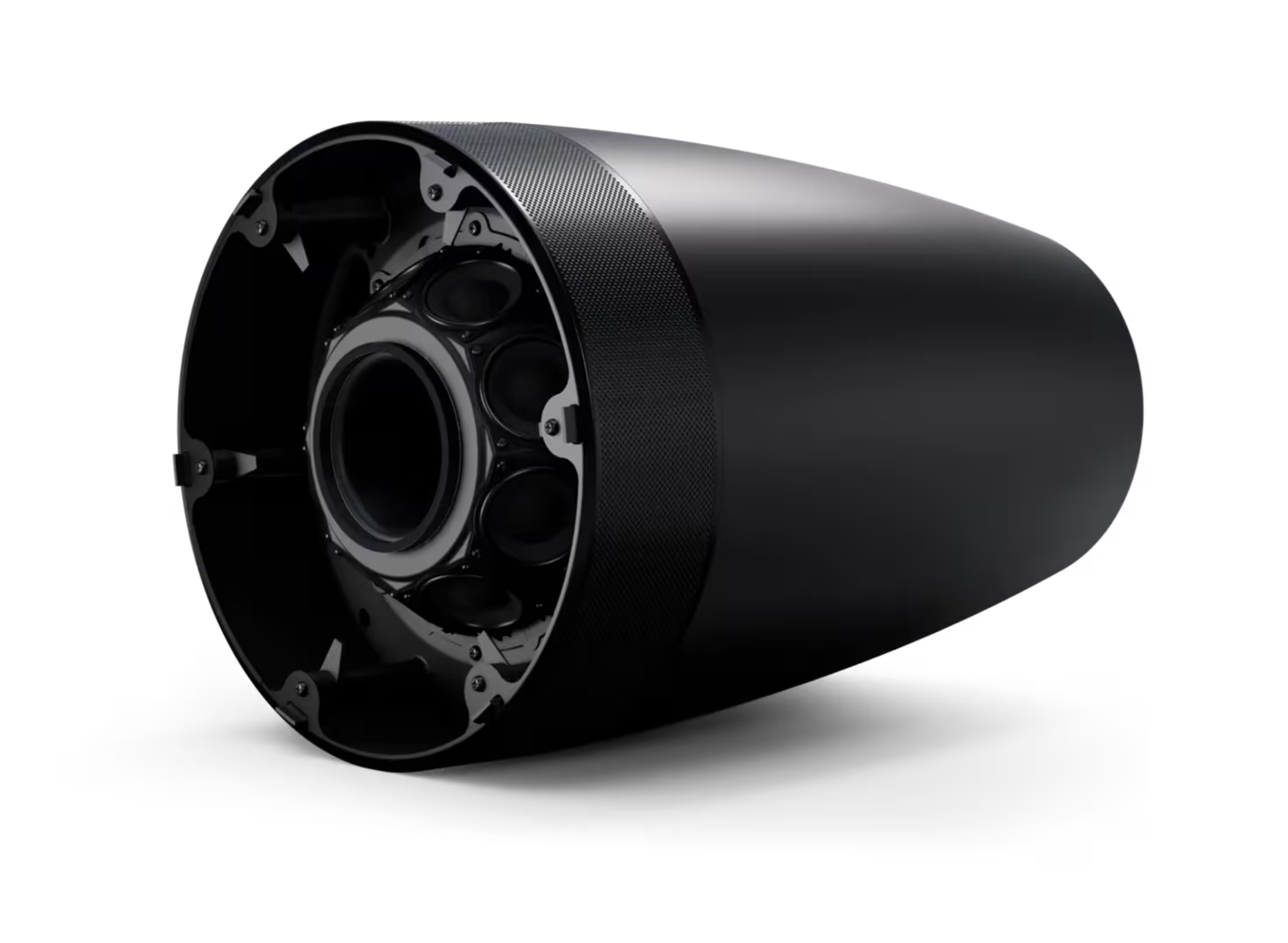

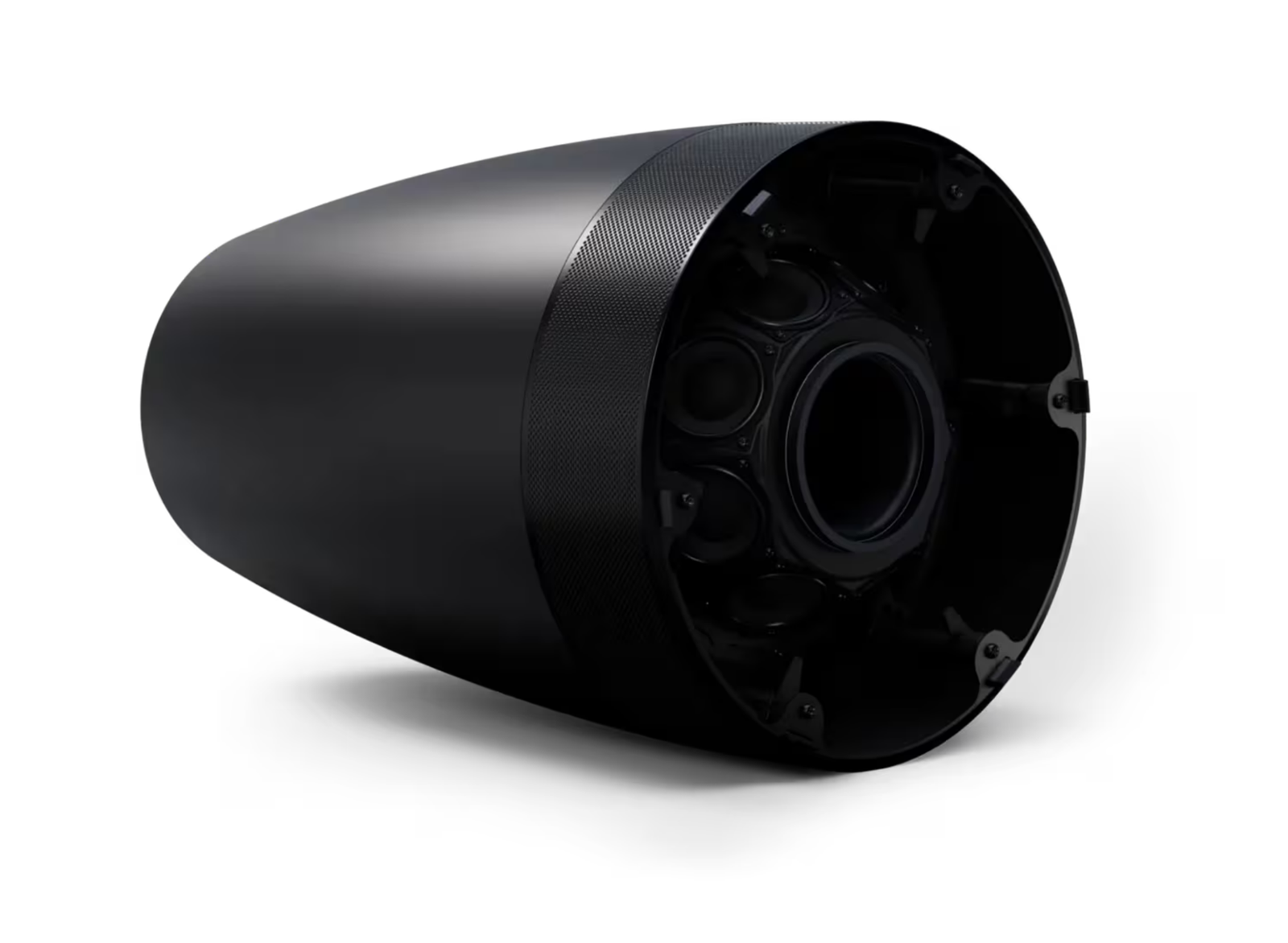

Proprietary Ring Array™ configuration delivers precise, balanced sound with no hot spots or dead zones
Integrated 8” woofer extends down to 40 Hz—no subs needed
Wide-throw 140° coverage reduces speaker count and installation costs

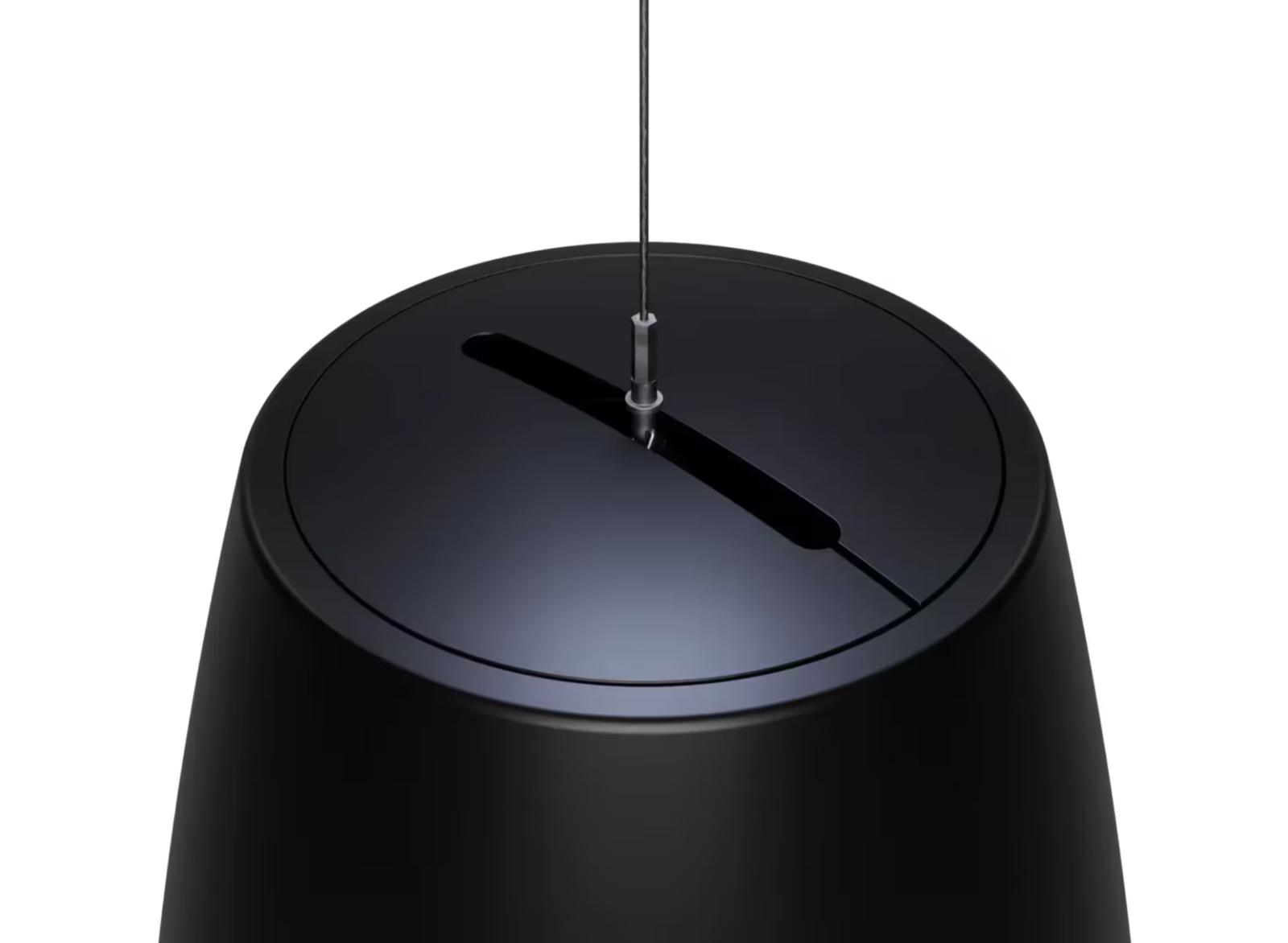

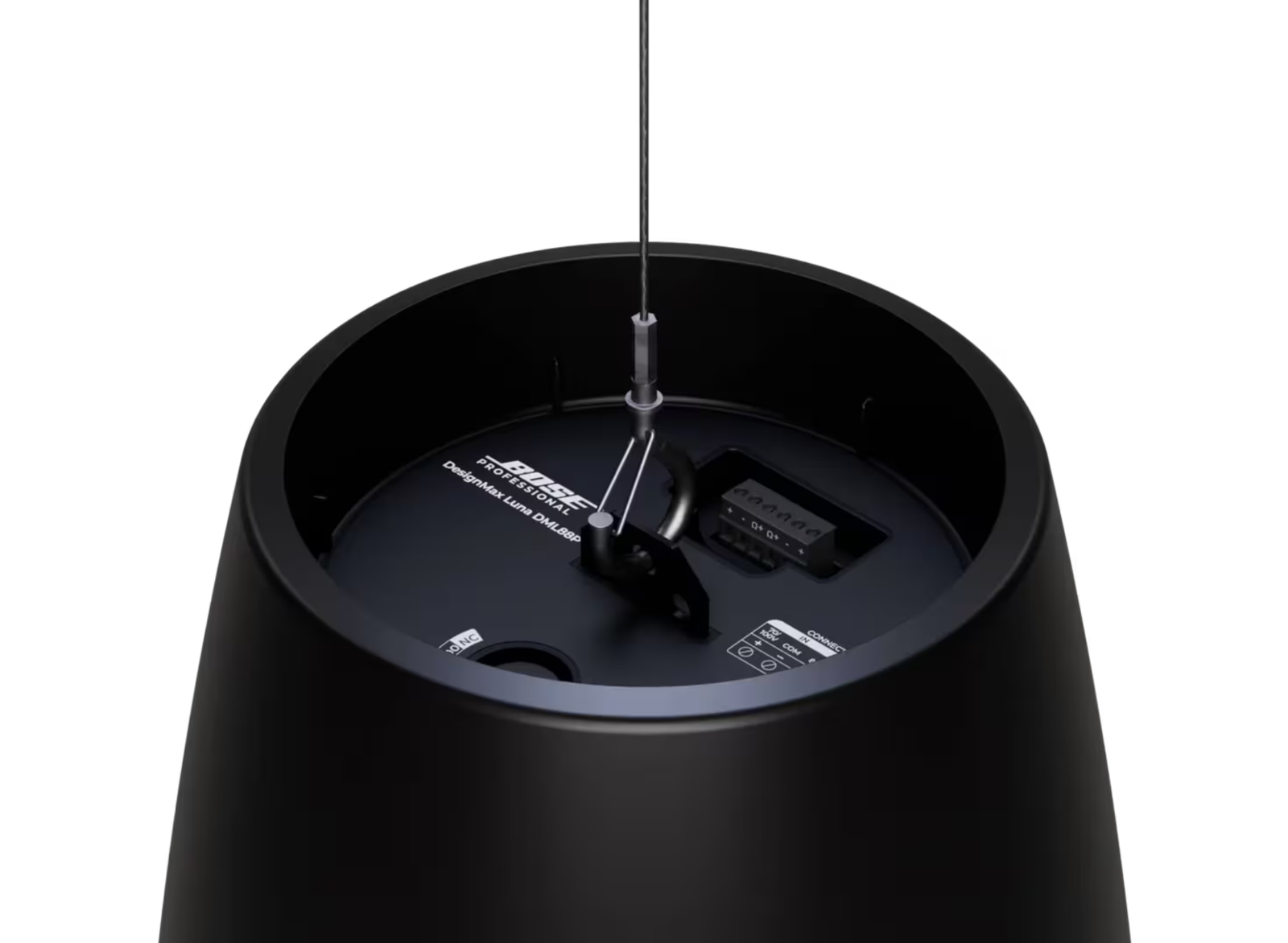

Flexible mounting lets you use a single cable—or two-point suspension—for fast installs and perfectly balanced hangs
Streamlined design with concealed wiring and premium finish options
Factory-optimized loudspeaker presets when combined with Bose Professional amplifiers and processors
Compatible accessories include DesignMax Pendant Threaded Rod Adapter and Conduit Adapter
Applications
Designed for a wide range of applications, including:
Retail stores
Restaurants and breweries
Fitness clubs and studios
Amusement and recreation spaces
Education and gymnasiums
| Safety Agency Ratings | UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant | Colors | Black (similar to RAL 9005), white (similar to RAL 9003), paintable |
| Enclosure Material | Engineered plastics | Environmental | Indoors only; UL Listed, UL 1480A, NFPA 70 & NFPA 90A, CE-compliant |
| Grille | Perforated steel, powder-coated finish, paintable | Logo | Rotatable, removable |

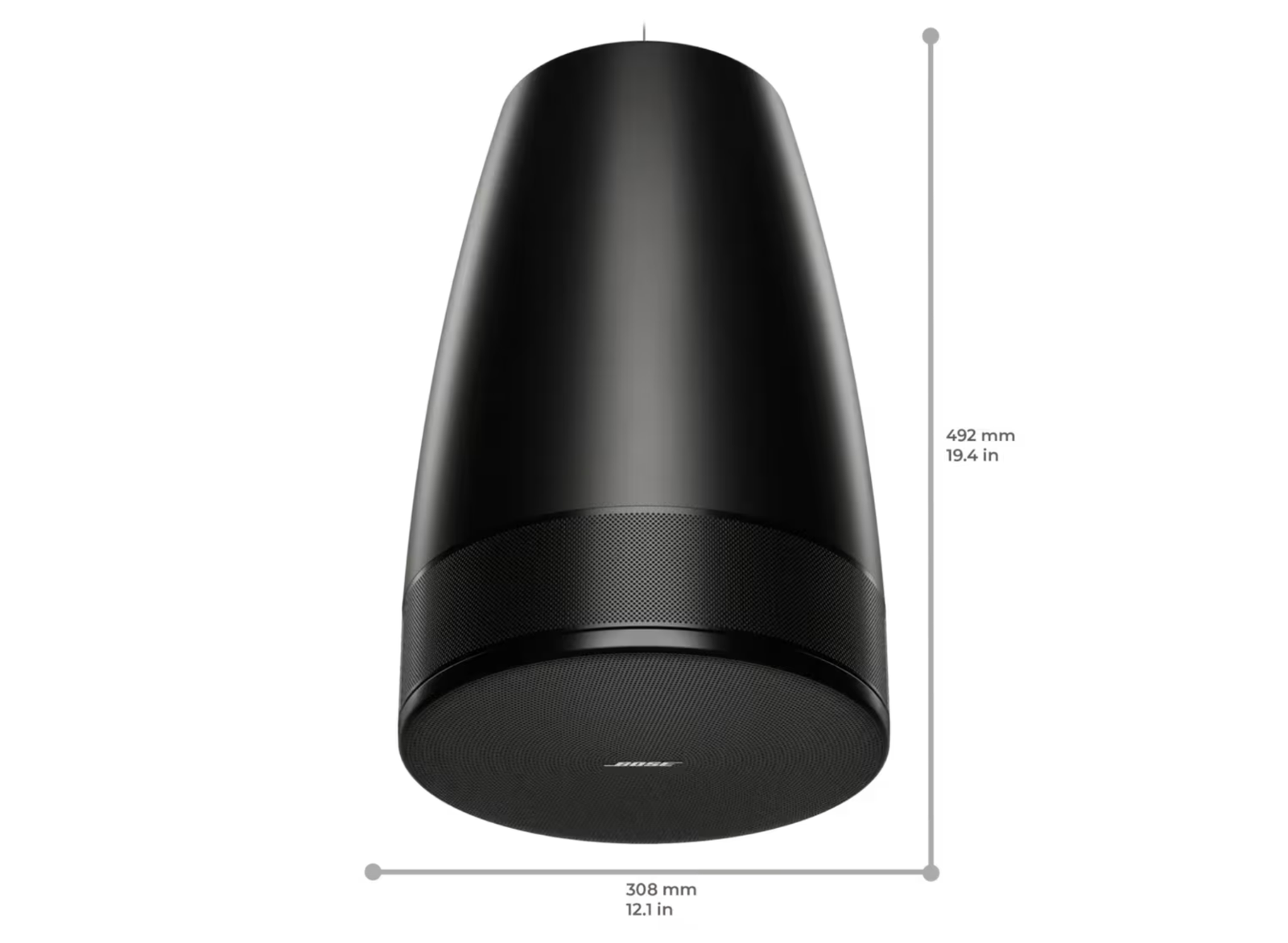

| Suspension/Mounting | (1) 3-hole suspension cable attachment point | Product Dimensions (H×W×D) | 308 mm × 492 mm (12.1 in × 19.4 in), loudspeaker diameter x depth |
| Net Weight | 10.0 kg (22.0 lb) | Frequency Range (-10 dB) | 40 Hz – 20,000 Hz |
| Coverage, Horizontal | 140° conical | Calculated Maximum SPL @ 1 m | 107 dB |
| Nominal Impedance | 8 Ω (transformer bypass) | Power Handling (Continuous) | 140 W |
| Power Handling (Peak) | 560 W | Recommended Processing | Not required; Bose Professional EQ voicing and SmartBass processing available |

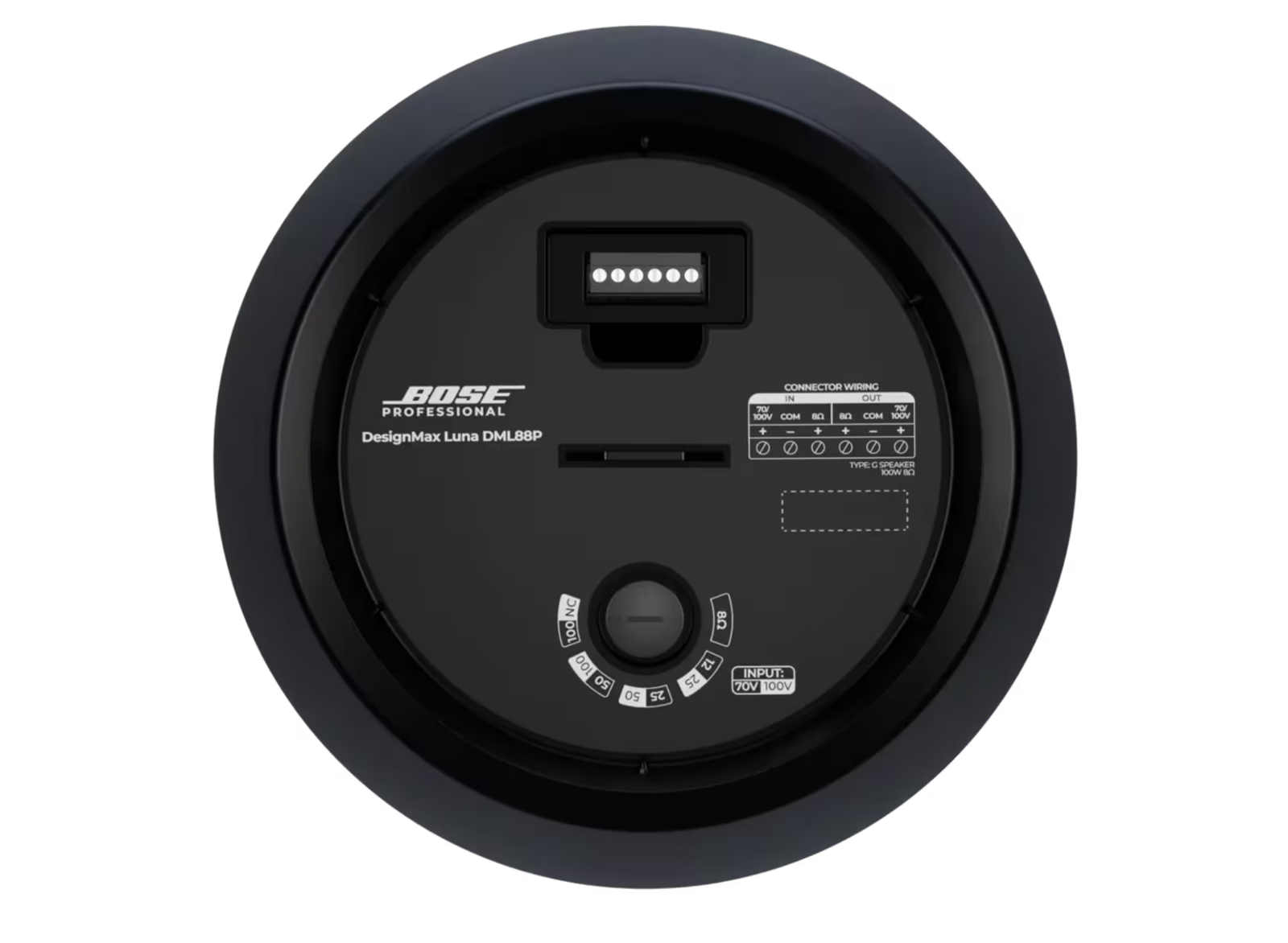

| Sensitivity (1W/1m) | 85 dB | Transformer Taps (100V) | 25 W, 50 W, 100 W, bypass |
| Transformer Taps (70V) | 12 W, 25 W, 50 W, 100 W, bypass | High-Frequency Drivers | 8 × 2.0-in (51 mm) drivers in circular array |
| Low-Frequency Woofer | 1 × 8 in (203 mm) woofer | Product Code (Black) | 892117-0100 (DESIGNMAX DML88P BLK) |
| Product Code (White) | 892117-0200 (DESIGNMAX DML88P WHT) | Included Item | (1) DesignMax Luna DML88P |
| Included Item | (1) connection panel cover | Included Item | (1) adjustable suspension cable system |
| Included Item | (4) cable ties | Included Item | (1) installation guide |
| Description | Downloads |
|---|---|
| Datasheet | Download |
