A complete loudspeaker assortment to enhance any space, DesignMax loudspeakers offer rich lows, and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. The 20-watt Bose Professional DesignMax DM2C-LP loudspeaker makes it easy to bring great sound to tight spaces. Ideal for background music, the DM2C-LP loudspeaker features a 2.25-inch transducer and 85 Hz – 19 kHz frequency range. The in-ceiling DM2C-LP has a low-profile backcan and is installed easily via QuickHold mounting arms.
FEATURES
Combine DesignMax models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
Deliver instantly impressive sound with custom Bose Professional drivers — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level.
Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier
Install in confined ceiling spaces with low-profile backcan measuring just 10 centimeters (3.9 inches) high
Applications
Designed for a wide range of applications, including:
Performing arts venues
Places of worship
Conference centers
Retail stores
Restaurants and bars
Hospitality venues
| Feature | Description |
|---|---|
| Safety Agency Ratings | UL-1480A, S5591 / UL Listed, UL2043 plenum-space compliant, NFPA70 & NFPA90-A, CE compliant |

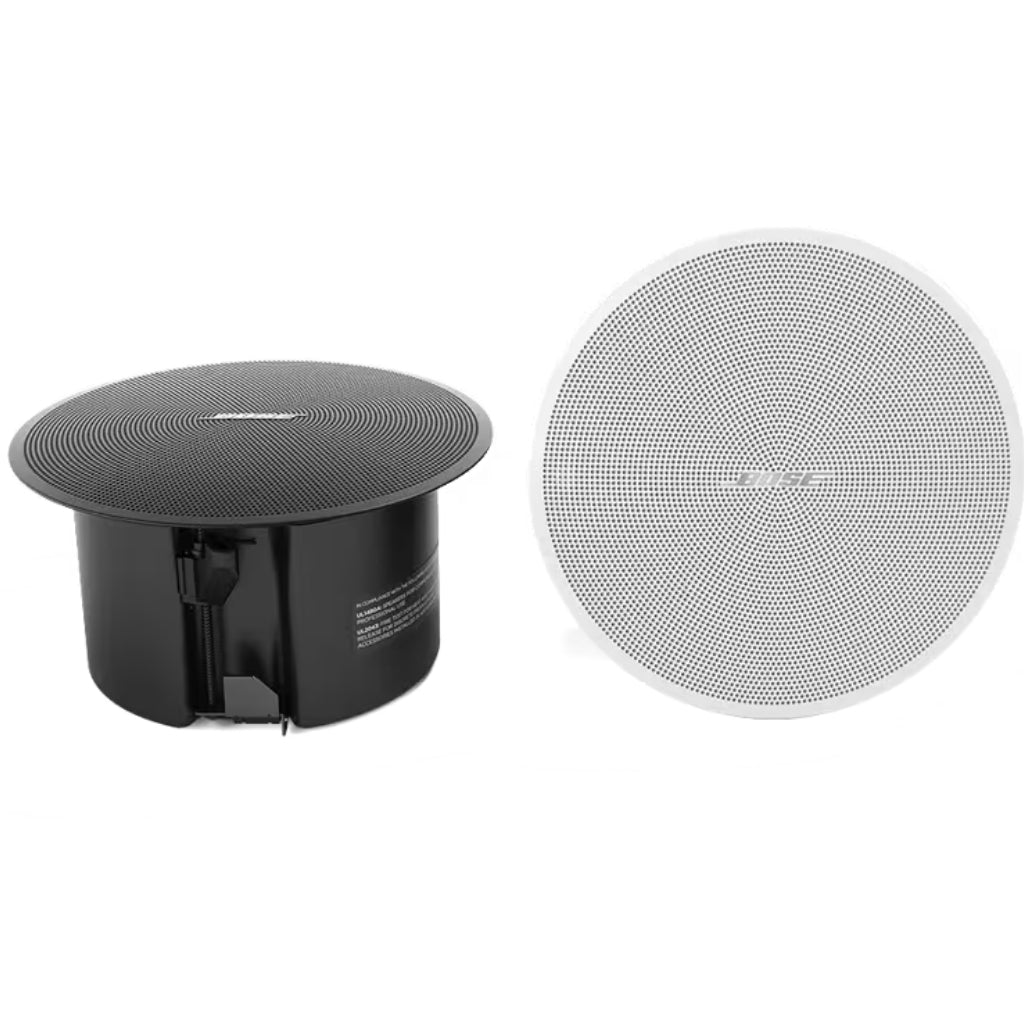

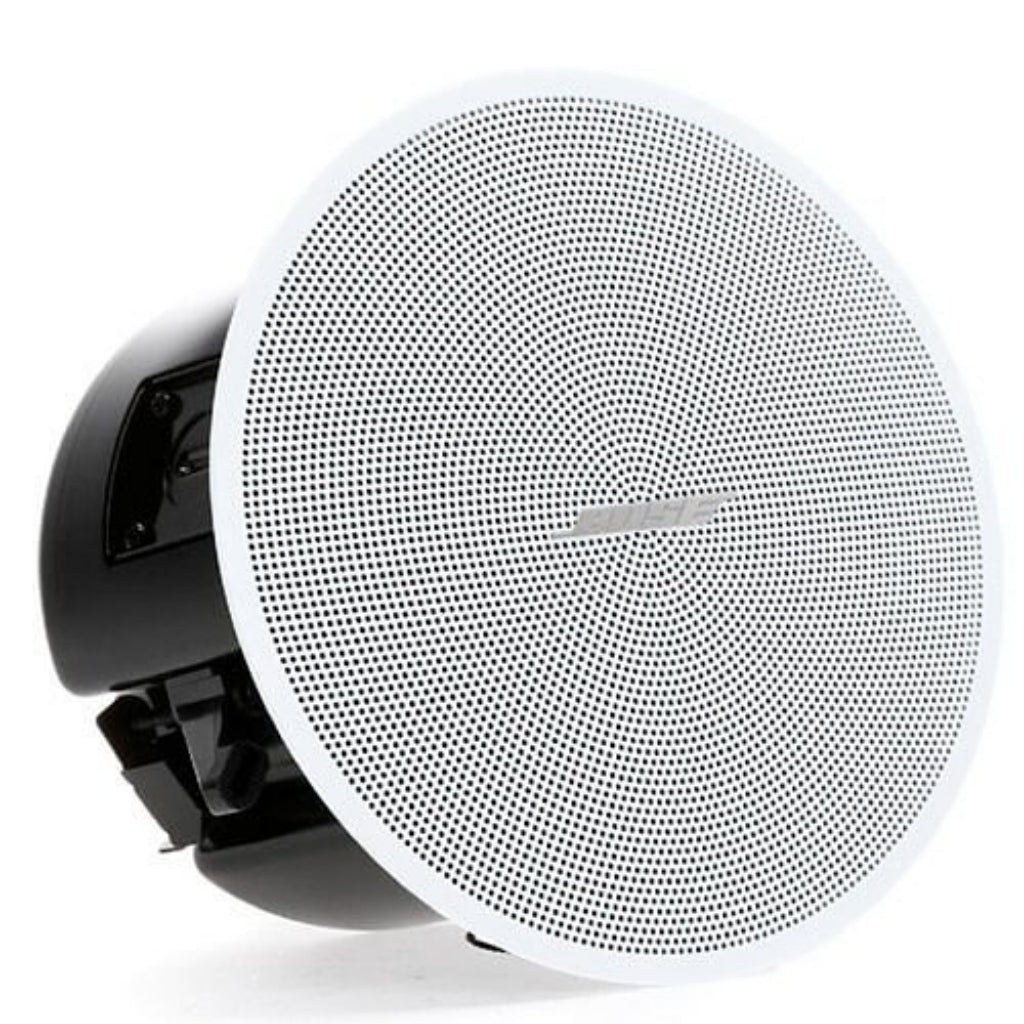

| Colors | Black (RAL 9005), White (similar to RAL 9003), Paintable |
| Enclosure Material | Engineered-plastics front baffle with integrated steel-formed backcan |
| Environmental | Indoor only |

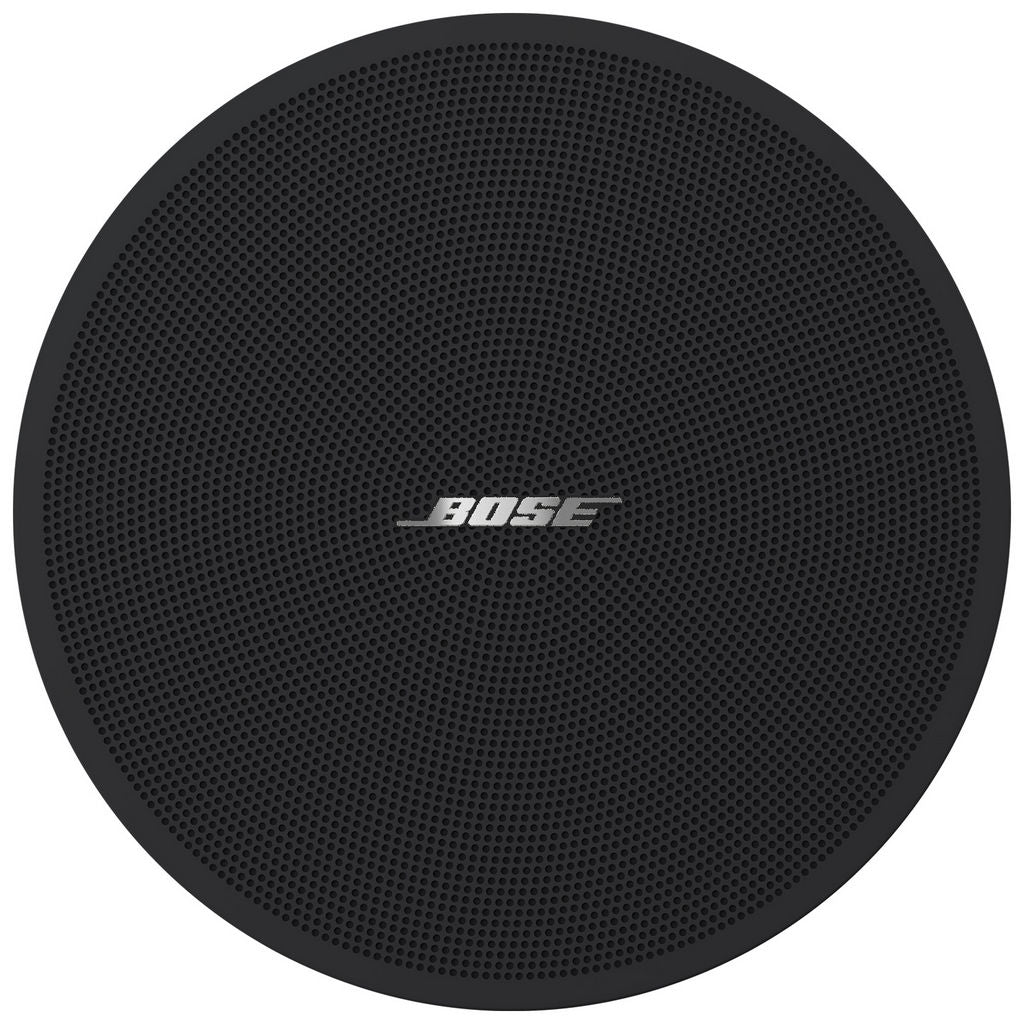

| Grille | Magnetically attached perforated steel, powder-coated, paintable, with safety tether |
| Ceiling Cutout | 6.5 in (165 mm) |
| Logo | Rotatable, removable |
| Mounting | (2) QuickHold spring-loaded mounting arms, (2) safety cable attachment points |
| Operating Temp | 0 °C to 50 °C (32 °F to 122 °F) |
| Dimensions (Ø × D) | 7.8 × 4.3 in (198 × 110 mm) loudspeaker / 6.1 × 3.9 in (155 × 99 mm) backcan |
| Net Weight | 3.6 lb (1.6 kg) loudspeaker / 1.6 lb (0.7 kg) tile bridge |
| Shipping Weight | 13.2 lb (5.9 kg) pair |
| Frequency Range (-10 dB) | 85 Hz – 19,000 Hz |
| Coverage | 150° conical |
| Max SPL @ 1 m | 97 dB |
| Nominal Impedance | 16 Ω (transformer bypass) |
| Power Handling (Continuous) | 20 W |
| Power Handling (Peak) | 80 W |
| Recommended Processing | Bose EQ voicing and SmartBass available |
| Sensitivity | 84 dB |

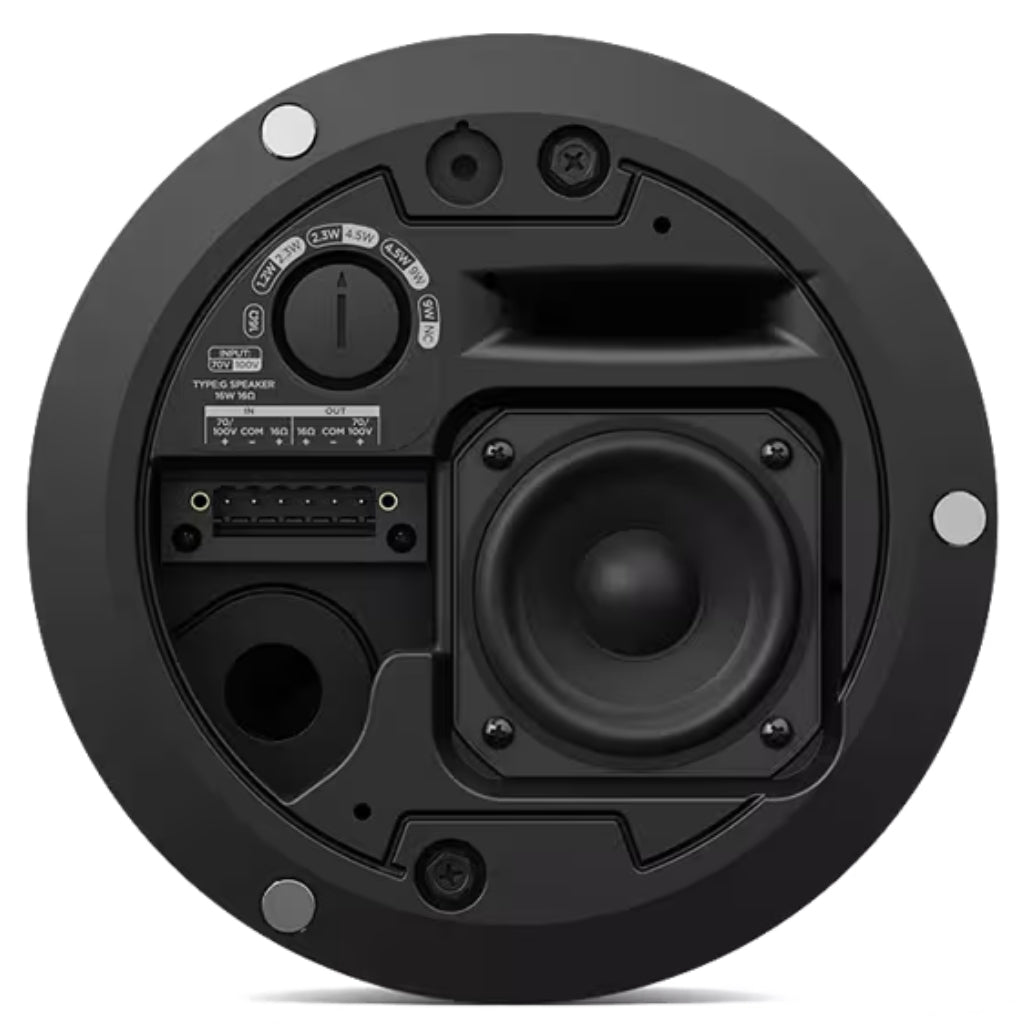

| Transformer Taps (100V) | 2.3, 4.5, 9 W, bypass |
| Transformer Taps (70V) | 1.2, 2.3, 4.5, 9 W, bypass |
| Driver Protection | High-pass at 85 Hz, 24 dB/octave |
| Low-Frequency Driver | 1 × 2.25 in (57 mm) woofer |
| Product Codes | 815011-0110: DM2C-LP Pair Black 815011-0210: DM2C-LP Pair White |
| Included in Packaging | (1) Cutout template (2) DM2C-LP loudspeakers (2) Grilles (2) Tile bridges (1) Installation guide |
| Description | Downloads |
|---|---|
| Bose DesignMax DM2C-LP Loudspeakers DataSheet | Downloads |
| Bose DesignMax DM2C-LP Loudspeakers Painting Guide | Downloads |
| Bose DesignMax DM2C-LP Loudspeakers Design Guide | Downloads |
