With an open-architecture design, twelve acoustic echo cancellers (AEC), and 16 × 16 Dante connectivity, the ControlSpace EX-12AEC conferencing processor provides cost-effective, robust AEC for conference rooms using ControlSpace EX conferencing processors.
FEATURES
Channel AEC expansion with multiple references to complement ControlSpace EX-1280C processors in larger systems
Adaptable noise cancellation with non-linear processing and comfort noise on each AEC channel enhances clarity
Dante audio networking supports 16 × 16 audio channels for connection to an EX-1280C processor and native Dante-integrated microphones

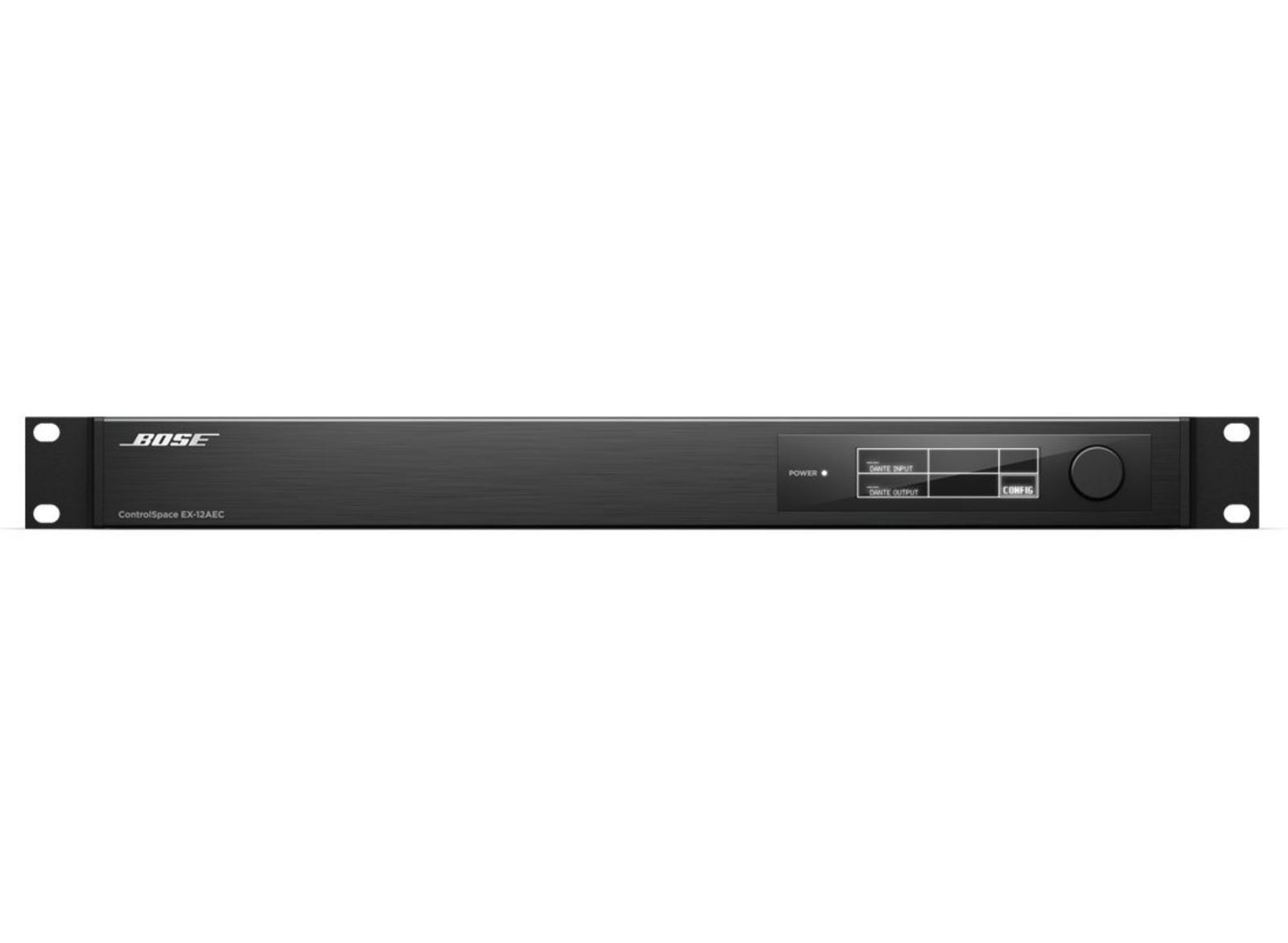

Front-panel interface features a large OLED display and rotary encoder for setting network parameters and monitoring channel activity
Applications
Designed for a wide range of applications, including:
Boardrooms
Large conference rooms
Distance learning
Multi-purpose spaces
Divisible conference rooms
Operation centers
| ACOUSTIC ECHO CANCELATION (AEC) | |||
| AEC-Enabled | Yes | Channels | 12 |
| Latency | 50 ms | Noise Reduction | 32 dB |
| References | 4 | Tail Length | 480 ms |
| AUDIO INPUTS/OUTPUTS, DIGITAL | |||

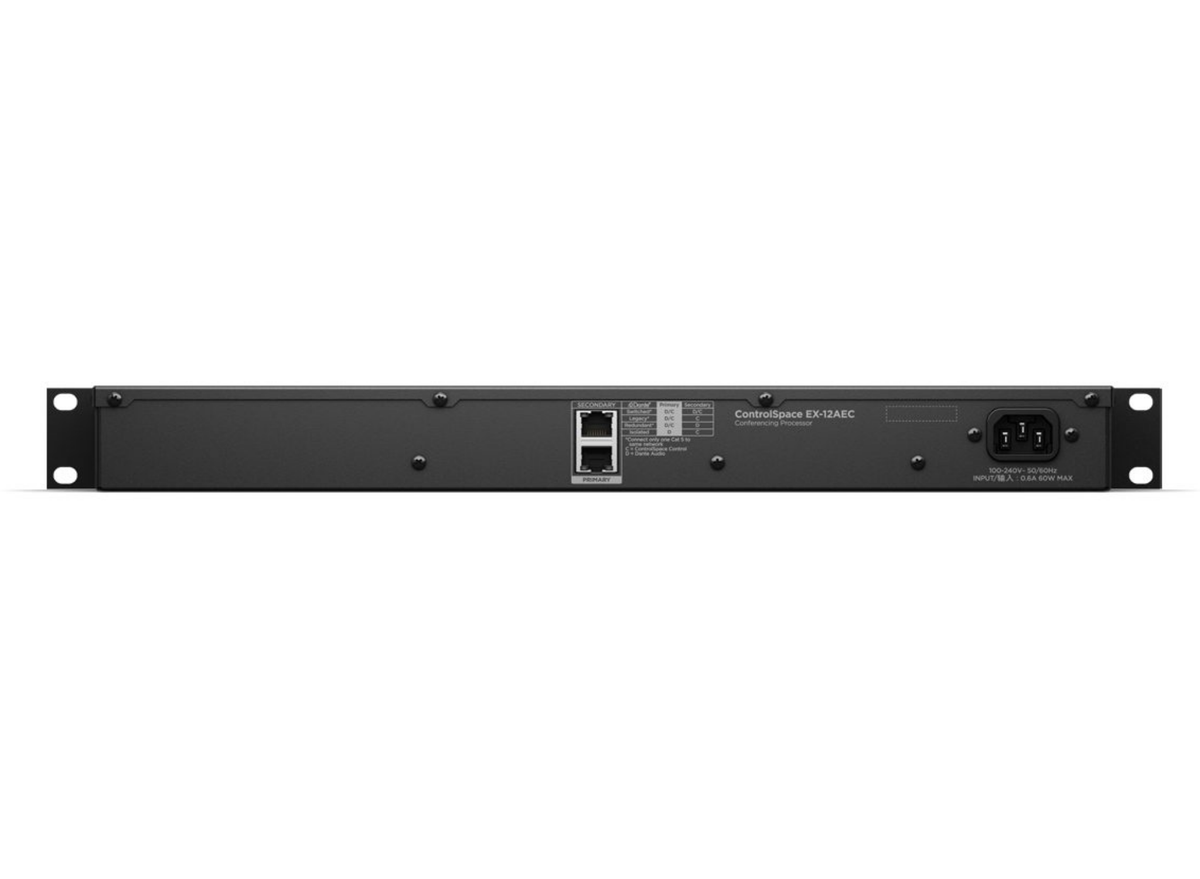

| Channels | 16 Dante in × 16 Dante out, primary/secondary | Connectors | (2) RJ-45 Dante in/out / (1) RJ-45 AmpLink out |
| Type | Dante (input/output) | ||
| ELECTRICAL | |||
| Mains Connector | IEC 60320-C14 inlet | Mains Voltage | 85–264 VAC, 50/60 Hz |
| AC Power Consumption | 35 W typical at 104 °F (40 °C) ambient | Power Dissipation | 60 W (205 BTU/hr, 52 kcal/hr) |
| GENERAL | |||
| Software Applications | ControlSpace Designer 5.5 or later (Windows) | Computer Interface Connection | RJ-45 (Dante), through network router or switch |
| INDICATORS AND CONTROLS | |||
| Display | 256 × 64 OLED | LED Status Indicators | (1) power/status LED |
| INTEGRATED DSP | |||
| Delay | 43 s | DSP-Enabled | Yes |
| Maximum Calculation | 3.6 GIPS / 2.7 GFLOPS | Signal Processor/CPU | 32-bit fixed/floating-point DSP 456 MHz/Arm Cortex-A8 600 MHz processor |
| PHYSICAL | |||
| Colors | Black | Cooling System | 2 variable-speed side-venting fans |
| Suspension/Mounting | Standard rack ears | Operating Temperature Range | 0 °C to 40 °C (32 °F to 104 °F) |
| Product Dimensions (H×W×D) | 1.7 in × 19.0 in × 11.1 in (44 mm × 483 mm × 282 mm) | Net Weight | 5.3 lb (2.4 kg) |
| Rack Spaces | 1RU | ||
| Description | Downloads |
|---|---|
| Datasheet | Download |
