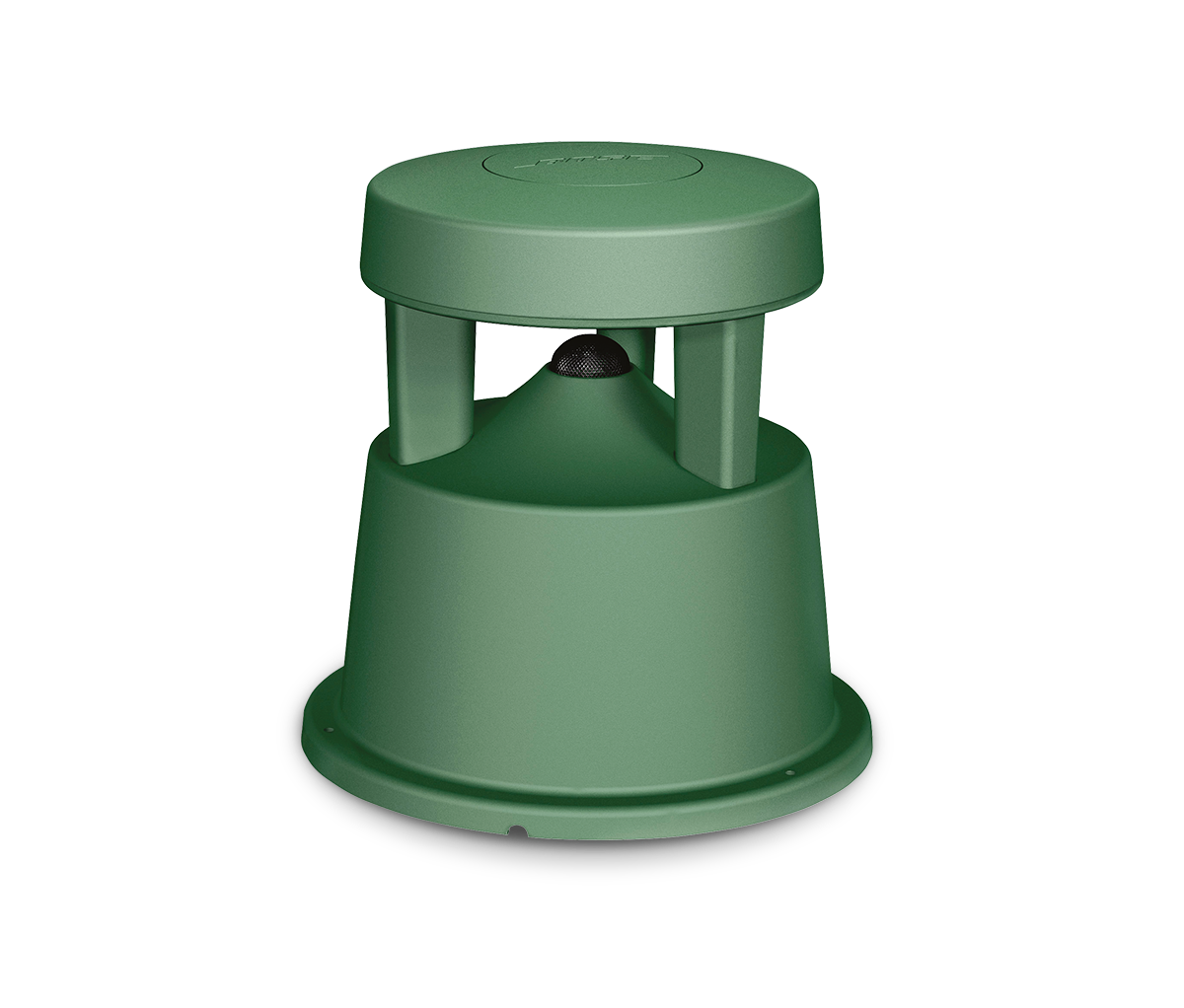

Full-range environmental loudspeaker designed to blend with landscaping for in-ground or above-ground applications, such as shopping malls, outdoor restaurants, resorts and theme parks. Features 360° horizontal coverage and frequency range down to 60 Hz.
For indoor and outdoor applications.
FEATURES
Full-range environmental loudspeaker with one downward firing 4.5-inch (114 mm) advance composite environmental full-range driver for in-ground or above-ground mounting
Domed port grille reflects sound into the listening area for clear, consistent performance

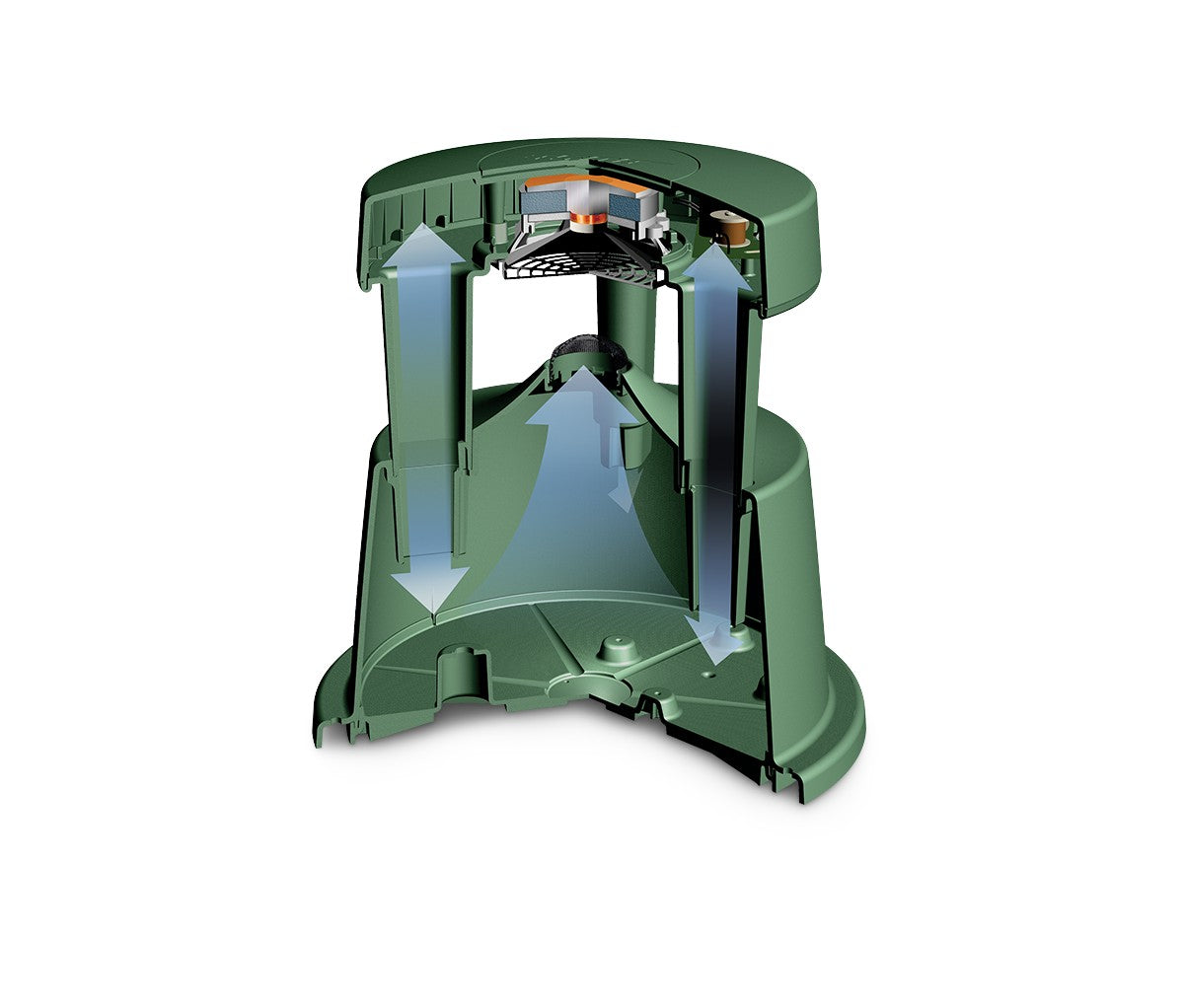

Cabinet shape acts as acoustic diffuser directing mid- and high-frequency energy out towards listeners. Base of loudspeaker acts as a tuned, multi-chambered ported enclosure
Multi-tap line transformer provides easy-to-change tap settings
Tamper-resistant design
Internal speaker protection circuit safeguards drivers
Applications
Designed for a wide range of applications, including:
Shopping centers
Restaurants and bars
Cafes
Resorts and hospitality venues
Theme parks
Atriums and malls
| Category | Specifications |
|---|---|
| PHYSICAL | |
| Ingress Protection | IP35 |
| Mounting/Rigging Provisions | 3 × #10 (M4) holes in base, 3 × #10 (M4) screws required |
| Net Weight | 14.5 lb (6.6 kg) |
| Product Dimensions (H×W×D) | 368 mm × 379 mm (14.5 in × 14.9 in), loudspeaker diameter × height |
| Shipping Weight | 14.9 lb (6.8 kg) |
| PERFORMANCE | |
| Frequency Range (-10 dB) | 60 Hz – 15,000 Hz |
| Coverage, Horizontal | 360° |
| Maximum SPL at 1 m | 107 dB |
| Nominal Impedance | 8Ω (transformer bypassed) |
| Power Handling, Continuous | 70/100V: 80 W / 8Ω: 65 W |
| Power Handling, Peak | 70/100V: 320 W / 8Ω: 260 W |
| Recommended Signal Processing | No Bose Professional EQ required. For best performance, Bose Professional EQ presets available |
| Sensitivity (SPL/1 W at 1 m) | 87 dB |
| Transformer Taps, 100V | 10, 20, 40, 80 W, bypass |
| Transformer Taps, 70V | 10 W, 20 W, 40 W, 80 W, bypass |
| Coverage, Vertical | 50° |
| TRANSDUCERS | |
| Driver Protection | Recommended high-pass filter 60 Hz with minimum 24-dB/octave filter, Presets available |
| Low-Frequency Transducer Quantity and Size | 1 × Bose Professional 4.5 in (114 mm) environmental driver |
| Description | Downloads |
|---|---|
| BOSE FreeSpace 360P Series II Loudspeaker DataSheet | Downloads |
