BOSE FreeSpace IZA 190-HZ Integrated Zone Amplifier | 344871-2430
SKU: 344871-2430
£469.95 (Excl. VAT)
- Description
- Specifications
- Downloads
-

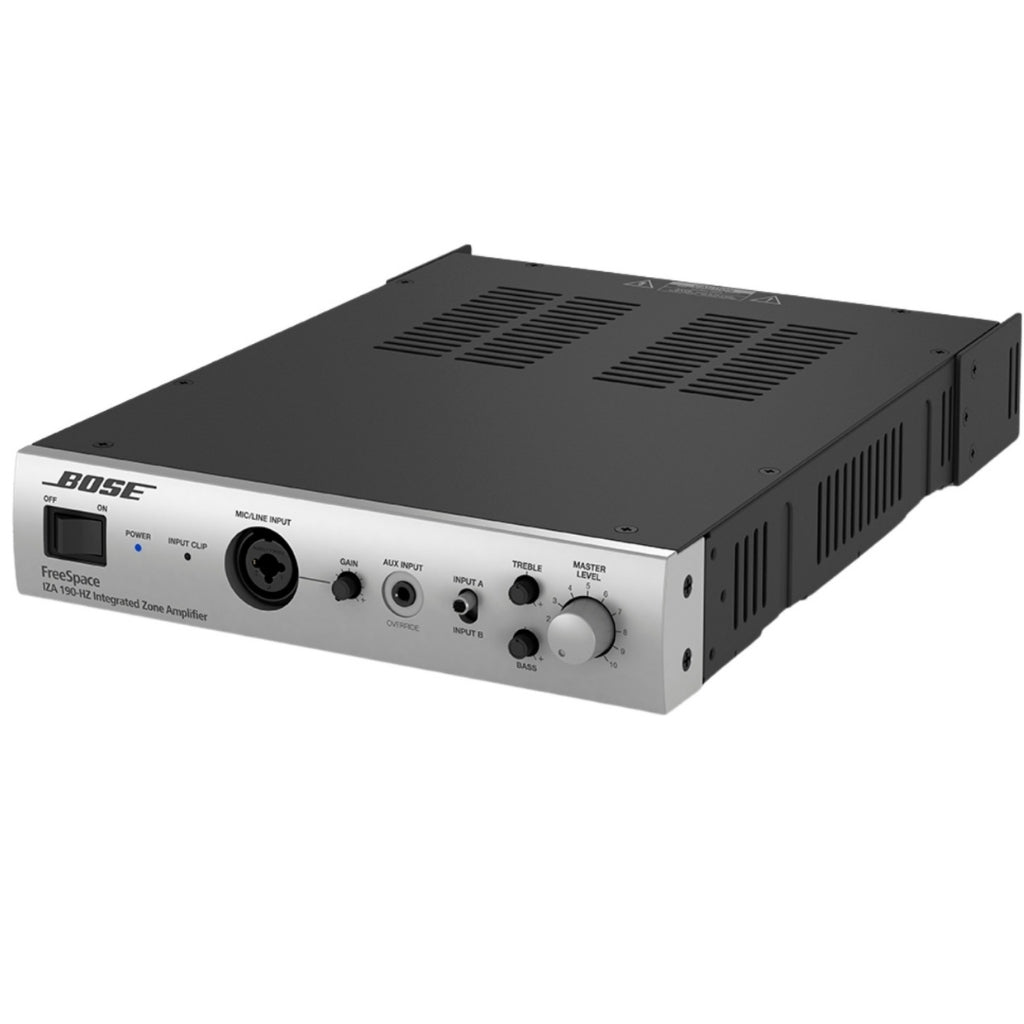

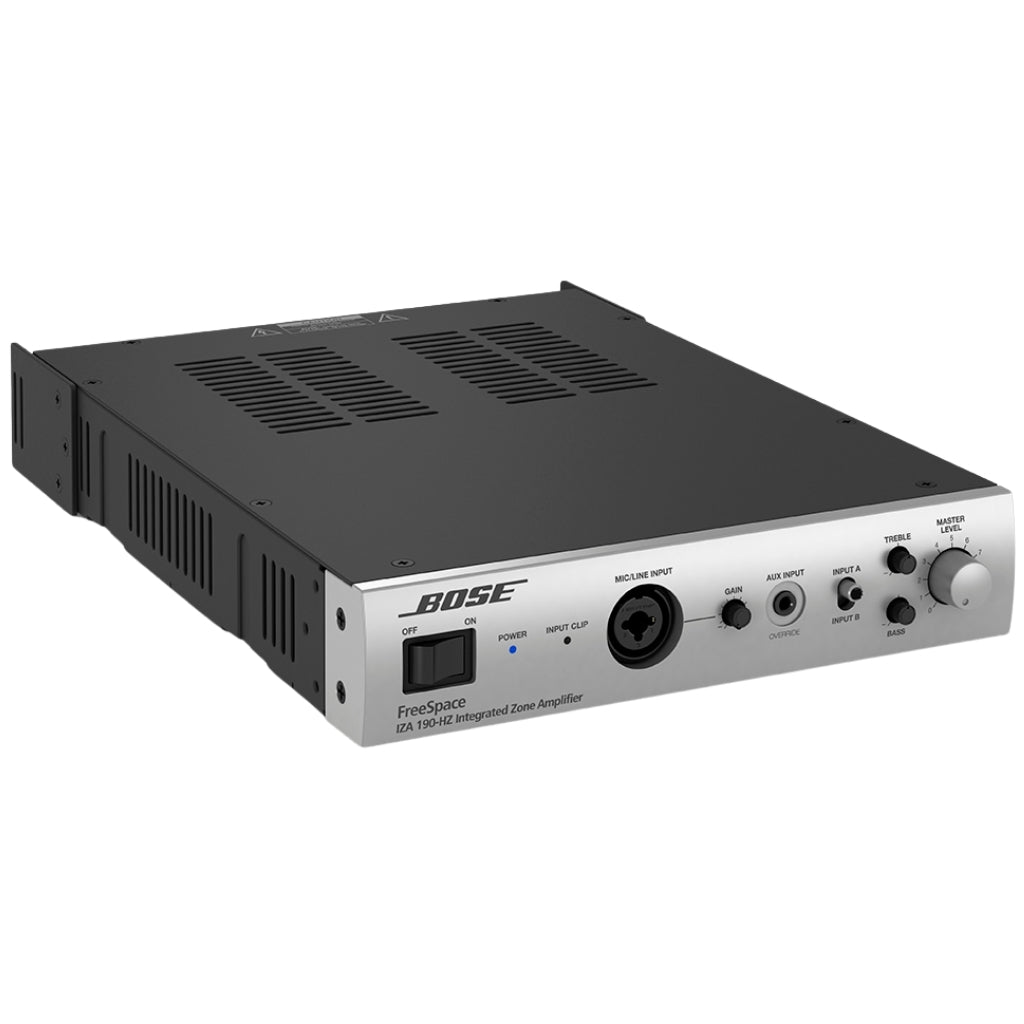

BOSE FreeSpace IZA 190-HZ Integrated Zone Amplifier | 344871-2430
For background/foreground music and paging applications, the Bose Professional FreeSpace IZA 250-LZ and IZA 190-HZ integrated zone amplifiers are designed to deliver premium sound, provide simplified set up and easy daily operation, and offer the flexibility to expand when more loudspeakers are required. When used with FreeSpace FS2 and FS4 loudspeakers, even further sound optimization is possible through onboard selectable EQ presets.
FEATURES
Amplification for premium sound from a reliable, high quality Class-D amplifier provides optimized performance and premium sound quality through the use of internal digital signal processing
Installation made simple with set up done locally from the front and rear panels of the amplifier—no computer is required
Opti-Voice paging provides smooth automatic transition between the music and page signals

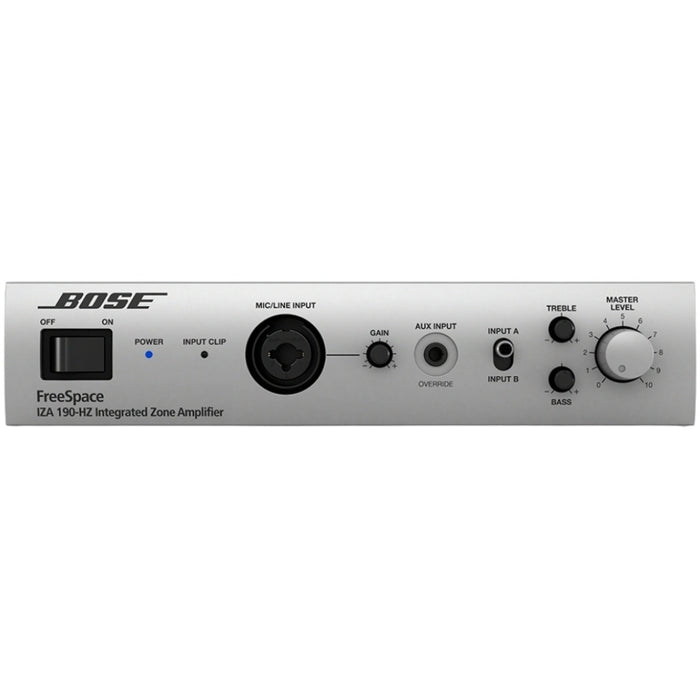

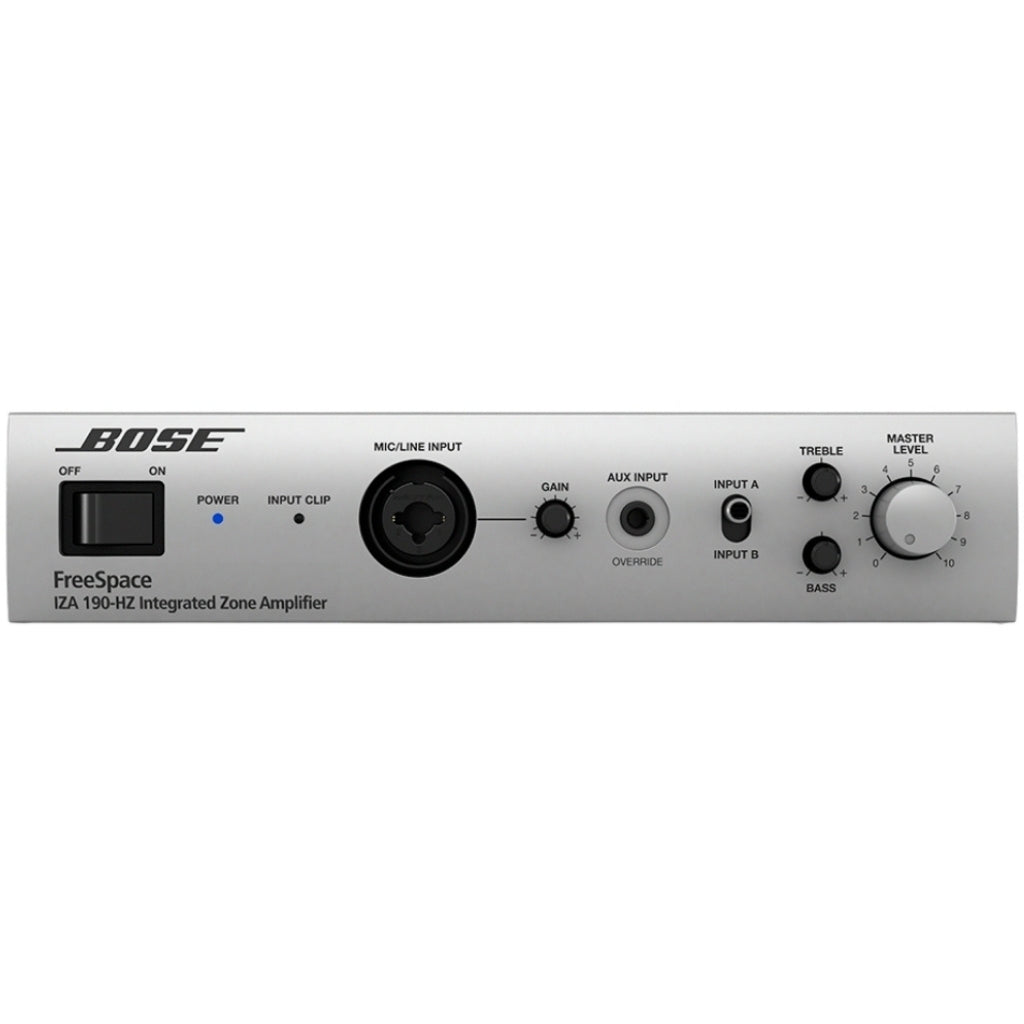

End-user friendly front panel allows users to connect devices easily, make tonal adjustments or select between two sources. Optional wall mountable Bose Professional Volume control with A/B switch user interface allows volume and source selection controls to be placed away from the amplifier for user convenience
Compact, lightweight design enables the FreeSpace integrated zone amplifier to be placed out of the way—on a table, desk, counter, shelf or in an equipment rack using the optional Rack Mount Kit accessory
Applications
Designed for a wide range of applications, including:
Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones -

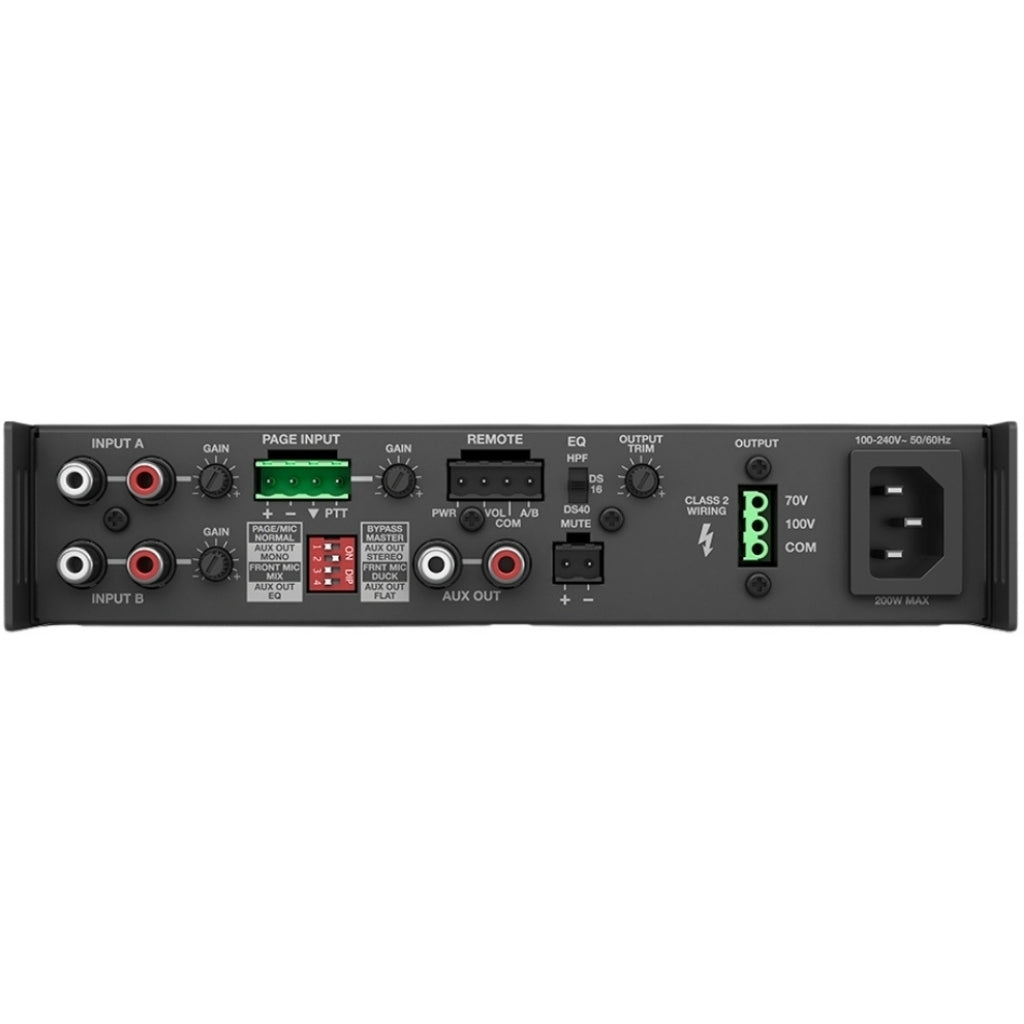

Category Attribute Value AMPLIFICATION Channel Separation ≤ -60 dBV @ 1 kHz Dynamic Range 88 dB Frequency Response 60 Hz – 20 kHz Number of Channels 2 Power Class Class D Rated Power 90 W at 70V, 100V INPUTS Adjustment Range -20 to +50 dB (varied by input) Input Channels 2 line, 1 mic/line, 1 page, 1 aux Connectors RCA, XLR, Euroblock, TRS Input Impedance 2–20 kΩ Input Range -60 to +10 dBV Max Input Level +10 dBV Nominal Input Level 0 to -40 dBV (varies) Sensitivity 0 dBV (auxiliary) OUTPUTS Channels 1 Connectors Euroblock, RCA Output Impedance N/A (amp) / 400 Ω (aux) ELECTRICAL Inrush Current 7.6 A (120V), 13.9 A (230V) Power Connector IEC C14 inlet Voltage Range 100–240 VAC, 50/60 Hz Protection High temp, short circuit Power Consumption 15 W idle, 200 W max CONTROLS Front Panel Power, input, bass/treble, gain, master Rear Panel DIP switch, EQ selector, input/output gain LED Indicators Power, input clip DSP Converters 48 kHz / 24-bit Latency 10.4 ms Presets Flat + FreeSpace FS models Processing Functions EQ, paging EQ, Dynamic EQ PHYSICAL Cooling Natural convection Dimensions (H×W×D) 1.8 × 8.4 × 12.2 in (45 × 214 × 310 mm) Weight 7.0 lb (3.2 kg) Rack Mount 1 RU, half rack wide CODES Product Codes 344871-1430 to 5430 (US, EU, JP, UK, AU) -
Description Downloads BOSE FreeSpace IZA 190-HZ Integrated Zone Amplifier | 344871-2430 DataSheet Downloads
