AMPLIFICATION |
Channel Separation (Crosstalk) |
≤ -58 dBu below rated power, 1 kHz |
|
Dynamic Range |
88 dB |
|
Frequency Response |
55 Hz – 20 kHz (+0 dB/-3 dB) at 1 W, 1 kHz reference |
|
Number of Channels |
2 |
|
Power Class |
Class D |
|
Rated Power, Symmetrical |
120 W per channel at 70V, 100V |
|
THD+N |
0.3% at rated power |
AUDIO INPUTS, ANALOG |
Adjustment Range |
0 dB to -30 dB, line / 0 dB to +50 dB, page / fixed, auxiliary |
|
Channels |
2 unbalanced, line + 2 balanced, line + 1 balanced, mic/line (page) + 1 unbalanced, line (auxiliary) |
|
Connectors |
(2) RCA stereo pairs, (2) 5-pin Euroblock, (1) 4-pin Euroblock, (1) 1/8-in (3.5 mm) TRS |
|
Input Impedance |
20 kΩ, line / 2 kΩ, page / 20 kΩ, auxiliary |
|
Input Range |
-8 dBu to +22 dBu, line / -58 dBu to +12 dBu, page / -60 dBu to -1 dBu, auxiliary |
|
Maximum Input Level |
22 dBu, line / 12 dBu, page / -1 dBu, auxiliary |
|
Nominal Input Level |
4 dBu, line / -38 dBu, page / -8 dBu, auxiliary |
|
Sensitivity |
-8 dBu, line / -3 dBu, auxiliary / N/A, page |
AUDIO OUTPUTS, ANALOG |
Channels |
2 |
|
Connectors |
(2) 2-pin inverted Euroblock, (1) RCA stereo pair |
|
Nominal Output Level |
2 × 120 W at 70V, 100V / 2 dBu (auxiliary) |
|
Output Impedance |
N/A (amplifier) / 400 Ω (auxiliary) |
ELECTRICAL |
Current Draw, Inrush |
6.6 A at 120 VAC, 60 Hz / 12.6 A at 230 VAC, 50 Hz |
|
Mains Connector |
IEC C14 inlet |
|
Mains Voltage |
100–240 VAC (±10%), 50/60 Hz |
|
Protections |
High temperature, output short circuit, excessively low/high AC line voltage |
|
Power Consumption |
26 W standby, 300 W maximum |
INDICATORS AND CONTROLS |

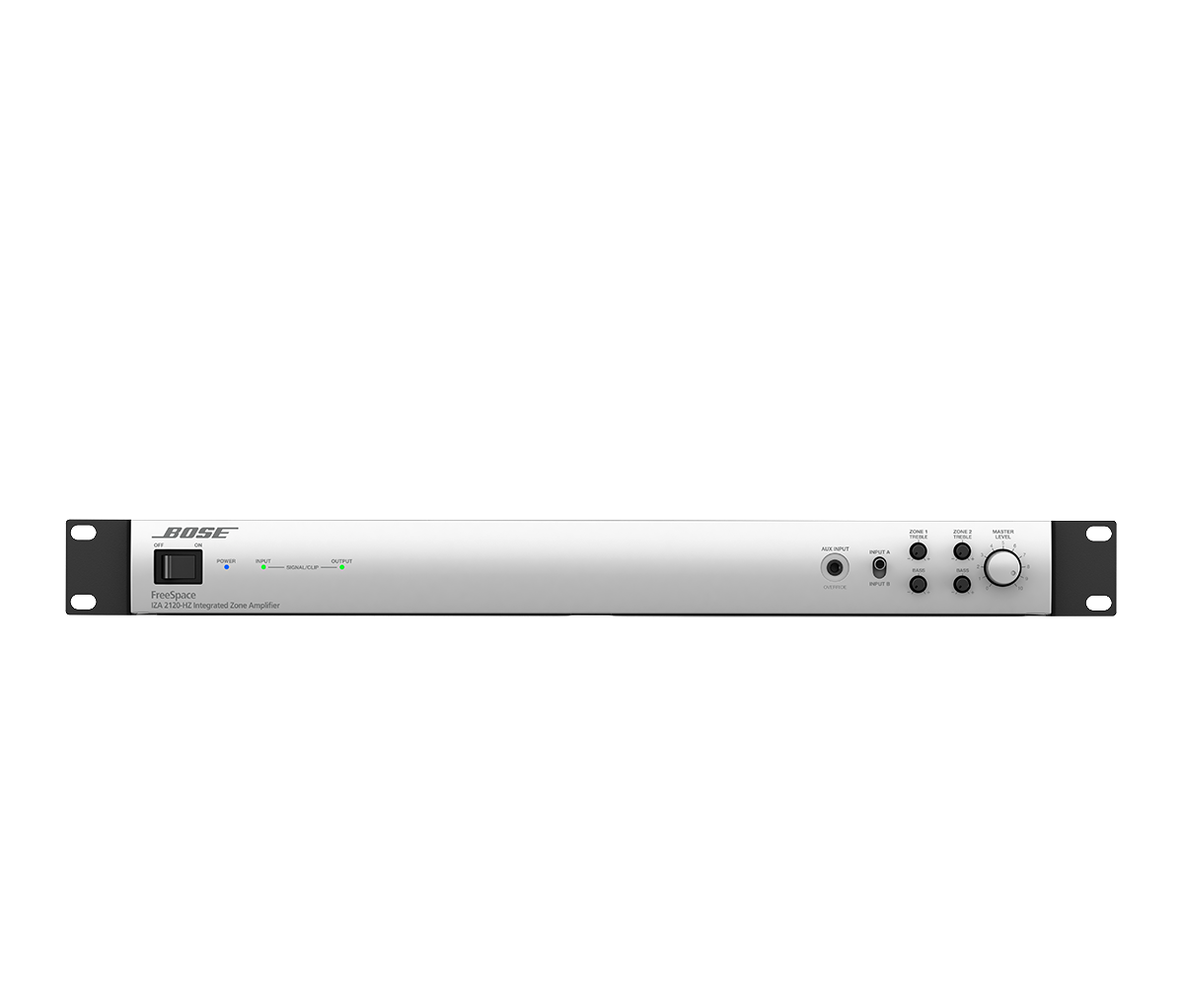

Controls, Front Panel |
(1) power switch, (1) input selection switch, (2) treble knobs, (2) bass knobs, (1) master level knob |
|

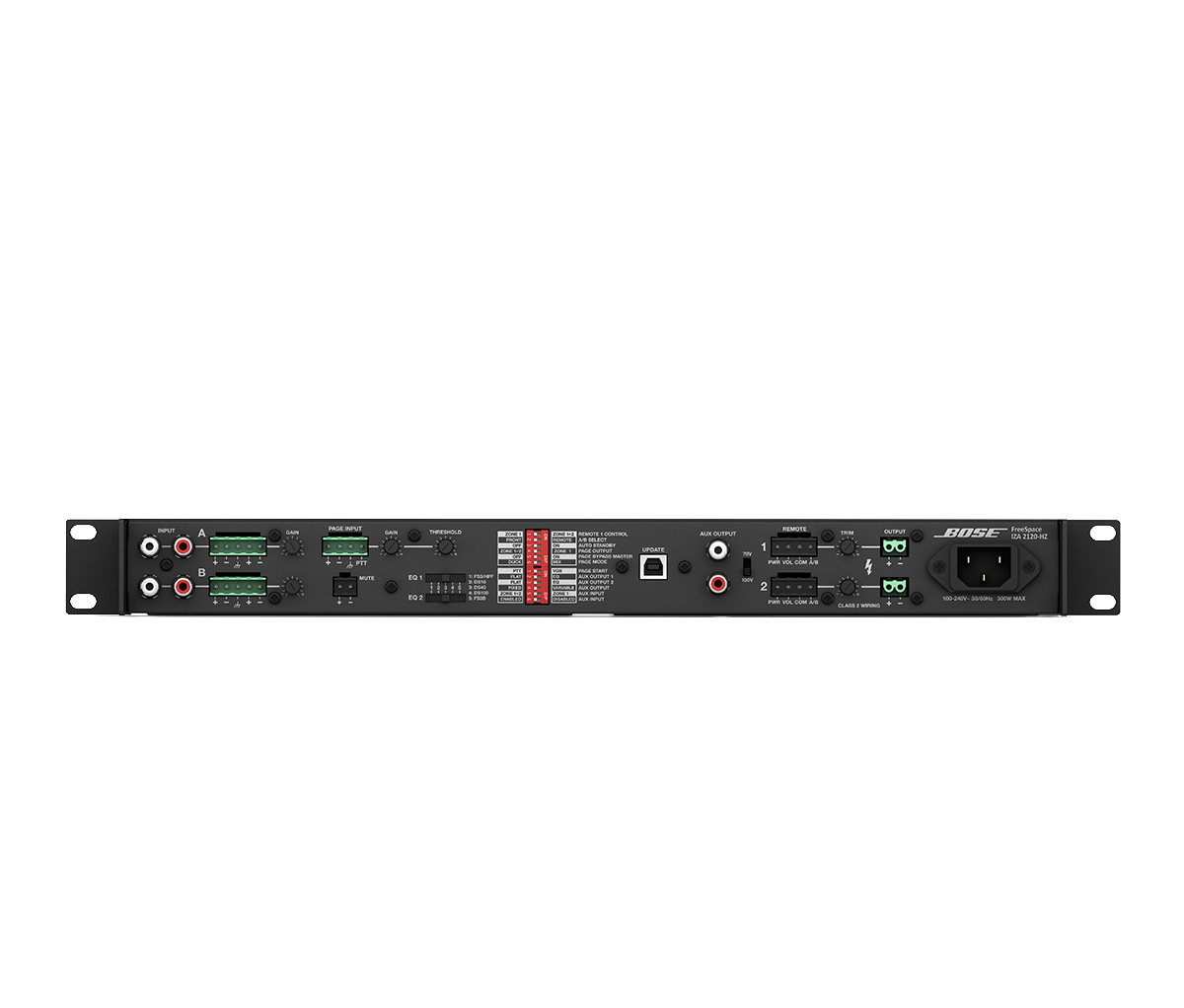

Controls, Rear Panel |
Amplifier Mode DIP switches, Loudspeaker EQ preset selector, Input Gain (A/B/Page), Output trims, Remote (x2) |
|
LED Status Indicators |
(1) power LED, (1) input signal/clip LED, (1) output signal/clip LED |
INTEGRATED DSP |
A/D and D/A Conversion |
48 kHz / 24-bit |
|
Audio Latency |
10.4 ms (analog input to analog output) |
|
Presets |
High-pass filter, Bose Professional loudspeaker presets (FreeSpace FS2C/FS2P/FS2SE/FS4CE/FS4SE, FreeSpace 3 Acoustimass & DesignMax DM2C-LP/DM2S/DM3C/DM3SE) |
|
Processing Functions |
Loudspeaker EQ, Opti-Voice EQ (paging), Dynamic EQ (low-end compensation) |
PHYSICAL |
Cooling System |
Single fan creates continuous left-to-right air flow |
|
Net Weight |
9.0 lb (4.1 kg) |
|
Product Dimensions (H×W×D) |
1.7 in × 19.0 in × 12.8 in (44 mm × 483 mm × 324 mm) |
|
Rack Spaces |
1 RU |
