As the most portable L1 Pro system, the L1 Pro8 portable PA is ready whenever you are. With an 8-driver articulated C-shape line array, the L1 Pro8 delivers 180-degree horizontal sound coverage, making it an ideal companion for shows in small venues like coffee shops and cafes. An integrated subwoofer with a RaceTrack driver delivers powerful bass without the bulk; a built-in multi-channel mixer offers EQ, reverb, and phantom power, plus Bluetooth® streaming and access to the full library of ToneMatch presets; and the intuitive Bose Music app, formerly known as the L1 Mix app places wireless control in your hands from your smartphone. It’s an ultra-portable system with a surprising size-to-performance ratio. The L1 Pro8 gives singer-songwriters and DJs both setup simplicity and supreme clarity — the power to sound your best and simply perform.
FEATURES
Generous coverage: C-shaped line array featuring 8 articulated 2-inch neodymium drivers; 180-degree horizontal coverage with wide vertical dispersion, allowing your audience to hear clearly whether they are seated or standing, even off to the extreme sides in small to medium venues
Deliver premium full-range sound with consistent tonal balance for singer-songwriters, mobile DJs, and more
Maintain supreme vocal and instrument clarity with a C-shape extended-frequency line array featuring 8 articulated 2-inch neodymium drivers and wide 180-degree horizontal coverage
Bring more bass with less bulk with an integrated subwoofer featuring a 7 × 13-inch high-excursion RaceTrack driver; performance that rivals traditional round drivers with a smaller footprint

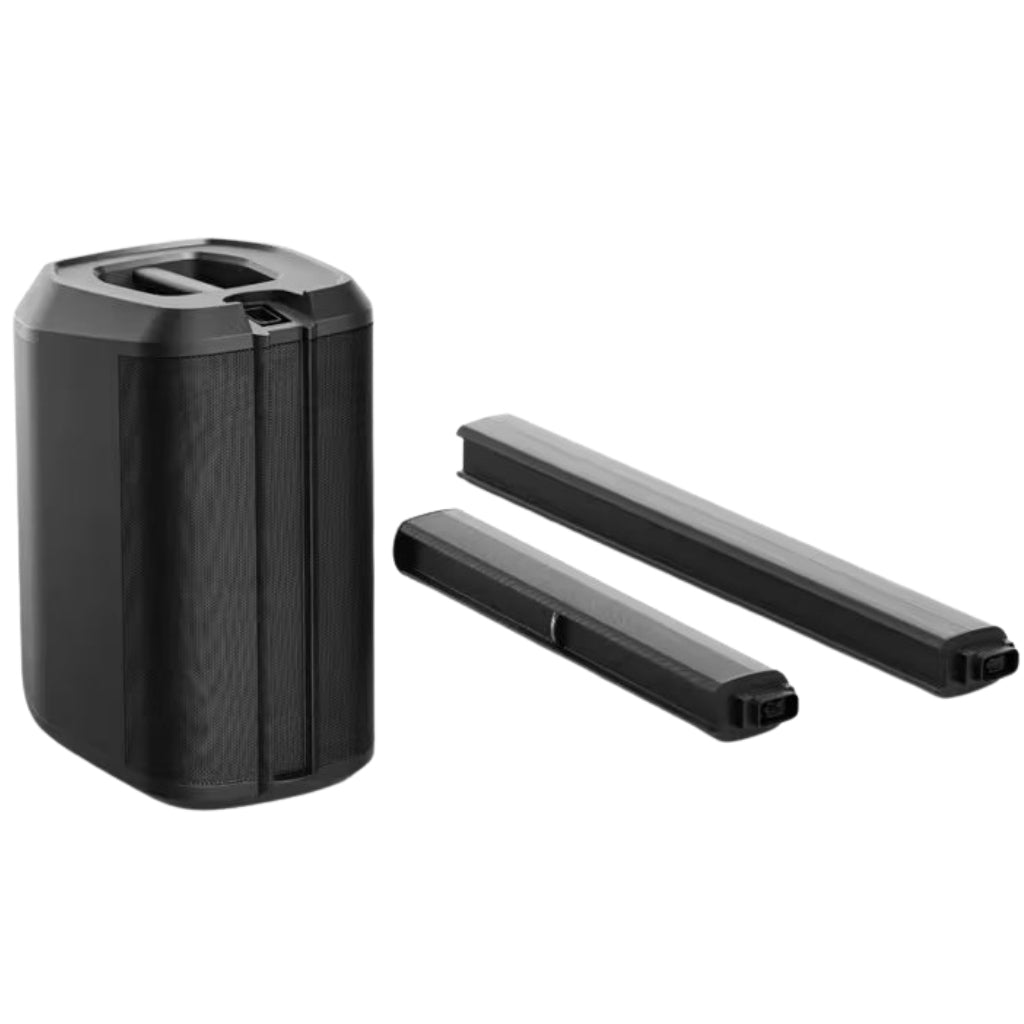

Go from vehicle to venue in one trip with a modular three-piece system that’s easier to pack, carry, and set up
Select between optimized system EQ presets for live music, recorded music, and more
Connect various audio sources easily via built-in mixer with two combo XLR-1/4-inch phantom-powered inputs, 1/4-inch and 1/8-inch (3.5 mm) aux input, plus Bluetooth® streaming — and access system EQ and ToneMatch presets, volume, tone, and reverb via illuminated controls
Add in even more instruments and other audio sources via dedicated ToneMatch port; one cable provides both power and digital audio between the system and a Bose T4S or T8S mixer (optional)
Take wireless control with the Bose Music app on your smartphone to adjust settings instantly from your phone, roam the room and fine-tune, and access the ToneMatch library of custom EQ presets
Stream high-quality Bluetooth® audio from compatible devices
Applications
Designed for a wide range of applications, including:
Houses of worship
Schools and universities
Resorts and hospitality venues
Live music performances
Business presentations
Mobile DJs
| Feature | Description |
|---|---|
| Number of Channels | 2 |
| Power Class | Class D |
| Analog Inputs | 3 |
| Connectors | (1) XLR-1/4" TRS combo, (1) 1/4" TRS, (1) 1/8" TRS, Bluetooth audio streaming |
| Sensitivity Options | -100 dB to +75 dB (XLR), -115 dB to +60 dB (TRS), -105 dB to +50 dB (3.5 mm), -115 dB to +40 dB (TRS) |
| Phantom Power | 48 VDC, Channels 1 & 2 |
| AC Power Connector | IEC |
| AC Power Input | 100–240 VAC (±15%, 50/60 Hz) |
| Current Draw (Inrush) | 15.8 A at 120 VAC / 30.1 A at 230 VAC |
| Software Applications | Bose Music (Android, iOS) |
| Computer Interface | USB Type-C |

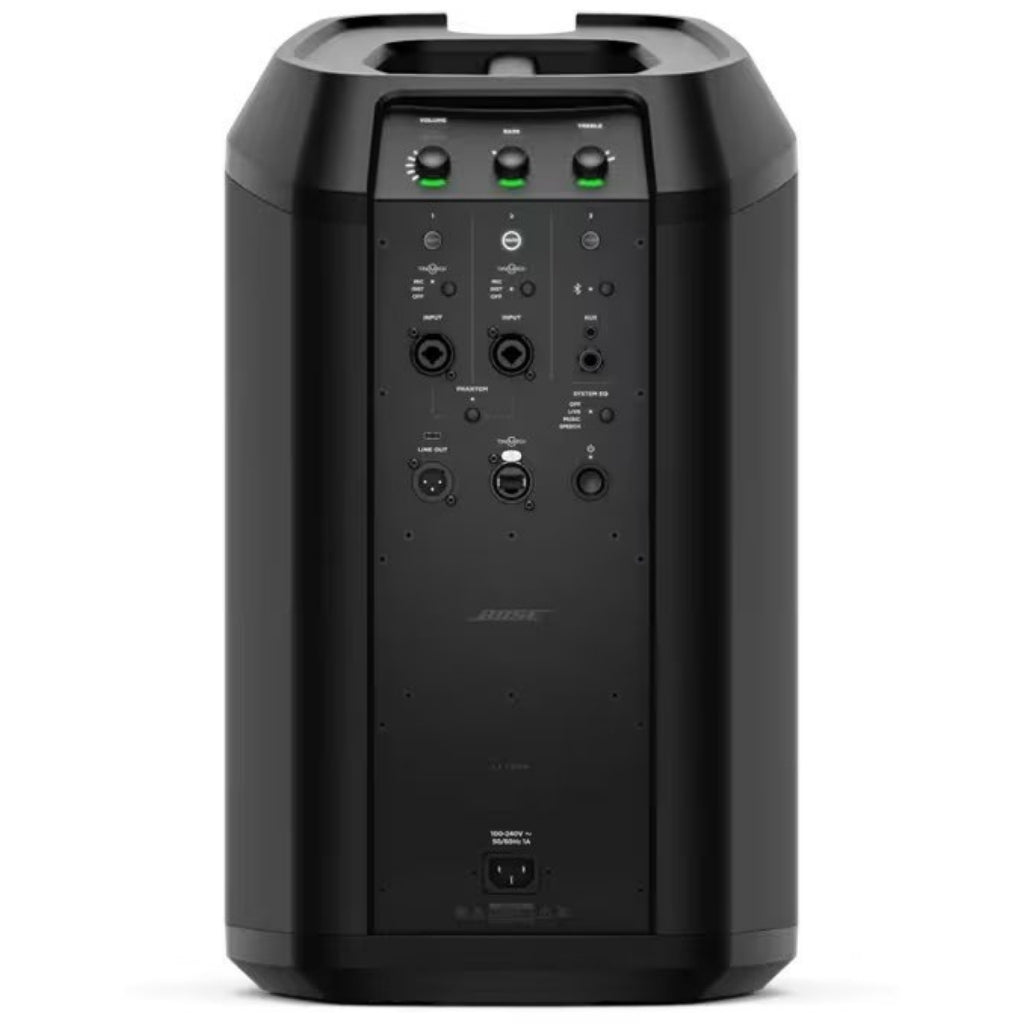

| Rear Panel Controls | 3 digital rotary encoders |
| LED Indicators | Standby LED, channel parameter LED rings, signal/clip LEDs, mute LEDs, phantom power LED, ToneMatch LEDs, Bluetooth LED, system EQ LEDs |
| DSP-Enabled | Yes |
| Presets | ToneMatch presets |
| Processing Functions | System EQ, reverb |
| Colors | Black |
| Enclosure Material | Power stand: High-impact polypropylene; Extension & Array: High-impact ABS |
| Grille | Perforated steel, powder-coated finish |
| Cooling System | Convection cooling |
| Dimensions (H×W×D) | 78.7 × 12.5 × 17.9 in (2000 × 317 × 456 mm) |
| Net Weight | 38.2 lb (17.4 kg) |
| Shipping Dimensions | 37.4 × 15.8 × 24.8 in (950 × 400 × 630 mm) |
| Shipping Weight | 47.2 lb (21.4 kg) |
| Frequency Range (-10 dB) | 33 Hz – 18 kHz |
| Coverage (H) | 180° |
| Coverage (V) | 40° |
| Max SPL @ 1 m | 112 dB |
| Power Handling (Peak) | 240 W |
| Crossover | 200 Hz |
| High-Frequency | 8 × 2 in (51 mm) drivers |
| Low-Frequency | 1 × RaceTrack low-frequency 7 × 13 in (178 × 330 mm) driver |
| Product Codes | 840919-1100: 120V US 840919-2100: 230V EU 840919-3100: 100V JP 840919-4100: 230V UK 840919-5100: 230V AU 840919-5130: 230V India |
| Warranty | 2 years |
| Included in Packaging | (1) Carry bag (arrays) (1) IEC power cord |
| Description | Downloads |
|---|---|
| BOSE L1 Pro8 Portable Line Array System | 840919-2100 DataSheet | Downloads |
| BOSE L1 Pro8 Portable Line Array System | 840919-2100 Installation Guide | Downloads |
| BOSE L1 Pro8 Portable Line Array System | 840919-2100 Quick Start Guide | Downloads |
