Bose Pan-and-tilt Bracket for RMU White | 738453-0210
SKU: 738453-0210
£119.90 (Excl. VAT)
- Description
- Specifications
- Downloads
-

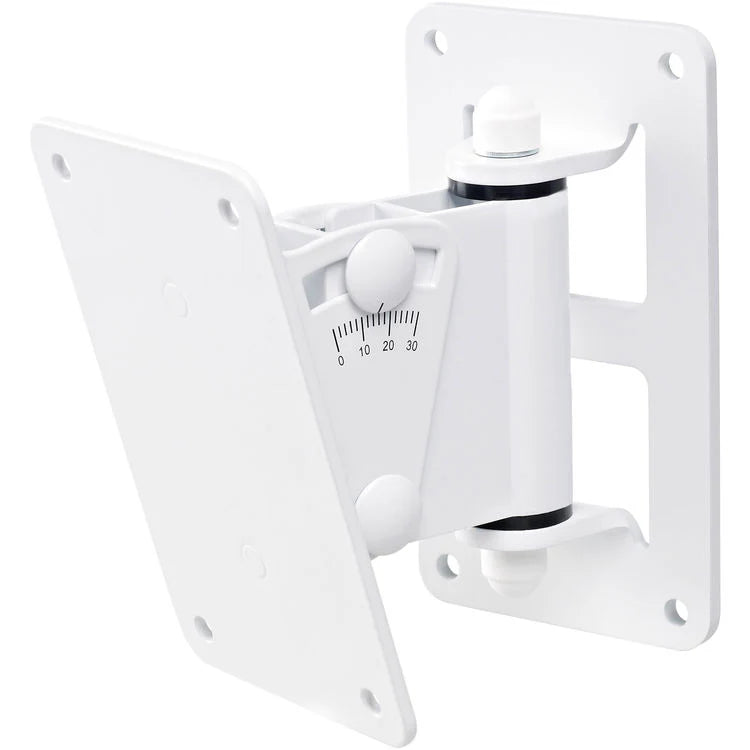

Bose Pan-and-tilt Bracket for RMU White | 738453-0210
The RMUBRKT1/WBPWR-50 are pan-and-tilt brackets that attach to the rear panel threaded inserts of all RoomMatch® Utility loudspeakers, F1 Model 812 Active and Passive loudspeakers as well as the Panaray 402 Series IV. These brackets allow both pitch and yaw adjustments to enable flexible mounting options. WBPWR-50 is outdoor rated for use with outdoor installations of the Panaray 402 Series IV loudspeaker only. Indoor installations of Panaray 402 Series IV can use either bracket. RMUBRKT1/WBPWR-50 fit the 4x M8 threaded inserts (127 x 70 mm) on the rear panel of the F1 Model 812, Panaray® 402® Series IV, RMU208, RMU206 and RMU108 models, as well as the 2x M8 threaded inserts (75 mm spacing) on the rear panel of the RMU105 model.
Key Features
Fits all RMU loudspeakers, F1 Loudspeakers, and Panaray 402 Series IV
Horizontal or vertical mounting (RMU105, vertical only)
Convenient hook-and-lock method for easy mounting
Available in indoor (RMUBRKT1) and outdoor models (WBPWR-50) -
Category Attribute Value Mechanical Angle of Inclination 0° to 30° Speaker Plate Size 15.0 × 8.8 cm (5.9” × 3.5”) Wall Plate Size 16.0 × 9.0 cm (6.3” × 3.6”) Material Steel Max Load Capacity 22.7 kg (50.0 lb) Swivel 90° rotatable speaker plate Wall Clearance 10.9 cm (4.3”) Weight 1.2 kg (2.6 lb) General Compatibility RMU208, RMU206, RMU108, RMU105, F1 Model 812, 402 Product Codes 738453-0110 / -0210 / -0120 / -0220 Orientation RMU208 (H/V) 0–30° / 0–15° pitch, ±15° / ±60° yaw RMU206 (H/V) 0–30° / 0–20° pitch, ±20° / ±50° yaw RMU108 (H/V) 0–30° / 0–25° pitch, ±20°~±30° / ±55° yaw RMU105 (V only) 0–25° pitch, ±55° yaw F1 Model 812 (H/V) 0–30° / 0–15° pitch, ±15° / ±45° yaw 402 Series IV (H/V) 0–30° pitch, ±50°~±10° / ±55° yaw -
Description Downloads Bose Pan-and-tilt Bracket for RMU White | 738453-0210 DataSheet Downloads
