Bose Panaray MA12 Modular Line Array White | 40188
SKU: 40188
£751.75 (Excl. VAT)
- Description
- Specifications
- Downloads
-

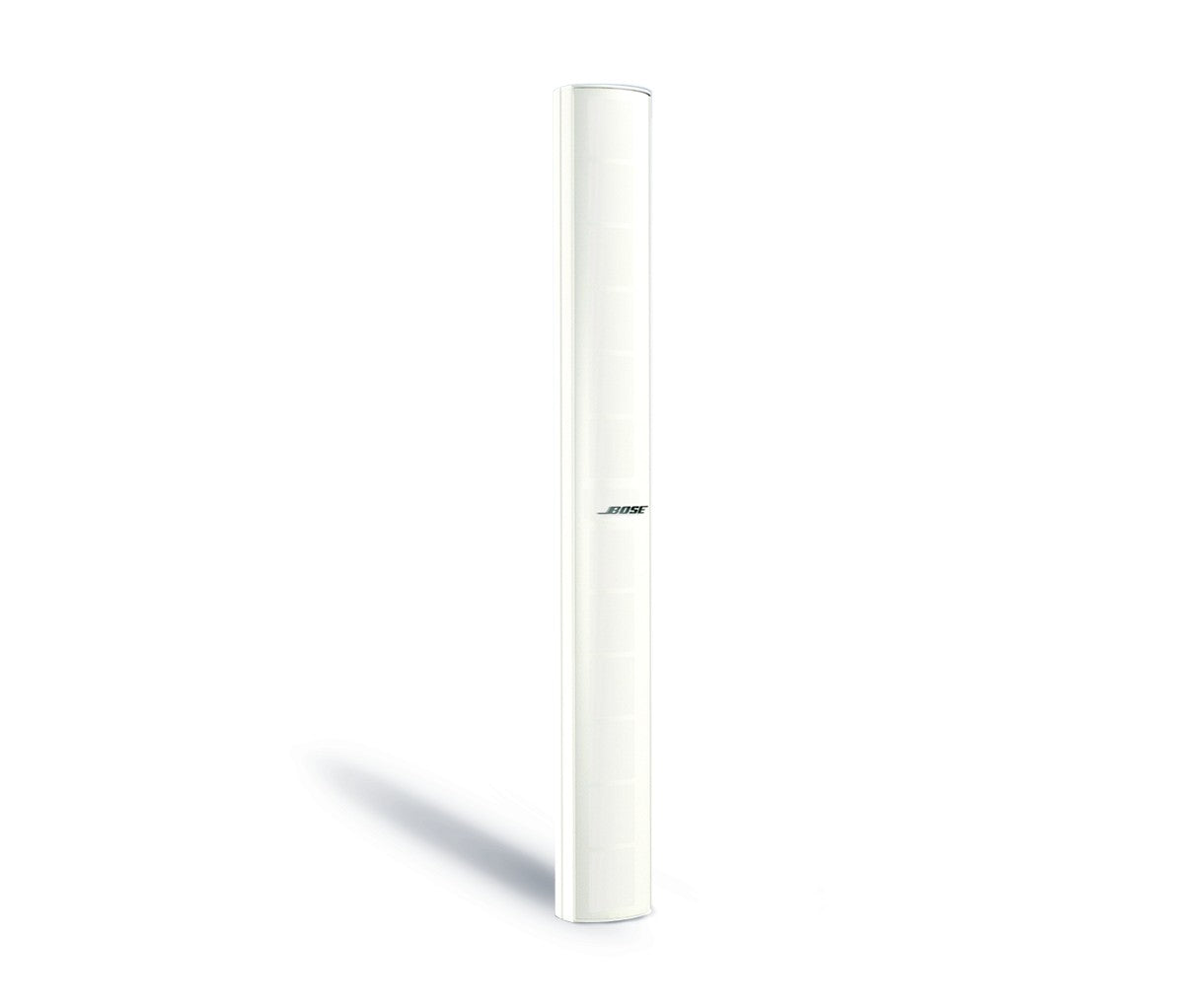

Bose Panaray MA12 Modular Line Array White | 40188
The Bose Professional MA12 mid/high frequency column array is designed to provide outstanding vocal intelligibility in acoustically demanding spaces with wide 145° horizontal coverage. The slim column enclosure blends with almost any décor. For indoor applications only.
FEATURES
Twelve 2.25-inch (64 mm) drivers mounted in a vertical line array deliver wide horizontal coverage with narrow vertical pattern control
Modular design allows stacking of multiple enclosures in a line array configuration to provide increased vertical pattern control which improves “throw” distance and reduces unwanted floor/ceiling reflections
145° horizontal × 20° nominal coverage for a single module. Vertical coverage varies with number of modules stacked in line array configuration.
Mid/high configuration allows bass management and design flexibility. Use with Bose Professional MB4, MB12, or MB24 modular bass loudspeakers for full-range reinforcement.
Optional brackets allow easy installation of single-, double- or triple-stack line array modules
Applications
Designed for a wide range of applications, including:
Houses of worship
Multi-purpose spaces
Recreation
Restaurants and bars
Auditoriums
Transportation facilities
Gymnasiums
Atriums and malls -
Category Attribute Value COMPLIANCE EN 54-24 Certified No PHYSICAL Colors Black, White Enclosure Material Aluminum & steel, powder-coated Grille Aluminum, powder-coated Mounting 4 × M6 threaded inserts Dimensions (H×W×D) 984×105×128 mm (38.8×4.2×5.0 in) Net Weight 8.5 kg (19.0 lb) PERFORMANCE Frequency Range (-10 dB) 100 Hz – 16,000 Hz Horizontal Coverage 145° Vertical Coverage 20° Max SPL @ 1 m 113 dB cont. / 119 dB peak Nominal Impedance 8 Ω Power Handling (Cont./Peak) 300 W / 1200 W Sensitivity (1W @ 1m) 88 dB Signal Processing Bose loudspeaker EQ recommended Transformer Taps (70/100V) CVT-MA12 transformer available TRANSDUCERS Driver Protection Overload protection LF Drivers 12 × 2.25" high-excursion drivers PRODUCT INFO Product Codes 040189 (Black), 040188 (White) Warranty 5 years Included Items MA12 loudspeaker, installation guide -
Description Downloads Bose Panaray MA12 Modular Line Array White | 40188 DataSheet Downloads
