Bose PowerMatch AmpLink 24-Channel Input Card | 772238-0110
SKU: 772238-0110
£179.95 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Bose PowerMatch AmpLink 24-Channel Input Card | 772238-0110

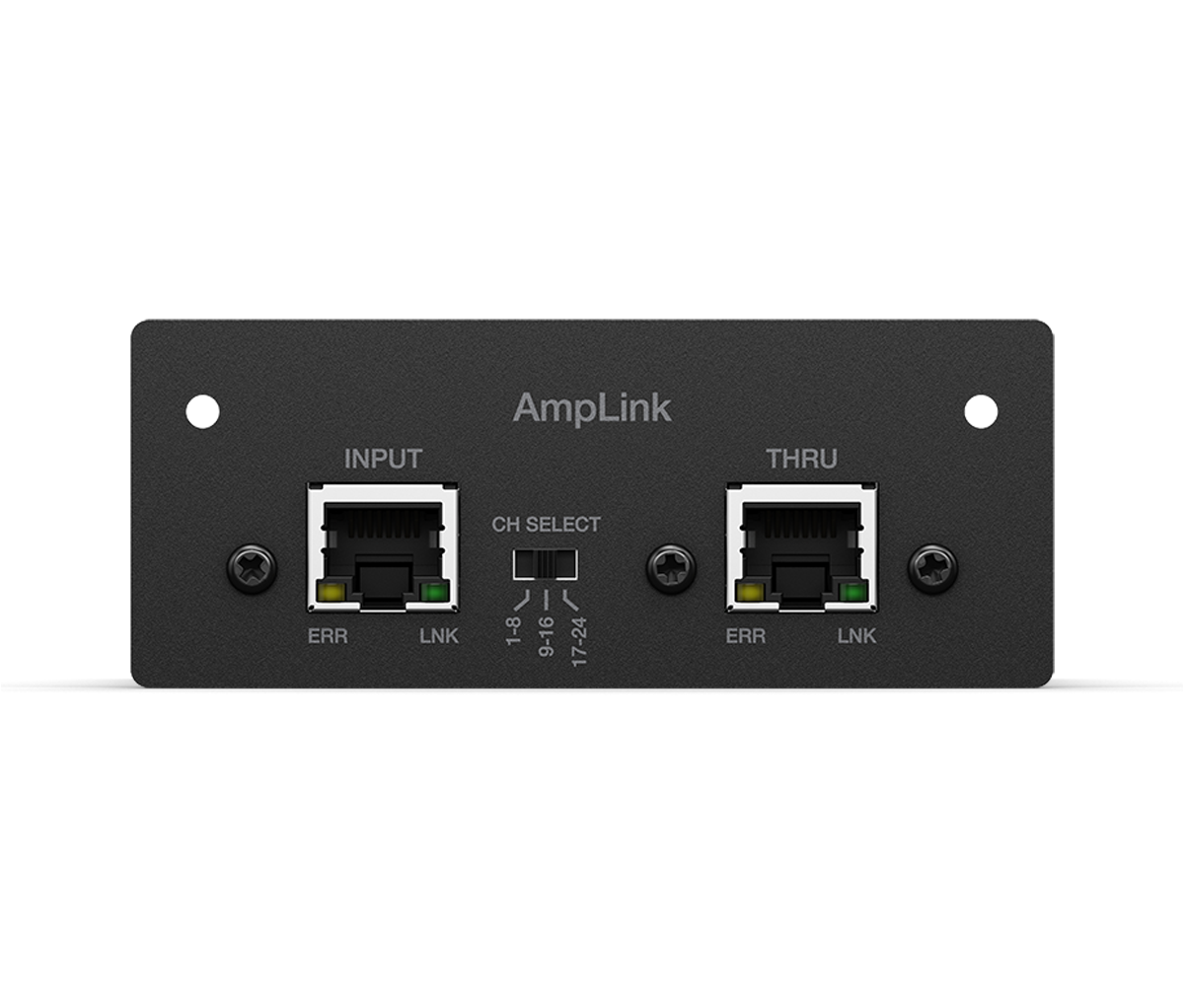

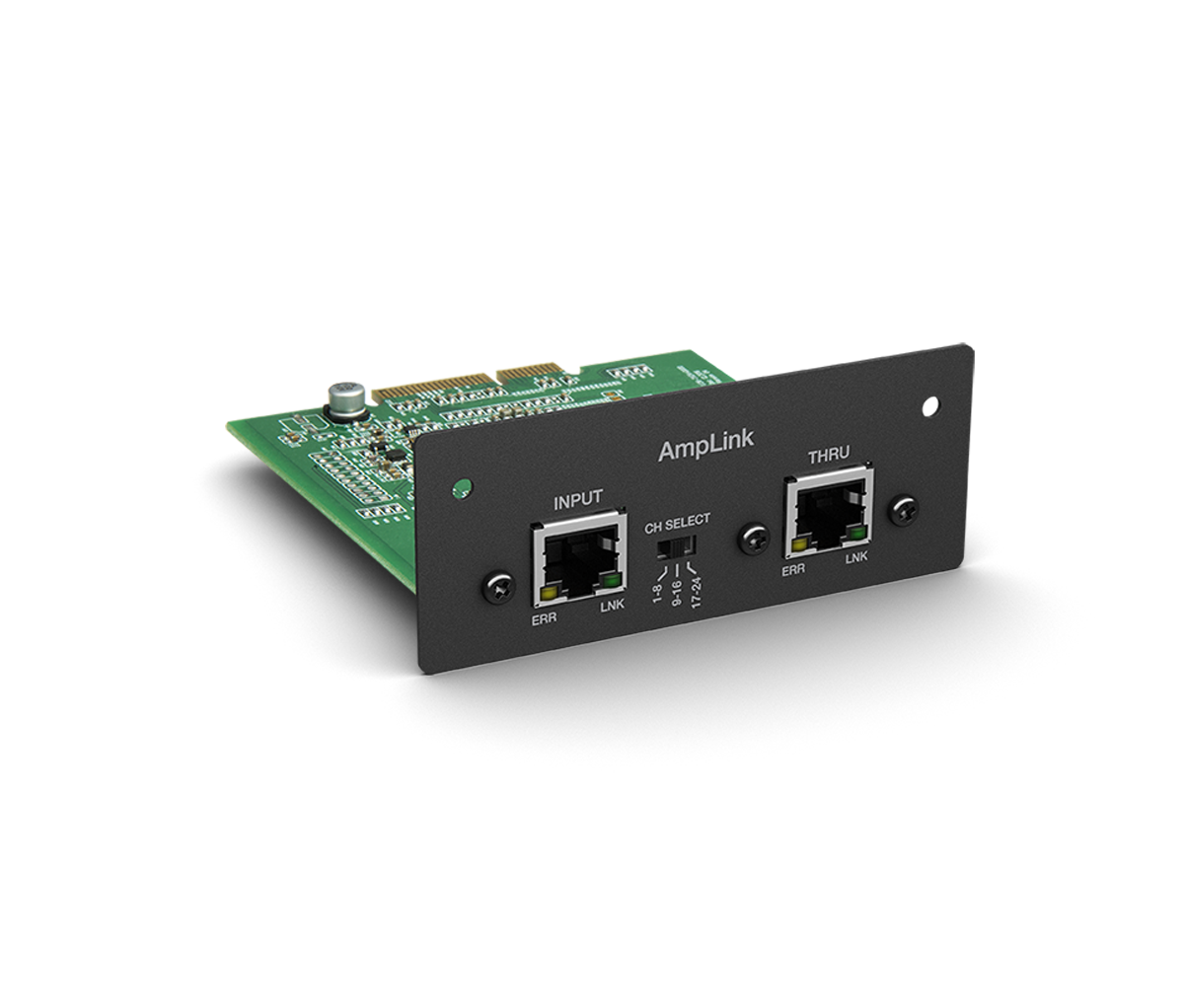

The Bose Professional AmpLink input card for PowerMatch configurable professional power amplifiers installs into the digital expansion slot to receive 24 digital audio channels from a Bose Professional DSP via a shielded Cat 5 cable. Each card includes a through connection for daisy-chaining multiple AmpLink amplifiers.
FEATURES
AmpLink 24-channel digital audio transport
Quick-connect RJ-45 connections on shielded CAT 5 cable
Thru connection to daisy-chain up to 10 m between products
3-position bank select switch chooses 8 consecutive AmpLink channels the amplifier will amplify
Each daisy-chained amplifier can choose either the same, or a different, bank of channels
AmpLink can daisy-chain up to 8 amplifiers
Any combination of AmpLink amplifiers can be daisy-chained.
Applications
Designed for a wide range of applications, including:
Performing arts venues
Hotels and conferencing facilities
Religious and worship facilities
Health clubs
Retail and shopping centers
Sports venues
Schools and universities -
Category Attribute Value AUDIO INPUTS/OUTPUTS, DIGITAL Channels 24 AmpLink in Connectors (1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru ELECTRICAL Cable Requirements Cat 5, shielded TIA/EIA 568B straight cable Maximum Cable Length 32 ft (10 m) INDICATORS AND CONTROLS LED Status Indicators (2) network speed LEDs, (2) Link/Act LEDs INTEGRATED DSP Audio Latency 24 ns, thru Sample Rate / Bit Depth 48 kHz / 24-bit PHYSICAL Colors Black Product Codes 772238-0110 Description PowerMatch AmpLink 24-channel input card Included in Packaging (1) PowerMatch expansion card, (1) installation guide -
Description Downloads Bose PowerMatch AmpLink 24-Channel Input Card | 772238-0110 DataSheet Downloads
