AMPLIFICATION |
|
Channel Separation (Crosstalk) |
> 85 dB at 1 kHz, > 65 dB at 20 kHz |
Dynamic Range |
100 dB at rated power, A-weighted |
Frequency Response |
20 Hz – 20 kHz (±0.5 dB) at 1 W |
Gain, High-Impedance |
35 dB, 70V mode / 38 dB, 100V mode |
Gain, Low-Impedance |
30.2 dB |
Maximum Peak Power, Asymmetrical |
800 W |
Maximum Peak Power, Symmetrical |
200 W |
Number of Channels |
4 |
Rated Power, Asymmetrical |
400 W |
Rated Power, Symmetrical |
100 W |
SNR |
100 dB (at rated power, A-weighted) |
THD+N |
< 0.04% at 1 kHz, 4–8 Ω, 70V/100V |
AUDIO INPUTS, ANALOG |
|
Channels |
4 balanced, line |
Connectors |
(1) 12-pin Euroblock |
Input Impedance |
20 kΩ |
Maximum Input Level |
20 dBu at 12 dBu sensitivity |
Sensitivity |
4 dBu low, 12 dBu high |
AUDIO INPUTS/OUTPUTS, DIGITAL |
|
Channels |
4 Dante in |
Connectors |
(2) RJ-45 Dante in/thru |
Type |
12-pin Euroblock |
AUDIO OUTPUTS, ANALOG |
|
Channels |
4 |
Connectors |
(1) 8-pin inverted Euroblock |
COMPLIANCE |
|
EMC |
This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment. |
ELECTRICAL |
|
Current Draw, Idle |
0.1 A at 120 VAC, 60 Hz / 0.06 A at 230 VAC, 50 Hz |
Current Draw, Inrush |
8.0 A at 120 VAC, 60 Hz / 14.1 A at 230 VAC, 50 Hz |
Mains Connector |
IEC C14 inlet |
Mains Voltage |
100–240 VAC (±10%), 50/60 Hz |
Protections |
High temperature, output short circuit, extra high frequency, excessively low/high AC line voltage |
Power Consumption |
14 W standby, 500 W maximum |
GENERAL |
|
Computer Interface Connection |
RJ-45 (Ethernet, 100 Mbps) |
Software Applications |
ControlSpace Designer 5.4 or later (Windows) |
INDICATORS AND CONTROLS |
|

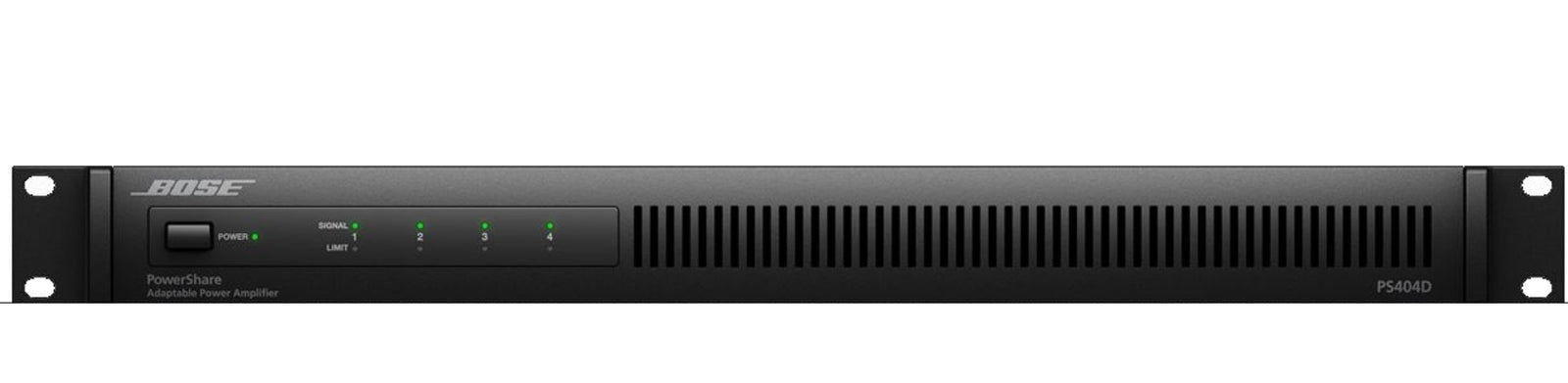

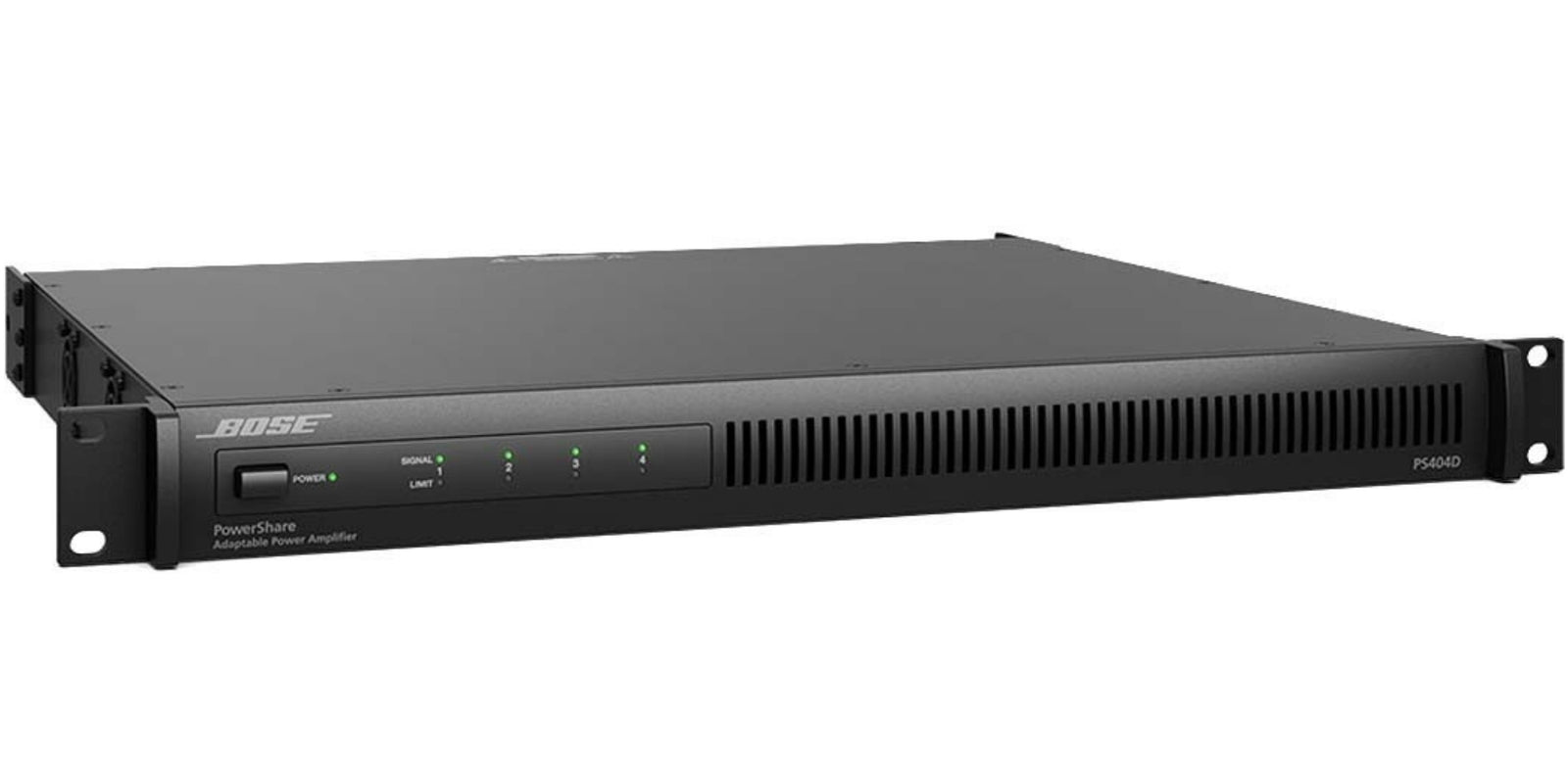

Controls, Front Panel |
(1) power button |

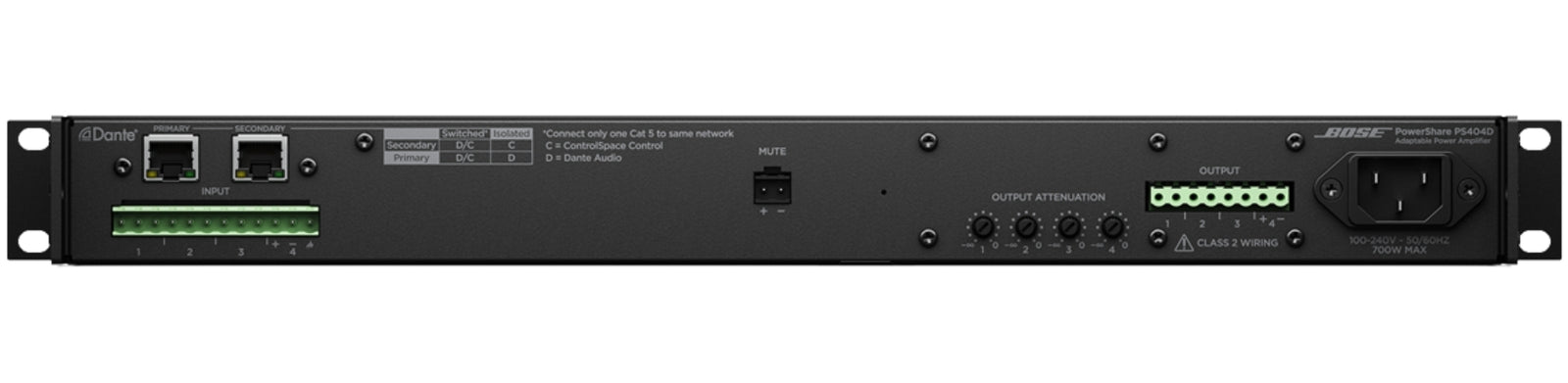

Controls, Rear Panel |
Output attenuators, mute contact |
LED Status Indicators |
(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs |
INTEGRATED DSP |
|
A/D and D/A Conversion |
48 kHz / 24-bit |
Audio Latency |
< 1 ms, analog input to analog output |
Crossover Types |
Butterworth, Bessel, or Linkwitz-Riley, up to 48 dB/octave |
Delay |
50 ms, Outputs 3–4 only |
DSP-Enabled |
Yes |
Equalization |
Input EQ: 9-band parametric EQ (±18 dB), notch, shelving, high-pass, low-pass / band-pass crossover / loudspeaker EQ: 9-band parametric EQ (±18 dB), notch, shelving |
Limiters |
Peak voltage, RMS voltage |
Presets |
Bose Professional loudspeaker presets |
Processing Functions |
Input EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, delay, band-pass, matrix mixer, mute/output polarity inversion |
PHYSICAL |
|
Colors |
Black |
Cooling System |
Microprocessor controlled, variable speed fans, left to right air flow |
Mounting/Rigging Provisions |
Rack-mounting |
Net Weight |
14.1 lb (6.4 kg) |
Product Dimensions (H×W×D) |
1.7 in × 19.0 in × 16.3 in (44 mm × 483 mm × 414 mm) |
Rack Spaces |
1 |
Shipping Weight |
17.2 lb (7.8 kg) |
