AMPLIFICATION |
|
Channel Separation (Crosstalk) |
> 80 dB at 1 kHz, > 65 dB at 20 kHz |
Dynamic Range |
≥ 100 dB at rated power, A-weighted |
Frequency Response |
20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V |
Gain, High-Impedance |
35 dB, 70V mode / 38 dB, 100V mode |
Gain, Low-Impedance |
38 dB |
Maximum Peak Power, Symmetrical |
2000 W |
Number of Channels |
2 |
Power Class |
Class D |
Rated Power, Symmetrical |
1000 W |
THD+N |
< 0.04% at 1 kHz, 4–8 Ω, 70V/100V |
AUDIO INPUTS, ANALOG |
|
Channels |
2 balanced |
Connectors |
(1) 6-pin Euroblock |
Input Impedance |
10 kΩ |
Maximum Input Level |
22 dBu at 14 dBu sensitivity |
Sensitivity |
-10 dBV, 4 dBu, 14 dBu |
AUDIO INPUTS/OUTPUTS, DIGITAL |
|
Channels |
8 AmpLink in, 8 AmpLink thru |
Connectors |
(1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru |
Type |
6-pin Euroblock |
AUDIO OUTPUTS, ANALOG |
|
Channels |
2 |
Connectors |
(1) 4-terminal block |
COMPLIANCE |
|
EMC |
This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment. |
ELECTRICAL |
|
Mains Connector |
IEC 60320-C14 inlet |
Mains Voltage |
100–240 VAC (±10%), 50/60 Hz |
Power Consumption |
25 W auto-standby, 570 W maximum |
INDICATORS AND CONTROLS |
|
Controls, Front Panel |
(1) power button |
Controls, Rear Panel |
Mute, output attenuators, DIP switches for amplifier configuration, input selector, update port, gain/sensitivity |
LED Status Indicators |
(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs |
INTEGRATED DSP |
|
DSP-Enabled |
No |
PHYSICAL |
|
Colors |
Gray |
Cooling System |
Microprocessor-controlled variable-speed fans, front-to-back air flow |
Mounting/Rigging Provisions |
Rack-mounting |
Net Weight |
14.6 lb (6.6 kg) |
Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
Product Dimensions (H×W×D) |
1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm) |
Rack Spaces |
1 |
Shipping Weight |
19.0 lb (8.6 kg) |
PRODUCT CODES |
|
803287-1110 |
120V US |
803287-2110 |
230V EU |
803287-5110 |
230V AU |
803287-4110 |
230V UK |
803287-3110 |
100V JP |
WARRANTY PERIOD |
5 years |
INCLUDED IN PACKAGING |
|
|
(1) 2-pin Euroblock connector |
|
(1) Cat 5e cable, 3.3 ft (1 m) |
|
(1) I-Share jumper |
|
(1) IEC power cord |
|
(1) installation guide |
|

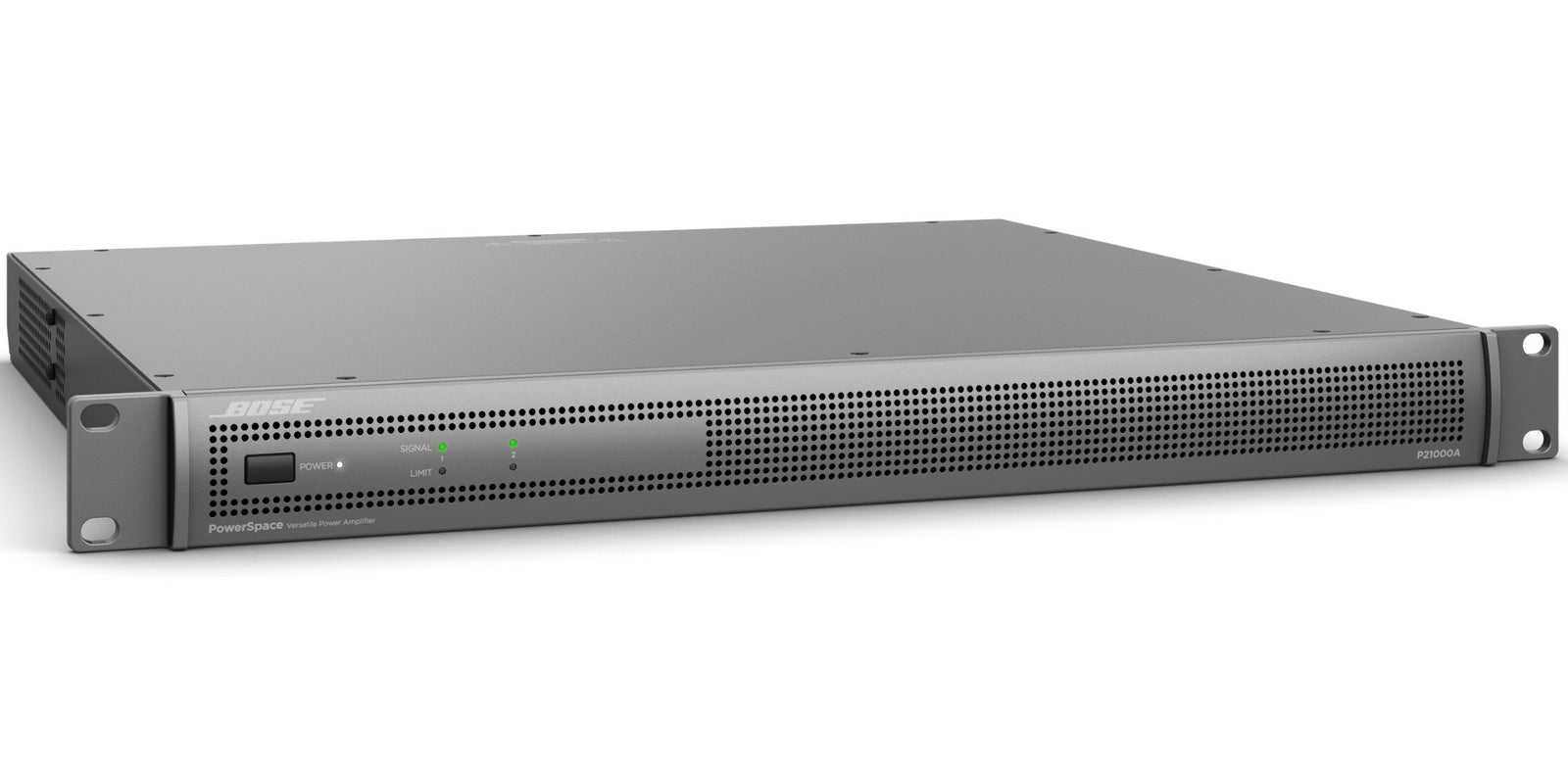

(1) PowerSpace P21000A |
|
(2) 3-pin Euroblock connectors |
|
(5) terminal forks, 14–16 AWG |
