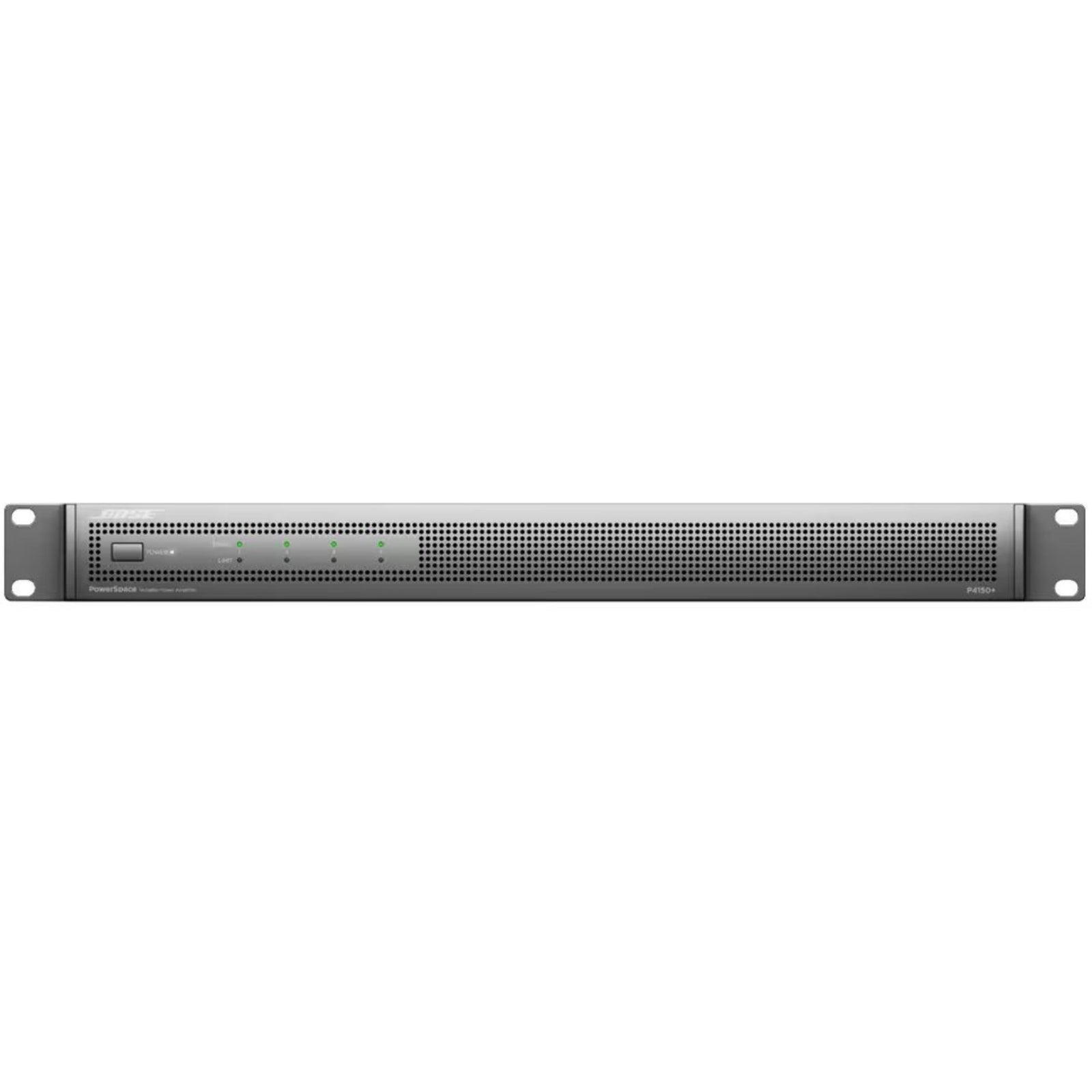

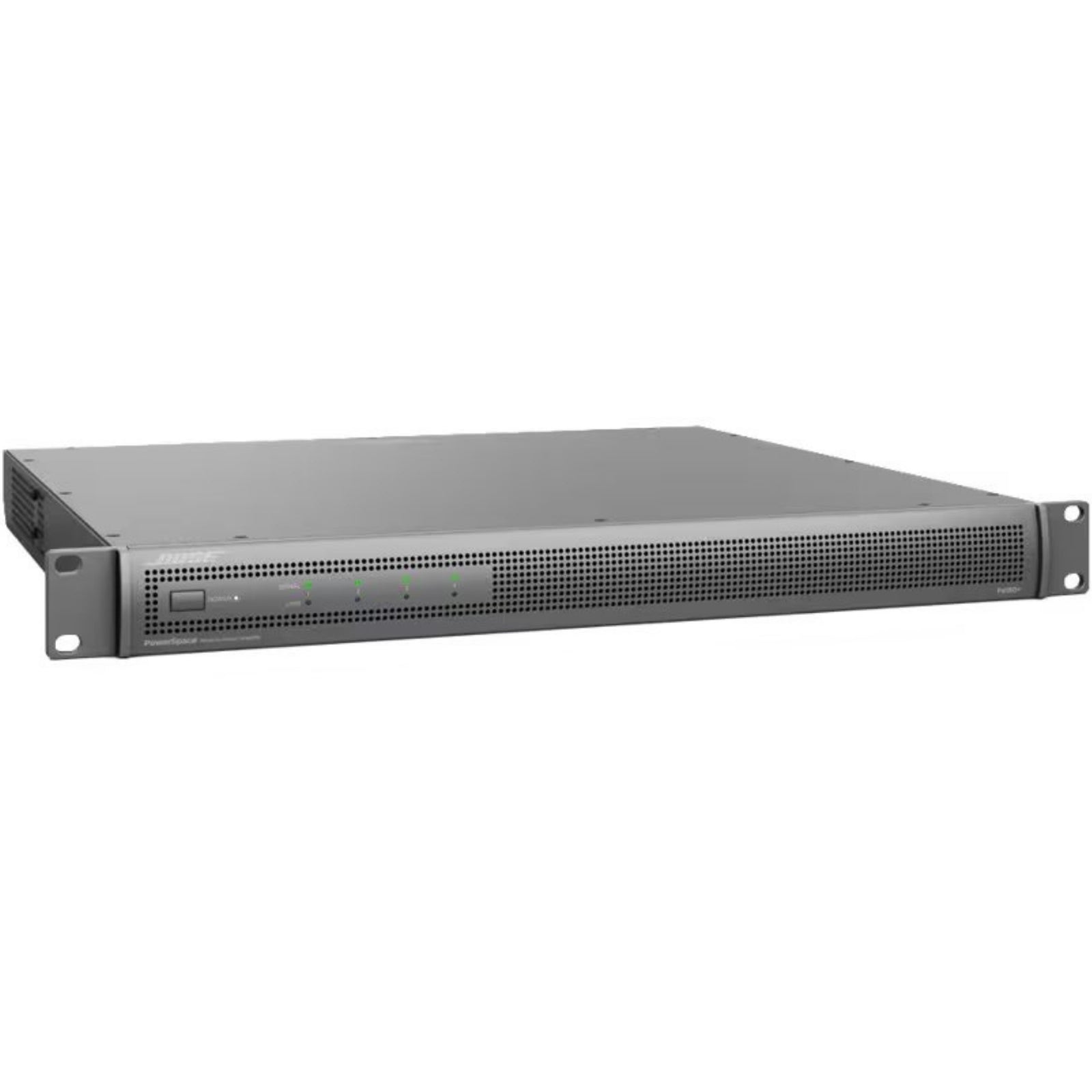

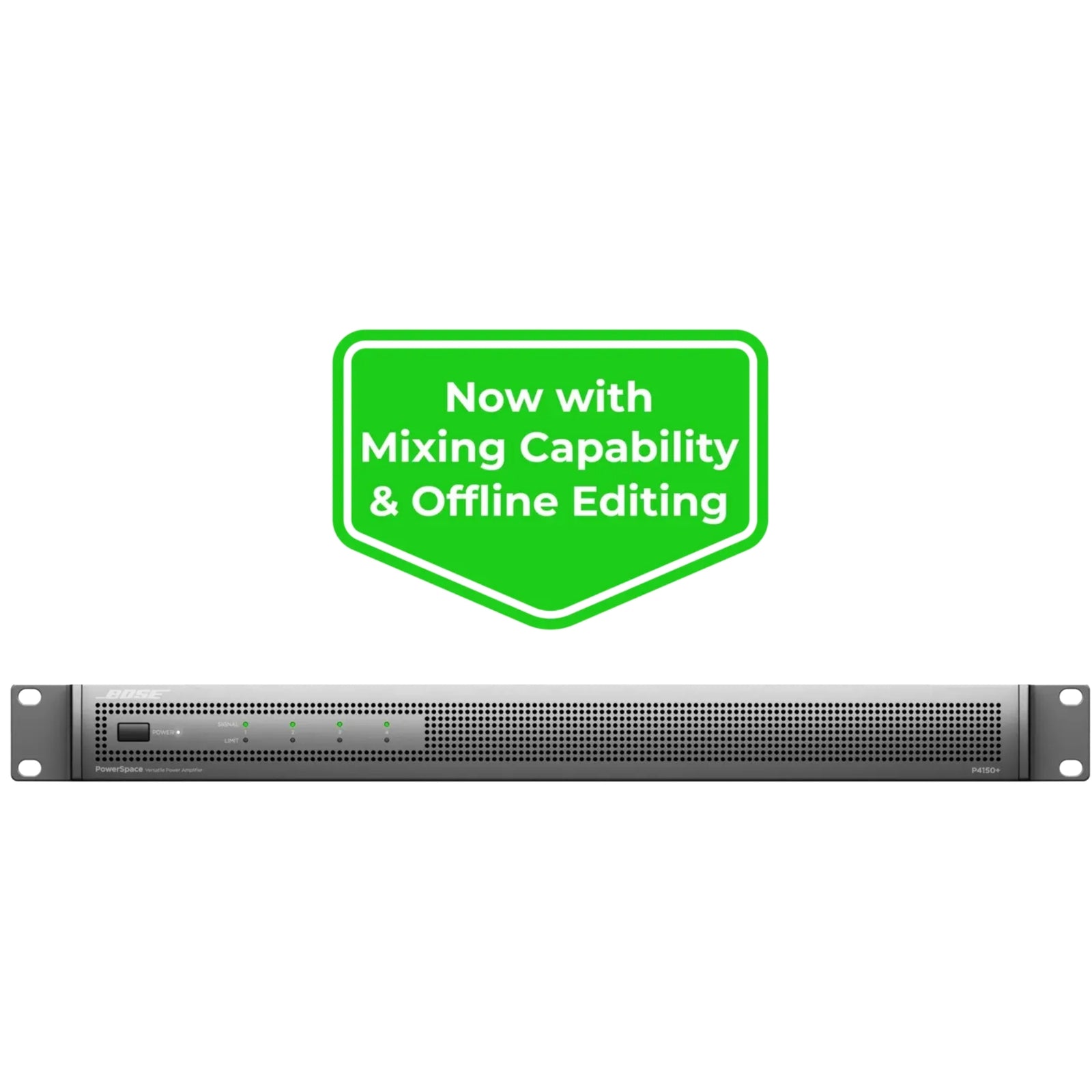

BOSE PowerSpace P4150+ Versatile Power Amplifier | 810965-2110
SKU: 810965-2110
£1,826.43 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Bose PowerSpace P4150+ 4‑Channel 150W Power Amplifier with Built‑In DSP – SmartBass, AmpLink, Paging & I‑Share Output
The Bose Professional PowerSpace P4150+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose Professional PowerSpace+ amplifiers feature a quick-setup workflow. An onboard configuration utility and intuitive browser-based UI present common tasks in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, proprietary algorithms offer predictable performance while optional interfaces — such as ControlCenter analog zone controllers — make operation easy for end users. For premium commercial applications, Bose Professional PowerSpace+ models provide amplification and DSP in one integrated, easy-to-configure package.
FEATURES
150 watts per channel and works seamlessly with Bose Professional loudspeakers and controls to create complete commercial sound systemsBuilt-in DSP, including SmartBass processing, routing, level control, delays, limiters, Bose Professional loudspeaker EQs, plus input and area EQs
PowerSpace configuration utility facilitates setup with an integrated webserver and intuitive browser-based UI, including real-time control with signal and thermal monitoring
Opti-Voice paging provides a smooth transition between music and announcements
Integrated features to simplify commercial installations: Dedicated input for 600 Ω telephone or mic paging, independent 600 Ω music-on-hold and line-level aux outputs, and a NO/NC mute connection
Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging
I-Share outputs deliver 2x power level by combining the current of two channels
Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns
Intuitive end-user operation — optional ControlCenter CC-1, CC-2, and CC-3 analog zone controllers provide easy volume control and source selection
Applications
Designed for a wide range of applications, including:Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones
-

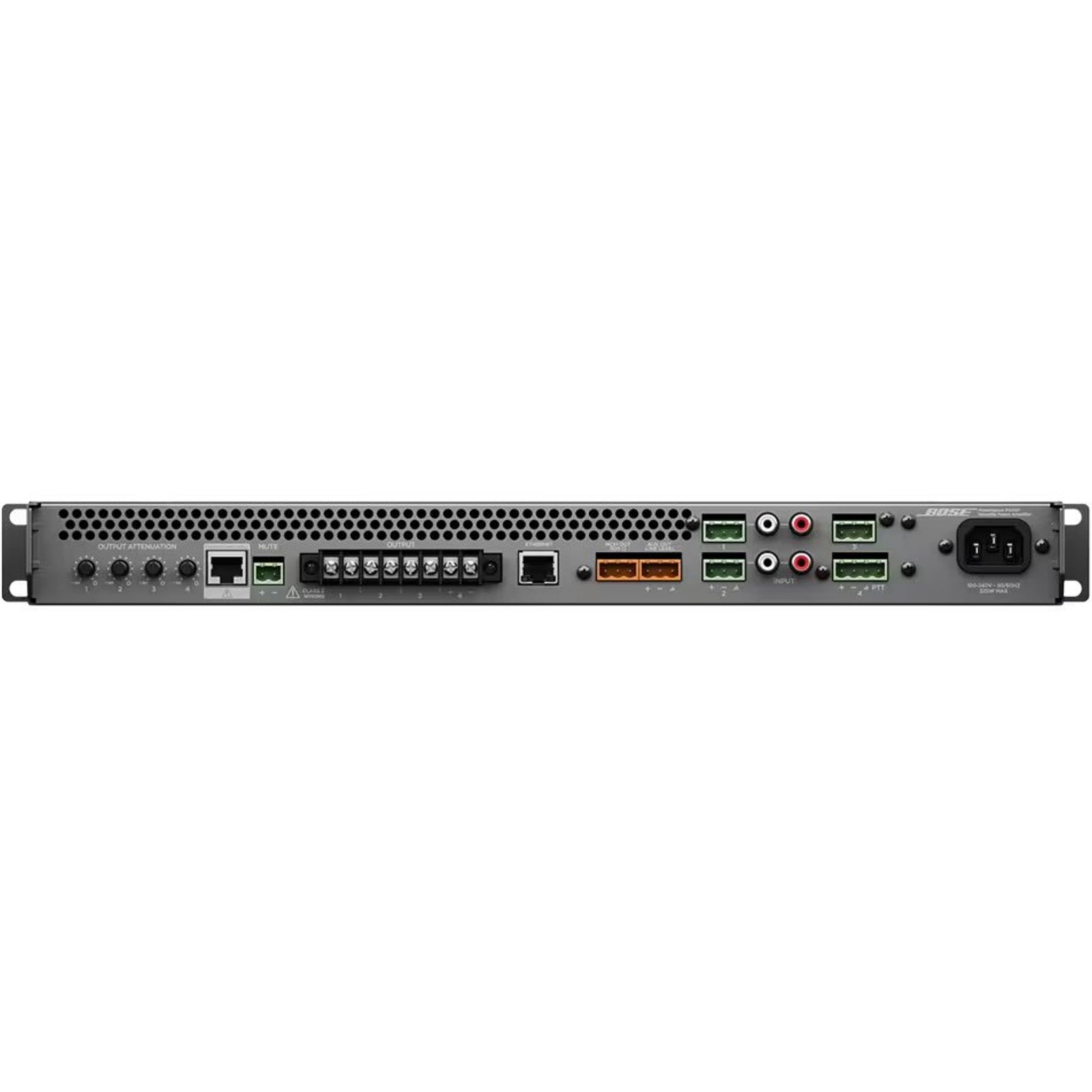

Feature Description Channel Separation > 80 dB at 1 kHz, > 65 dB at 20 kHz Dynamic Range ≥ 100 dB at rated power, A-weighted Gain (High-Impedance) 35 dB (70V) / 38 dB (100V) Gain (Low-Impedance) 29 dB Max Peak Power 300 W Frequency Response 20 Hz – 20 kHz (±1 dB) Number of Channels 4 Power Class Class D Rated Power 150 W THD+N < 0.04% at 1 kHz Analog Inputs 4 balanced, 2 unbalanced Connectors (Inputs) (3) 3-pin Euroblock, (1) 4-pin Euroblock, (2) RCA stereo pairs Input Impedance 10 kΩ Max Input Level 22 dBu at 14 dBu sensitivity Sensitivity -10 dBV, 4 dBu, 14 dBu Analog Outputs 6 (4 loudspeaker + 2 auxiliary) Connectors (Outputs) (1) 8-terminal block, (1) 3-pin Euroblock line EMC Meets EN55103-2 immunity requirements Mains Connector IEC C14 inlet Mains Voltage 100–240 VAC (±10%), 50/60 Hz AC Power Consumption 25 W standby, 325 W max System Requirements Google Chrome 64+, Firefox Quantum 58+, IE 11+, Edge 38+ Software PowerSpace+ Configuration Utility (web browser) Computer Interface RJ-45 Ethernet Front Panel Controls Power LED, input signal LED, output limit LED Rear Panel Controls RJ-45 remote input, mute, output attenuators LED Indicators Power/status, 4 input signal LEDs, 4 output limit LEDs DSP-Enabled Yes Delay 2 s Equalization Input 3-band EQ, loudspeaker 9-band PEQ, area 7-band PEQ Crossover Types Butterworth 6, 12, 18, 24 dB/octave Converters 48 kHz / 24-bit A/D and D/A Latency < 1 ms analog in to loudspeaker out Limiters Peak voltage, RMS voltage Presets Bose Professional loudspeaker presets Color Gray Cooling Variable-speed fans, front-to-back airflow Mounting Rack-mount, 1RU Operating Temp 0 °C to 40 °C (32 °F to 104 °F) Dimensions (H×W×D) 1.7 × 19.0 × 16.5 in (44 × 483 × 420 mm) Net Weight 14.6 lb (6.6 kg) Shipping Weight 19.0 lb (8.6 kg) Product Codes 810965-1110: 120V US
810965-2110: 230V EU
810965-5110: 230V AU
810965-4110: 230V UK
810965-3110: 100V JPWarranty 5 years Included in Packaging (1) 2-pin Euroblock connector
(1) 4-pin Euroblock connector
(2) I-Share jumpers
(10) terminal forks, 14–16 AWG
(5) 3-pin Euroblock connectors
(1) IEC power cord
(1) installation guide
(1) PowerSpace P4150+ -
Description Downloads BOSE PowerSpace P4150+ Versatile Power Amplifier | 810965-2110 DataSheet Downloads BOSE PowerSpace P4150+ Versatile Power Amplifier | 810965-2110 User Guide Downloads BOSE PowerSpace P4150+ Versatile Power Amplifier | 810965-2110 Installation Guide Downloads
