AMPLIFICATION |
|
Channel Separation (Crosstalk) |
> 80 dB at 1 kHz, > 65 dB at 20 kHz |
Dynamic Range |
≥ 100 dB at rated power, A-weighted |
Frequency Response |
20 Hz – 20 kHz (±1 dB) at 1 W, 4–8 Ω / 20 Hz – 20 kHz (±1 dB) at 1 W with 50 Hz high-pass filter, 70/100V |
Gain, High-Impedance |
35 dB, 70V mode / 38 dB, 100V mode |
Gain, Low-Impedance |
32 dB |
Maximum Peak Power, Symmetrical |
600 W |
Number of Channels |
4 |
Power Class |
Class D |
Rated Power, Symmetrical |
300 W |
THD+N |
< 0.04% at 1 kHz, 4–8 Ω, 70V/100V |
AUDIO INPUTS, ANALOG |
|
Channels |
4 balanced, 2 unbalanced |
Connectors |
(3) 3-pin Euroblock, (1) 4-pin Euroblock, (2) RCA stereo pairs |
Input Impedance |
10 kΩ |
Maximum Input Level |
22 dBu at 14 dBu sensitivity |
Sensitivity |
-10 dBV, 4 dBu, 14 dBu |
AUDIO OUTPUTS, ANALOG |
|
Channels |
6 (4 loudspeaker + 2 auxiliary) |
Connectors |
(1) 8-terminal block, (1) 3-pin Euroblock, line |
COMPLIANCE |
|
EMC |
This product meets all EN55103-2 immunity requirements for E2 electromagnetic environment. |
ELECTRICAL |
|
Mains Connector |
IEC C14 inlet |
Mains Voltage |
100–240 VAC (±10%), 50/60 Hz |
Power Consumption |
25 W auto-standby, 570 W maximum |
GENERAL |
|
Computer Interface Connection |
RJ-45 (Ethernet) |
Software Applications |
PowerSpace+ Configuration Utility (web browser) |
System Requirements |
Google Chrome 64.0.3282.140 or later / Mozilla Firefox Quantum 58.0.2 or later / Microsoft Internet Explorer 11.2007.14393.0 or later / Microsoft Edge 38.14393.1066.0 or later |
INDICATORS AND CONTROLS |
|

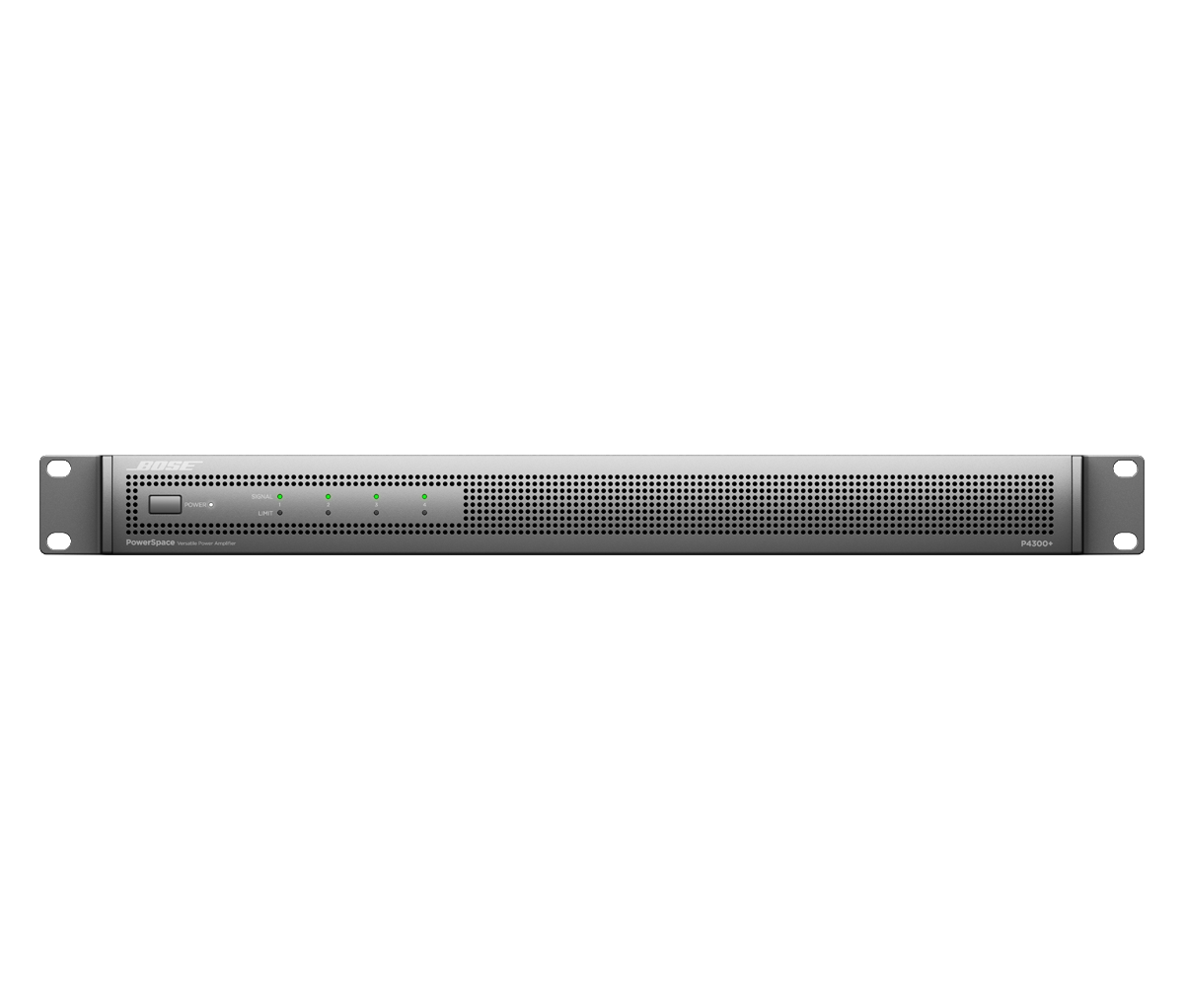

Controls, Front Panel |
(1) power LED, (1) input signal LED, (1) output limit LED |
Controls, Rear Panel |
RJ-45 remote input for ControlCenter CC-1, CC-2 and CC-3 zone controllers, mute, output attenuators |
LED Status Indicators |
(1) power/status LED, (4) input signal LEDs, (4) output limit LEDs |
INTEGRATED DSP |
|
A/D and D/A Conversion |
48 kHz / 24-bit |
Audio Latency |
< 1 ms, analog input to analog loudspeaker output |
Crossover Types |
Butterworth 6 (±6 dB/octave), Butterworth 12 (±12 dB/octave), Butterworth 18 (±18 dB/octave), Butterworth 24 (±24 dB/octave) |
Delay |
2 s |
DSP-Enabled |
Yes |
Equalization |
Input: 3-band EQ, paging / Loudspeaker: 9-band PEQ (±20 dB), notch, shelving, high-pass, low-pass, low-frequency compensation / Area : 7-band PEQ (±20 dB), notch, shelving, high-pass, low-pass |
Limiters |
Peak voltage, RMS voltage |
Presets |
Bose Professional loudspeaker presets |
Processing Functions |
Input EQ, loudspeaker EQ, peak voltage limiter, RMS voltage limiter, ControlCenter configuration, matrix mixer, mute/output polarity inversion |
PHYSICAL |
|
Colors |
Gray |
Cooling System |
Microprocessor-controlled variable-speed fans, front-to-back air flow |
Mounting/Rigging Provisions |
Rack-mounting |
Net Weight |
14.6 lb (6.6 kg) |
Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F) |
Product Dimensions (H×W×D) |
1.7 in × 19.0 in × 16.5 in (44 mm × 483 mm × 420 mm) |
Rack Spaces |
1 |
Shipping Weight |
19.0 lb (8.6 kg) |
PRODUCT CODES |
|
803289-1110 |
120V US |
803289-2110 |
230V EU |
803289-5110 |
230V AU |
803289-4110 |
230V UK |
803289-3110 |
100V JP |
WARRANTY PERIOD |
5 years |
INCLUDED IN PACKAGING |
|
|
(1) 2-pin Euroblock connector |
|
(1) 4-pin Euroblock connector |
|
(1) IEC power cord |
|
(1) installation guide |
|

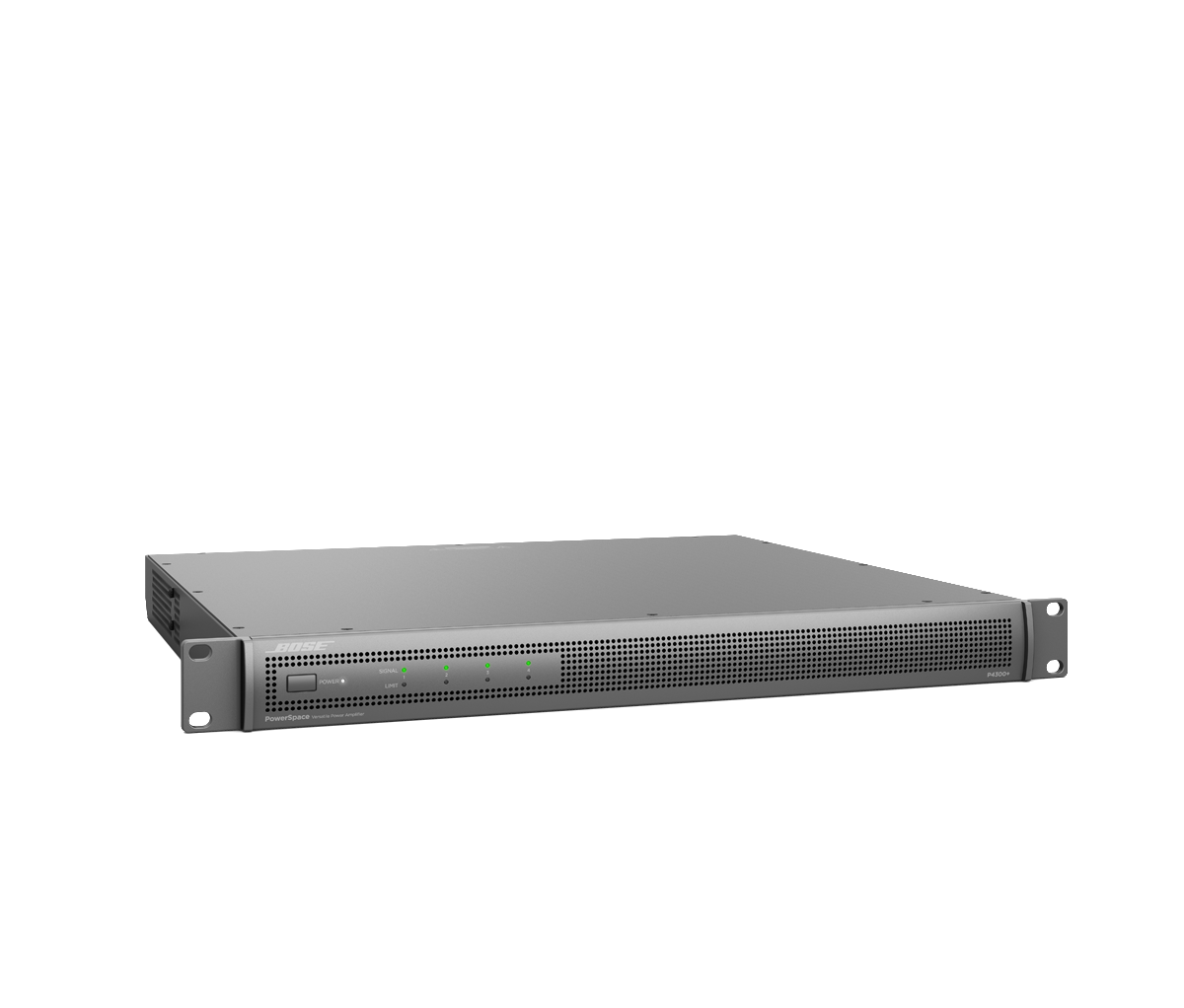

(1) PowerSpace P4300+ |
|
(10) terminal forks, 14–16 AWG |
|
(2) I-Share jumpers |
|
(5) 3-pin Euroblock connectors |
