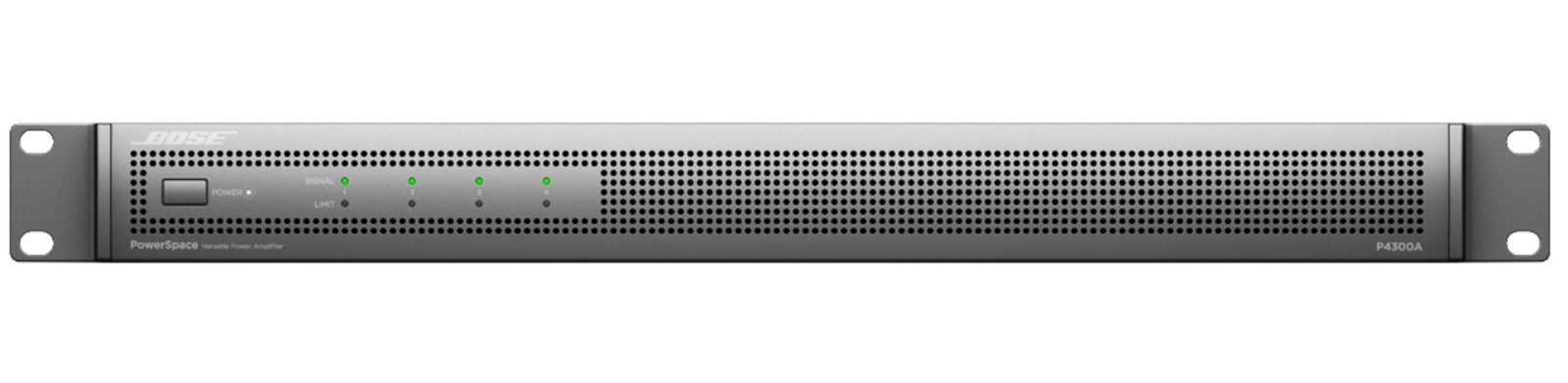

Ideal for zone-expansion applications, Bose Professional PowerSpace amplifiers enhance any premium commercial sound installation with clean, reliable power — and digital connectivity. A Bose Professional AmpLink input allows for multiple channels of uncompressed, low-latency digital audio from Bose Professional DSPs via a single Cat 5 cable. The PowerSpace P4300A provides 300 watts per channel and features versatile outputs that give you the flexibility to deliver full channel power to either low- or high-impedance loads — without bridging — and even send double power to a single zone. For premium commercial applications, PowerSpace amplifiers provide the power and performance to get the job done — pure and simple.
FEATURES
300 watts per channel and works seamlessly with loudspeakers, DSPs, and controls to create complete commercial sound systems
AmpLink input for simplified multichannel digital audio connection to compatible DSPs, reducing terminations and related points of failure
Load-independent outputs deliver full channel power to either low-impedance loads (4-8 Ω) or high-impedance (70/100V) loads without bridging
I-Share outputs deliver 2x power level by combining the current of two channels
Auto-standby mode saves power when audio signal falls below a set threshold, then wakes when audio returns
Applications
Designed for a wide range of applications, including:
Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones
| Feature | Description |
|---|---|
| Channel Separation | > 80 dB at 1 kHz, > 65 dB at 20 kHz |
| Dynamic Range | ≥ 100 dB at rated power, A-weighted |
| Gain (High-Impedance) | 35 dB (70V) / 38 dB (100V) |
| Gain (Low-Impedance) | 32 dB |
| Max Peak Power | 600 W |
| Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| Number of Channels | 4 |
| Power Class | Class D |
| Rated Power | 300 W |
| THD+N | < 0.04% at 1 kHz |
| Analog Input Channels | 4 balanced |
| Analog Input Connectors | (2) 6-pin Euroblock |
| Input Impedance | 10 kΩ |
| Max Input Level | 22 dBu at 14 dBu sensitivity |
| Sensitivity | -10 dBV, 4 dBu, 14 dBu |
| Digital Channels | 8 AmpLink in / 8 AmpLink thru |
| Digital Connectors | (1) RJ-45 AmpLink in / (1) RJ-45 AmpLink thru |
| Analog Output Channels | 4 |
| Analog Output Connectors | (1) 8-terminal block |
| EMC | Meets EN55103-2 immunity requirements |
| Mains Connector | IEC 60320-C14 inlet |
| Mains Voltage | 100–240 VAC (±10%), 50/60 Hz |
| AC Power Consumption | 25 W standby, 570 W max |
| Front Panel Controls | Power button |
| Rear Panel Controls | Mute, attenuators, DIP switches, input selector, gain |
| LED Indicators | Power/status, input signal, output limit |
| DSP | No |
| Color | Gray |
| Cooling | Variable-speed fans, front-to-back airflow |
| Mounting | Rack-mount, 1RU |
| Operating Temp | 0 °C to 40 °C (32 °F to 104 °F) |
| Dimensions (H×W×D) | 1.7 × 19.0 × 16.5 in (44 × 483 × 420 mm) |
| Net Weight | 14.6 lb (6.6 kg) |
| Shipping Weight | 19.0 lb (8.6 kg) |
| Product Codes | 803288-1110: 120V US 803288-2110: 230V EU 803288-5110: 230V AU 803288-4110: 230V UK 803288-3110: 100V JP |
| Warranty | 5 years |
| Included in Packaging | (1) 2-pin Euroblock connector (2) I-Share jumpers (10) terminal forks, 14–16 AWG (1) Cat 5e cable, 1 m (4) 3-pin Euroblock connectors (1) PowerSpace P4300A (1) installation guide (1) IEC power cord |
| Description | Downloads |
|---|---|
| BOSE PowerSpace P4300A Versatile Power Amplifier | 803288-2110 DataSheet | Downloads |
| BOSE PowerSpace P4300A Versatile Power Amplifier | 803288-2110 Installation Guide | Downloads |
