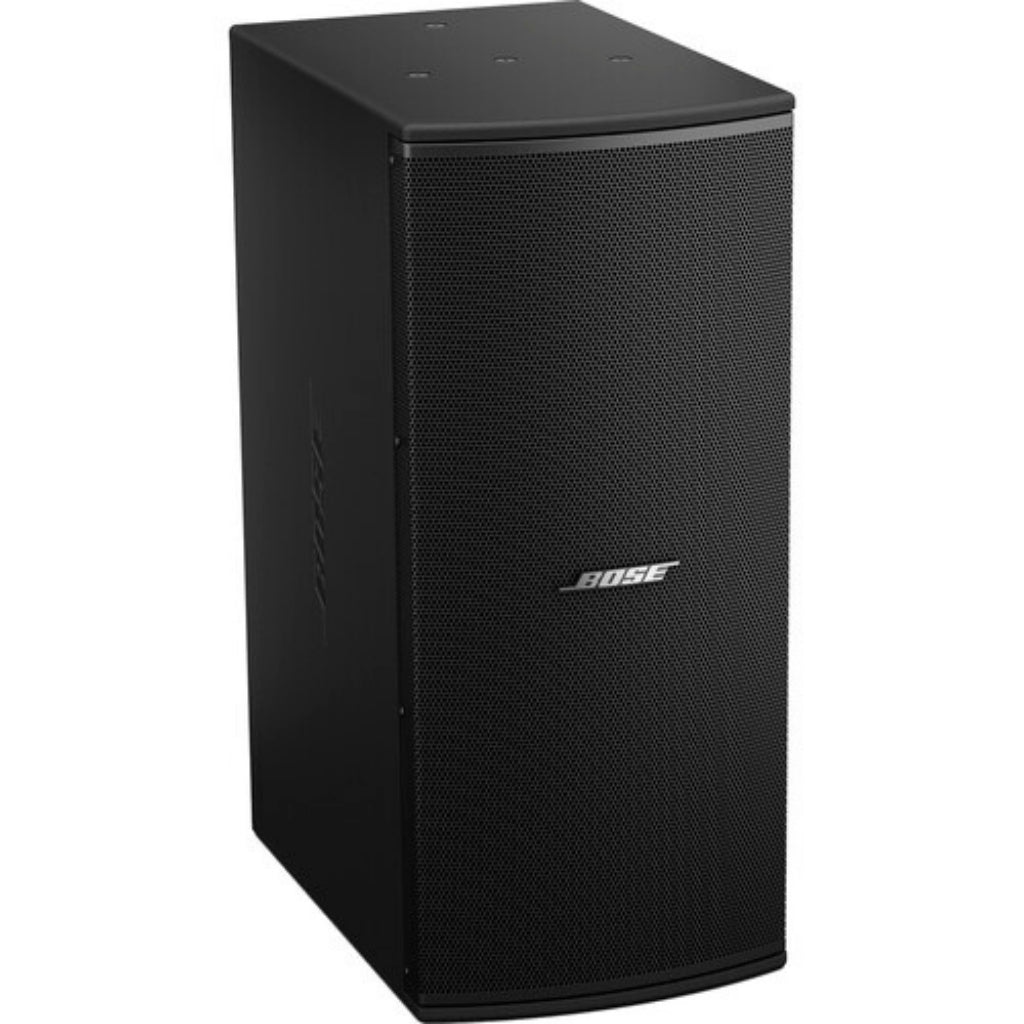

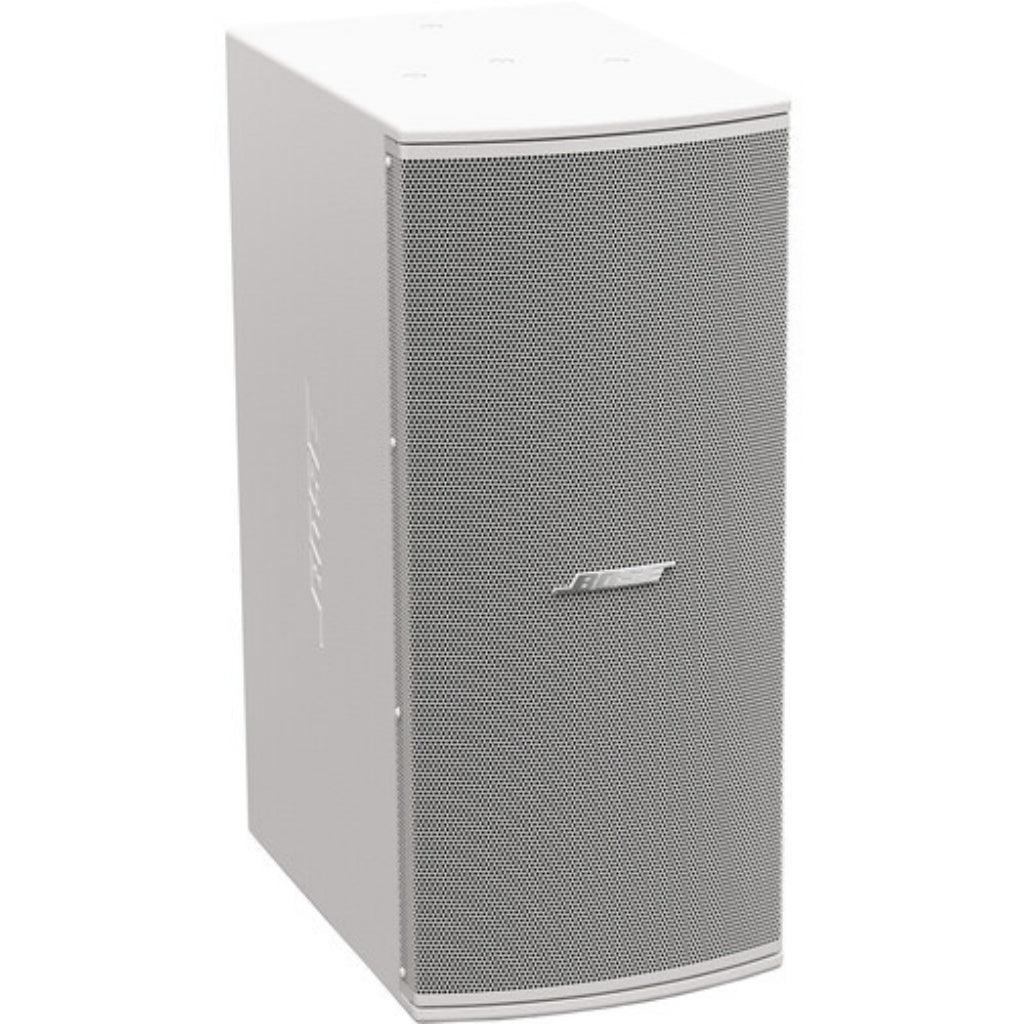

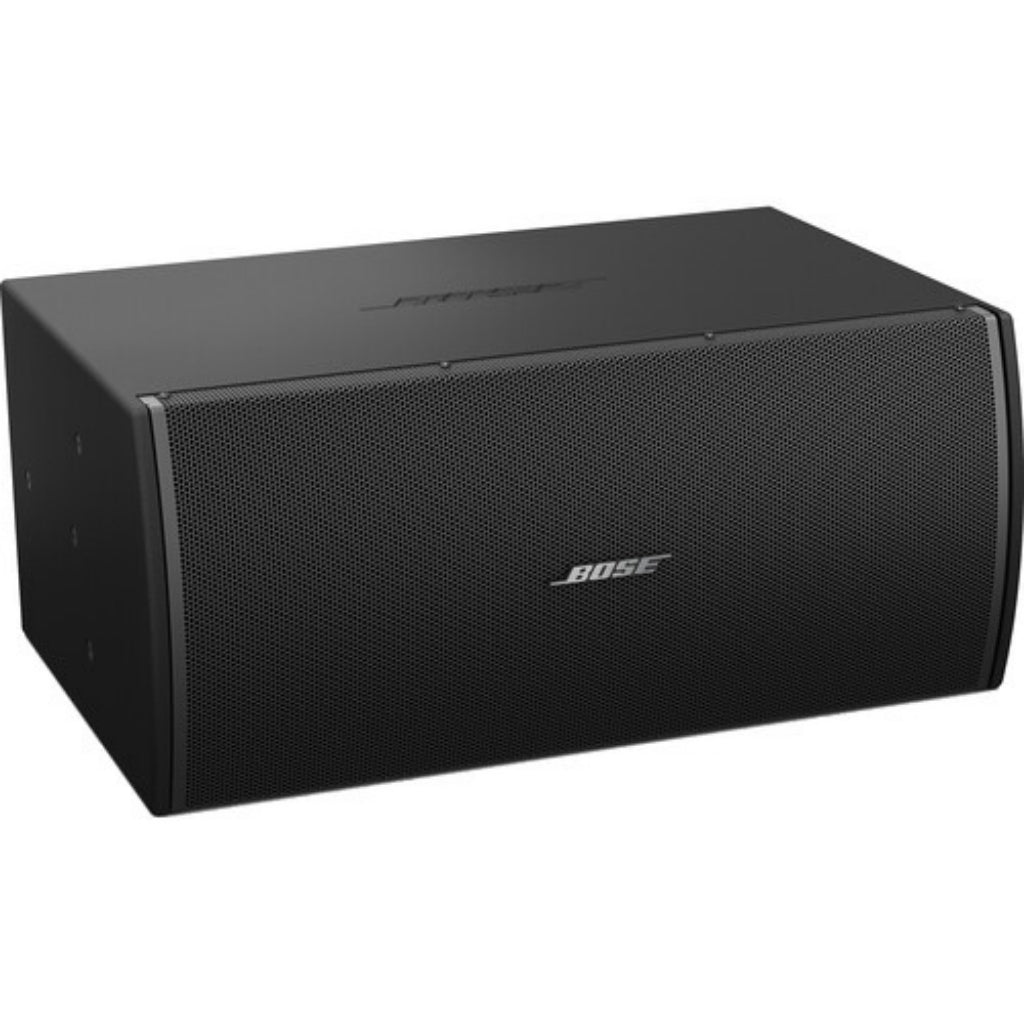

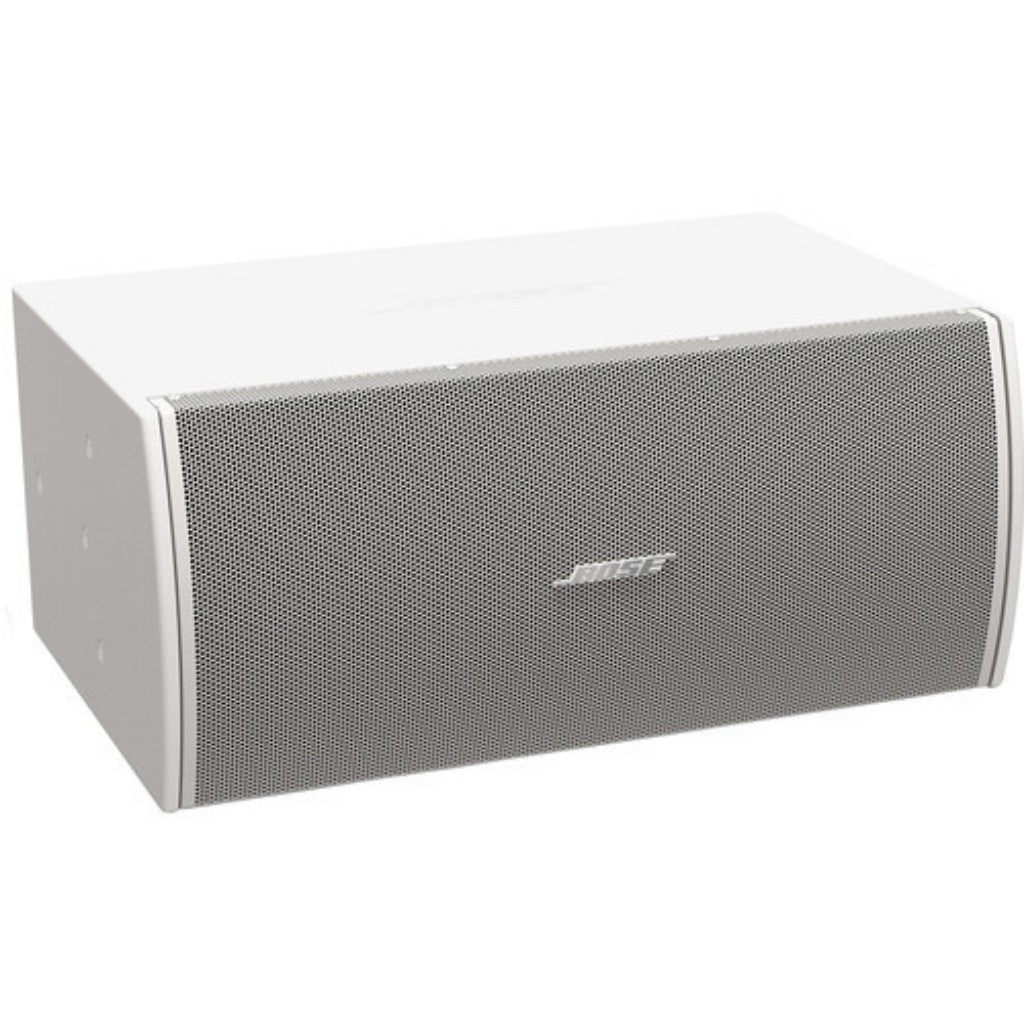

Bose Professional MB210-WR compact subwoofers are designed for outdoor installations of background/foreground music and small sound-reinforcement systems that require low-frequency extension down to 37 Hz. The MB210-WR subwoofer features two 10-inch high-excursion woofers, derived from the award-winning F1 subwoofer, in a compact, exterior-grade plywood enclosure optimized for outdoor, fixed-installation applications. Featuring outstanding performance to size ratio, the MB210-WR is designed to complement Bose Professional loudspeaker lines in outdoor applications — such as ArenaMatch Utility, Panaray, DesignMax, and Freespace — with additional bass impact.
FEATURES
2 × 10-inch high-excursion woofers for high-output bass in a compact enclosure. Transducers derived from award-winning F1 portable, powered subwoofer.
500 W long-term power handling for high sound output and reliability
Low-frequency extension down to 37 Hz for impactful, deep-bass music reinforcement
123 dB maximum continuous SPL, 129 dB peak SPL
Exterior-grade plywood enclosure with compact size for installations
Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant coating on woofer cone, industrial polyurea exterior coating, and molded cover to protect inputs

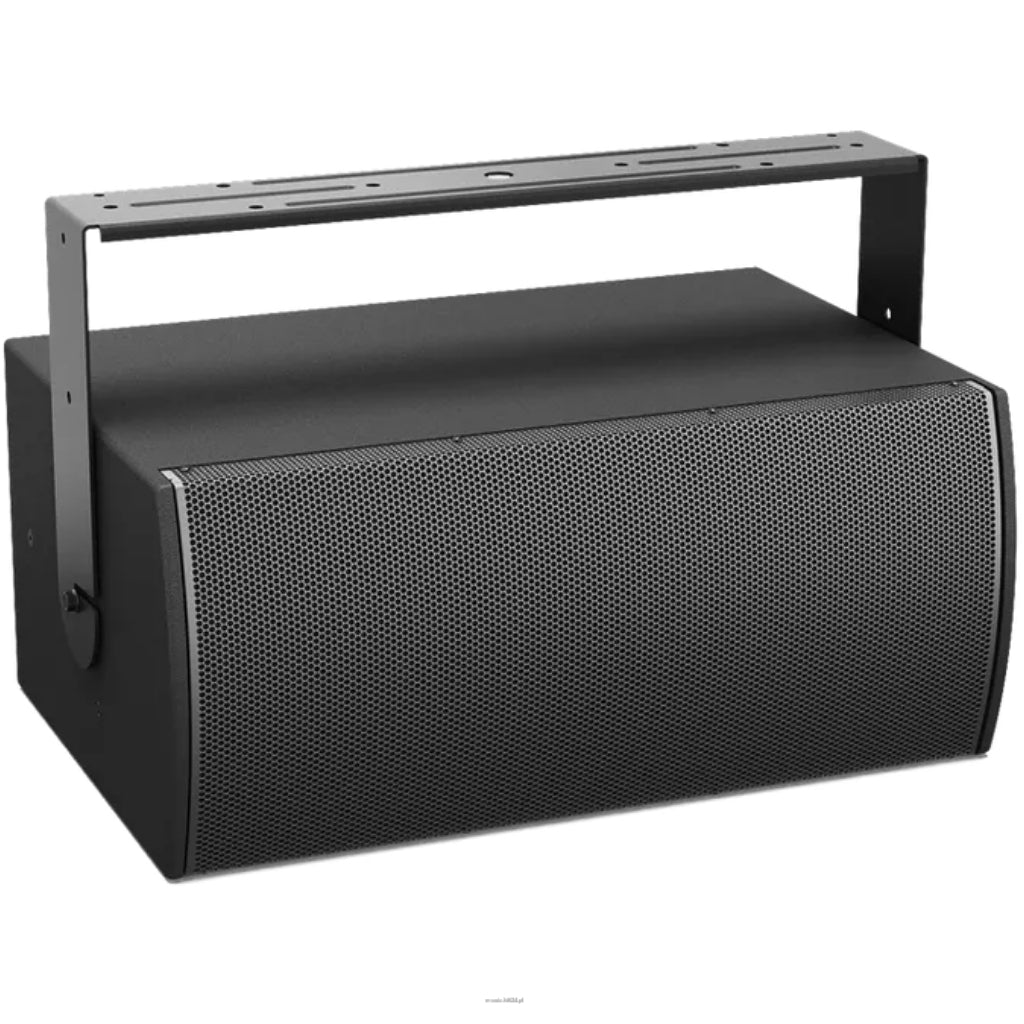

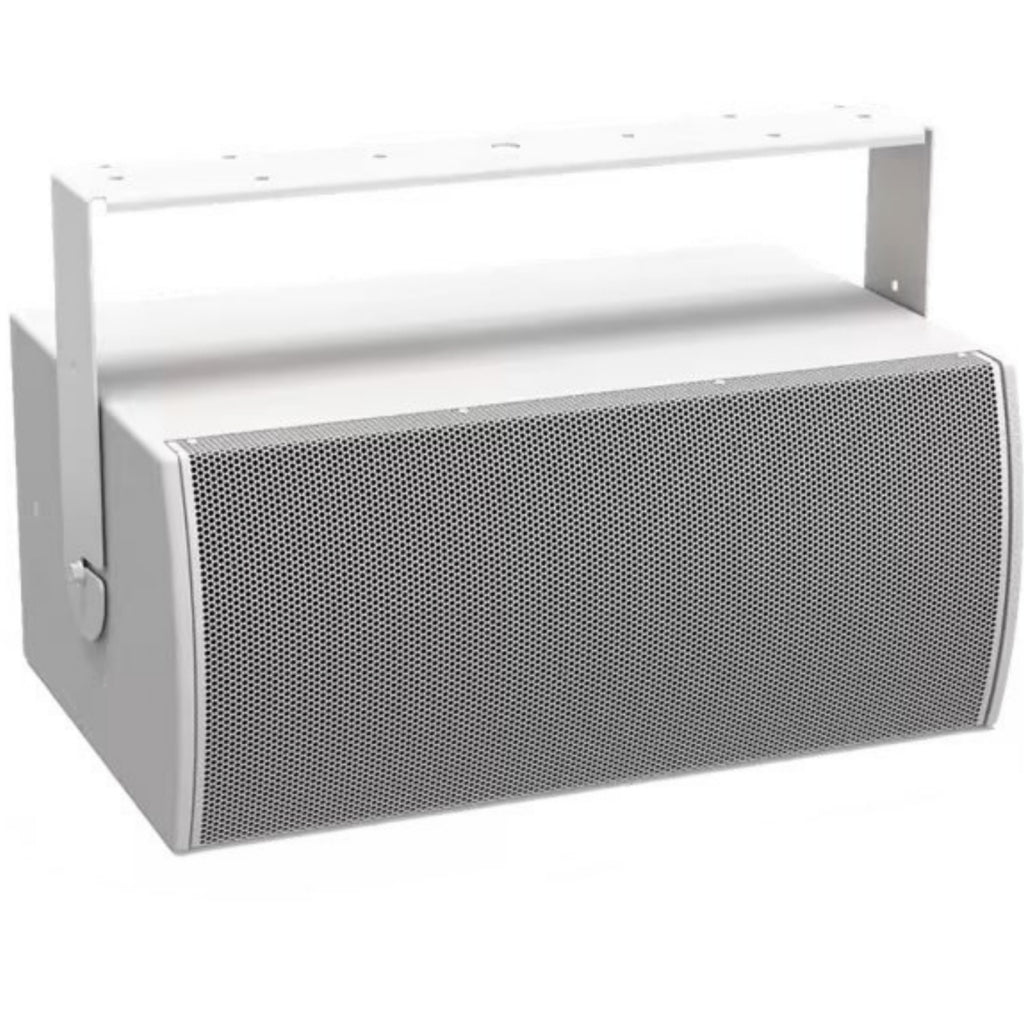

U-bracket included for easy mounting to walls or ceilings
Applications
Designed for a wide range of applications, including:
Houses of worship
Multi-purpose spaces
Recreation
Restaurants and bars
Auditoriums
Transportation facilities
Gymnasiums
Atriums and malls
| Feature | Description |
|---|---|
| EN 54-24 Certified | No |
| Colors | Black, White |
| Enclosure Material | Exterior-grade plywood |
| Environmental | Direct-exposure outdoor installations (IEC 60529: IP55) |
| Grille | 3 layers: perforated stainless steel, acoustic foam, stainless-steel mesh, powder-coated finish |
| Ingress Protection | IP55 |
| Mounting | 3 × M8 threaded inserts for U-bracket (per side) |
| Dimensions (H×W×D) | 11.5 × 26.0 × 19.1 in (291 × 659 × 484 mm) |
| Net Weight | 42.8 lb (19.4 kg) |
| Frequency Range (-10 dB) | 37 Hz – 180 Hz |
| Coverage (H) | Omnidirectional below 200 Hz |
| Max SPL @ 1 m | 117 dB (free field), 123 dB (wall/ceiling) continuous / 123 dB (free field), 129 dB (wall/ceiling) peak |
| Nominal Impedance | 8 Ω |
| Power Handling (Continuous) | 500 W |
| Power Handling (Peak) | 2000 W |
| Recommended Amplification | 500 W – 2000 W |
| Sensitivity | 90 dB (free field), 96 dB (wall/ceiling) |
| Coverage (V) | Omnidirectional below 200 Hz |
| Low-Frequency Drivers | 2 × 10 in (254 mm) high-excursion woofers |
| Product Codes | 811432-0110: Black 811432-0210: White |
| Warranty | 5 years |
| Included in Packaging | (1) Installation guide (1) U-bracket (4) M8 screws (4) M4 screws (1) Input cover (1) T3 square drive (1) MB210-WR (4) Rubber washers |
| Description | Downloads |
|---|---|
| Bose Professsional MB210-WR Outdoor Subwoofer DataSheet | Downloads |
| Bose Professsional MB210-WR Outdoor Subwoofer Installation Guide | Downloads |
