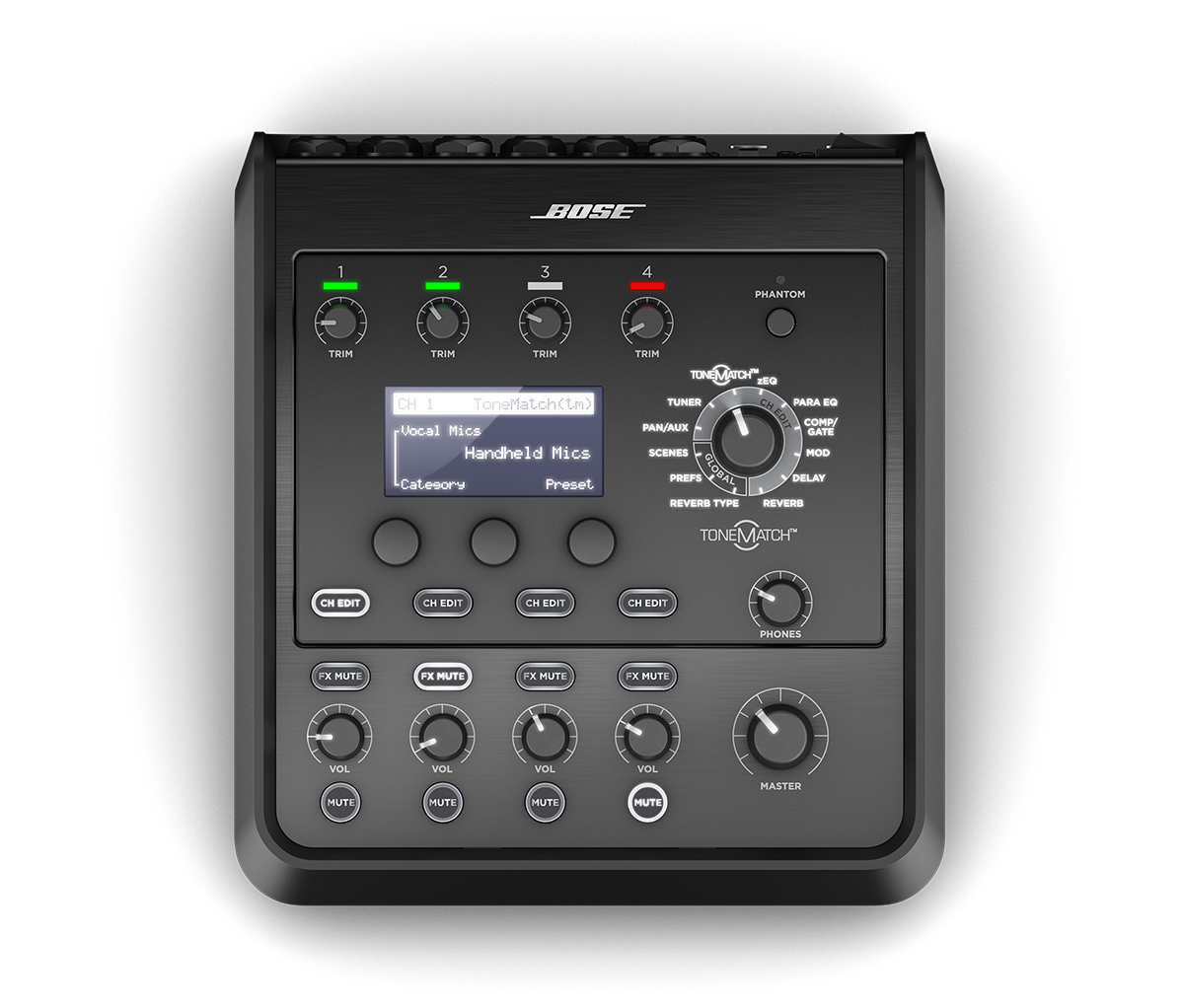

BOSE T4S ToneMatch 4 Channels Audio Mixer | 785403-0110
Take control of your music with the T4S ToneMatch mixer, an ultra-compact 4-channel interface designed for performers. Engineered with a powerful DSP engine and intuitive user control, the T4S offers studio-quality EQ, dynamics and effects. Sound great with integrated Bose ToneMatch processing and zEQ, especially when connected to a Bose L1 or F1 system for full end-to-end tonal control. Play confidently on stage with the rugged T4S using its tactile controls, easy-to-read LED display and scene recall. The T4S, a true performer’s companion.
FEATURES
Powerful Audio Processing
Updated, studio-quality effects with advanced digital audio processing
High-quality effects include compressor, limiter, de-esser, noise gate, chorus, flanger, phaser, tremolo, delay and reverb
Bose ToneMatch processing for natural-sounding vocals and instruments
zEQ focuses the sound of ToneMatch presets for effective adjustments on the fly
Independent ToneMatch, EQ, dynamics and effects per channel
Dedicated reverb on Aux 1 send, and a global shared reverb for use across all channels
Master output EQ helps compensate for venue acoustics
Full end-to-end tonal optimization when used with Bose L1 and F1 systems
Seamless Live Control
Tactile controls and indicators designed for live, on-stage use
Fast-learning user interface
Built-in tap tempo delay, chromatic tuner, and recallable scenes
LED display and illuminated controls are easy to read and use, even on dimly-lit stages

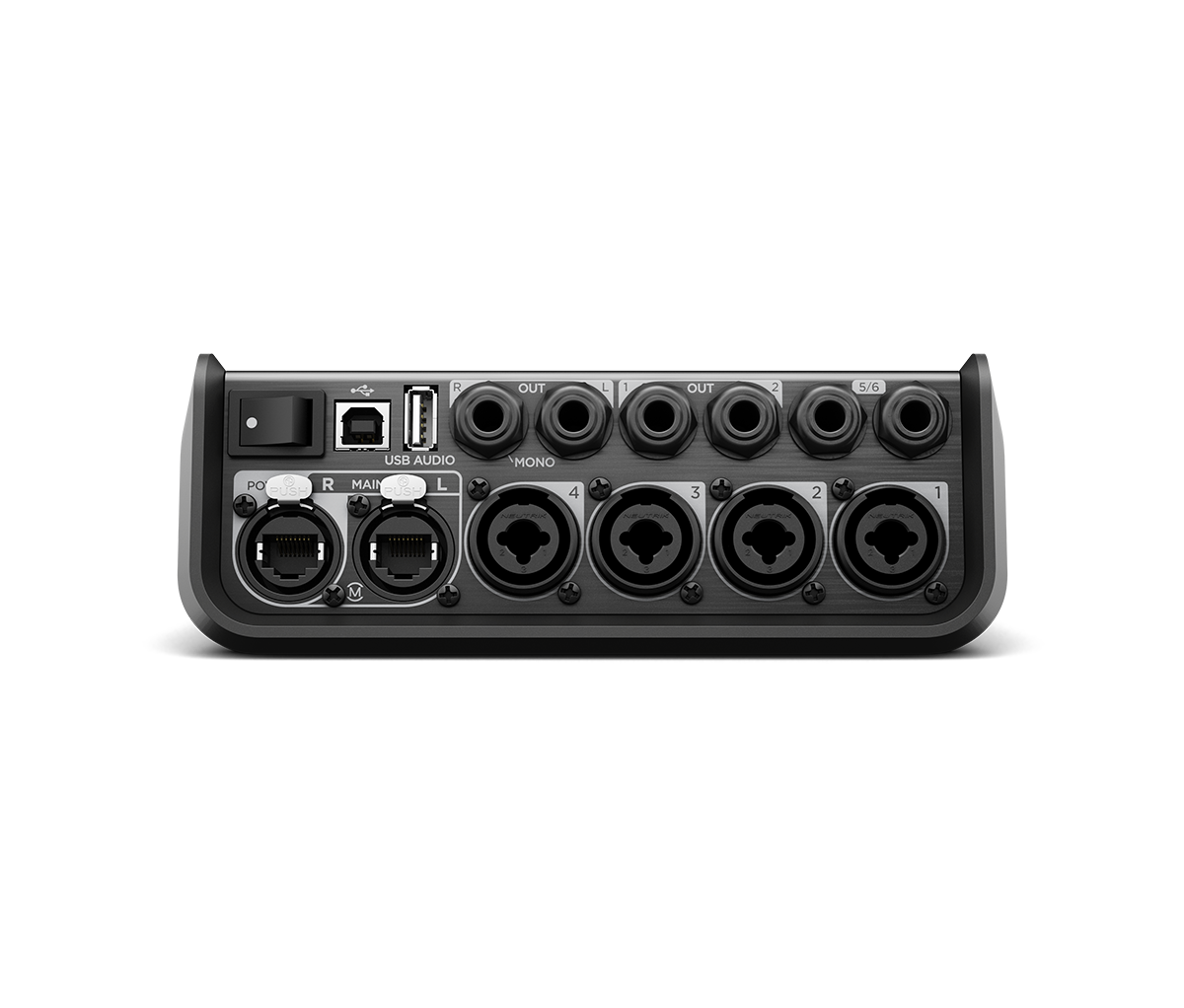

High-Density Connectivity
Unprecedented connectivity and control in a small digital stereo mixer
Four high-quality audio preamps with XLR-combo jacks for microphones or instruments, and switchable phantom power
Two ToneMatch outputs for digital audio and power
Two Aux sends, and Two Aux inputs for additional sources
USB-A and -B for USB drive playback or PC/Mac interfacing
Independent headphone and balanced 1/4-inch; TRS stereo outputs
Convenient Gig-Ready Features
Rugged enclosure with a protective magnetic cover to protect controls and connectors
Includes a ToneMatch cable for connecting to a Bose L1 PRO system for digital audio and power
Bottom insert allows you to use standard mounting accessories to keep your T4S within reach
Applications
Designed for a wide range of applications, including:
Corporate AV
General purpose PA
Live streaming
Mobile DJs
Singer/songwriters
| Category | Attribute | Value |
|---|---|---|
| AUDIO INPUTS | Input Channels | 4 XLR combo, 2 × 1/4" TRS |
| Phantom Power | 48 VDC (all channels) | |
| AUDIO OUTPUTS | Channels | 4 balanced line outputs |
| GENERAL | USB Interface | USB Type-B |
| DISPLAY | Screen Type | OLED |
| DSP | Equalization | 3-band EQ |
| DSP-Enabled | Yes | |
| Presets | Bose factory & user presets | |
| Sample Rate / Bit Depth | 48 kHz / 24-bit | |
| PHYSICAL | Colors | Black |
| Dimensions (H×W×D) | 8.4 × 7.3 × 3.3 in (214 × 184 × 83 mm) | |
| Net Weight | 2.1 lb (1.0 kg) | |
| PRODUCT CODE | 785403-0110 (T4S ToneMatch Mixer) | |
| INCLUDED ITEMS | (1) ToneMatch Mixer & Cover | |
| (1) ToneMatch Cable |
| Description | Downloads |
|---|---|
| BOSE T4S ToneMatch 4 Channels Audio Mixer | 785403-0110 Quick Start Guide | Downloads |
